Stationary Windows Component Views

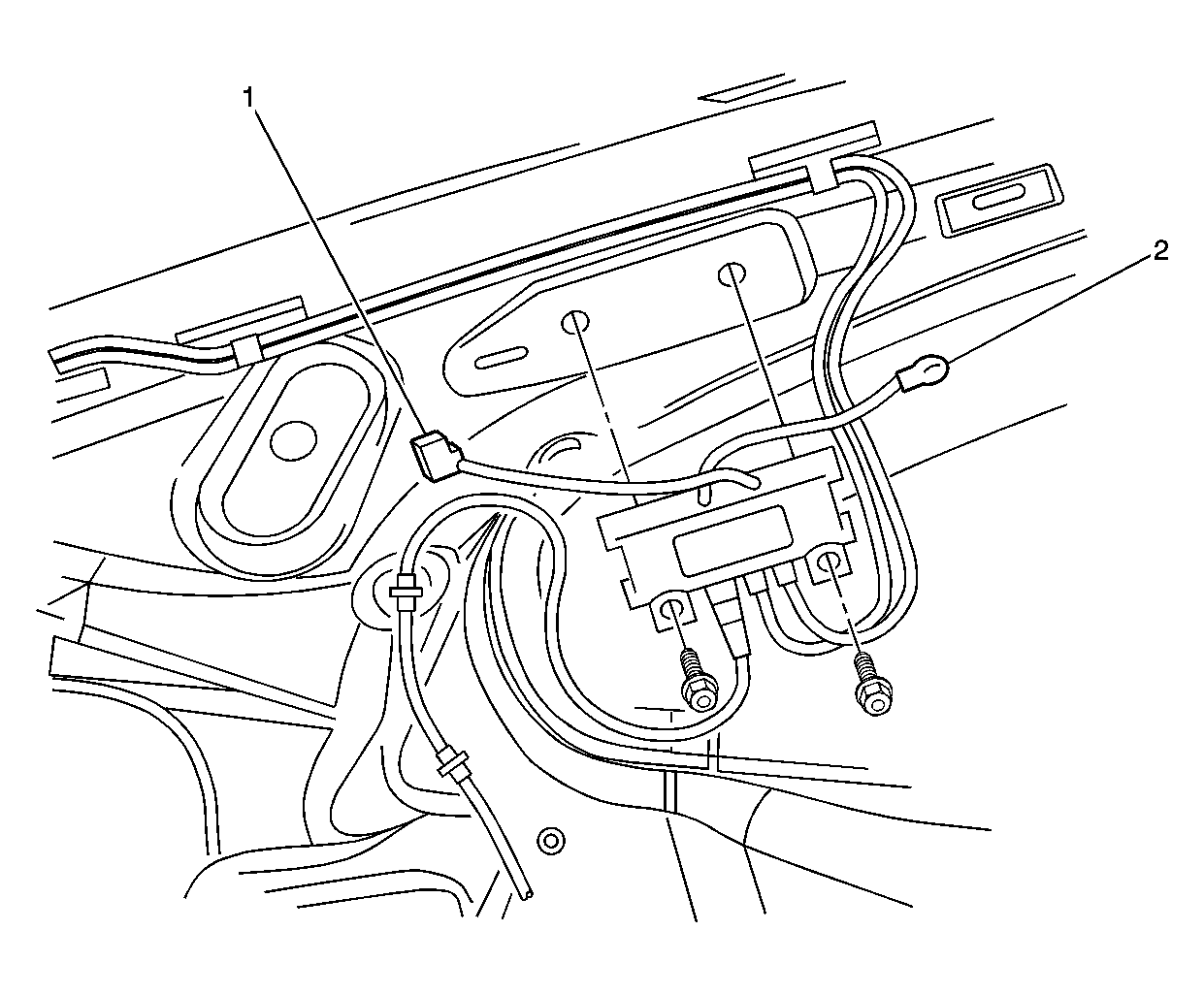

Fig 1: Radio Antenna/Rear Window Defogger Module
GM1353843Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 FM Antenna/Defogger Connector
2 AM Antenna Connector
