Installation Procedure

  1. Install the child tether anchors (2) and washer (3) to the vehicle.

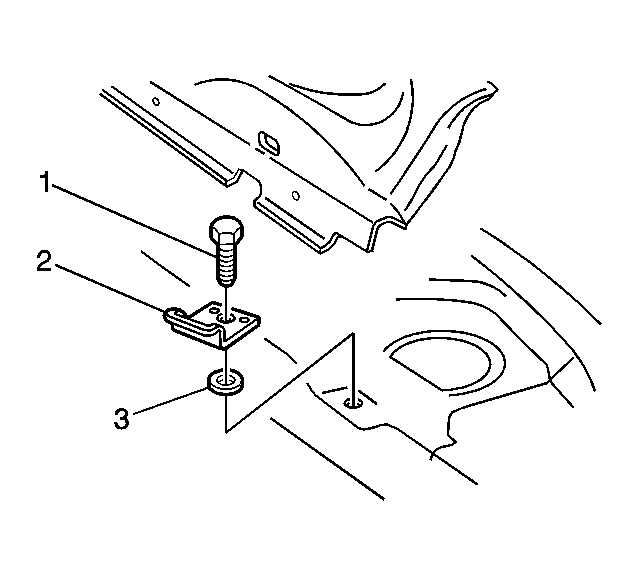

    Fig 1: View Of Child Tether Anchors
    GM1353844Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the child tether anchor fasteners (1).

    Tighten:  Tighten the fastener to 20 N.m (15 lb ft).

  3. Install the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf in Interior Trim.
