Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

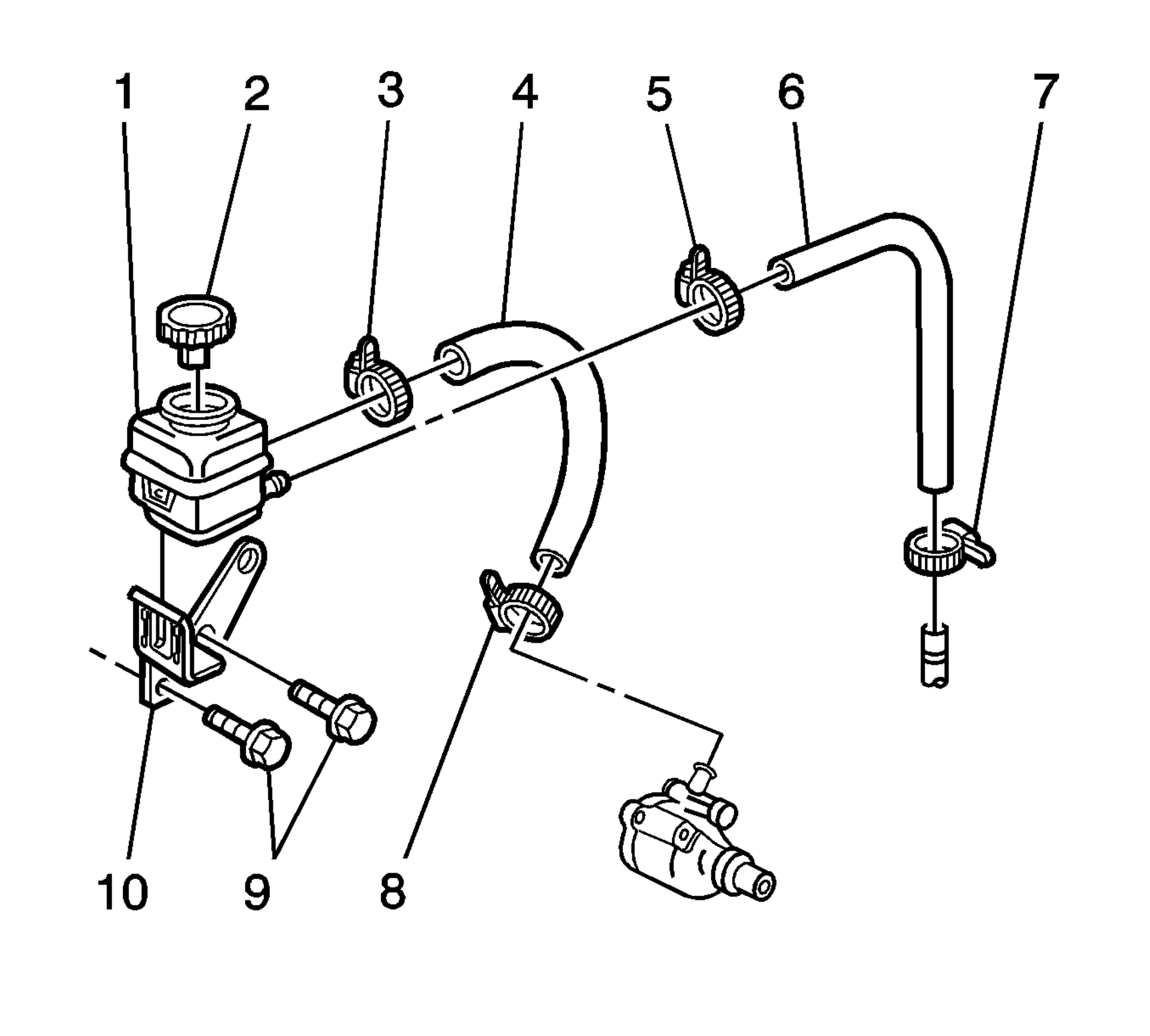

Fig 1: Exploded View Of Power Steering Fluid Reservoir Assembly

Courtesy of GENERAL MOTORS CORP.

Install the bracket (10) and the 2 bolts (9) to the engine.
Tighten: Tighten the 2 bolts to 50 N.m (37 lb ft).
Slide the power steering fluid reservoir (1) onto the bracket. Verify the tab on the bracket retains the reservoir.
