Installation Procedure

  1. Position the accelerator pedal (1) to the vehicle.

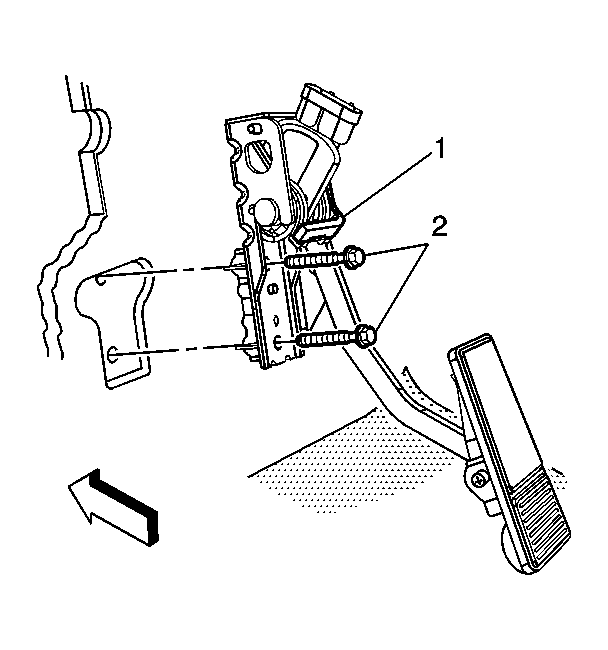

    2. Fig 1: Identifying Accelerator Pedal
    GM910941Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the accelerator pedal bolts (2).

    Tighten:  Tighten the bolts to 5 N.m (44 lb in).

  3. Connect accelerator pedal electrical connector.
  4. Install the left instrument panel sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
