Engine Controls Schematics

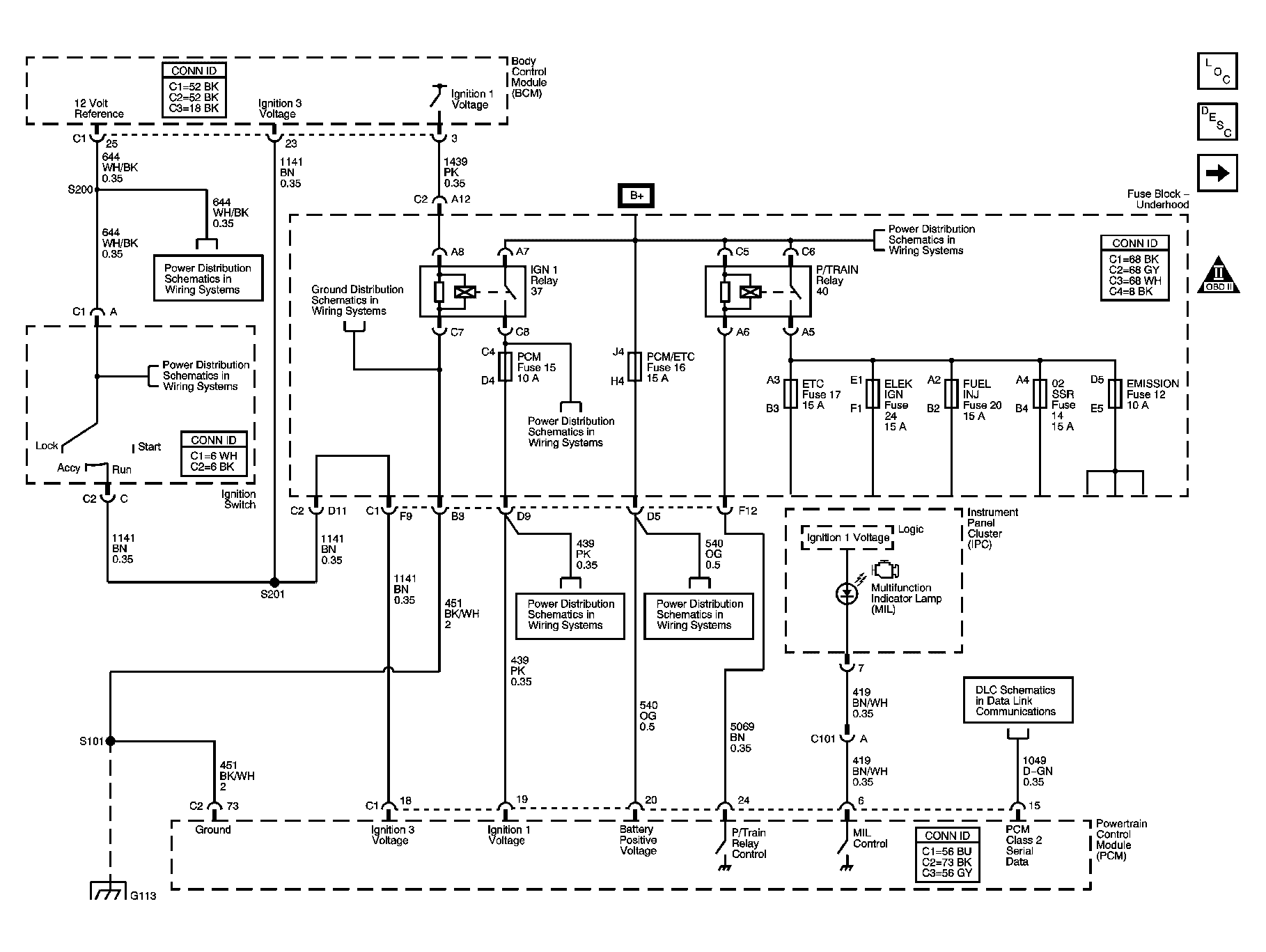

Fig 1: PCM Power, Ground, MIL, And Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

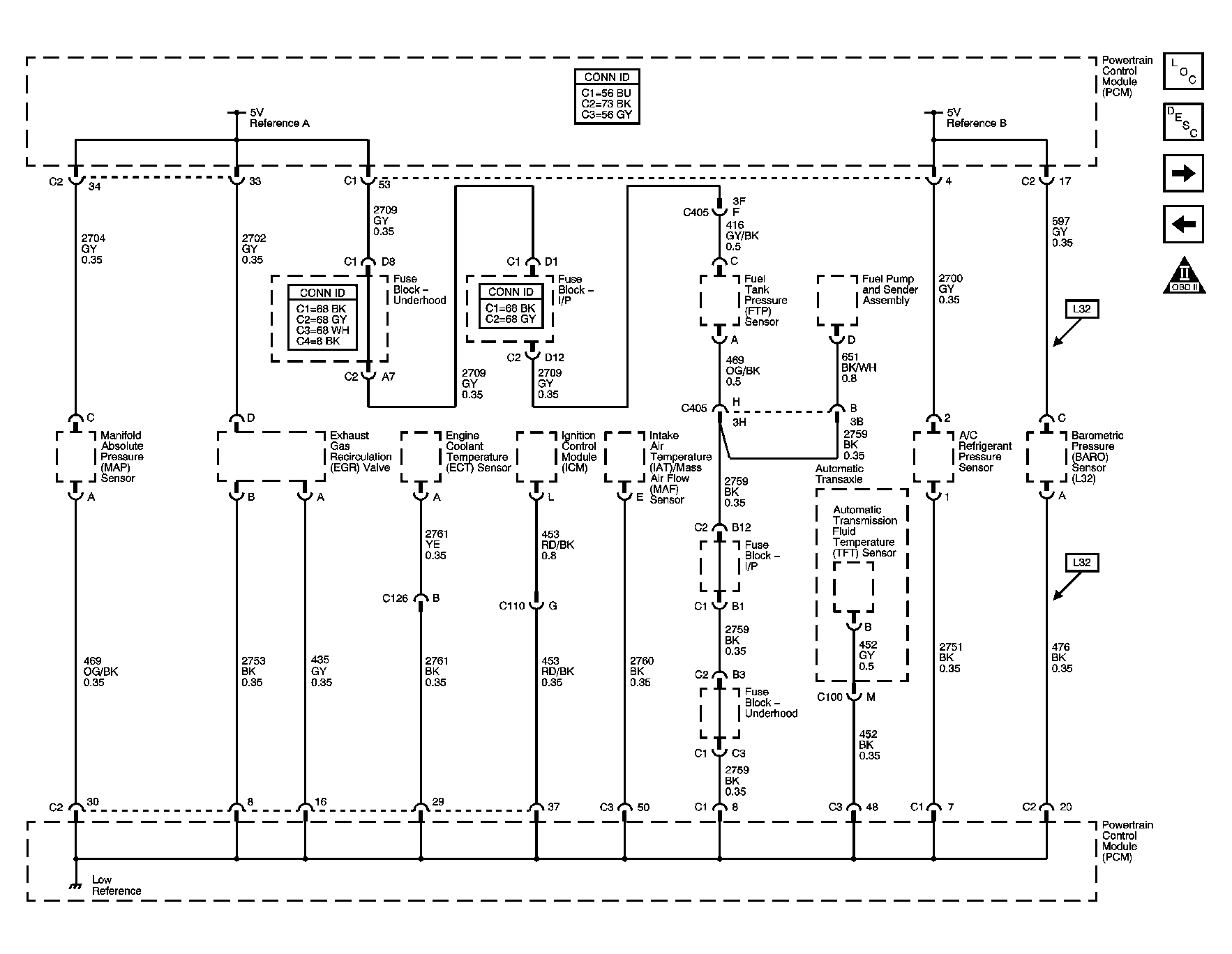

Fig 2: 5 Volt And Low Reference Bussing Schematics

Courtesy of GENERAL MOTORS CORP.

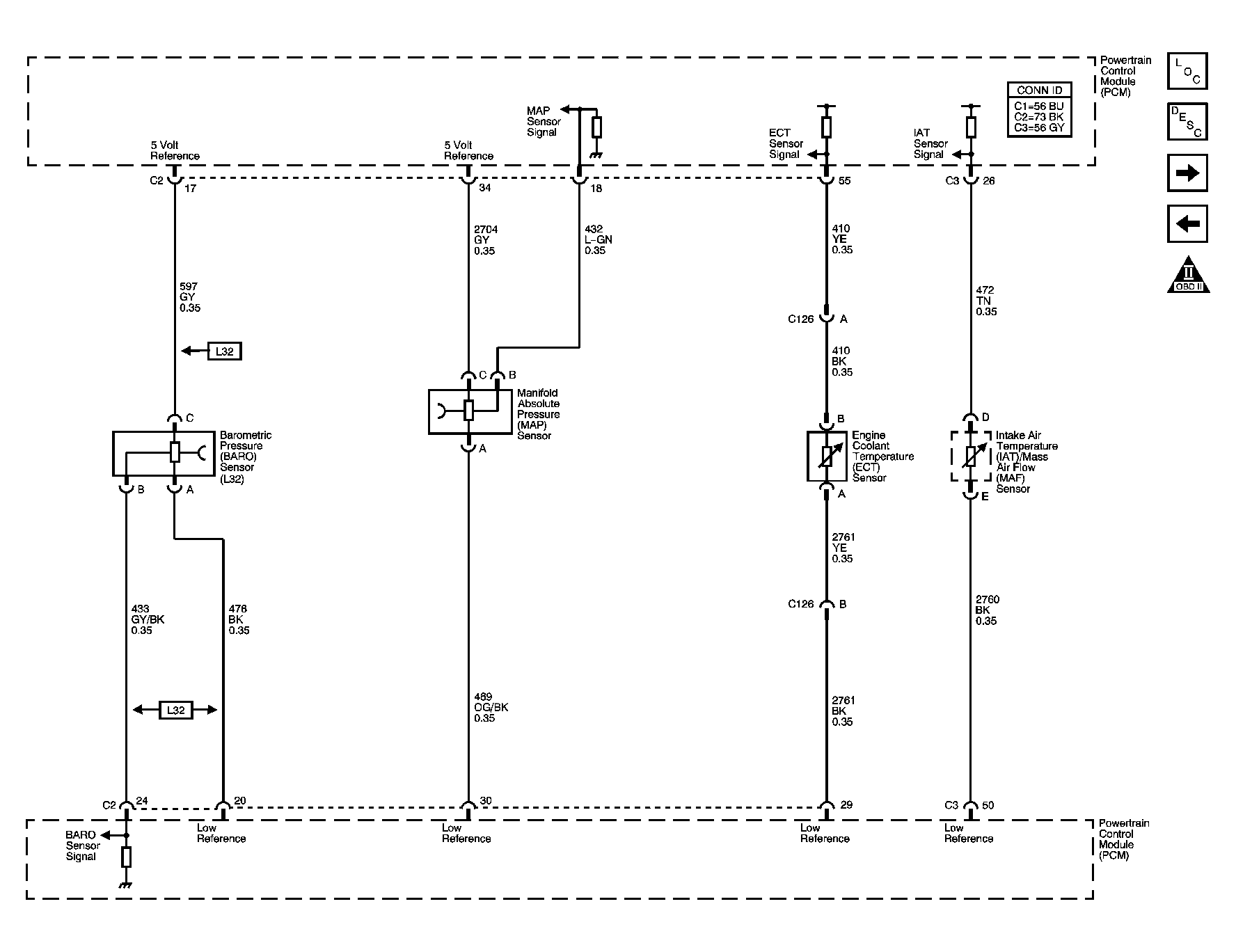

Fig 3: BARO, MAP, ECT, And IAT/MAF Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

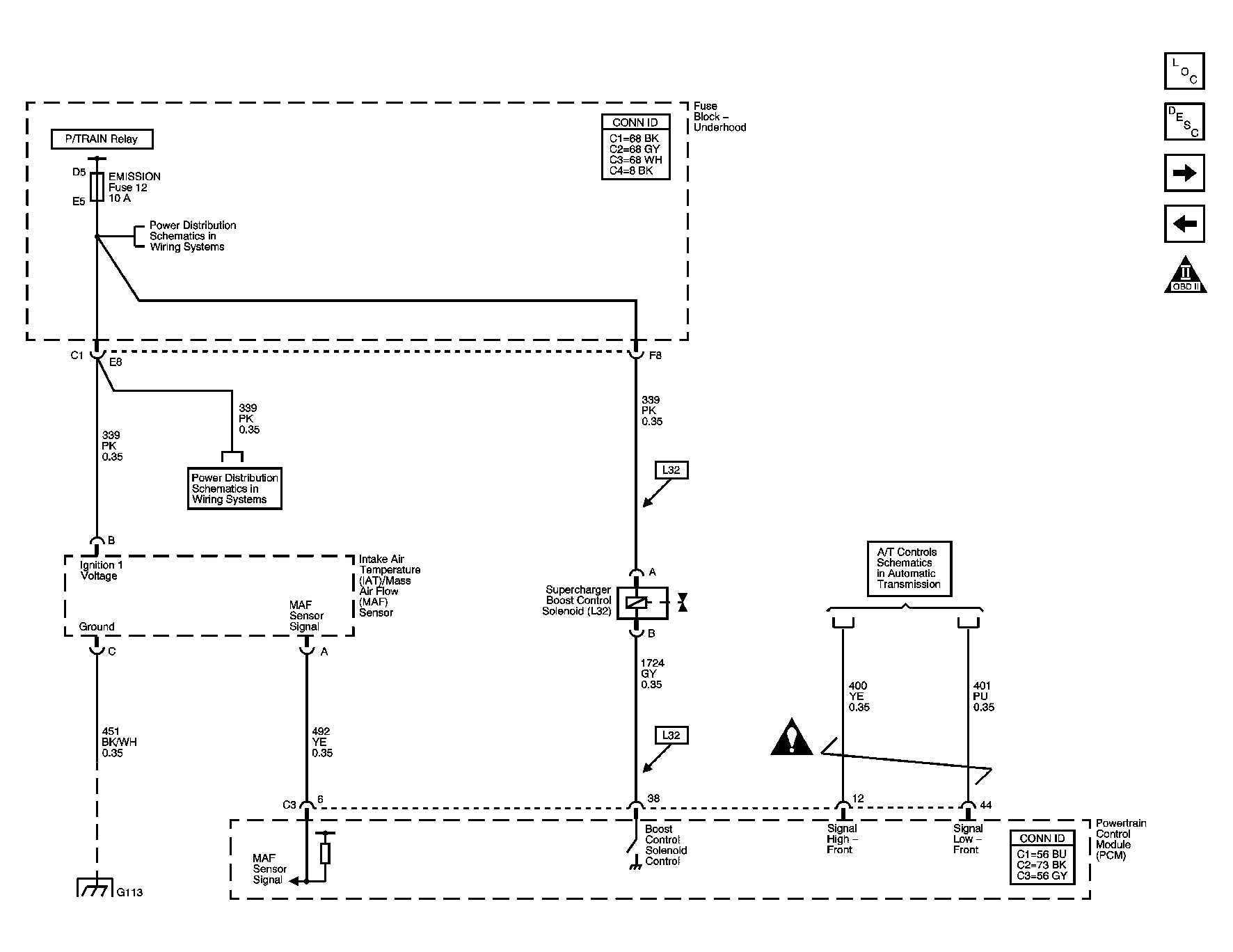

Fig 4: IAT/MAF Sensor, Super Charger Boost Control Solenoid, And A/T Controls VSS References Schematics

Courtesy of GENERAL MOTORS CORP.

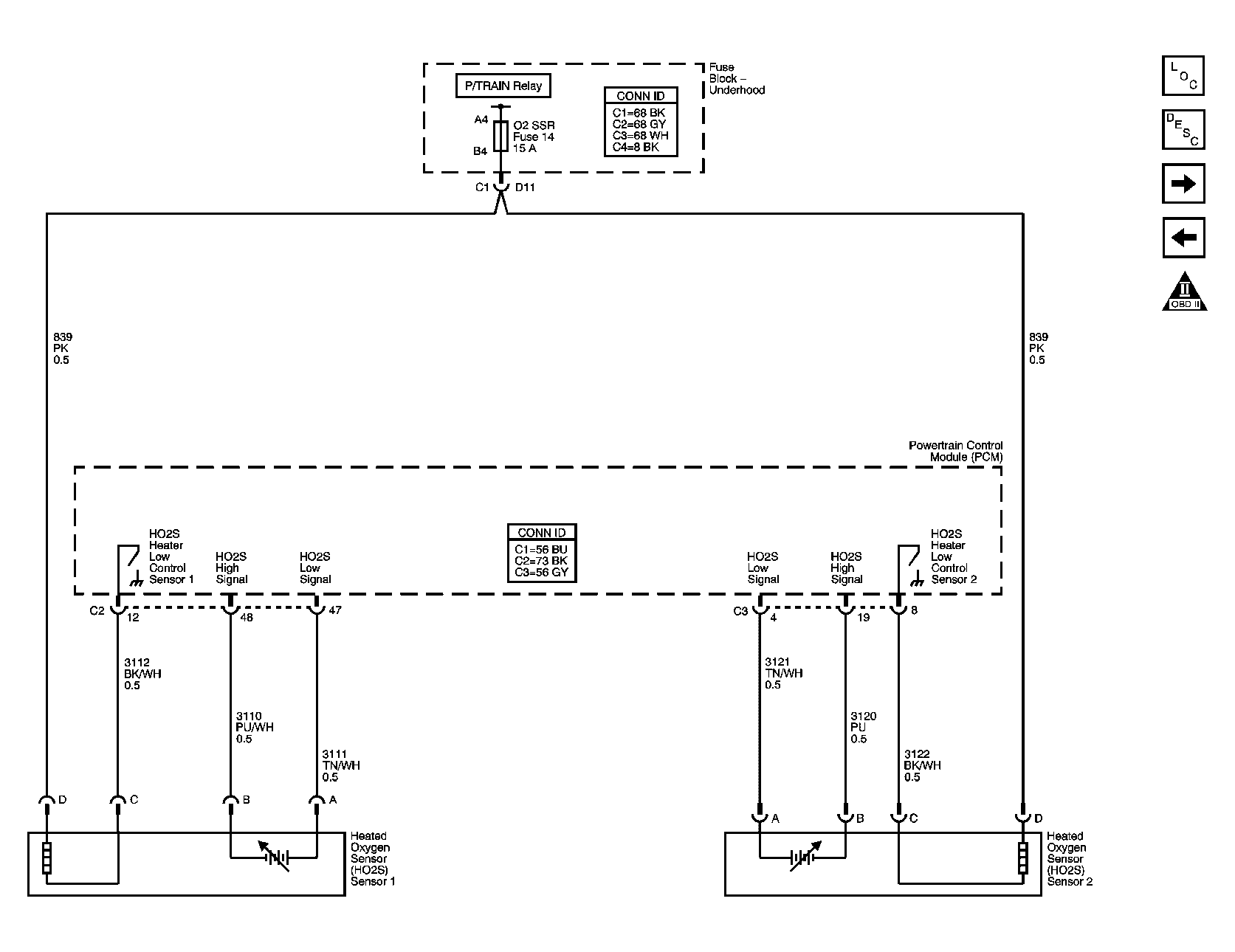

Fig 5: Heated Oxygen Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

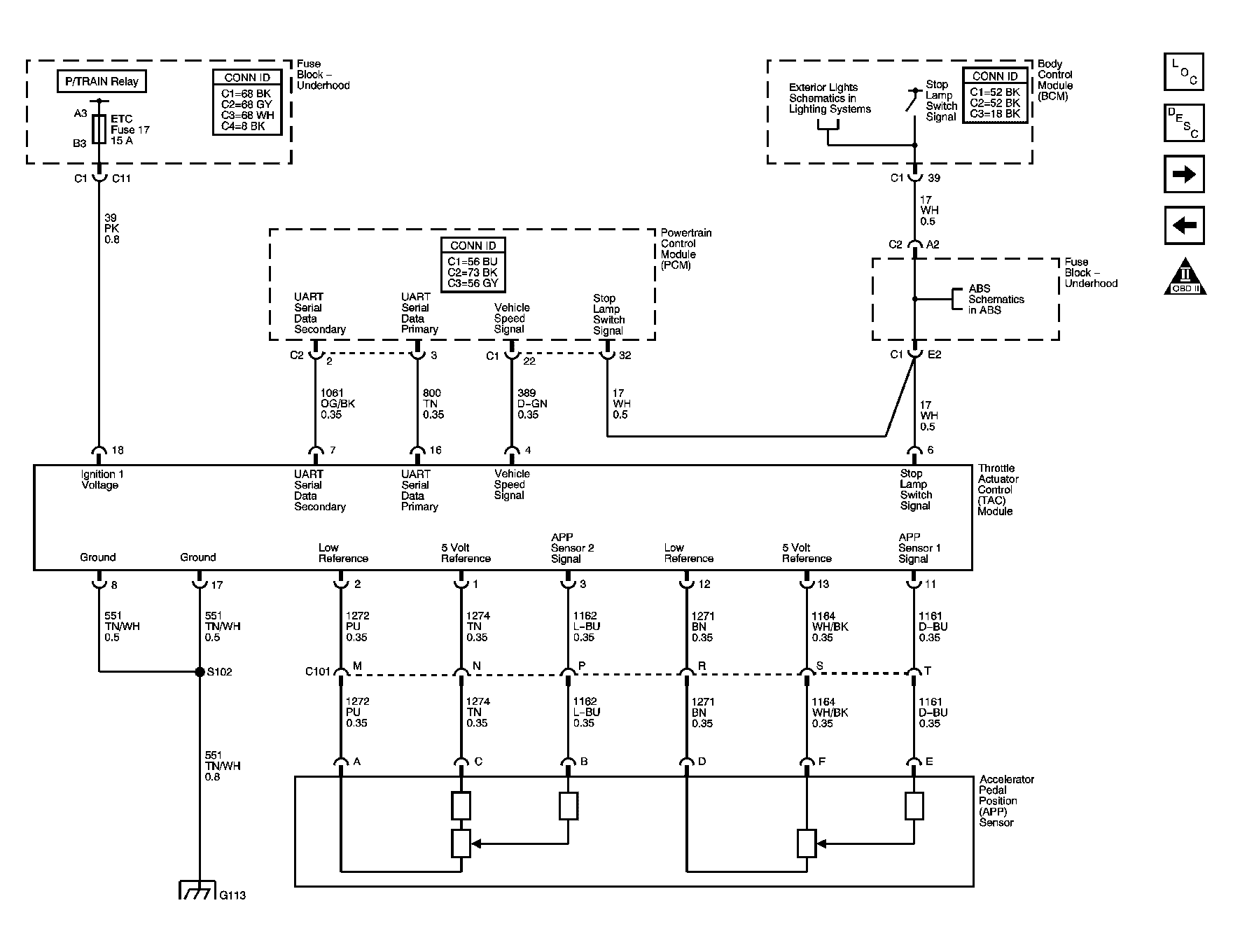

Fig 6: Electronic Throttle Controls Schematics

Courtesy of GENERAL MOTORS CORP.

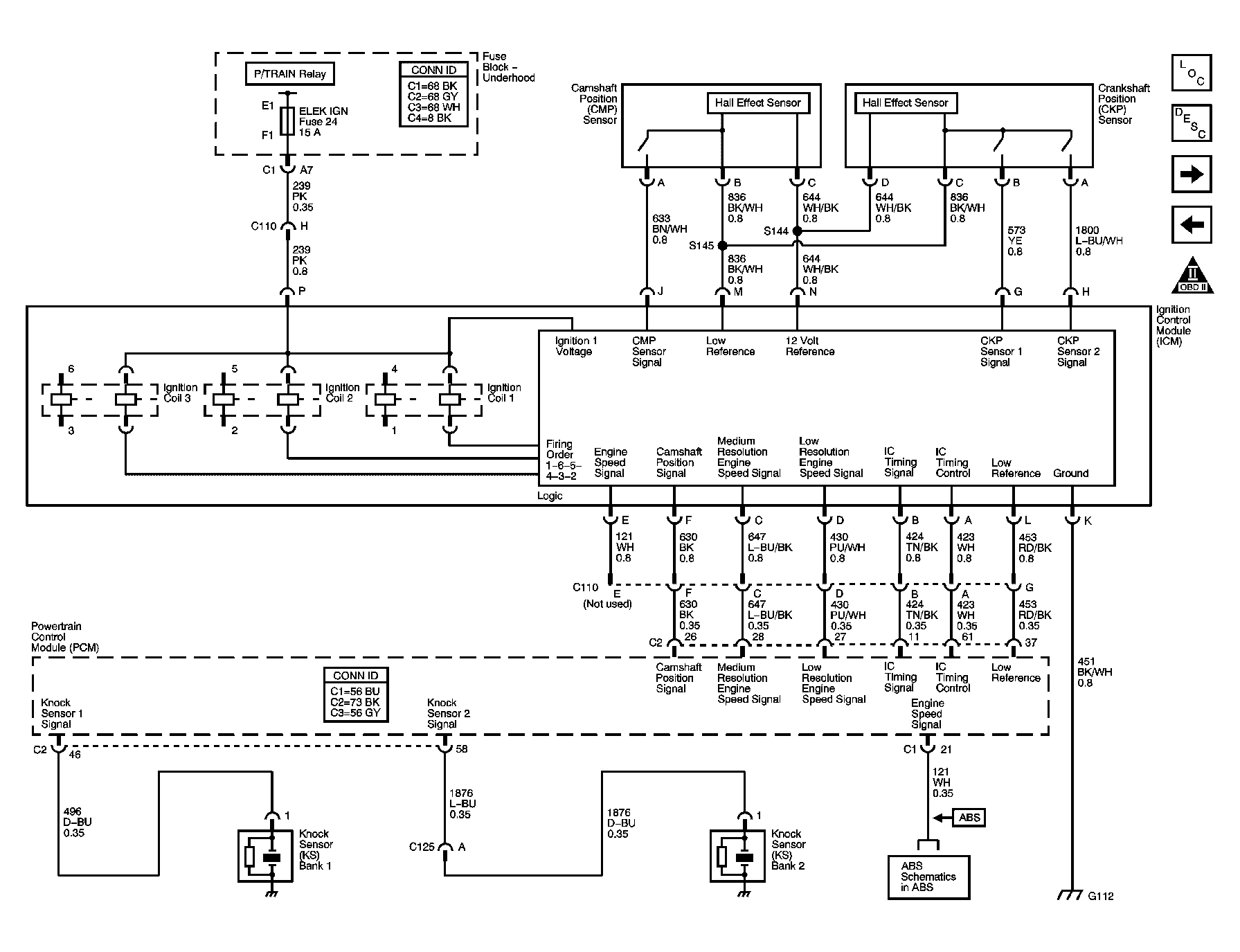

Fig 7: Ignition Control Module Schematics

Courtesy of GENERAL MOTORS CORP.

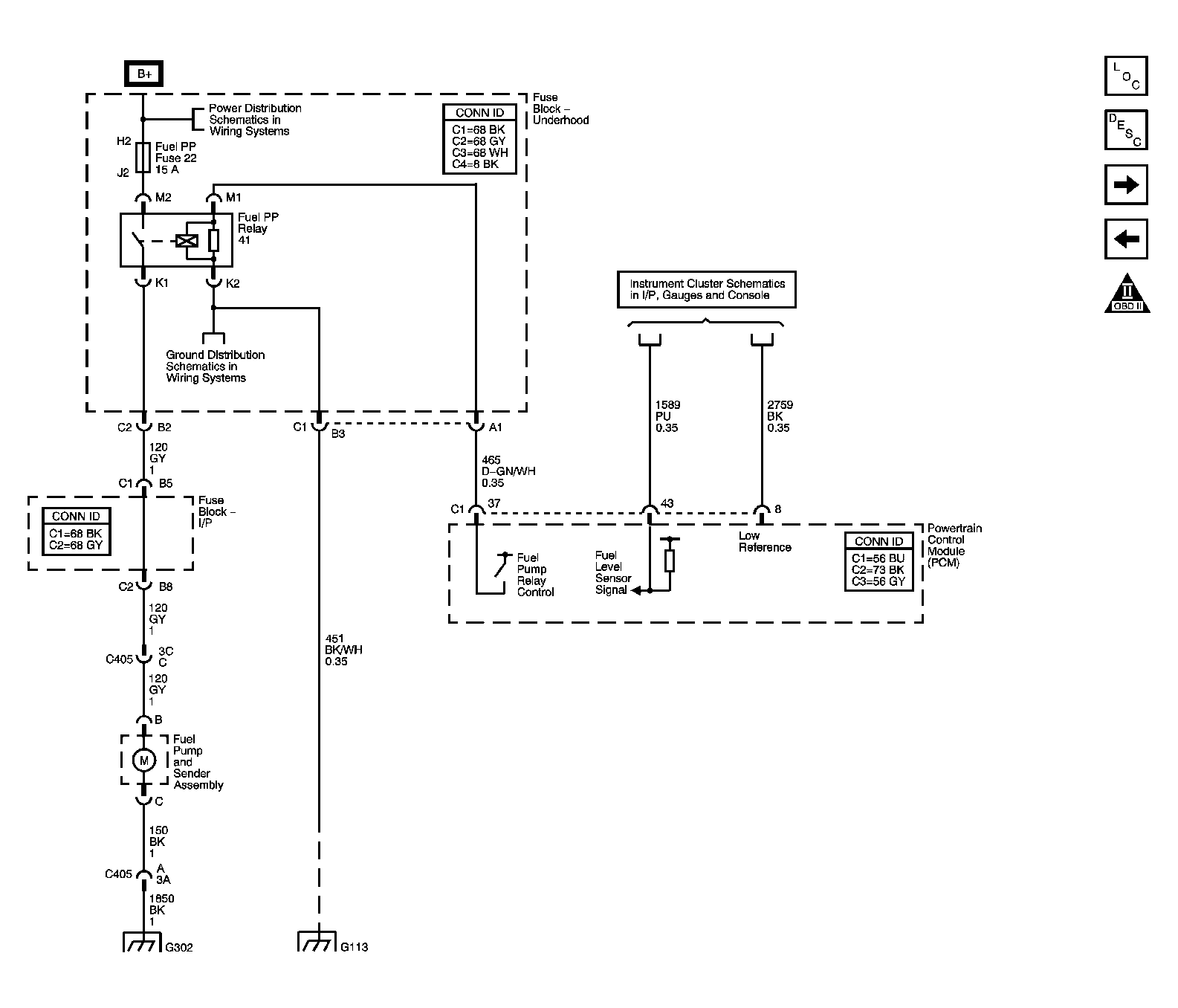

Fig 8: Fuel Pump Controls Schematics

Courtesy of GENERAL MOTORS CORP.

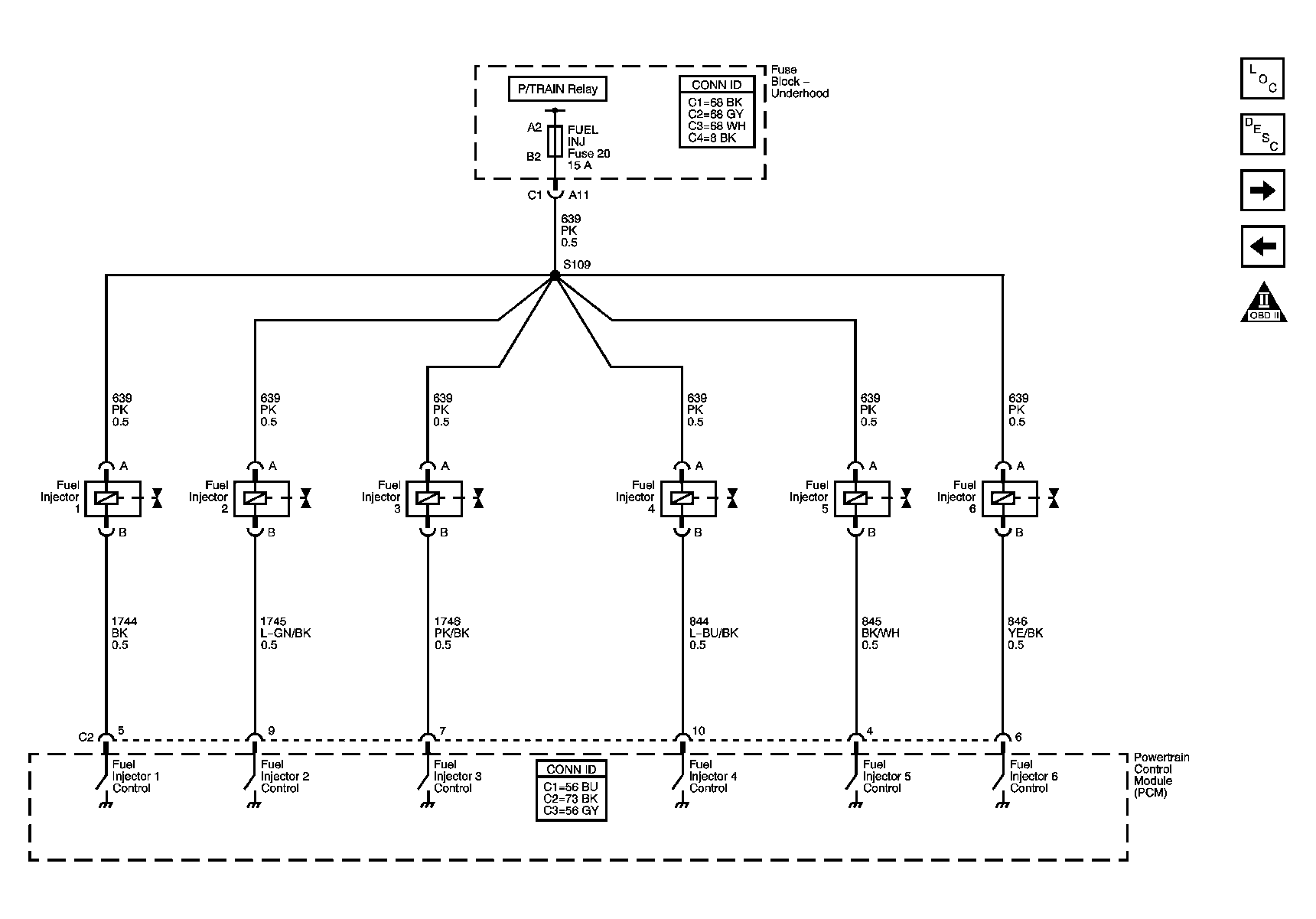

Fig 9: Fuel Injectors Schematics

Courtesy of GENERAL MOTORS CORP.

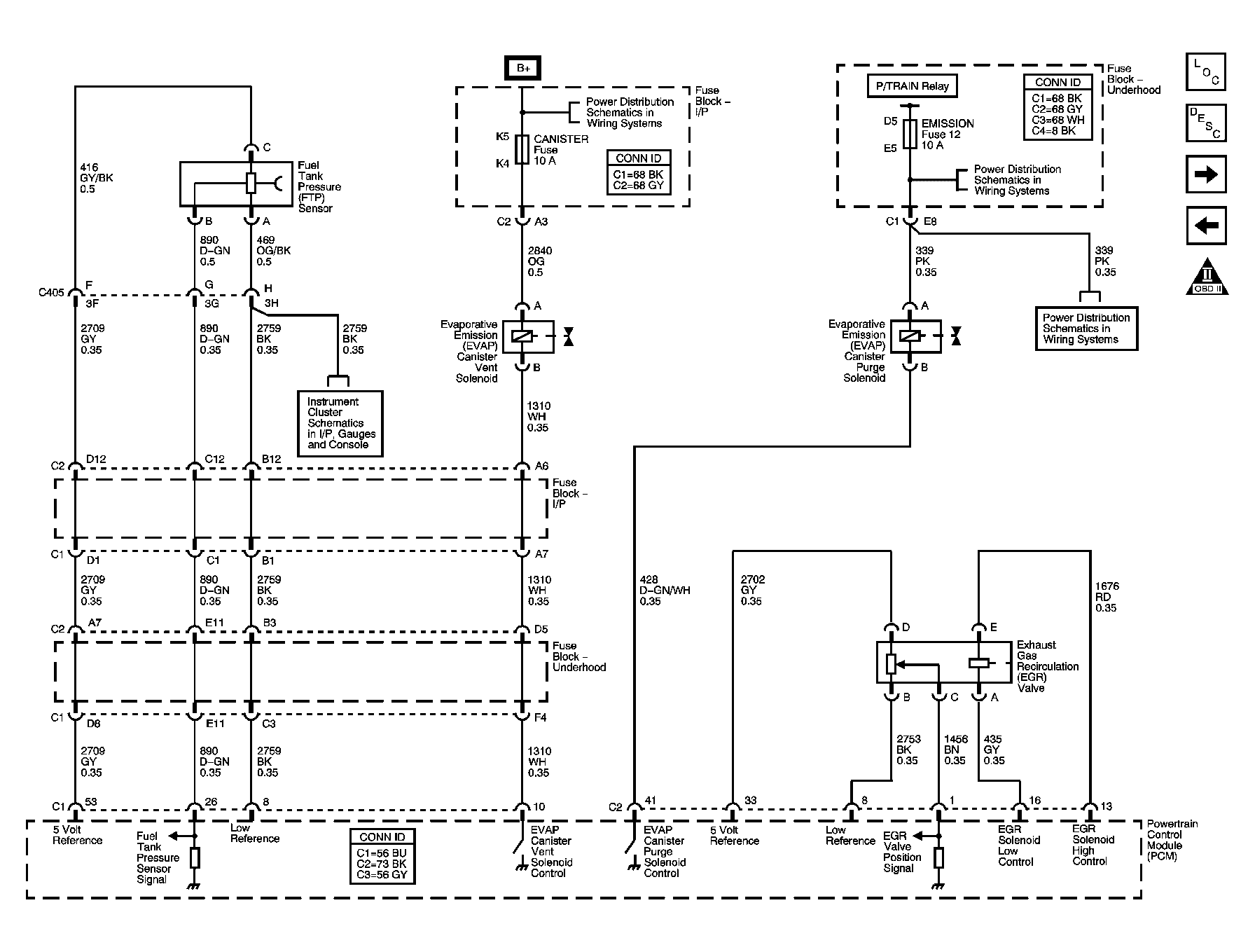

Fig 10: EVAP Solenoids, FTP Sensor, And EGR Valve Schematics

Courtesy of GENERAL MOTORS CORP.

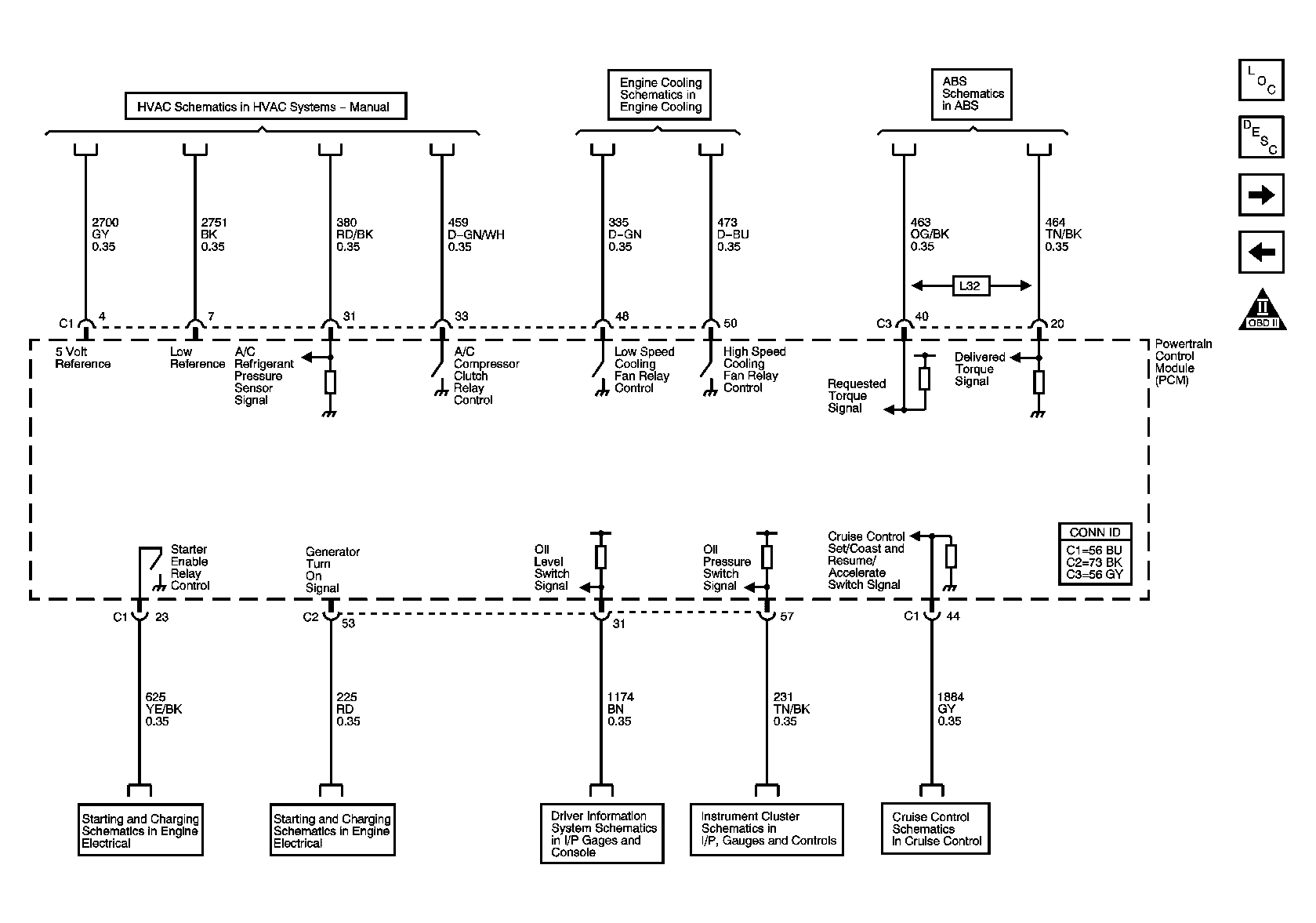

Fig 11: Controlled/Monitored Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.

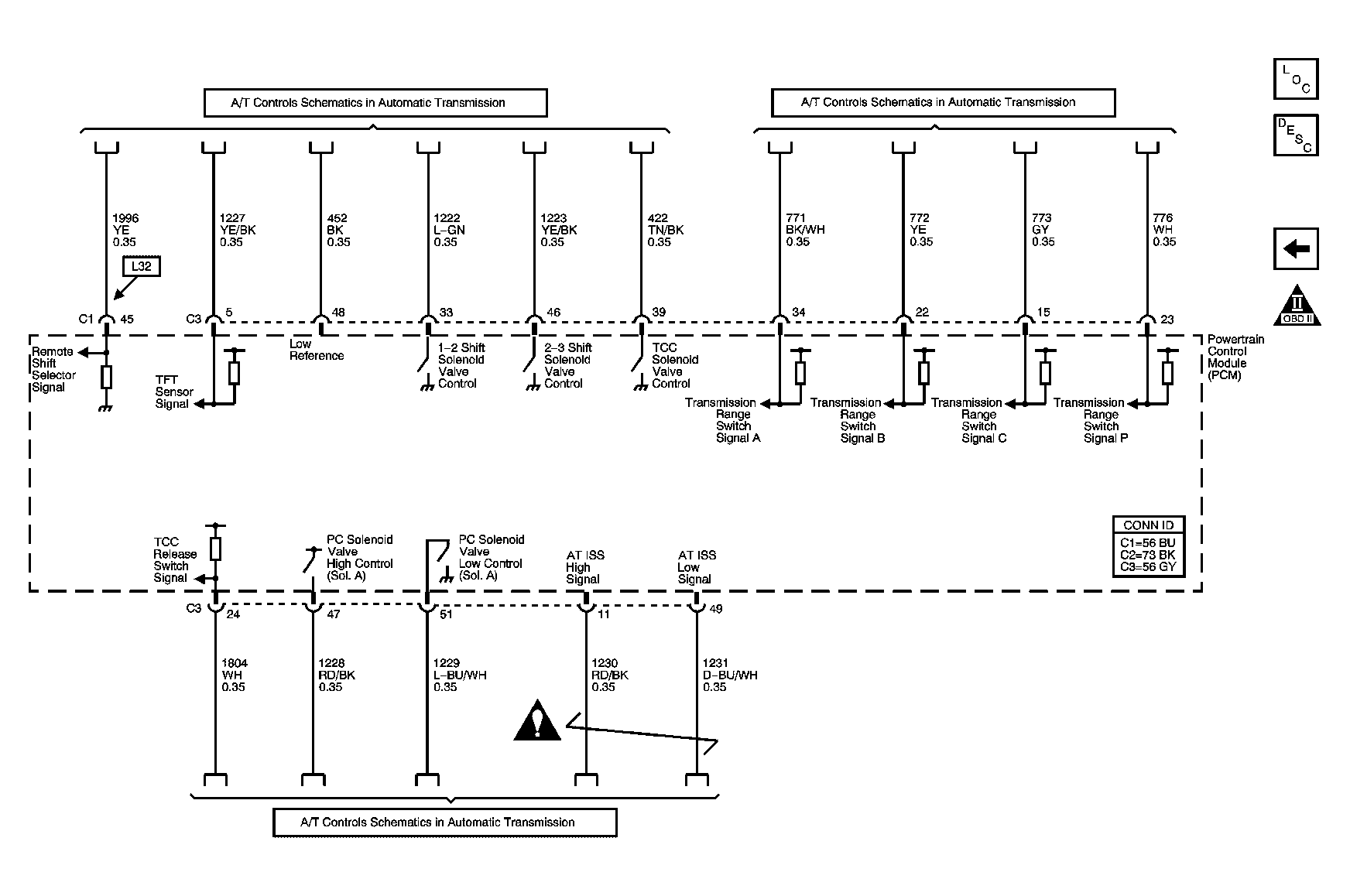

Fig 12: Automatic Transmission Controls References Schematics

Courtesy of GENERAL MOTORS CORP.
