Stationary Windows Component Views

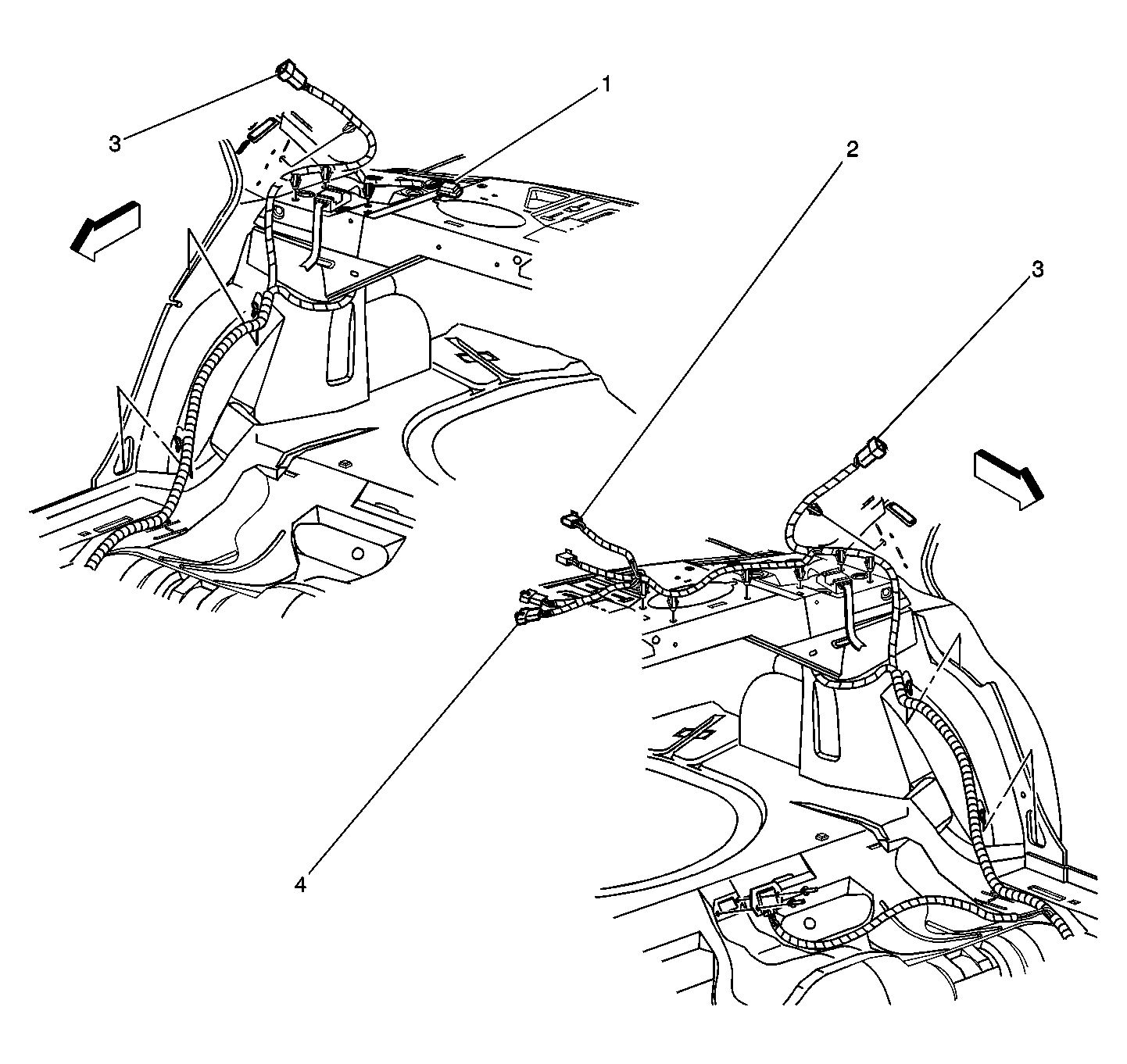

Fig 1: Rear Of Passenger Compartment Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Speaker Connector
2
Luggage Compartment Lamp Connector
3
Rear Window Defogger Connector
3
Rear Window Defogger Connector
4
High-Mounted Stop Lamp Assembly Connector (- T43)
