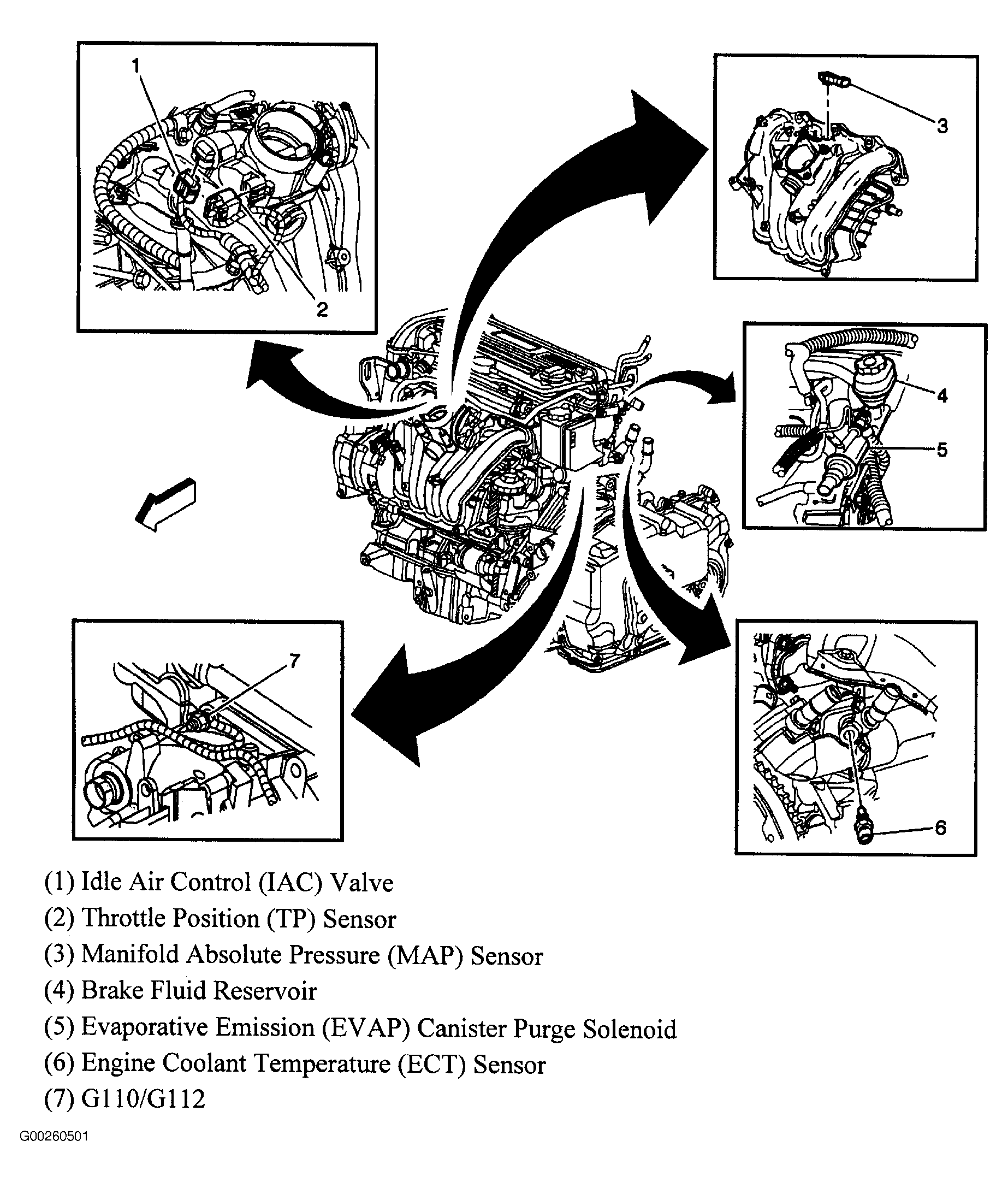

: Even more car manuals for everyone: 1960-2025
Home
>>
Pontiac
>>

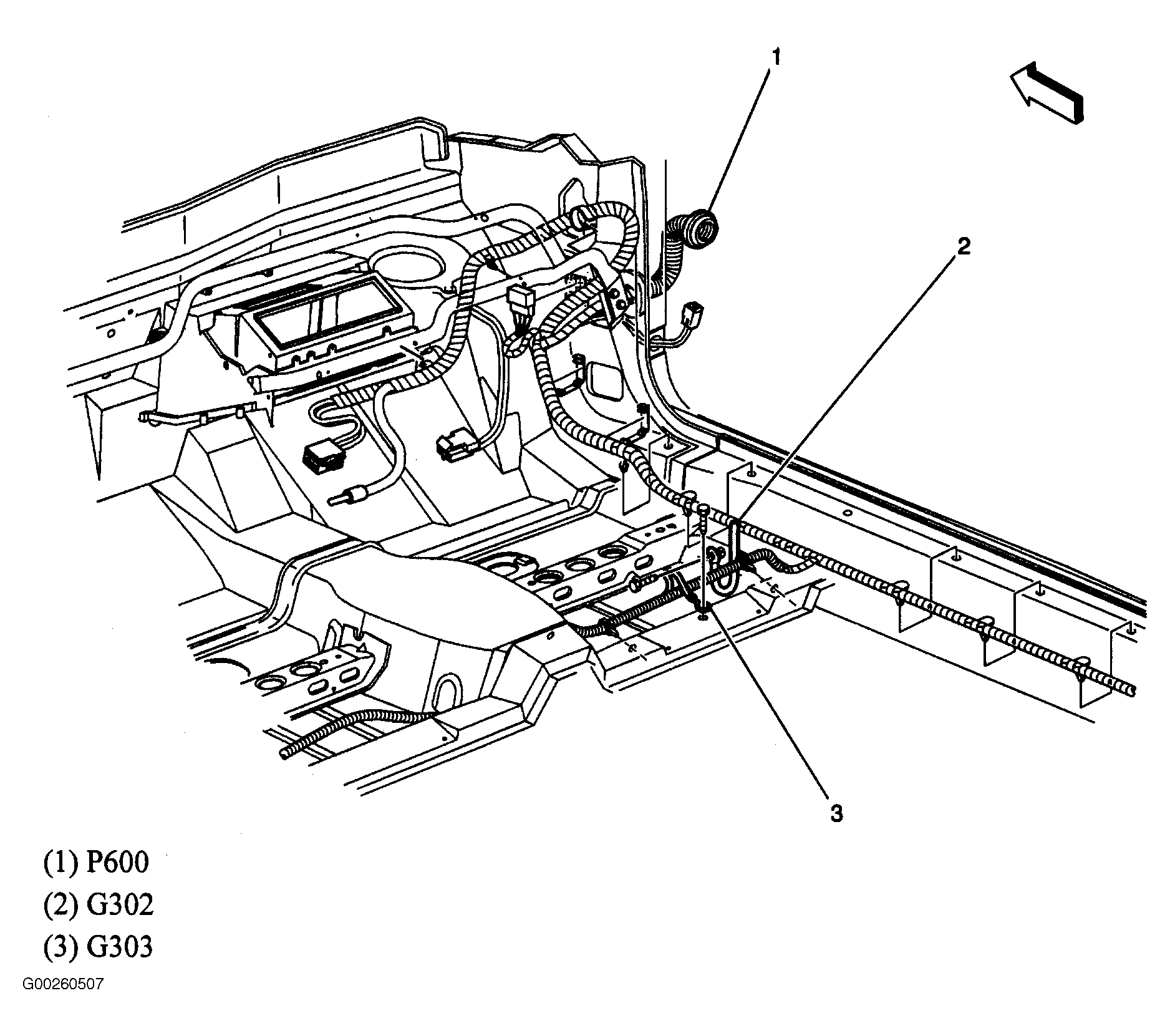

2004
>>
Sunfire Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
April 5, 2026:
LEMON Manuals is launched!

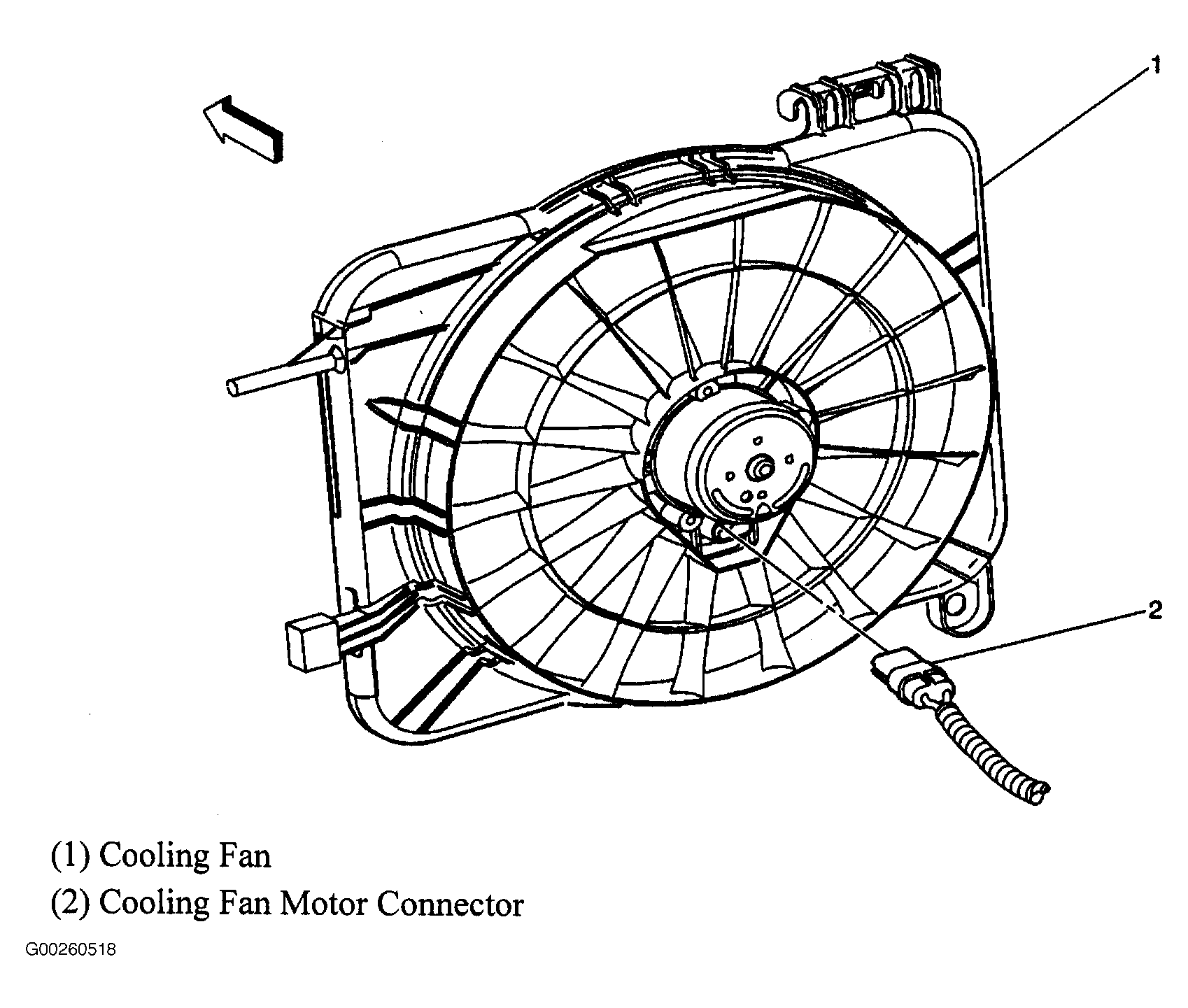

Read the announcement.
Component Location Graphics

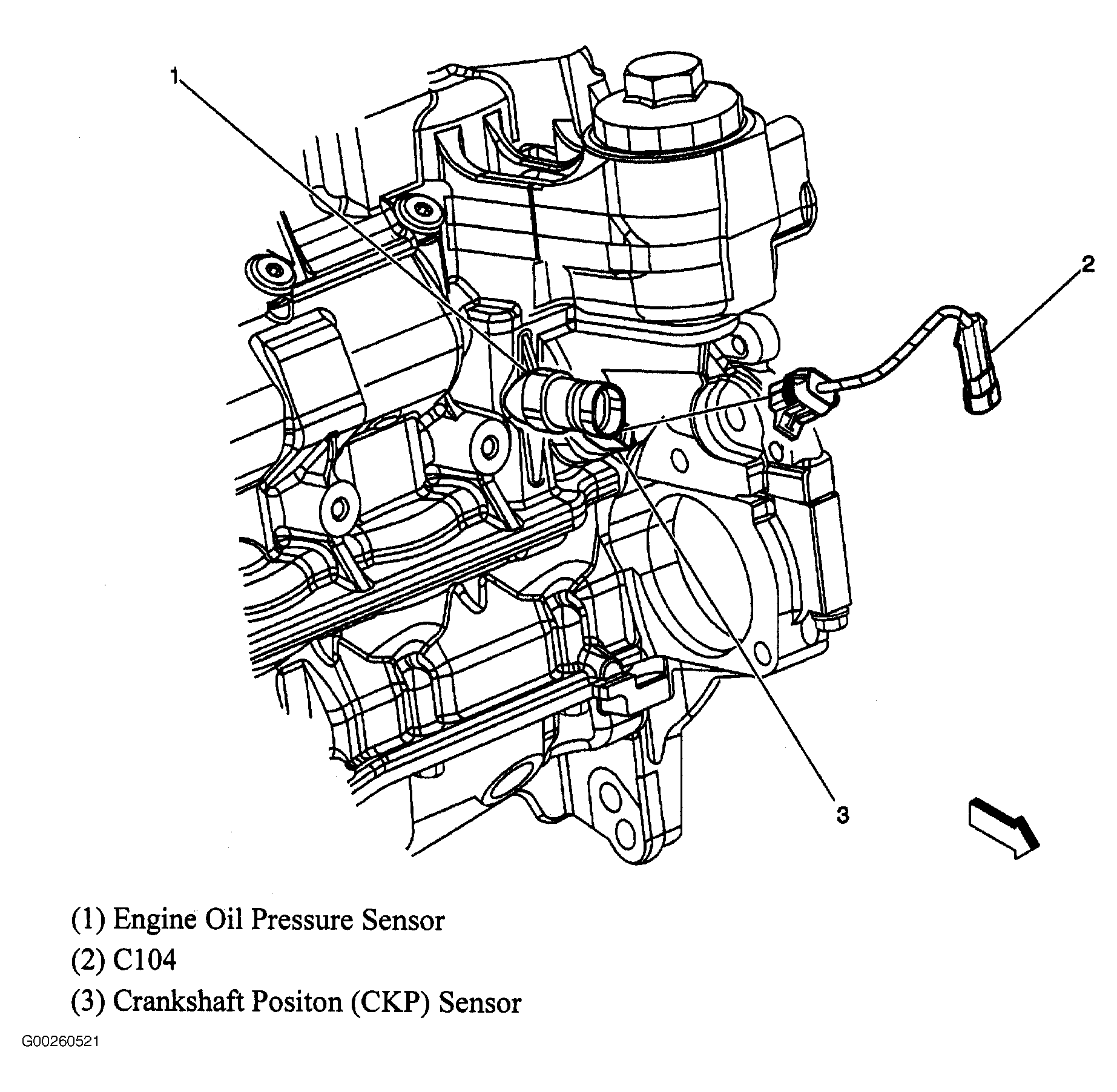

NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

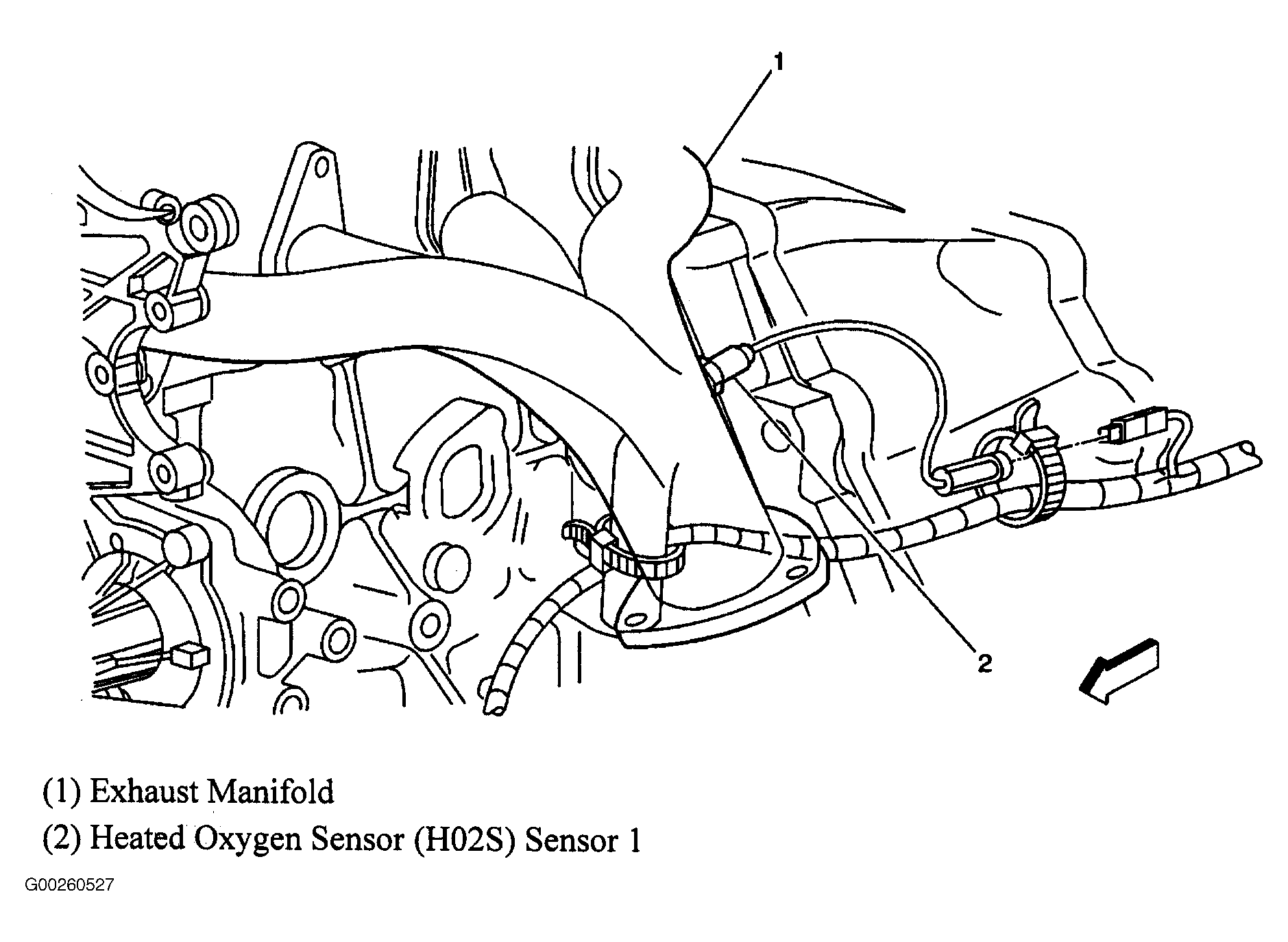

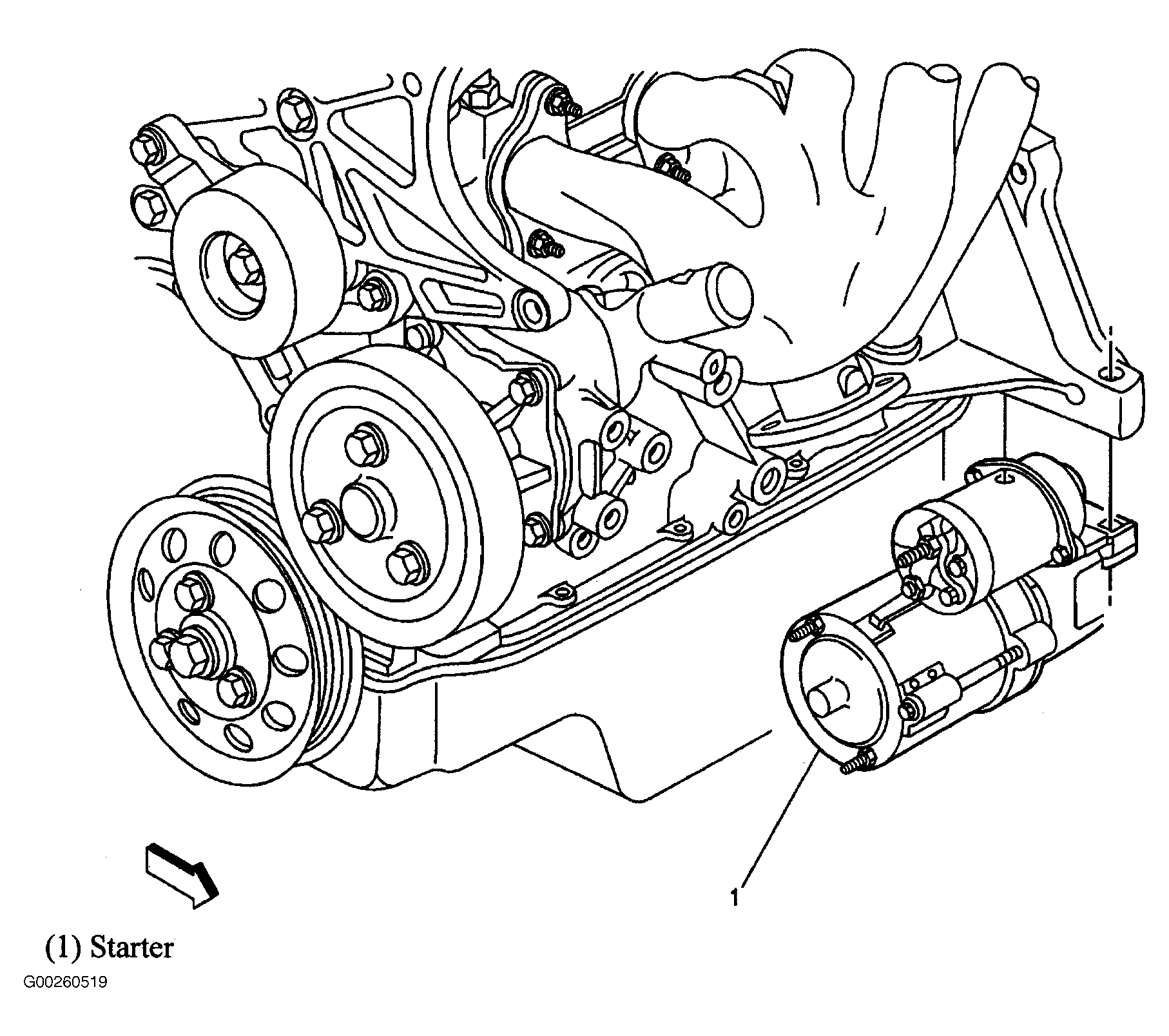

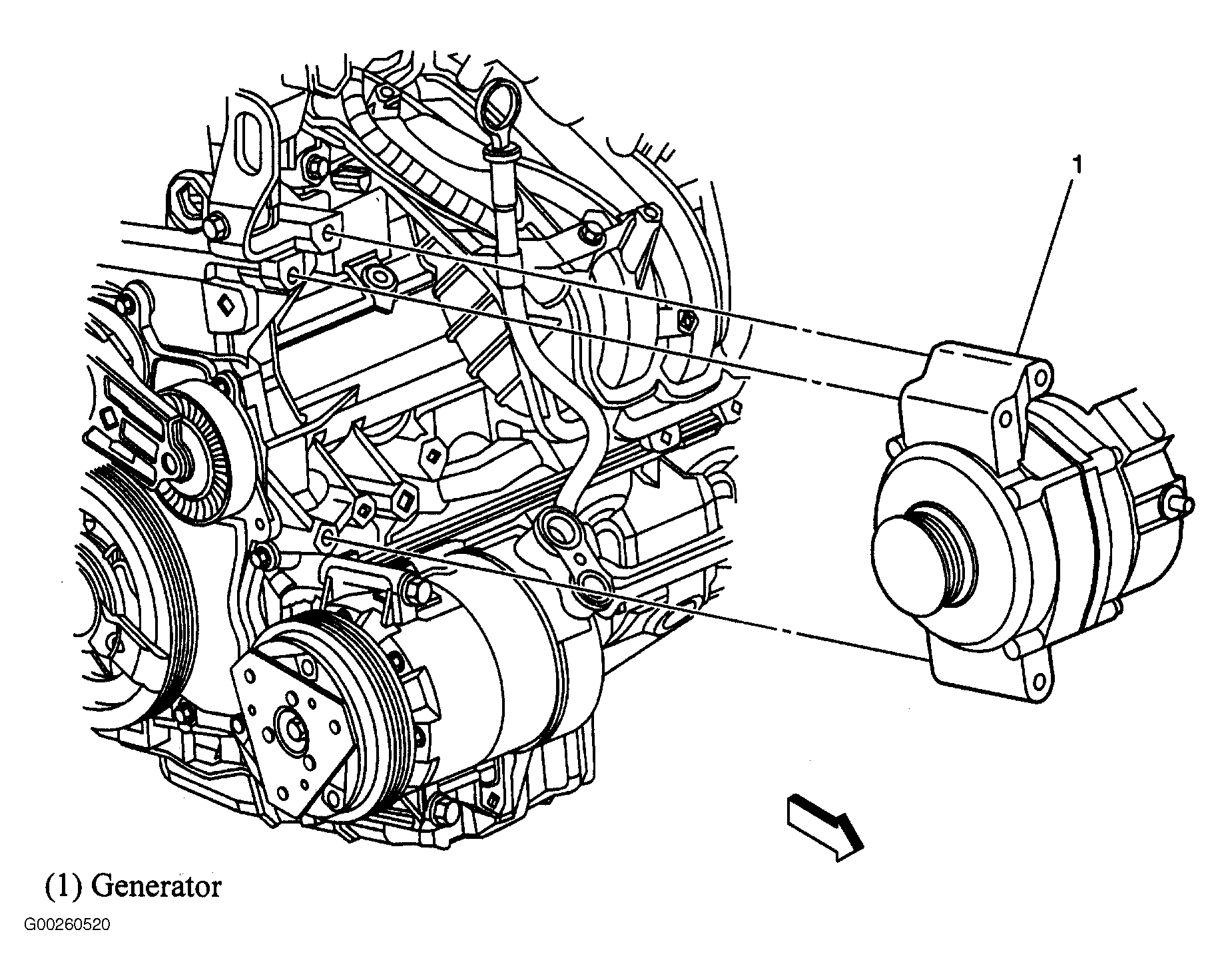

Fig 1: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

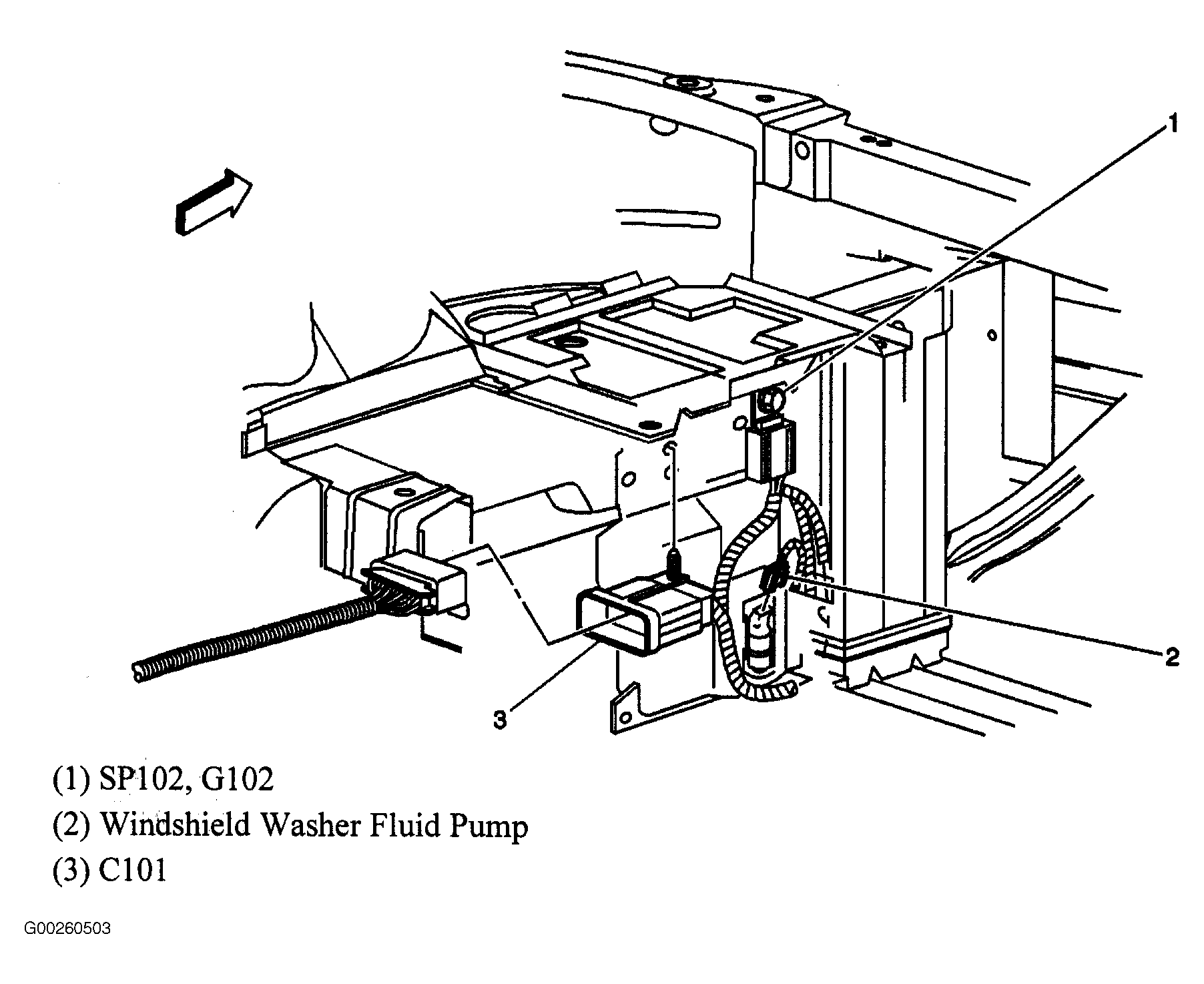

Fig 3: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 4: Left End Of Dash

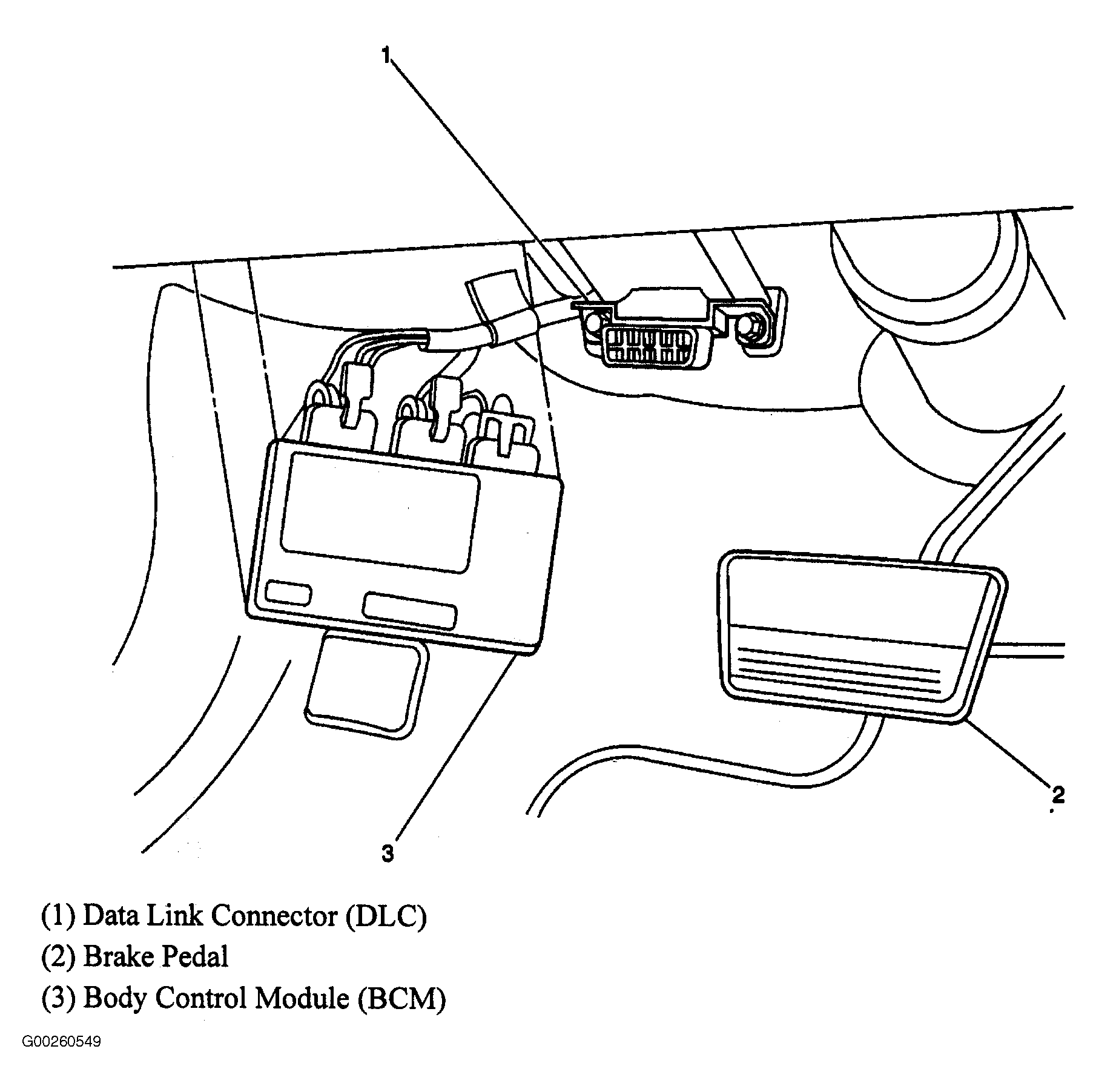

Courtesy of GENERAL MOTORS CORP.

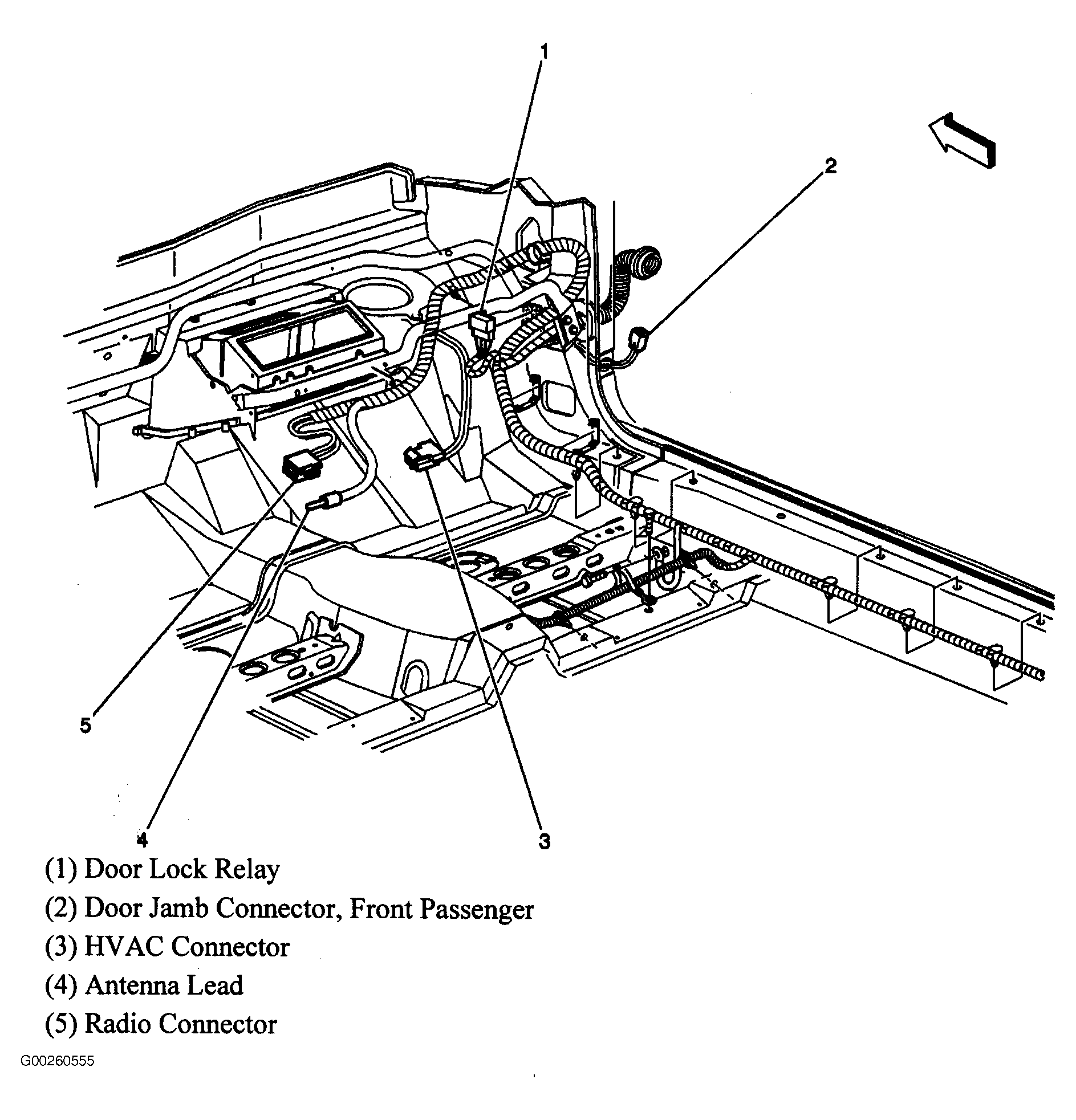

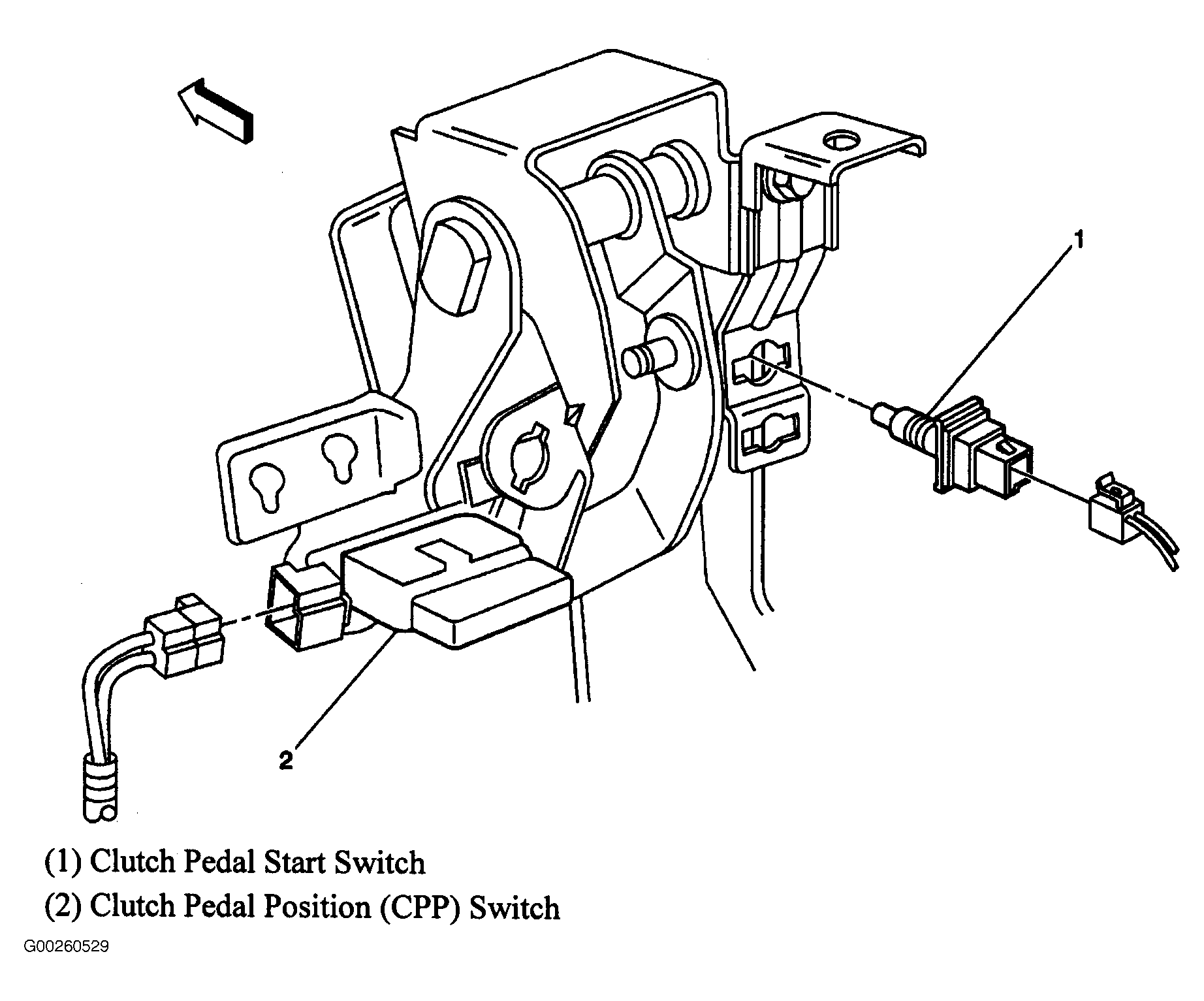

Fig 5: Right Front Floor Of Vehicle
Courtesy of GENERAL MOTORS CORP.

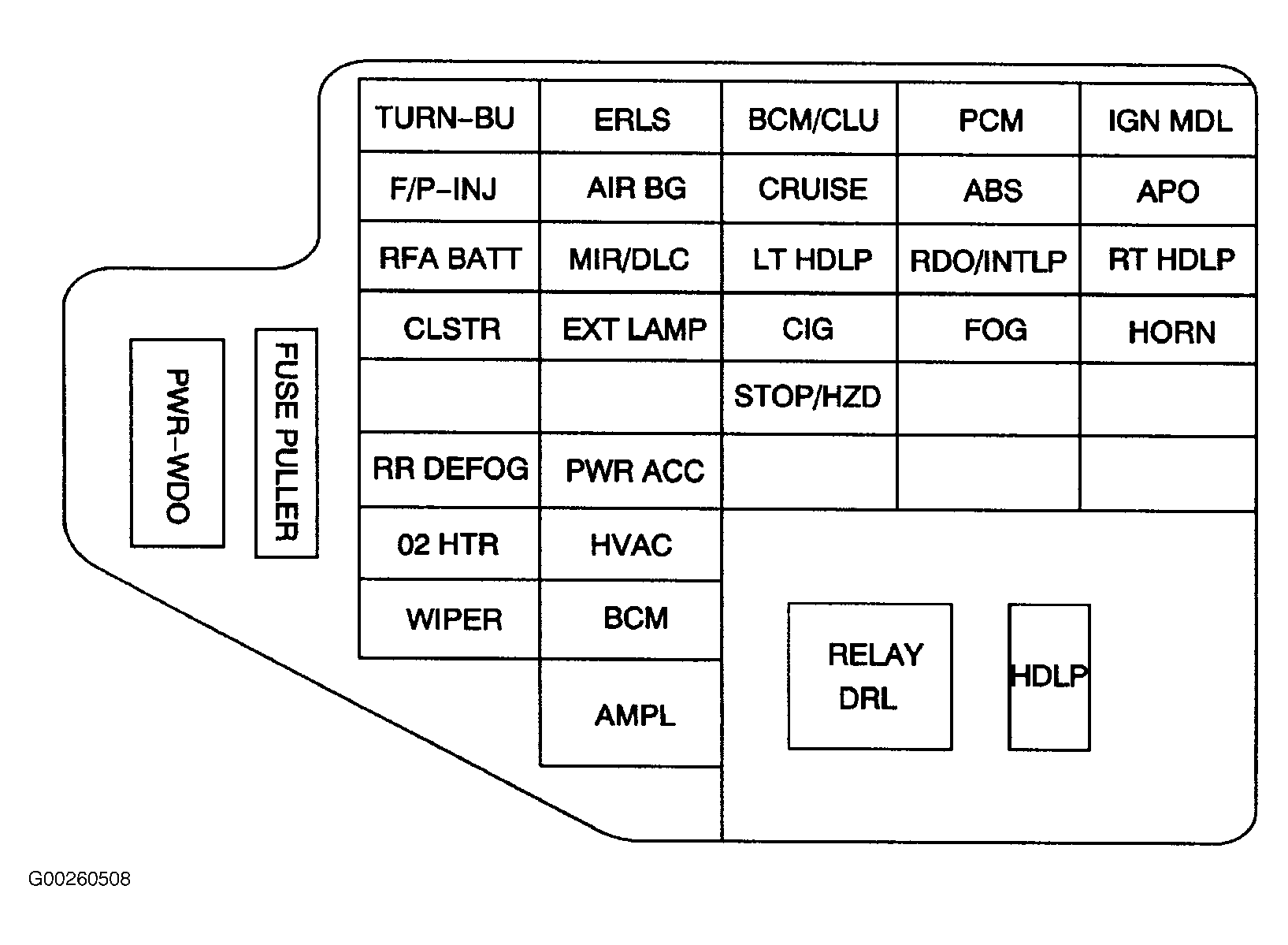

Fig 6: Fuse Block - I/P
Courtesy of GENERAL MOTORS CORP.
Fig 7: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

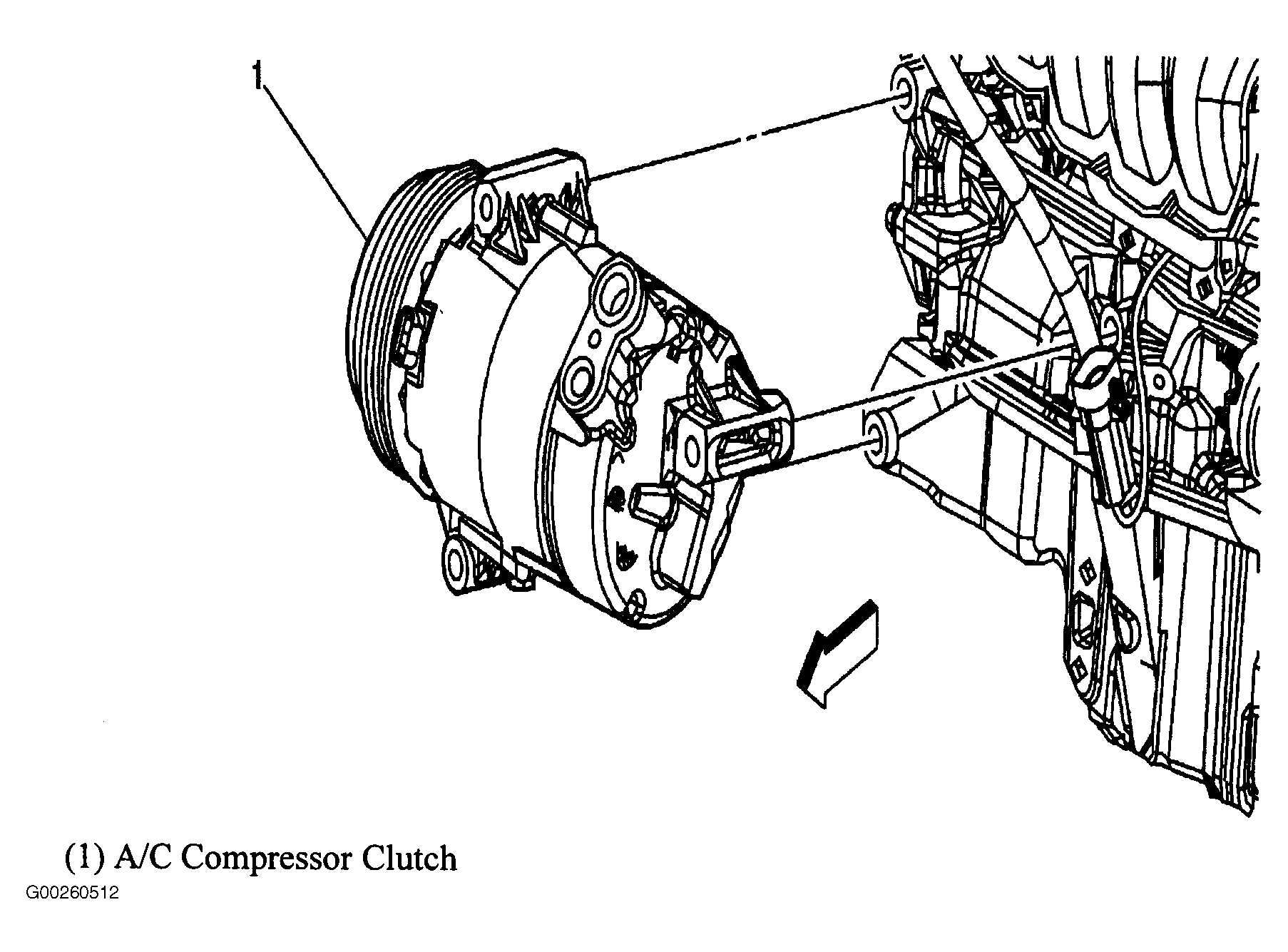

Fig 8: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.

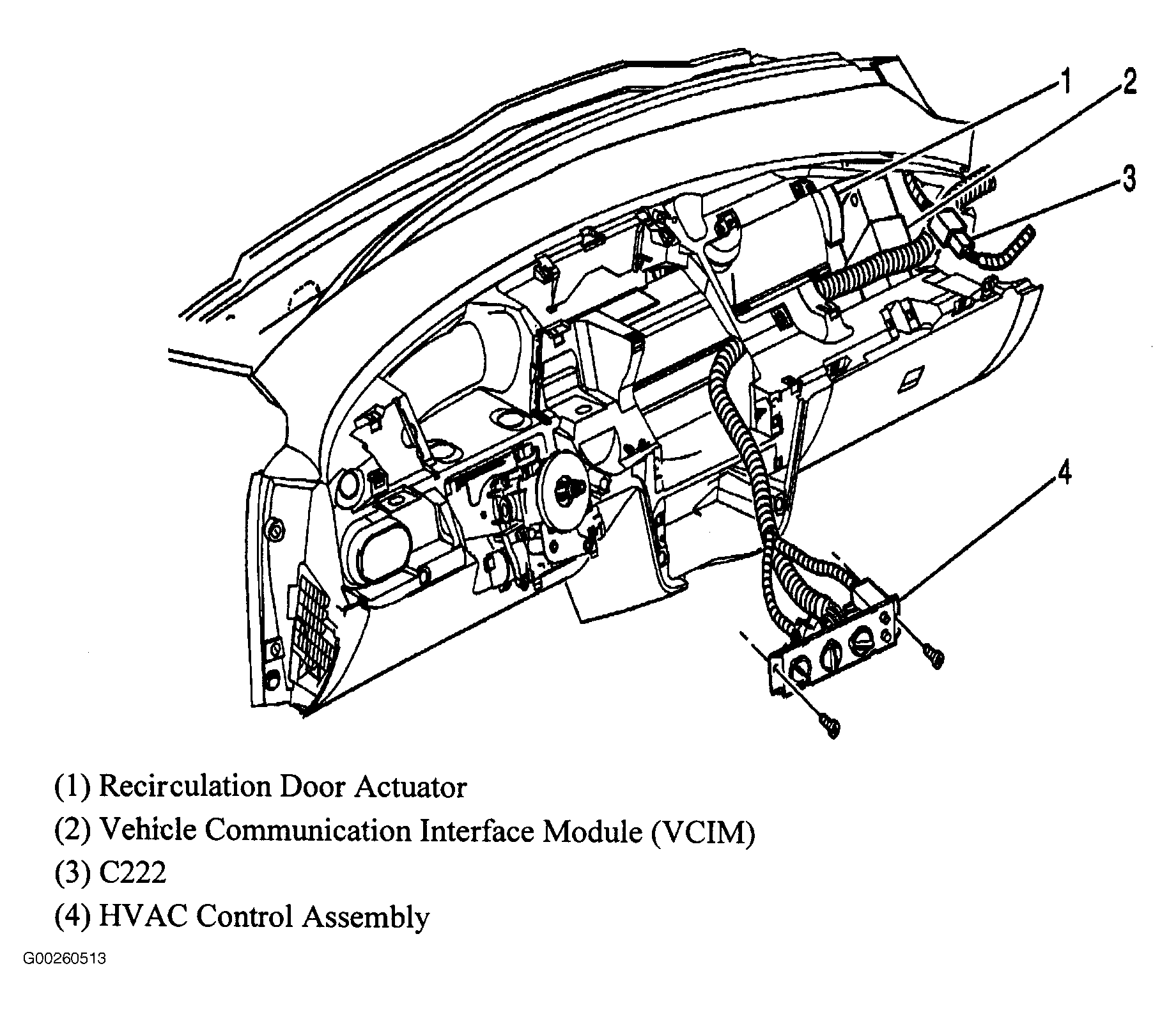

Fig 9: Dash
Courtesy of GENERAL MOTORS CORP.

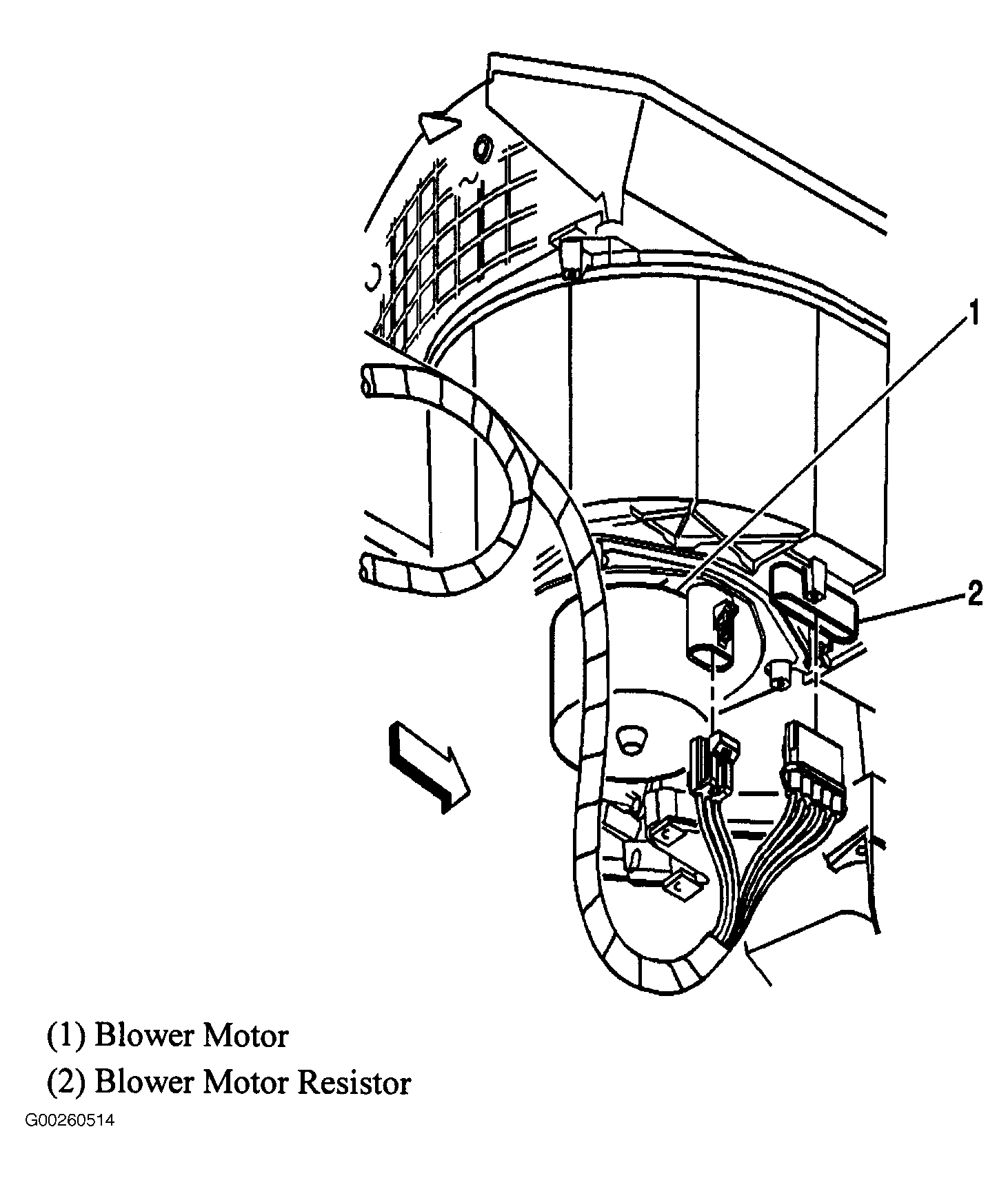

Fig 10: HVAC Blower
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Rear Of Engine Compartment & Left Footwell
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Front Steering Knuckle, Left Rear Wheel Hub & Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

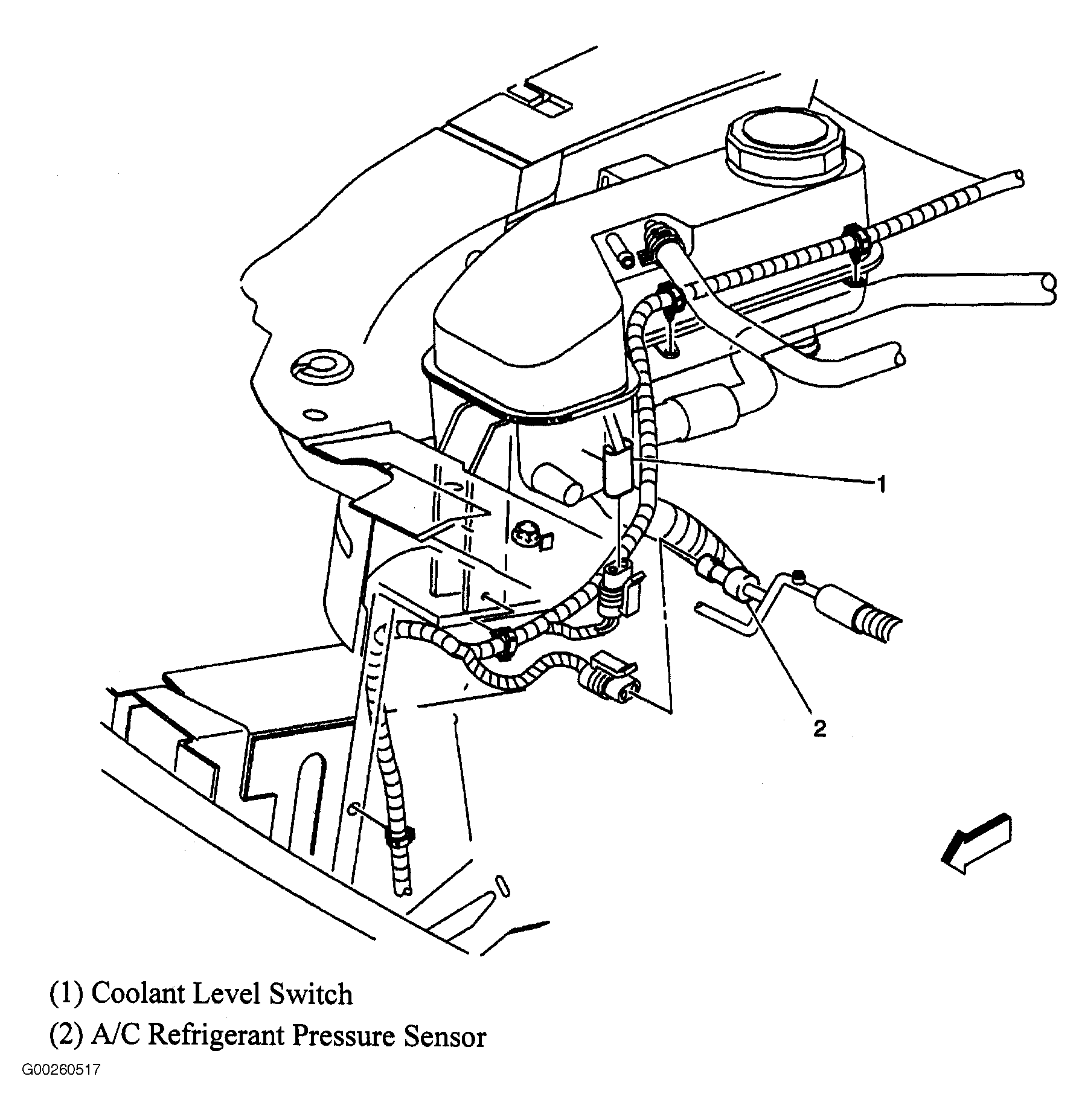

Fig 13: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 14: Rear Of Radiator
Courtesy of GENERAL MOTORS CORP.
Fig 15: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

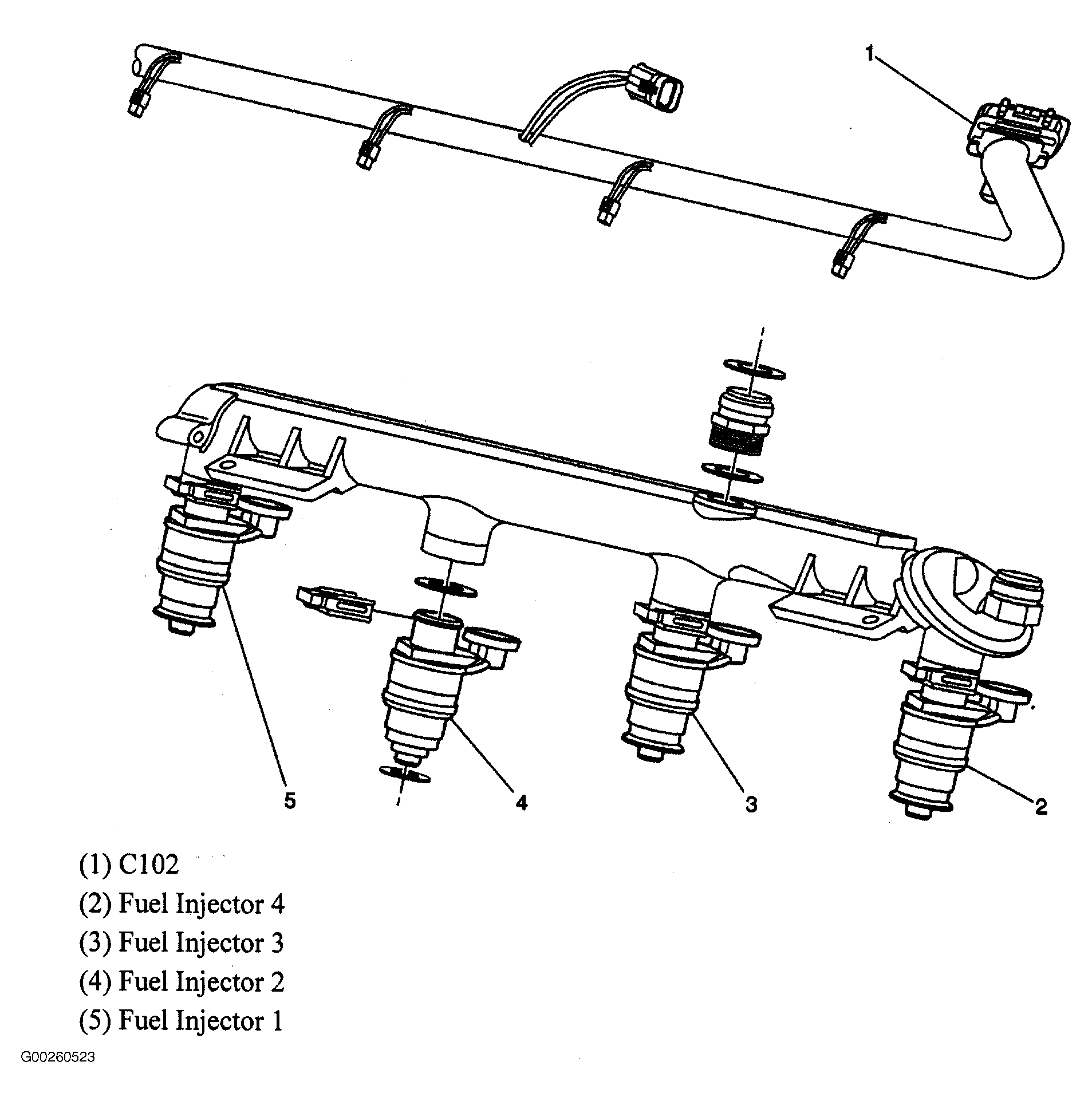

Fig 19: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

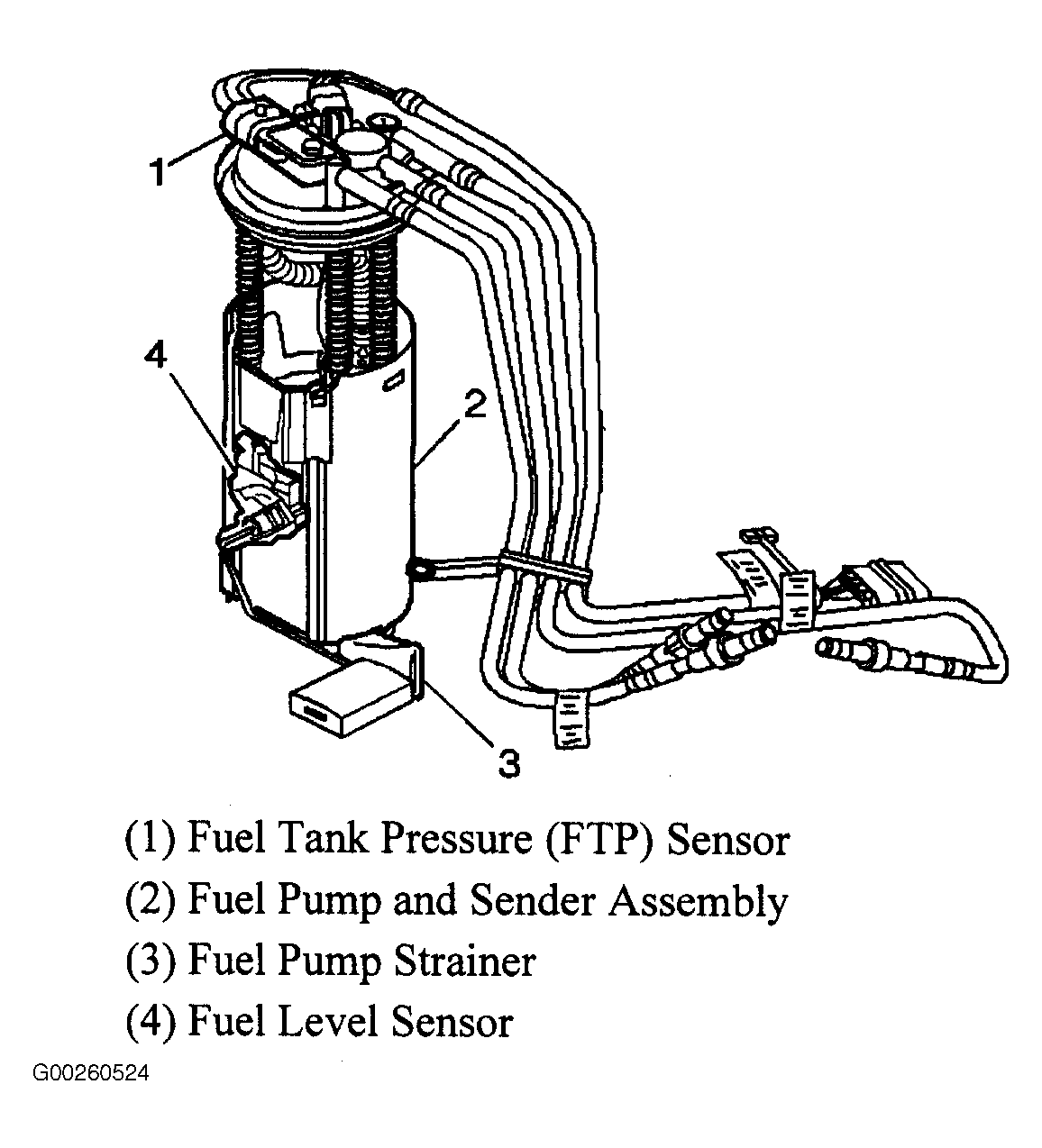

Fig 20: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 21: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

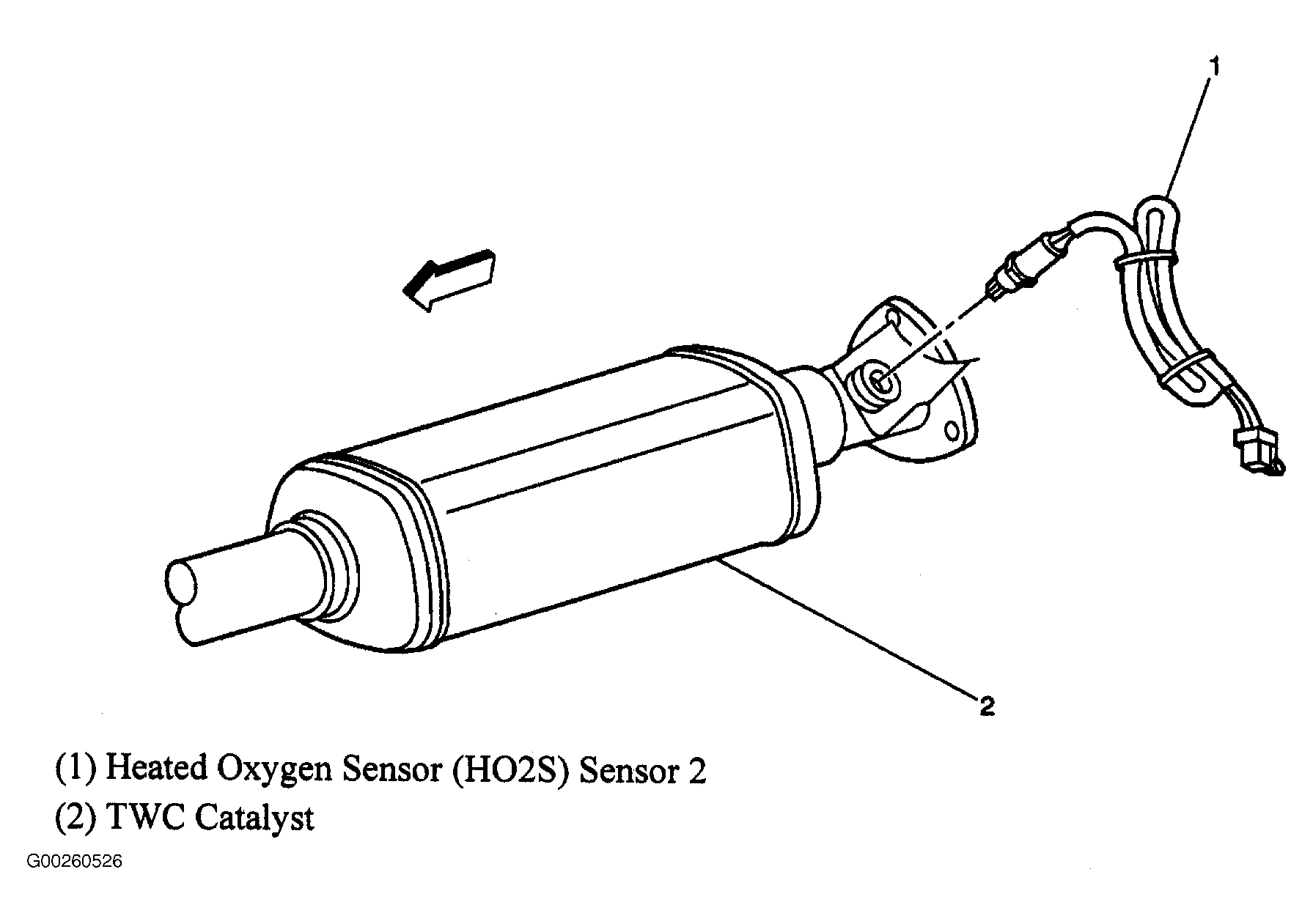

Fig 22: Under Center Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 23: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

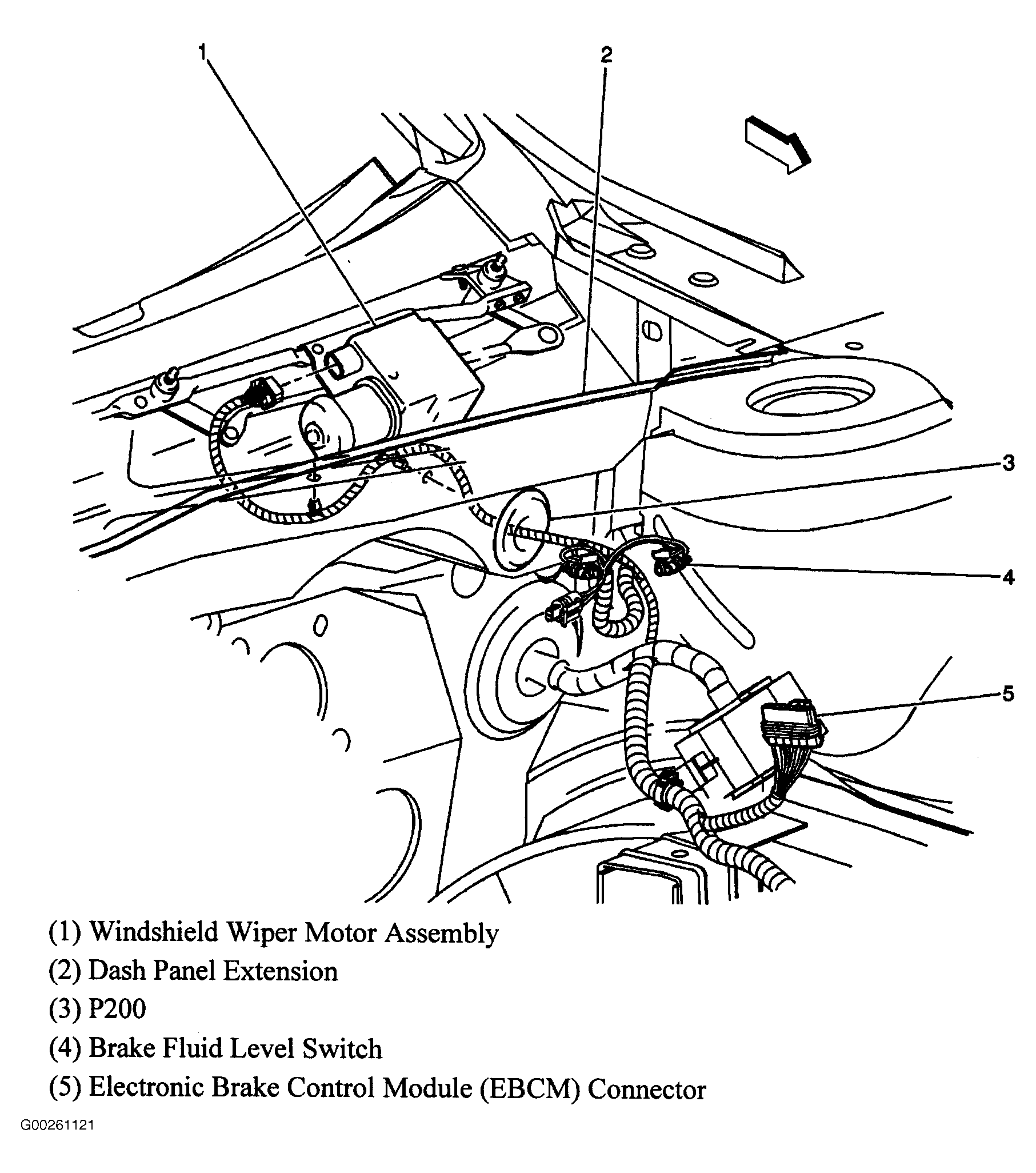

Fig 24: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

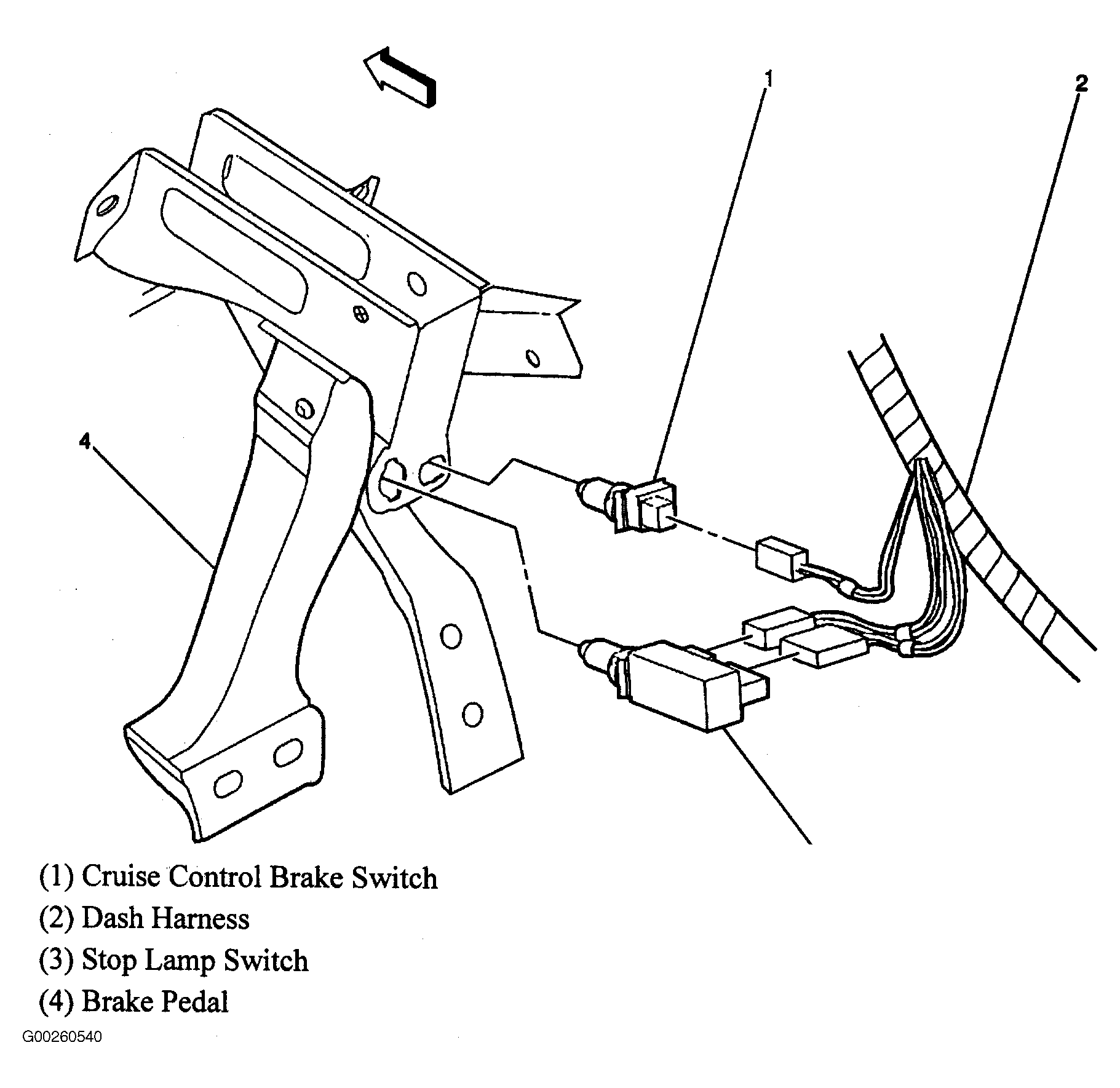

Fig 25: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

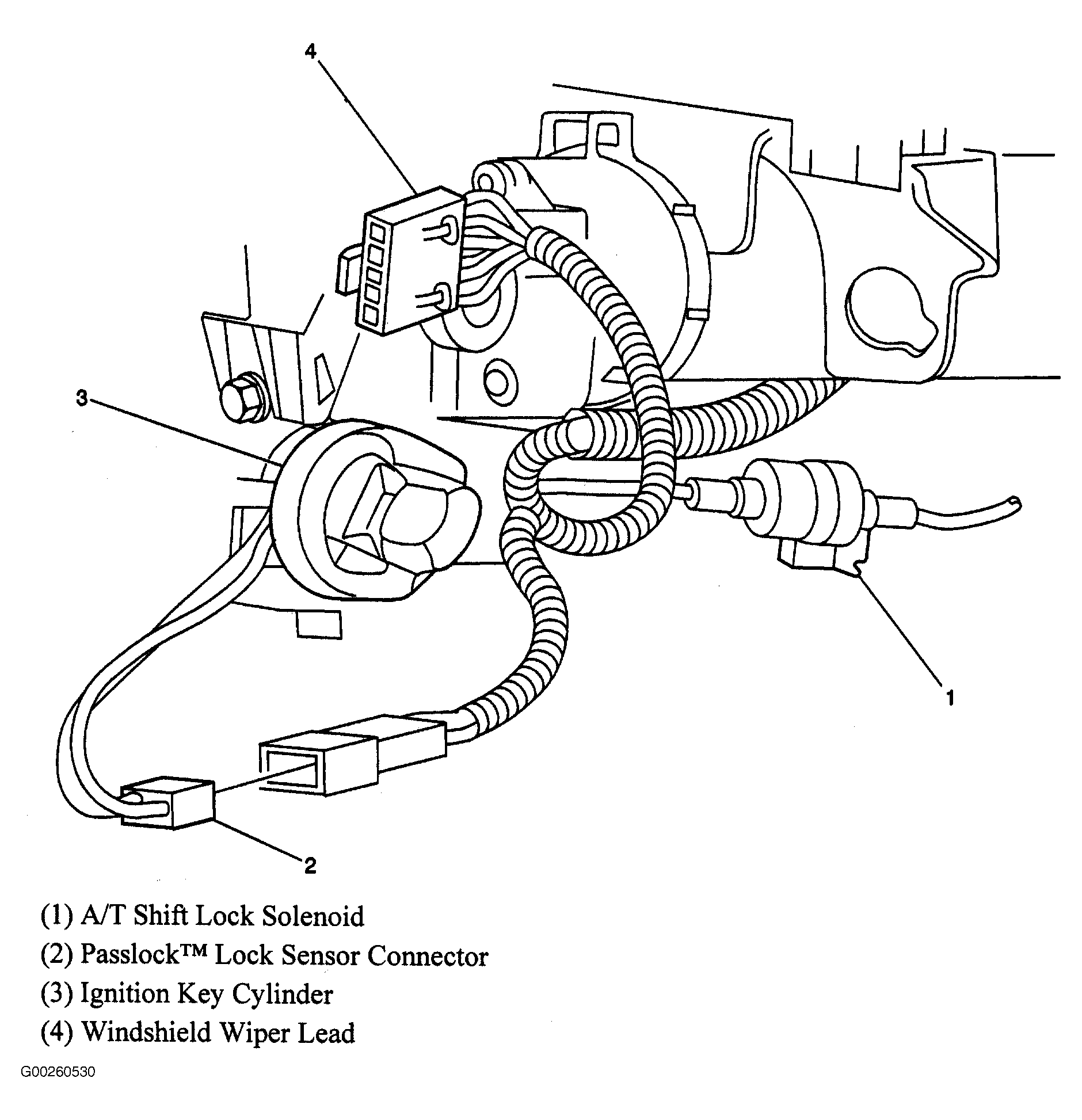

Fig 26: Under Steering Column
Courtesy of GENERAL MOTORS CORP.

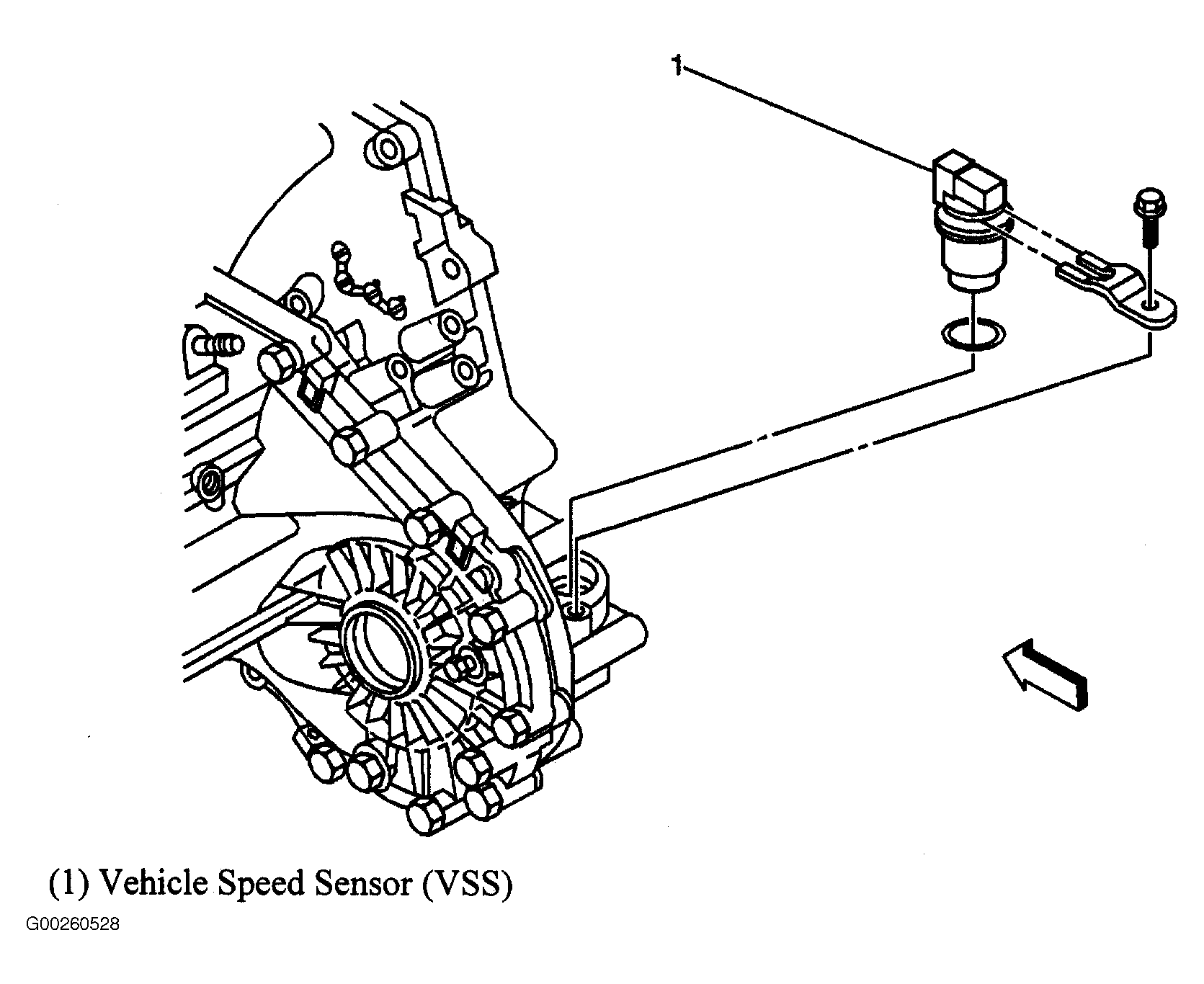

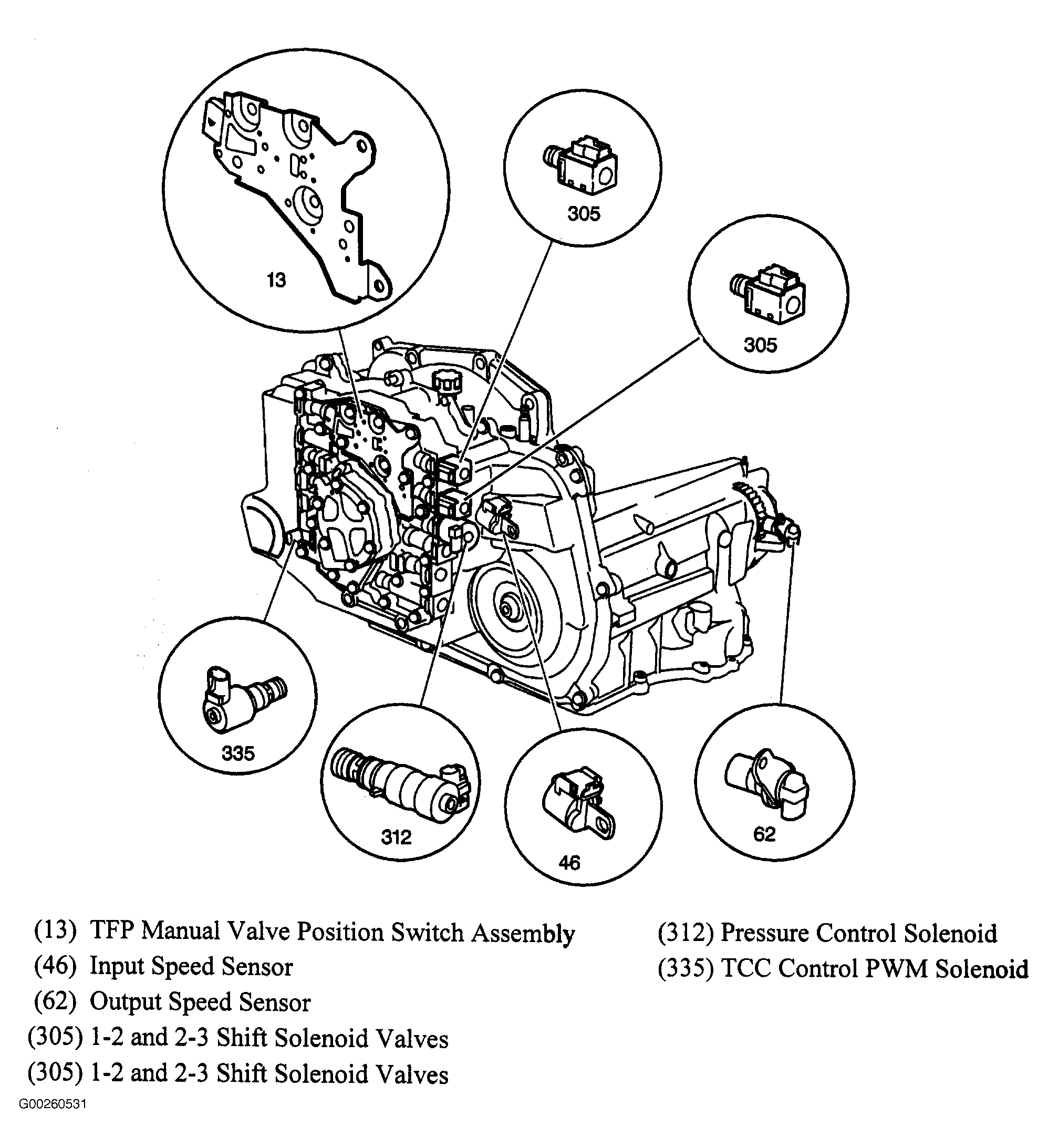

Fig 27: Rear Of Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

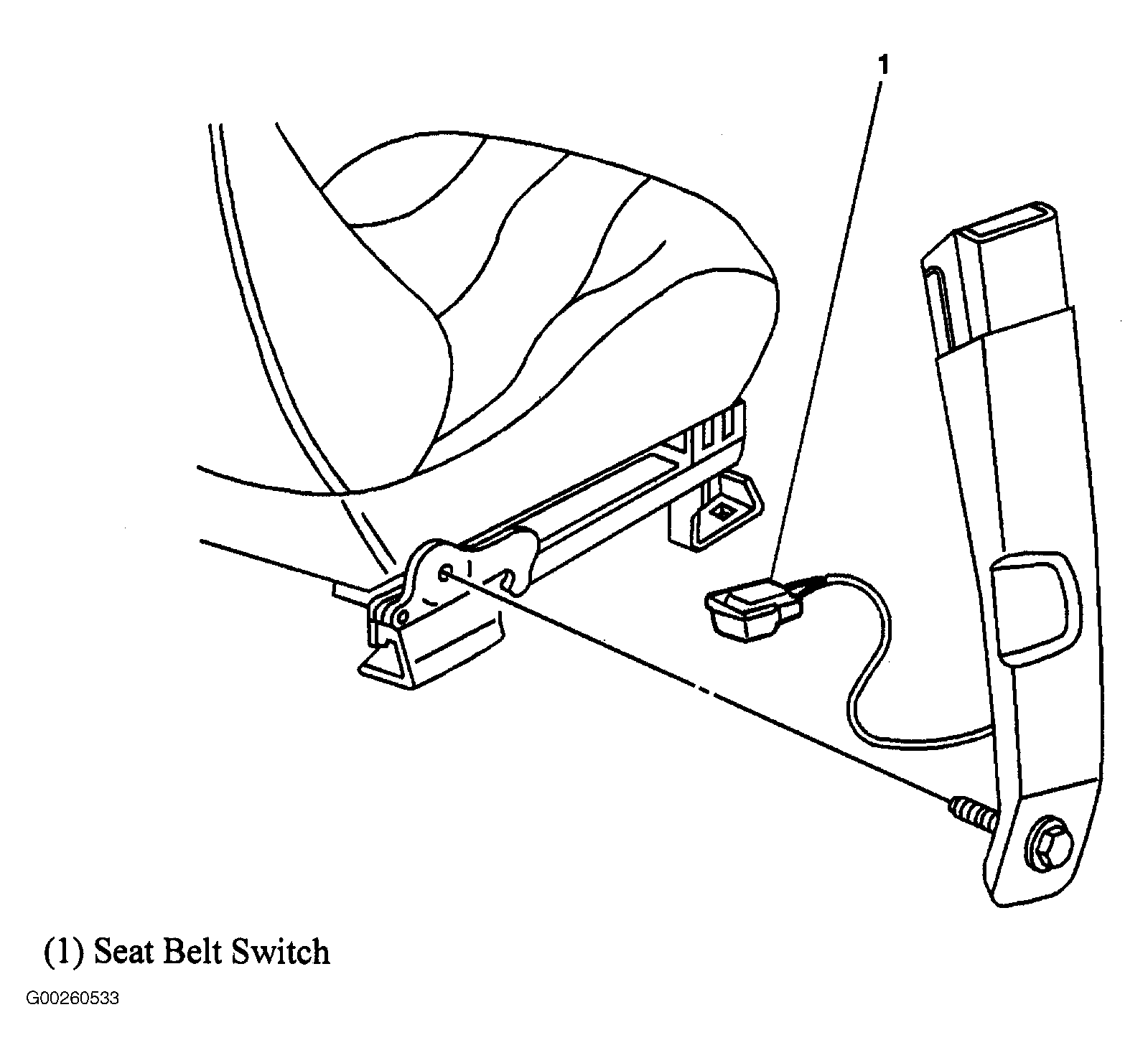

Fig 28: Right Side Of Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Dash, Left Front Floor, Steering Wheel & Side Of Front Seats
Courtesy of GENERAL MOTORS CORP.

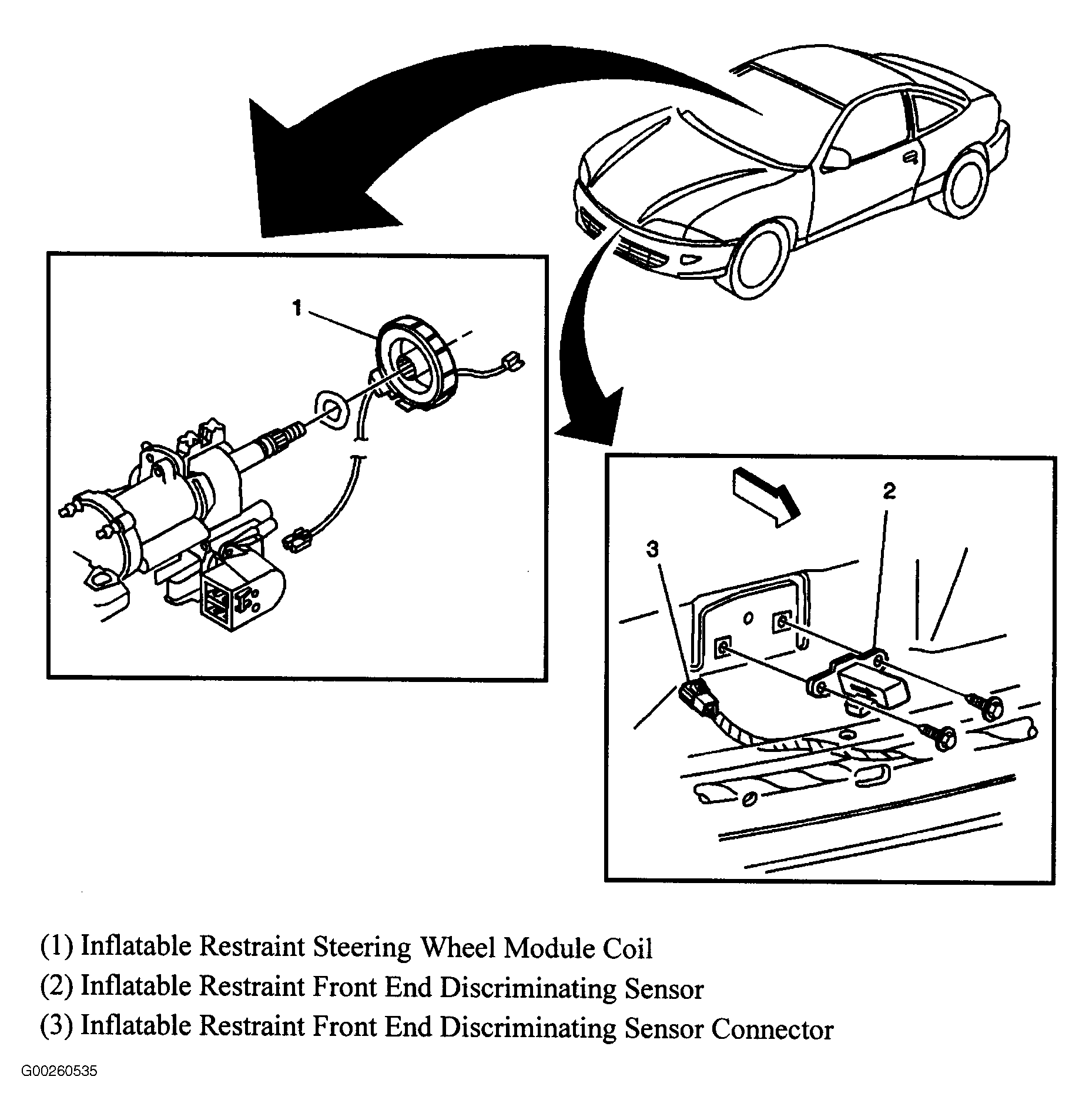

Fig 30: Center Of Front Bumper & Top Of Steering Column
Courtesy of GENERAL MOTORS CORP.

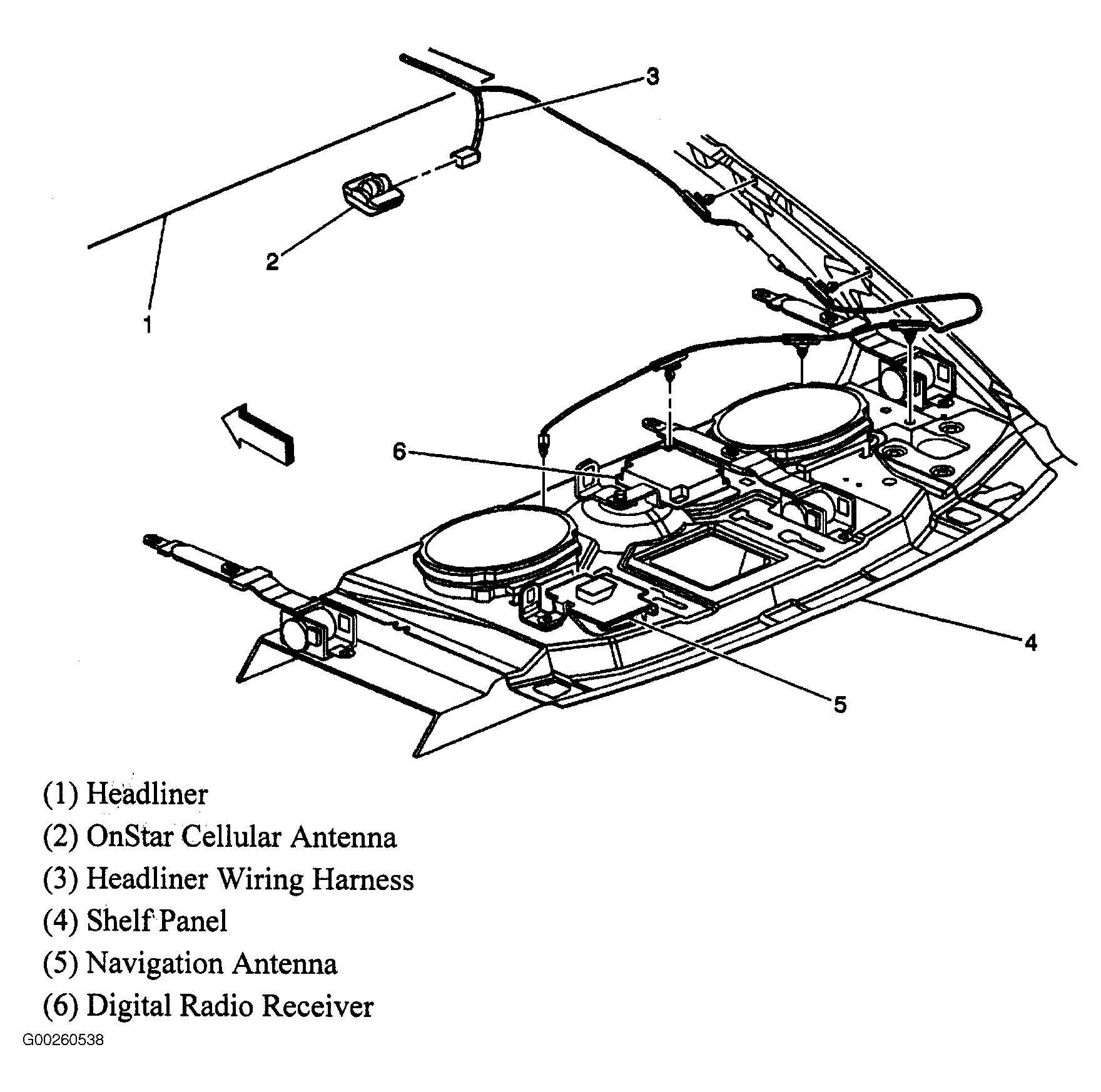

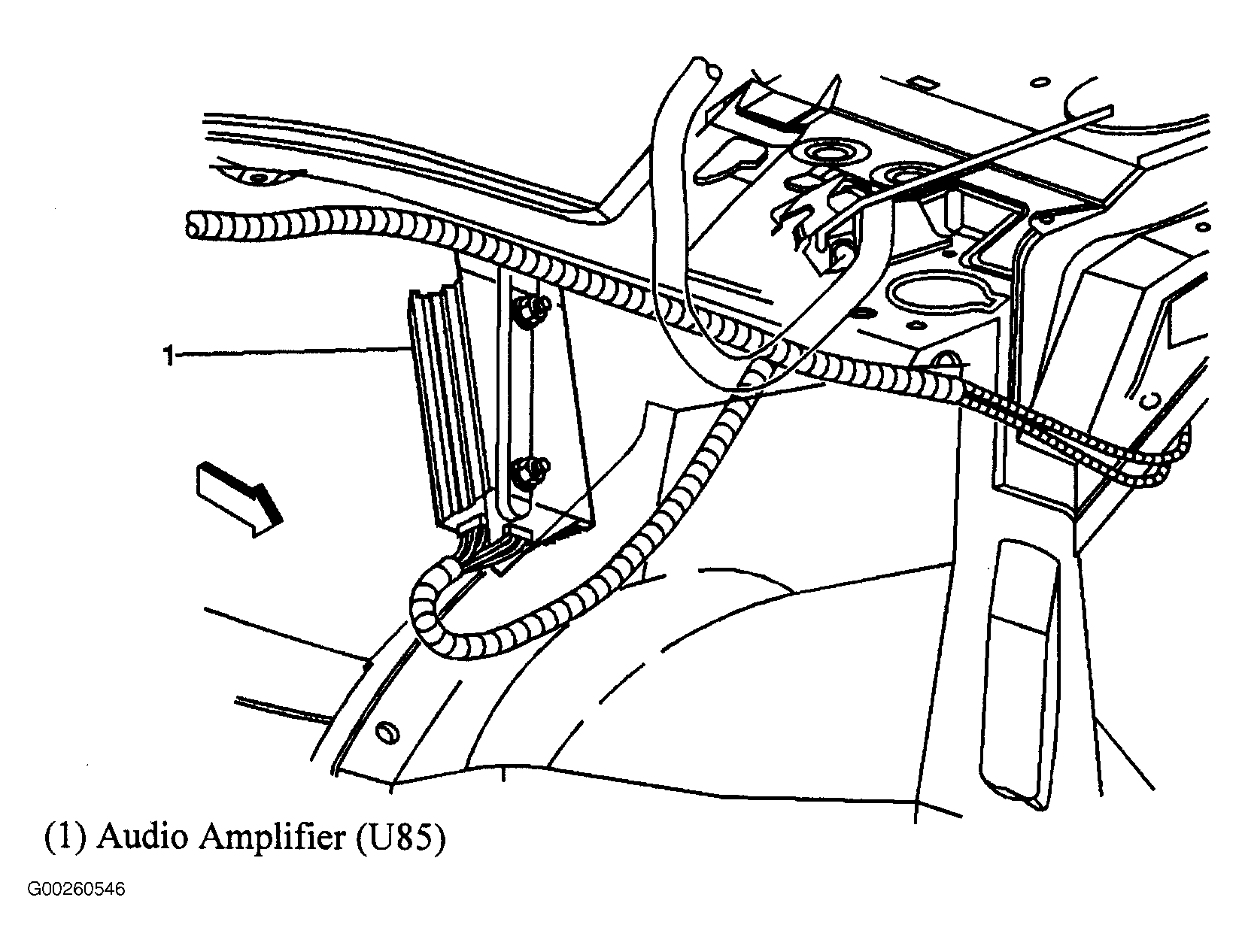

Fig 31: Rear Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 32: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 33: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

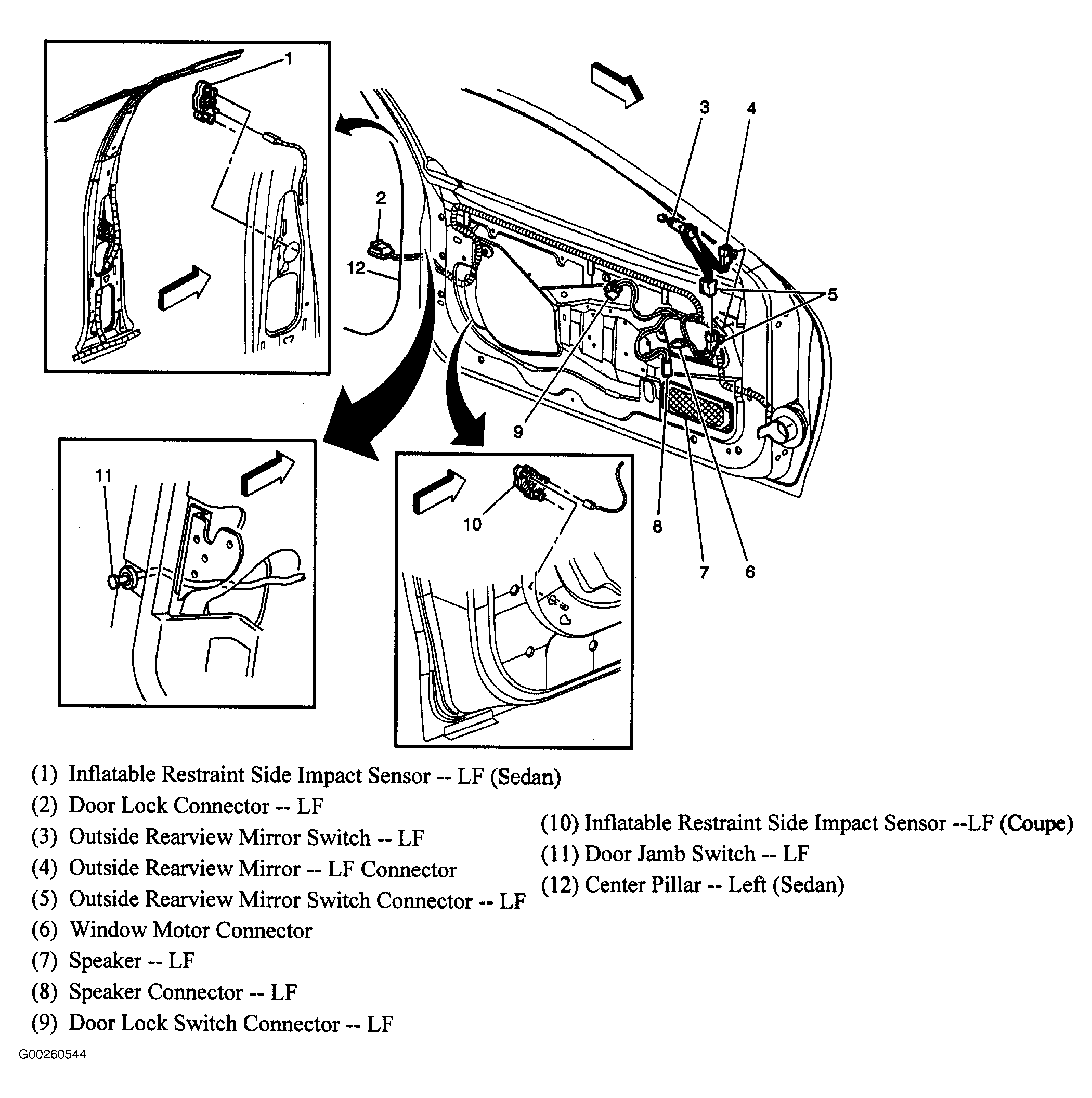

Fig 34: Driver Door & Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

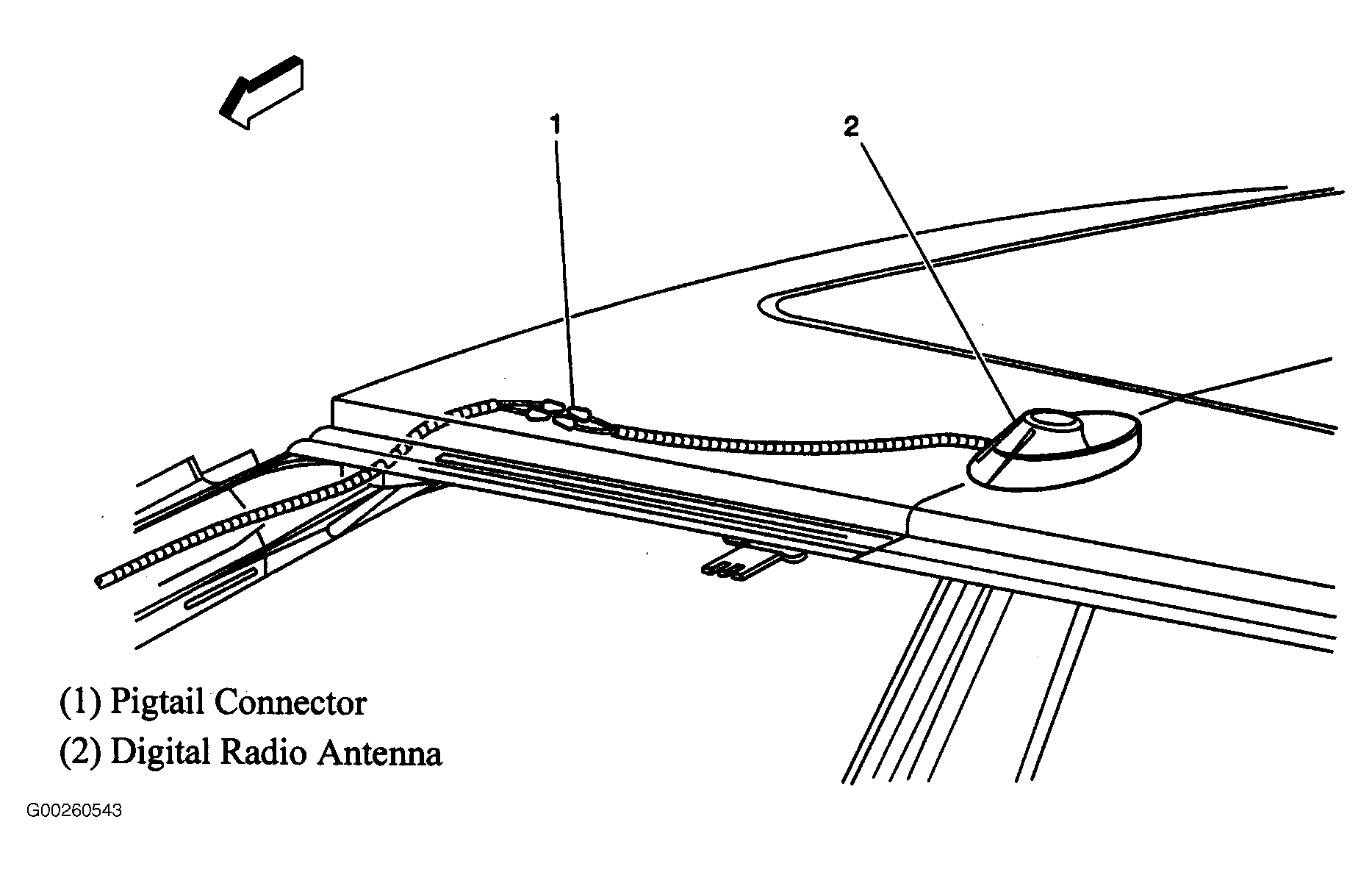

Fig 35: Front Center Of Roof
Courtesy of GENERAL MOTORS CORP.

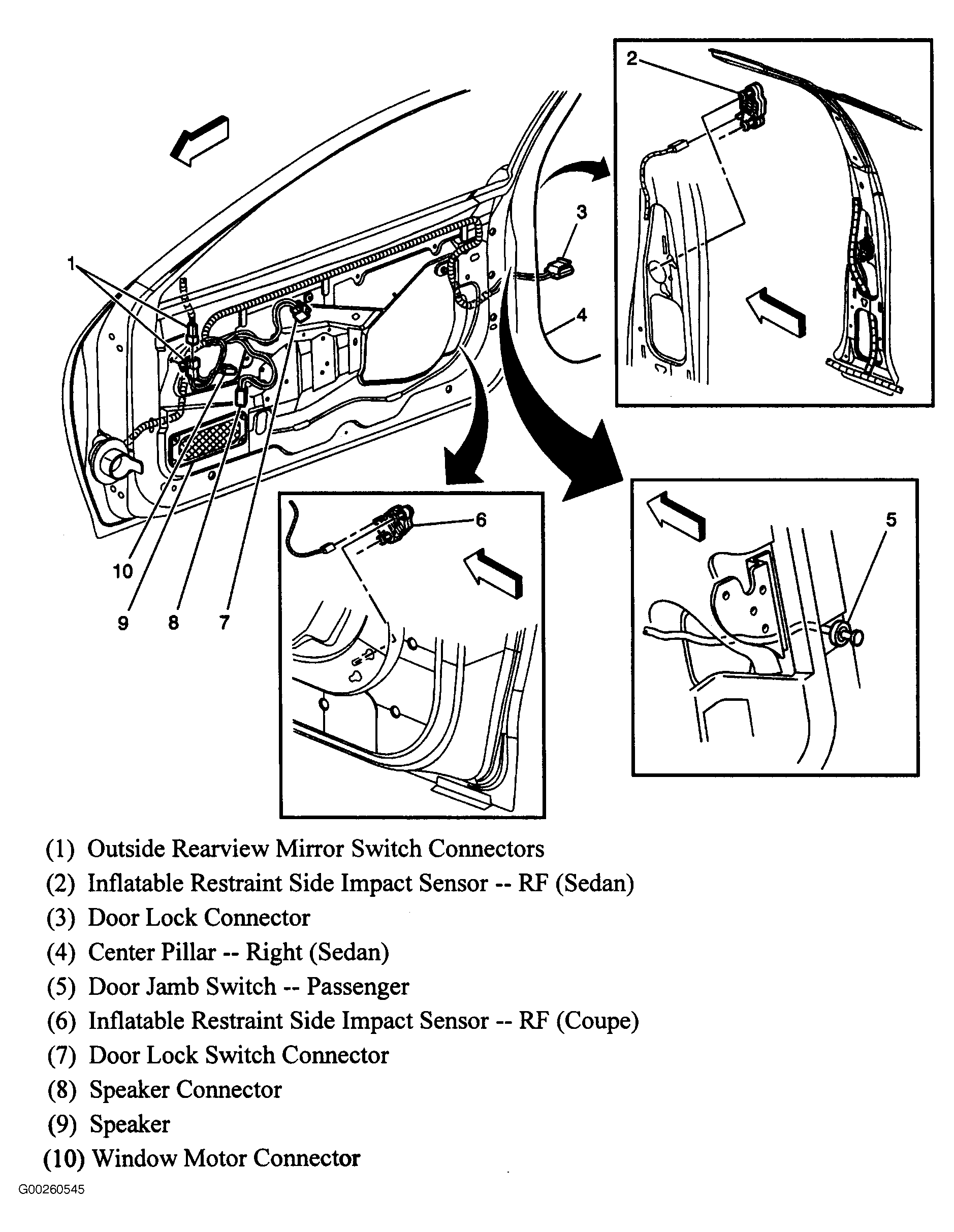

Fig 36: Passenger Door & Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 37: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 38: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

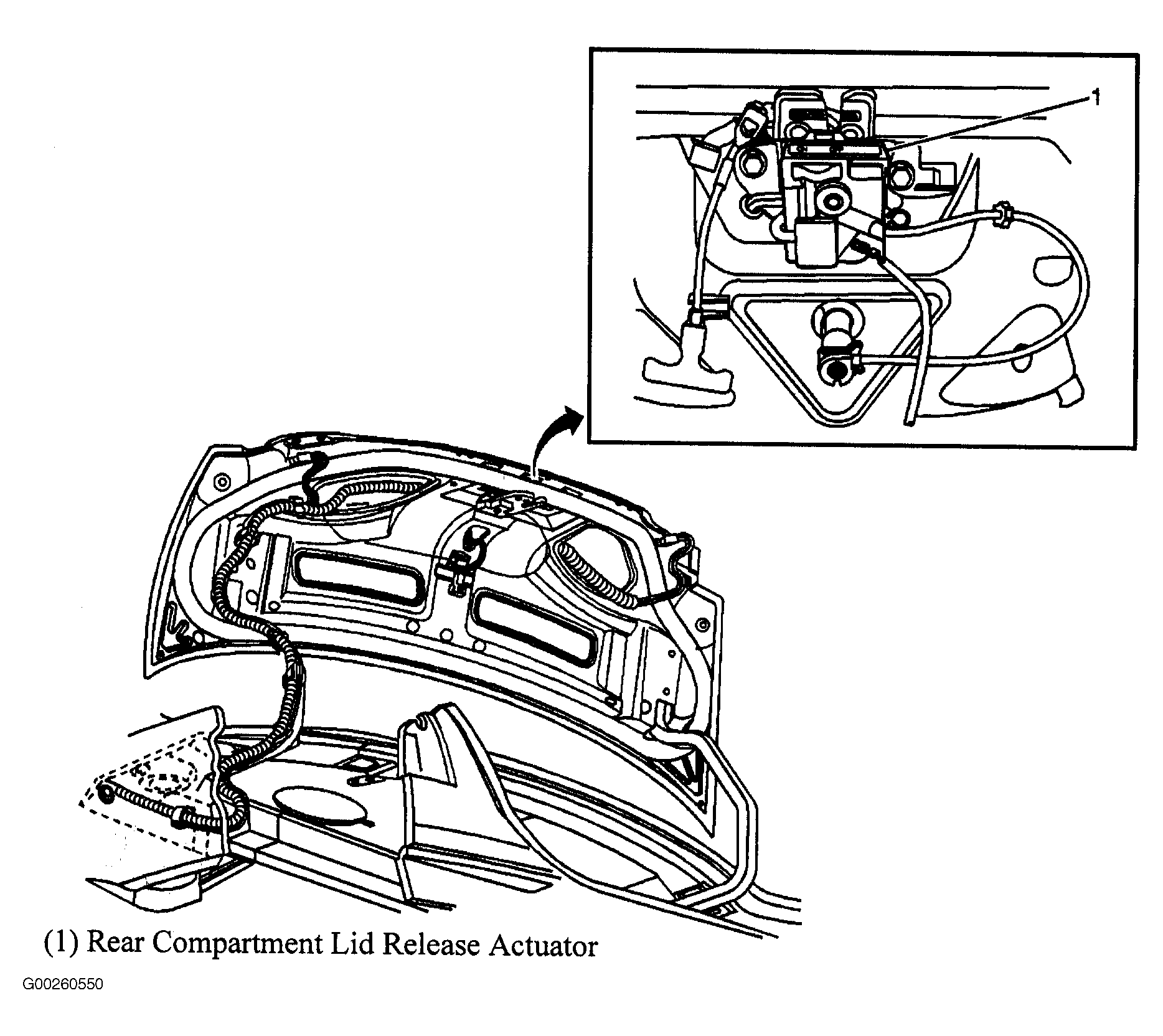

Fig 39: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.

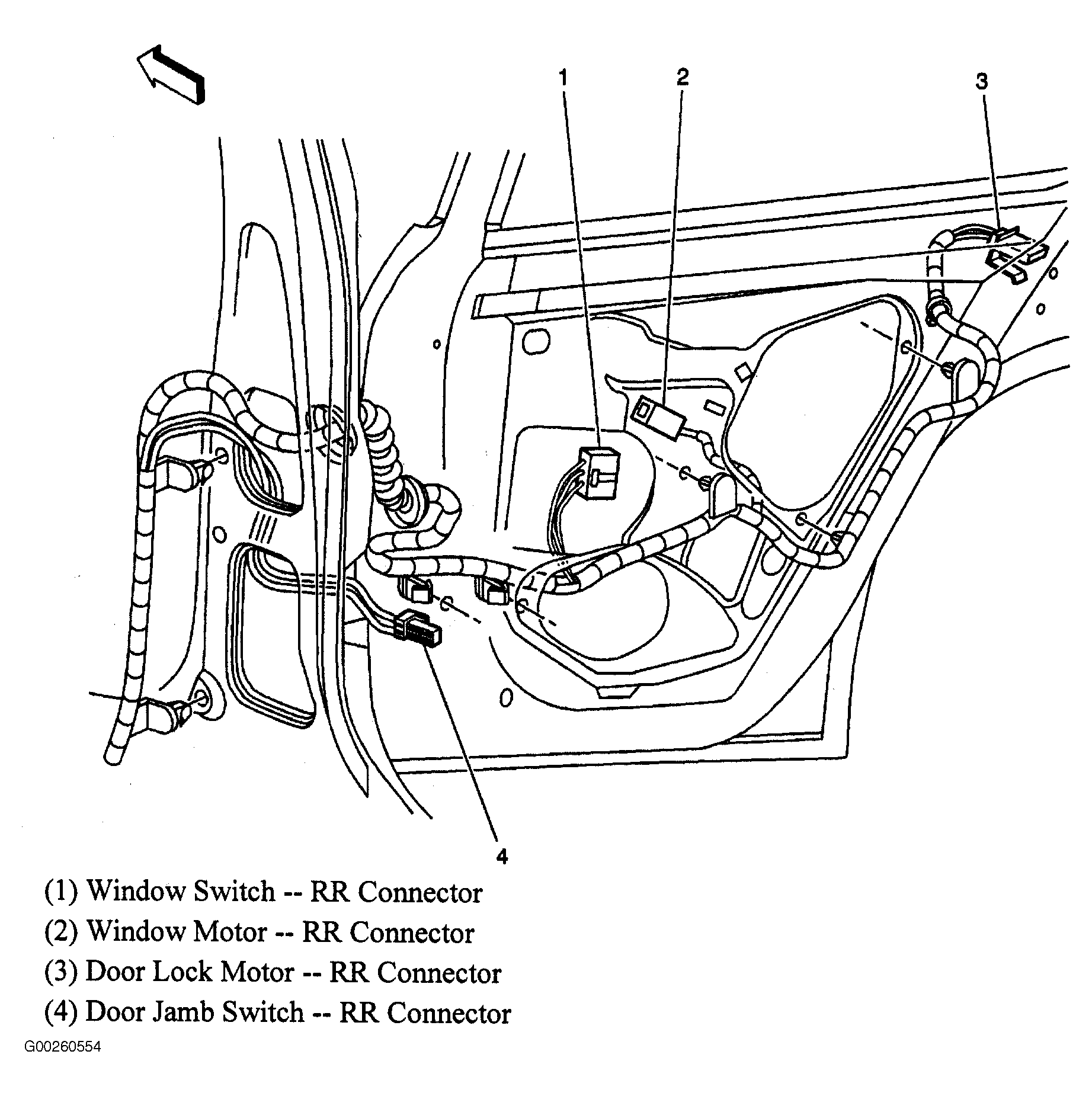

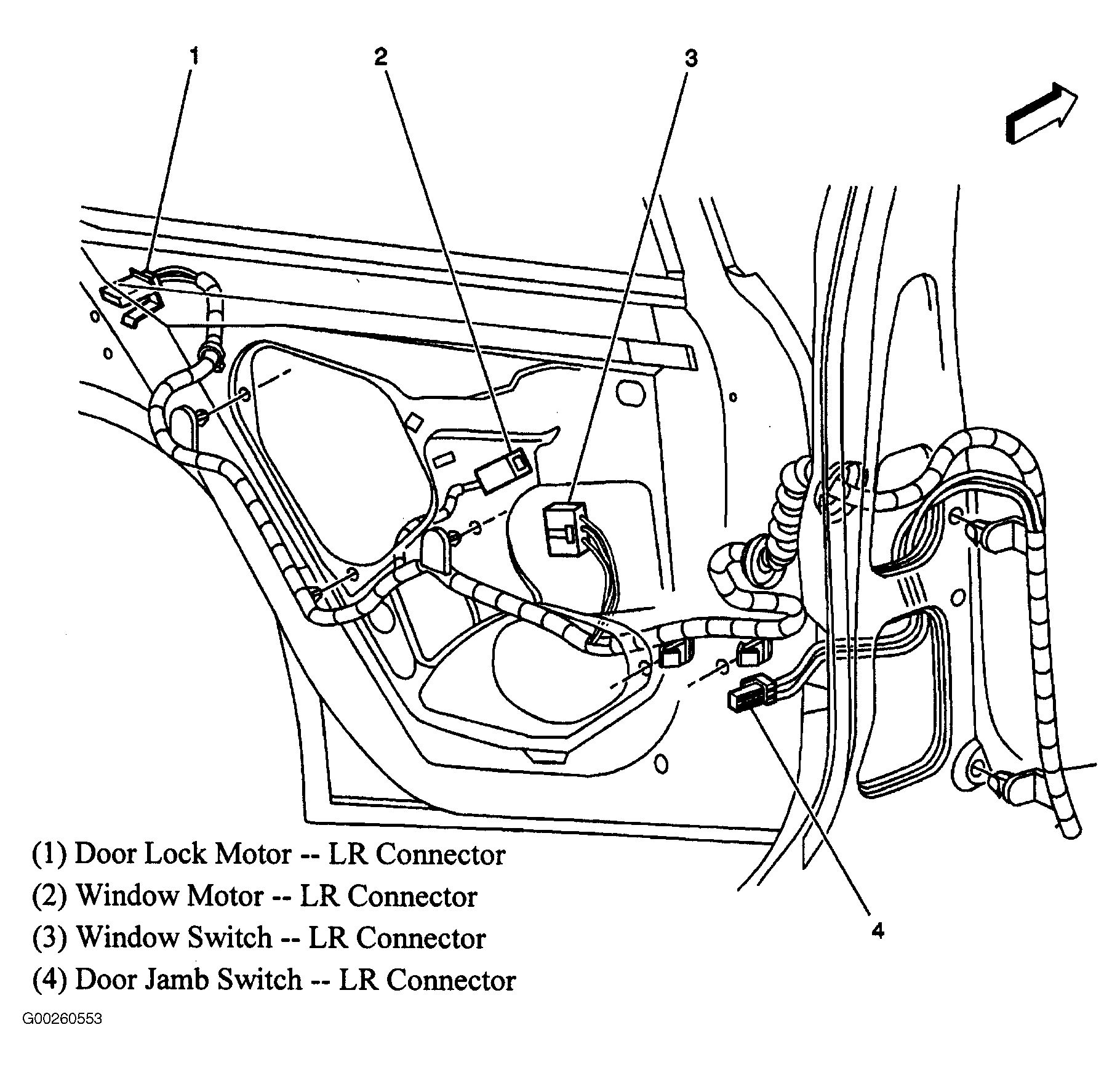

Fig 40: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 41: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 42: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

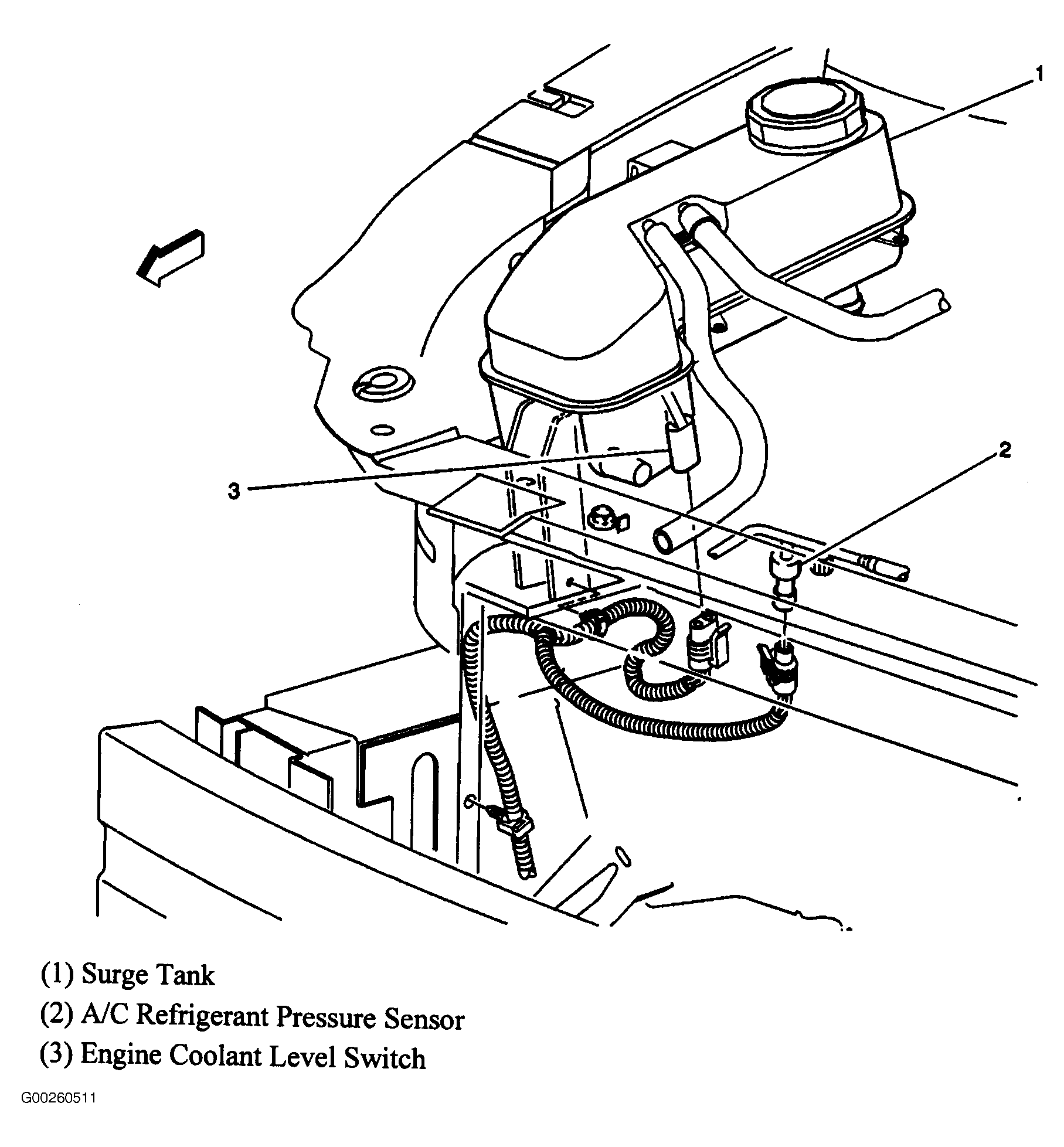

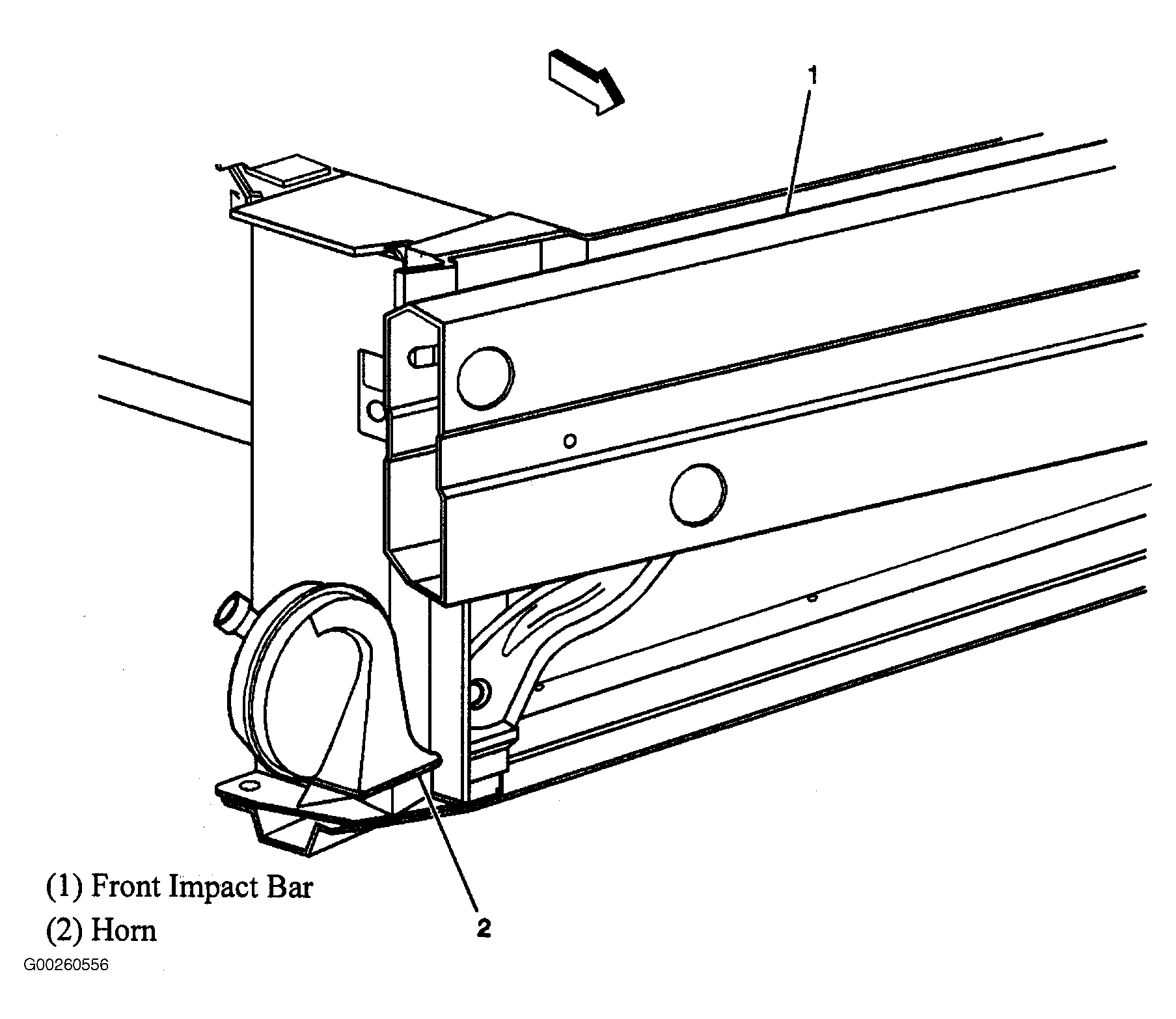

Fig 43: Right Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

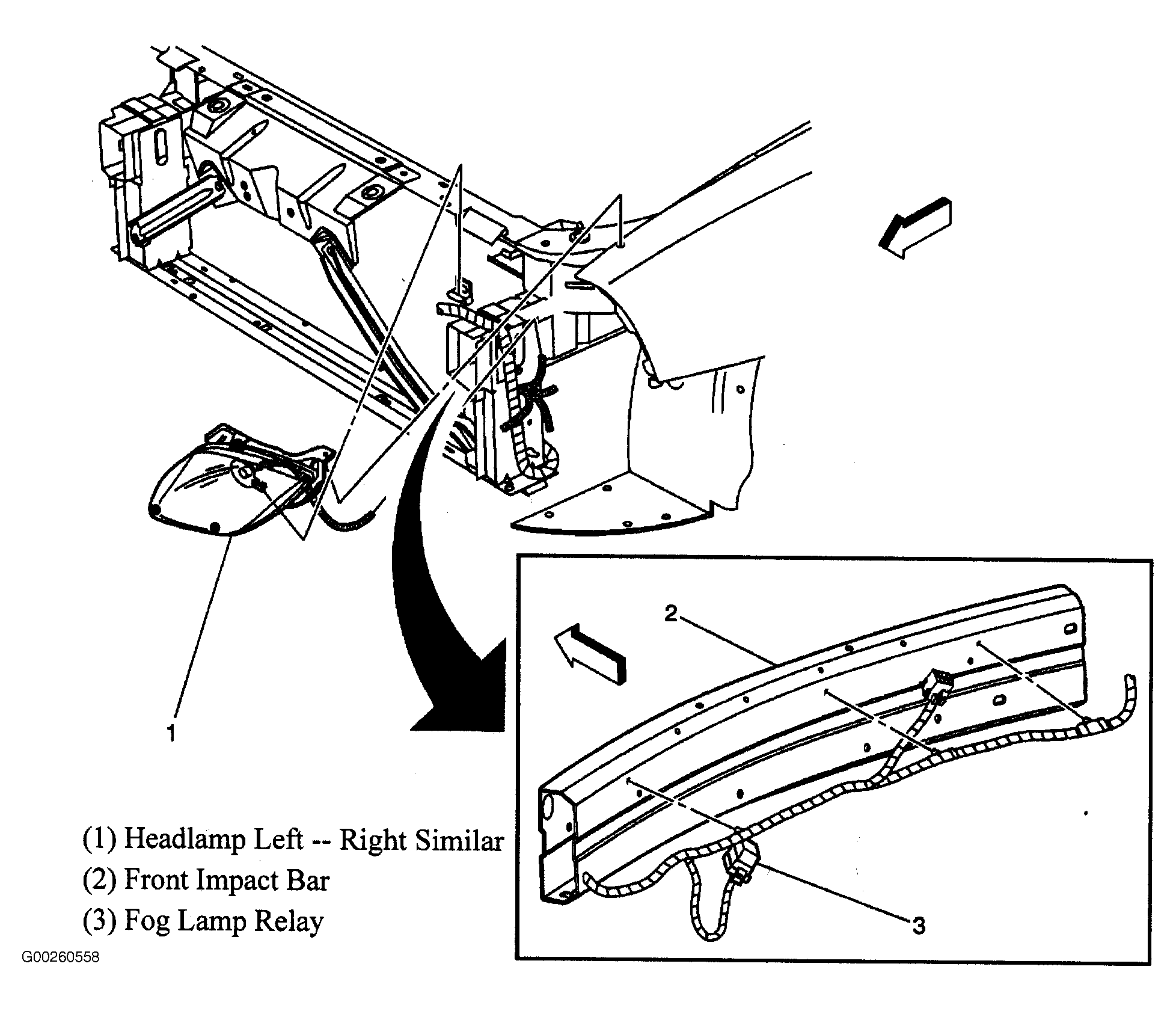

Fig 44: Left Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 45: Sunroof
Courtesy of GENERAL MOTORS CORP.
Fig 46: Left Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 47: Vehicle Overview Of Supplemental Inflatable Restraint Components (Coupe)
Courtesy of GENERAL MOTORS CORP.

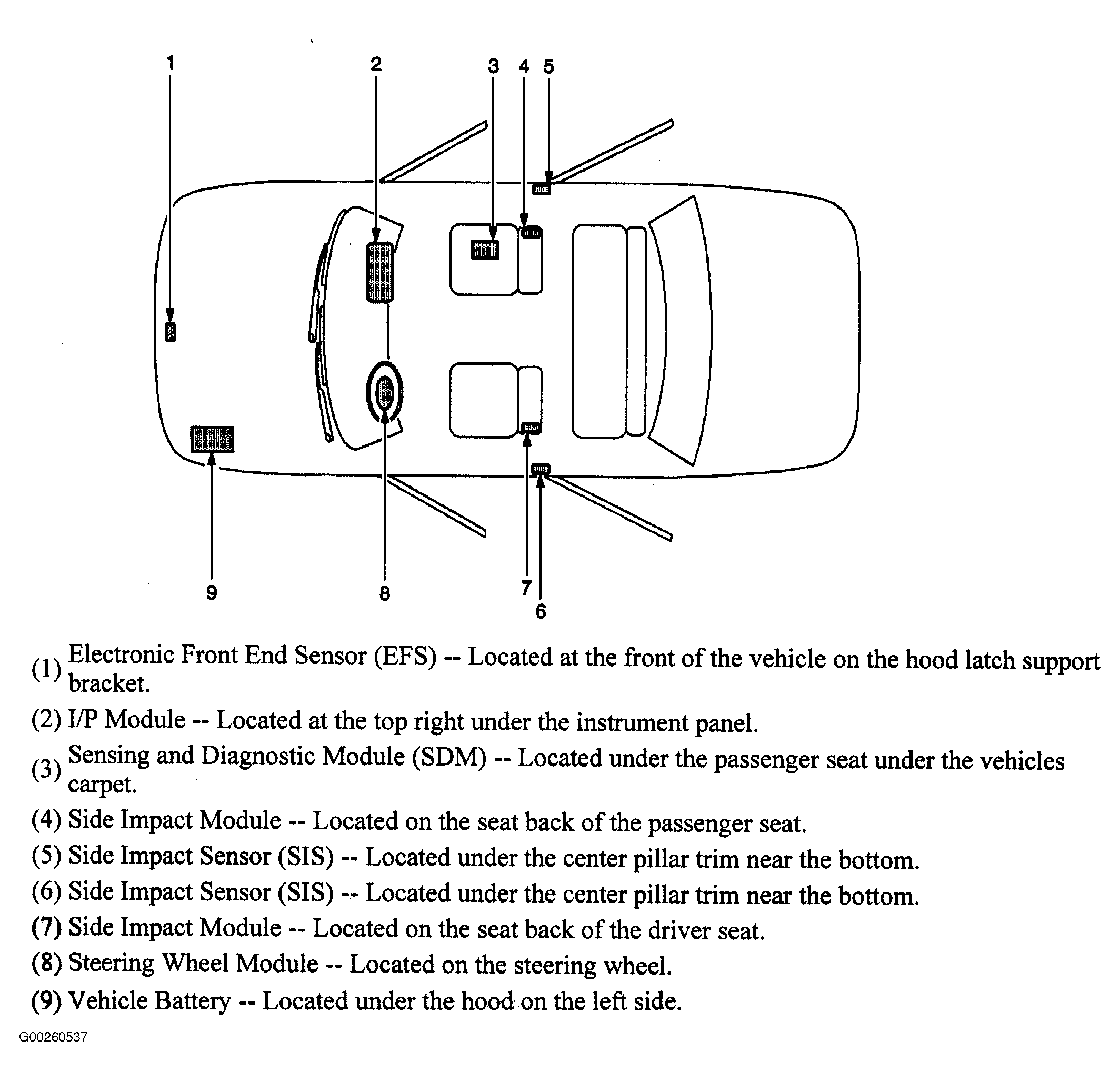

Fig 48: Vehicle Overview Of Supplemental Inflatable Restraint Components (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Vehicle Overview Of Engine Controls (CNG) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Vehicle Overview Of Engine Controls (CNG) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Vehicle Overview Of Fuel Controls (CNG) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Vehicle Overview Of Fuel Controls (CNG) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 53: Left Side Of Engine Compartment (CNG)
Courtesy of GENERAL MOTORS CORP.
