Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module (BCM) | Behind lower left side of dash. See Figure . |
| Cruise Control Module (CCM) | On rear right side of engine compartment. See Figure . |

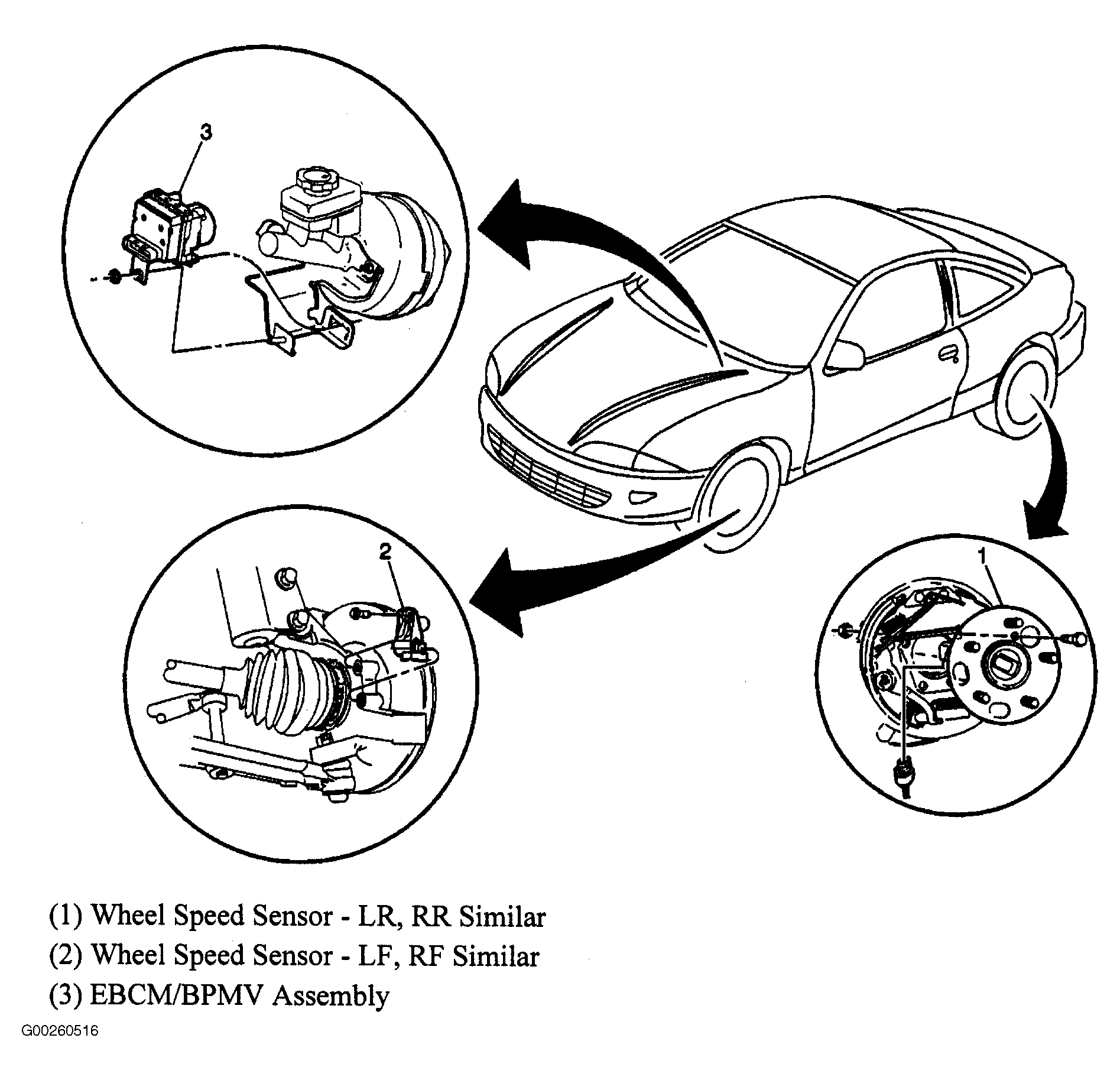

| EBCM/BPMV Assembly | Next to master cylinder. See Figure . |

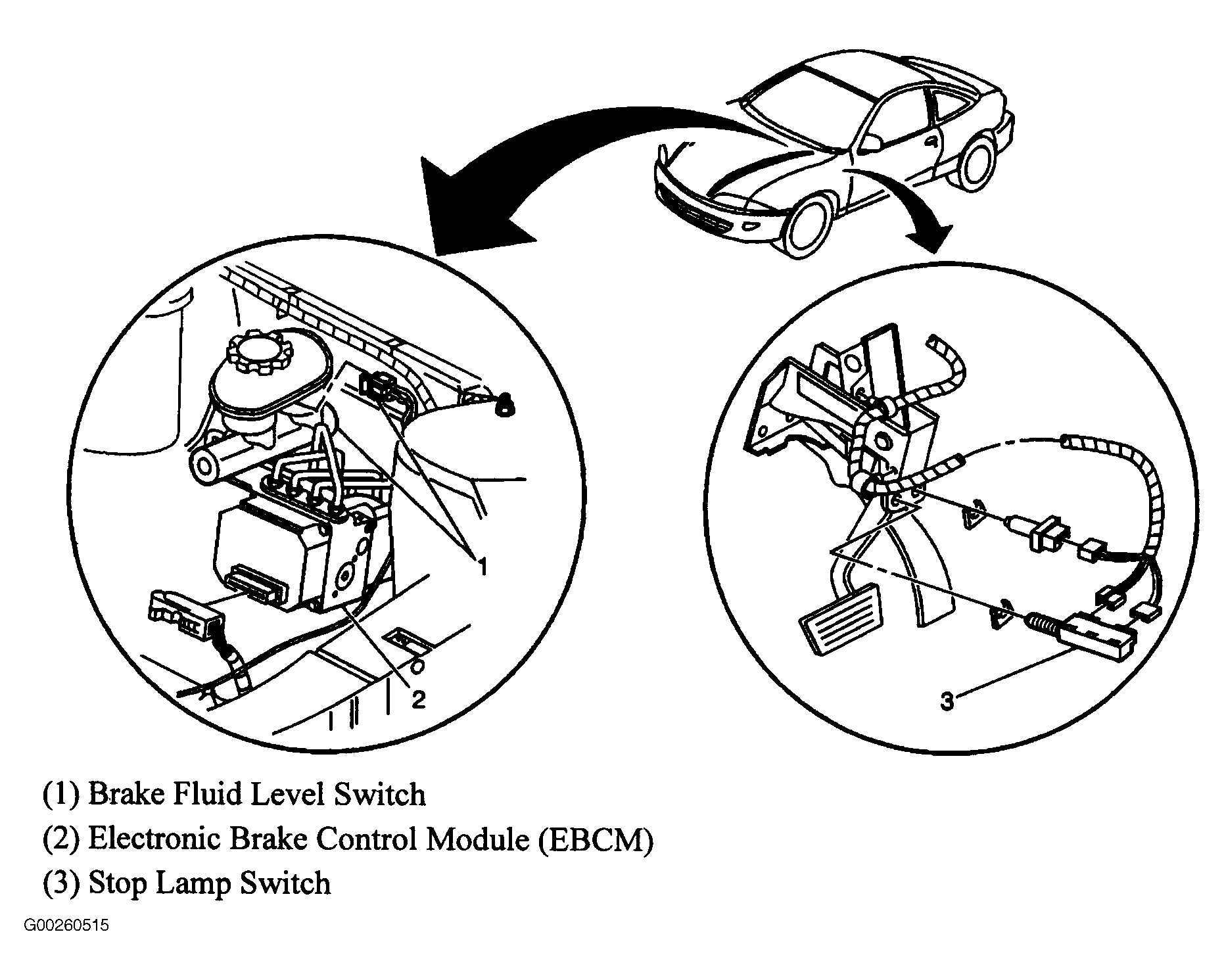

| Electronic Brake Control Module (EBCM) | Next to master cylinder. See Figure . |

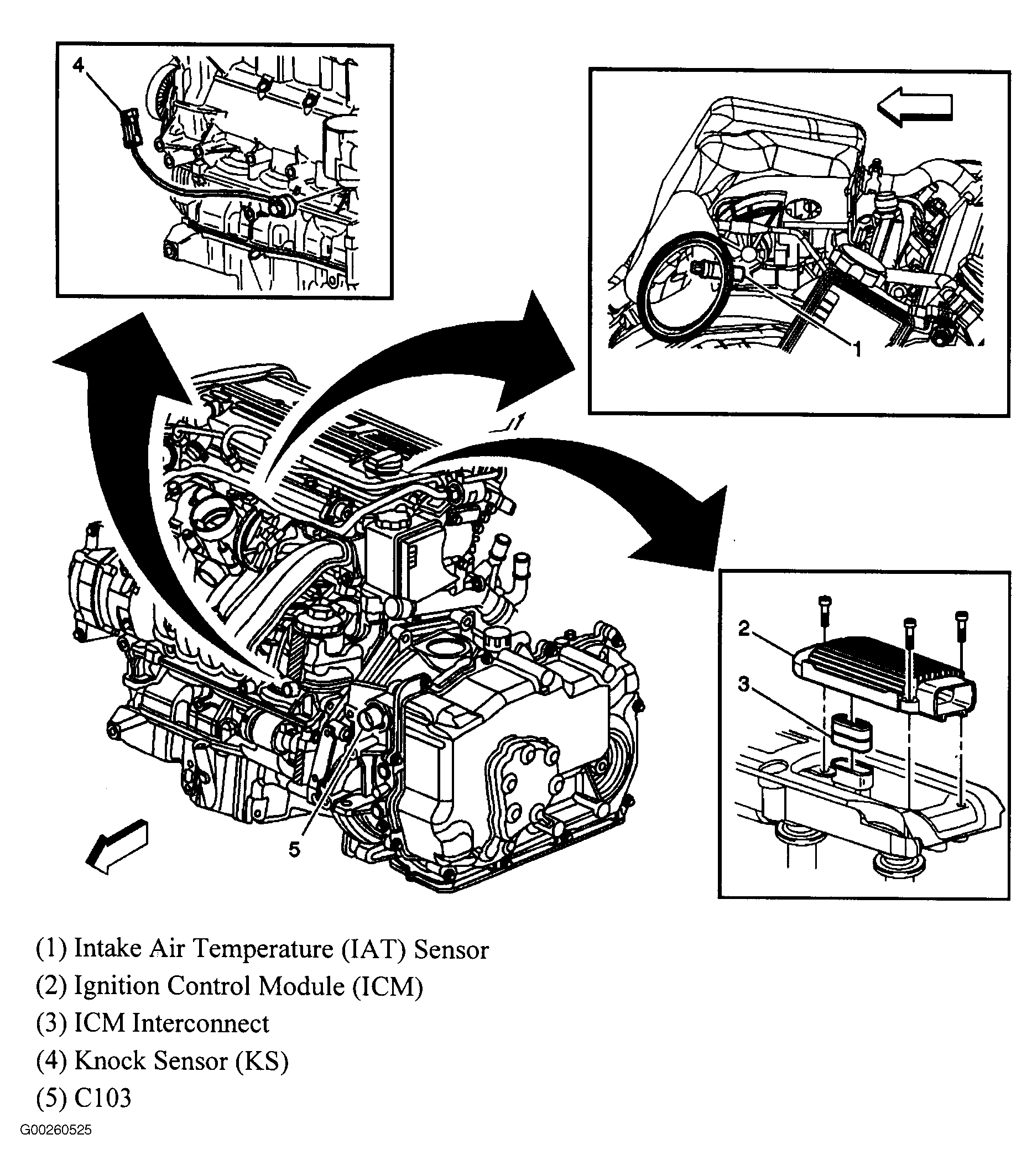

| Ignition Control Module (ICM) | On top left of engine. See Figure . |

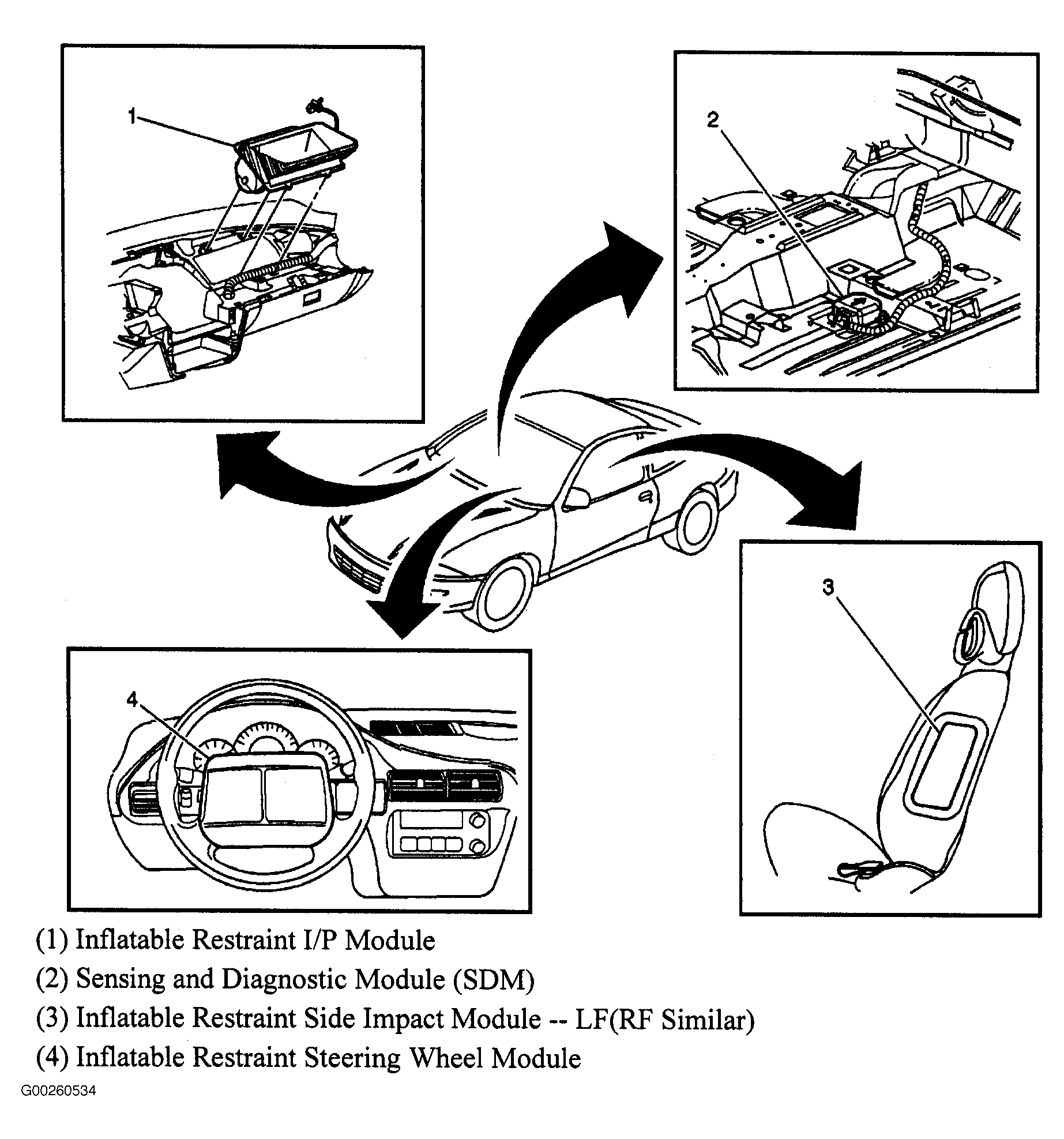

| Inflatable Restraint I/P Module | Above glove box. See Figure . |
| Inflatable Restraint Side Impact Module - LF (RF Similar) | On driver seat side. See Figure . |
| Inflatable Restraint Steering Wheel Module | Under horn pad. See Figure . |

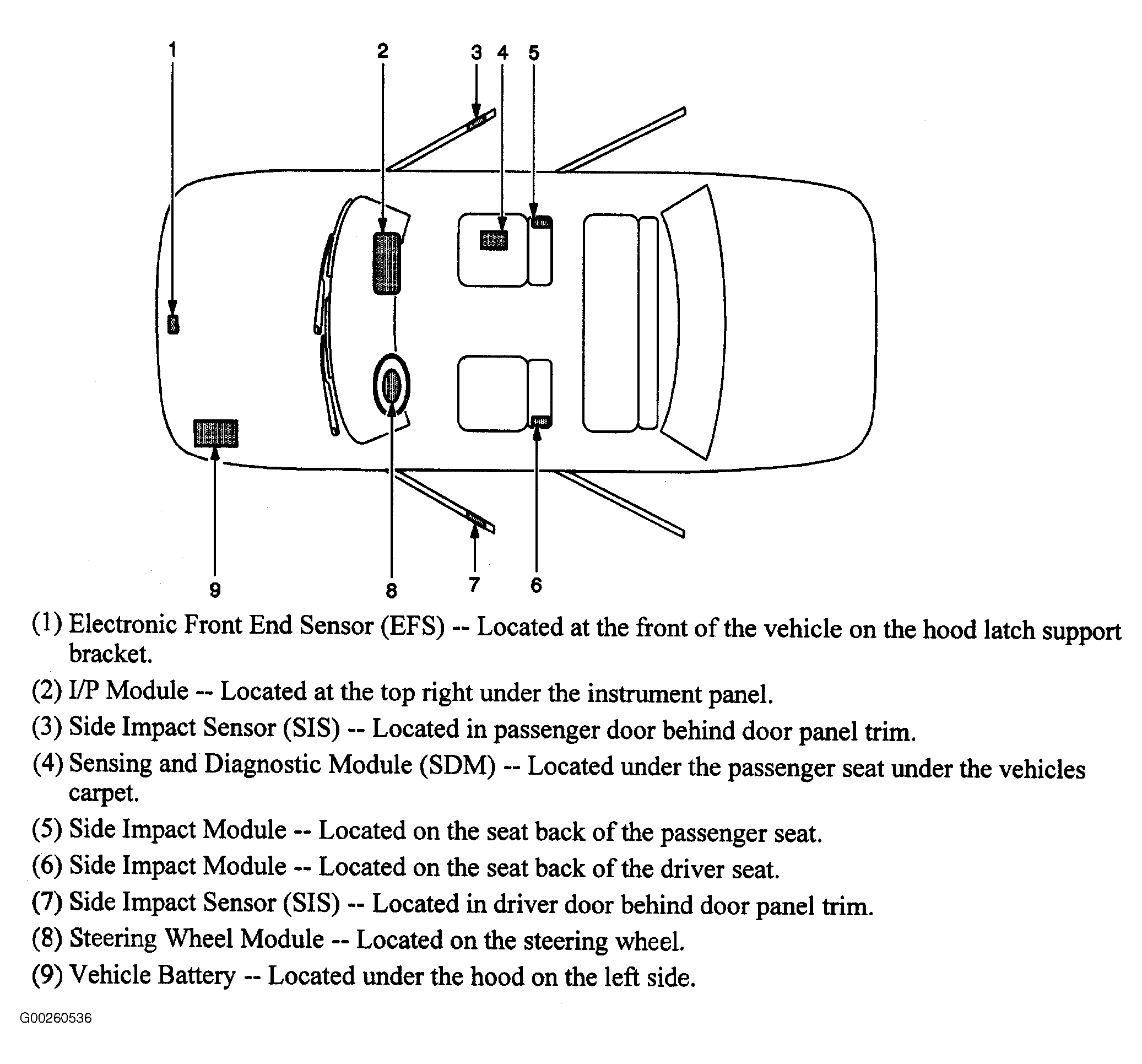

| I/P Module | Behind right side of dash. See Figure . |

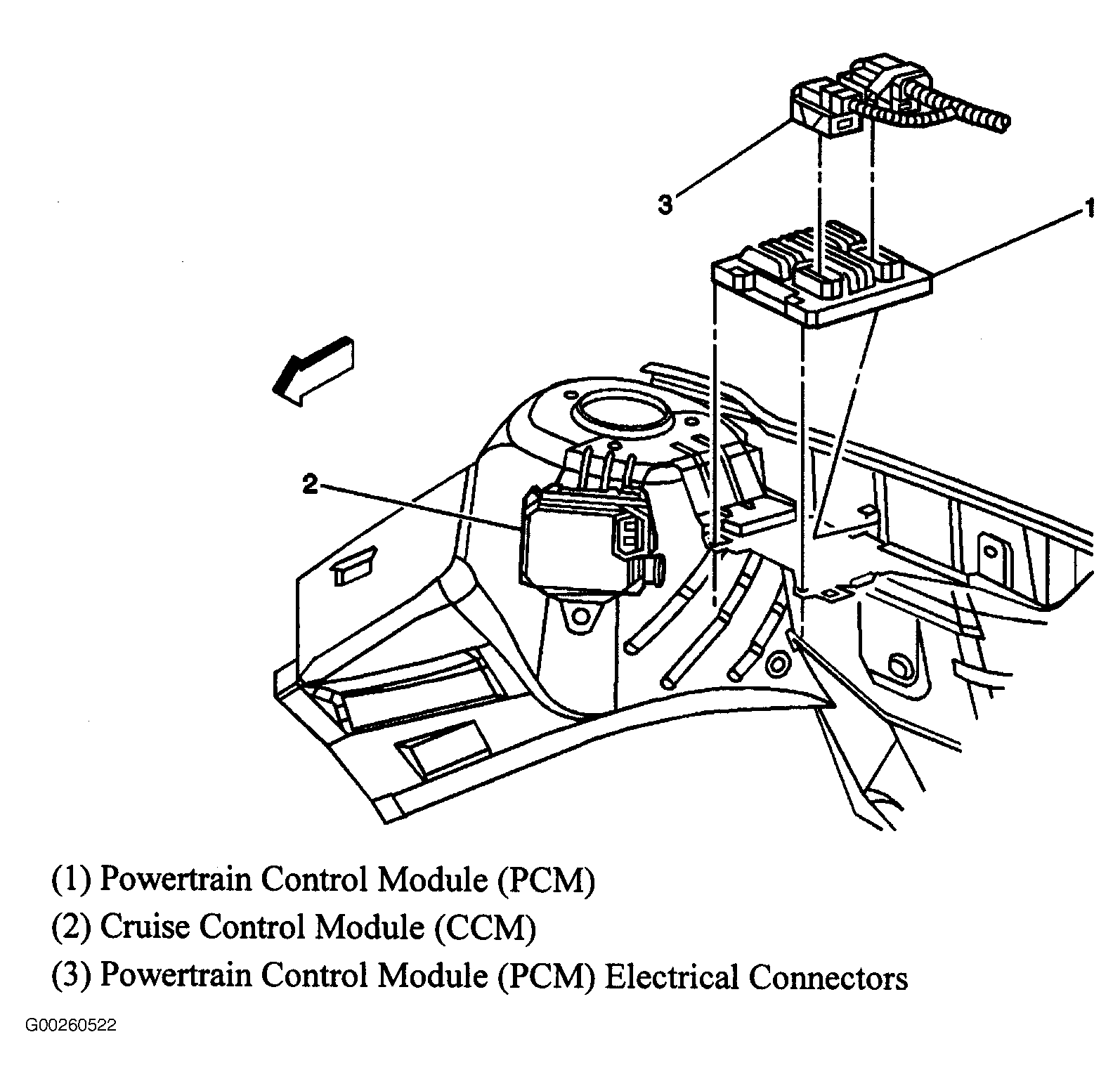

| Powertrain Control Module (PCM) | On right rear of engine compartment. See Figure . |
| Sensing And Diagnostic Module (SDM) | Under right front seat. See Figure . |
| Side Impact Module (Driver) | In driver seat back. See Figure . |
| Side Impact Module (Passenger) | In passenger seat back. See Figure . |
| Steering Wheel Module | On steering wheel. See Figure . |

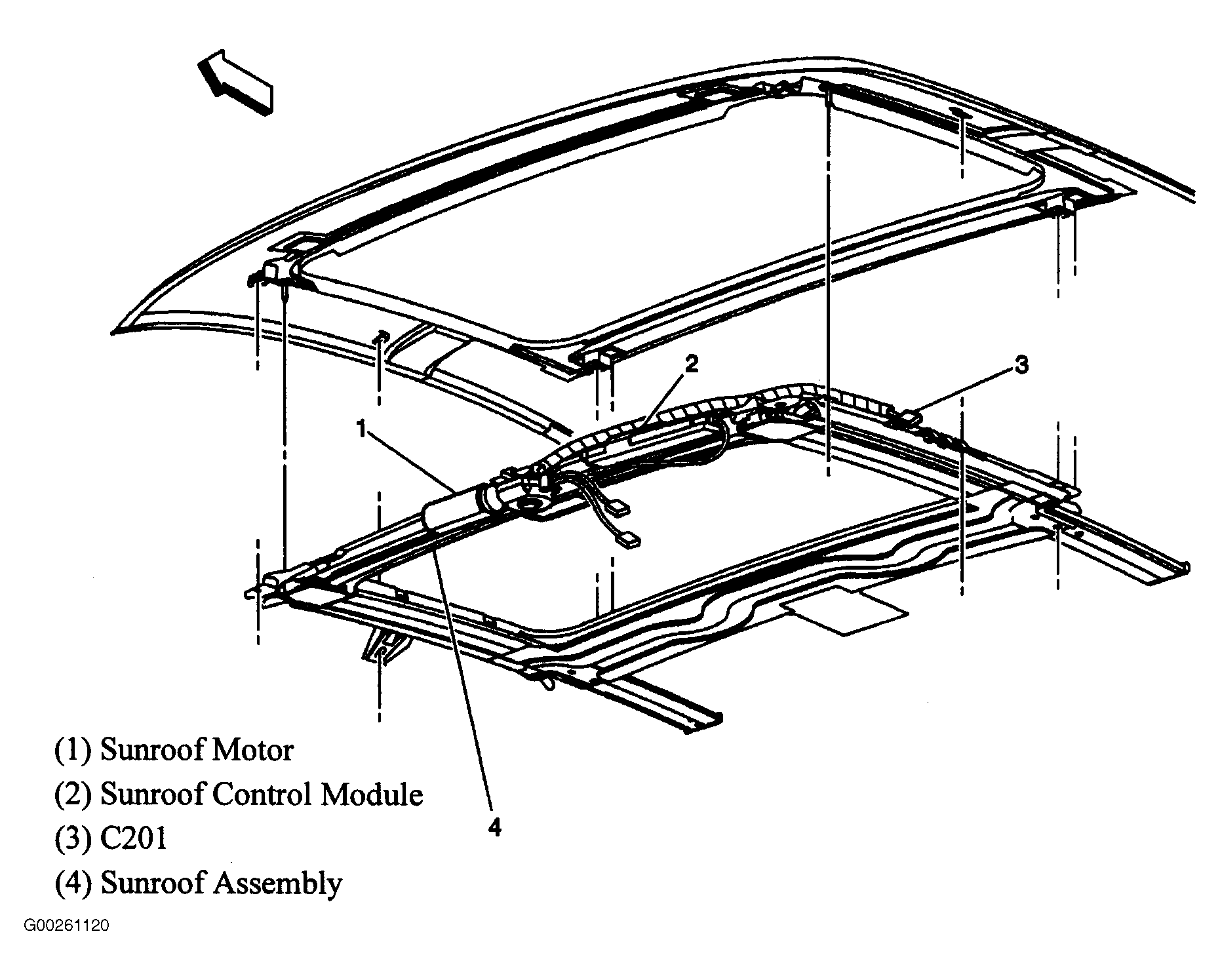

| Sunroof Control Module | At front of sunroof. See Figure . |

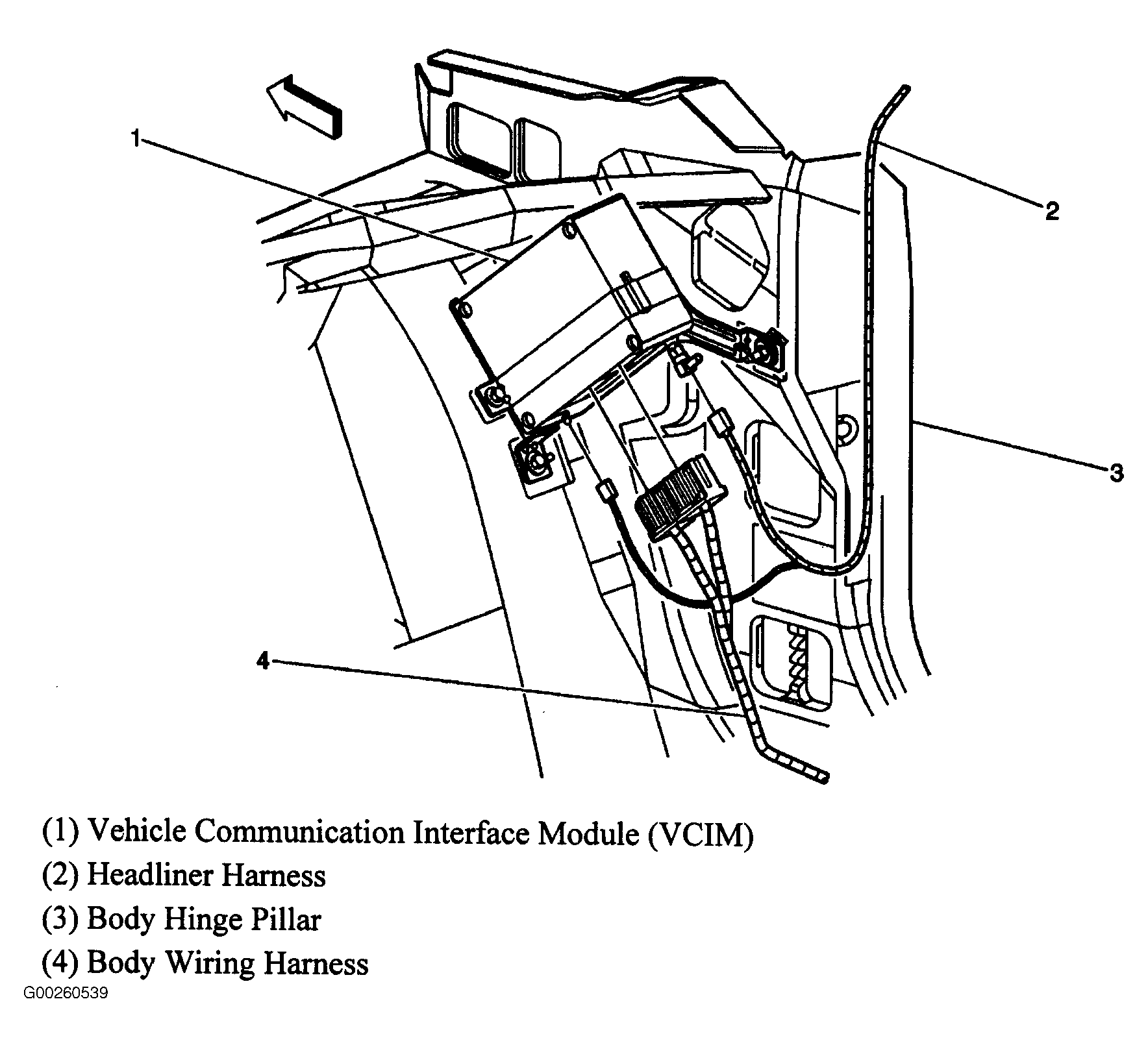

| Vehicle Communication Interface Module (VCIM) | At top of right kick panel. See Figure . |
