Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the muffler hanger bolts.
Tighten: Tighten the muffler hanger bolts to 16 N.m (12 lb ft).

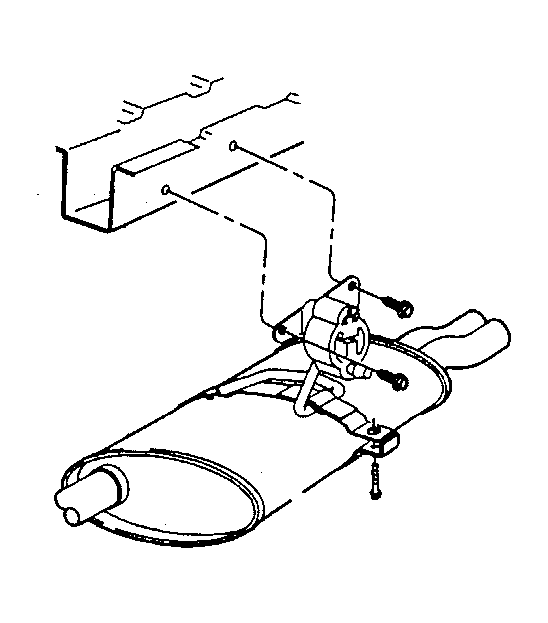

Fig 1: View Of Muffler Hanger Bolts
Courtesy of GENERAL MOTORS CORP.
Clamp the muffler to the intermediate pipe.

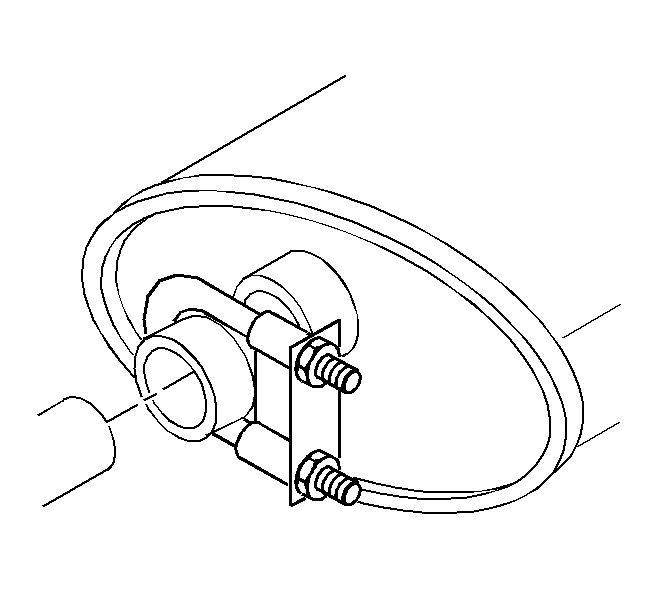

Fig 2: Identifying Exhaust Muffler Clamp
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
