Engine Controls Schematics

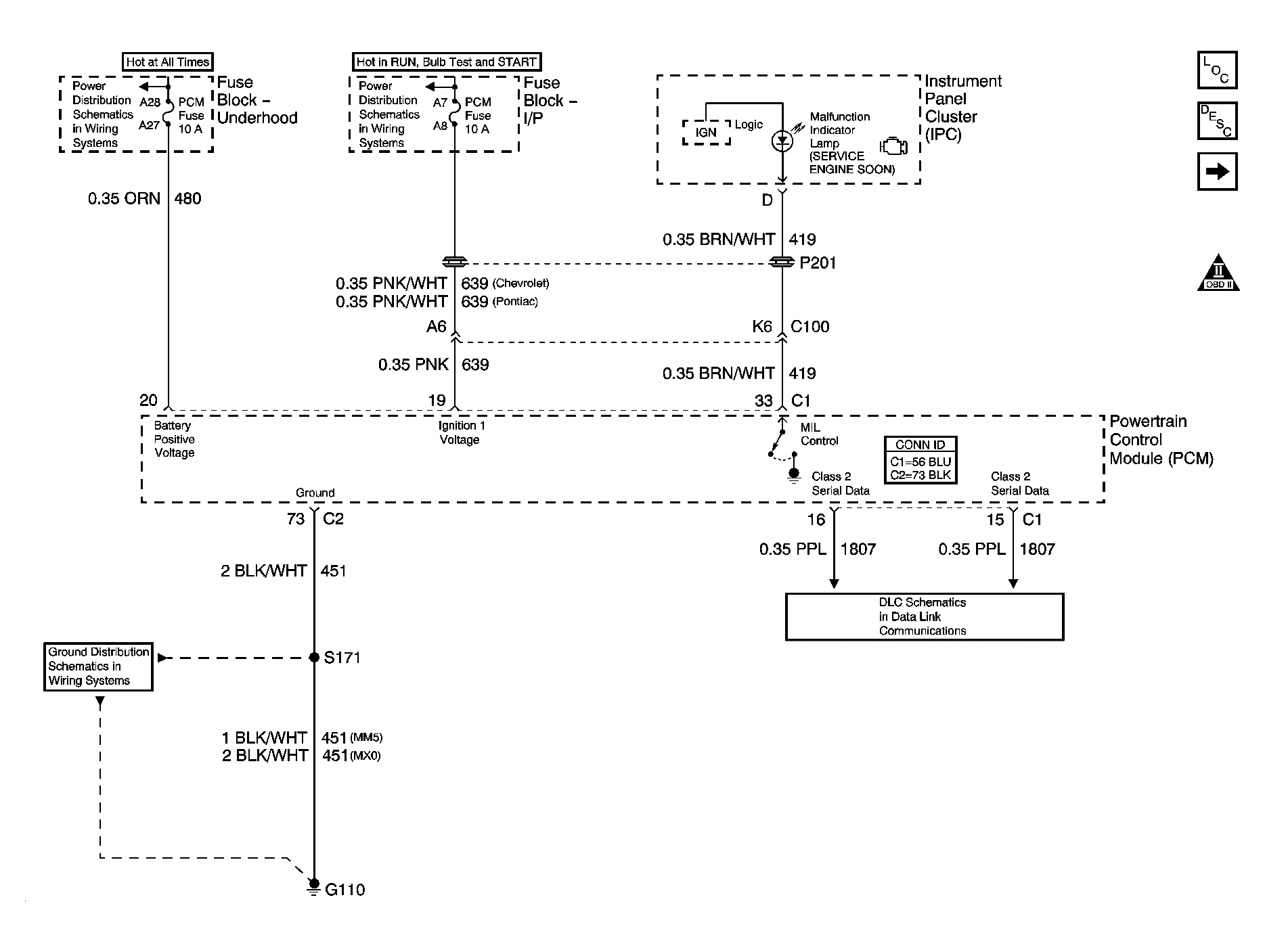

Fig 1: Module Power, Ground, Serial Data & MIL Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: 5-Volt & Low Reference Bussing Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Pressure & Temperature Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 4: Heated Oxygen Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

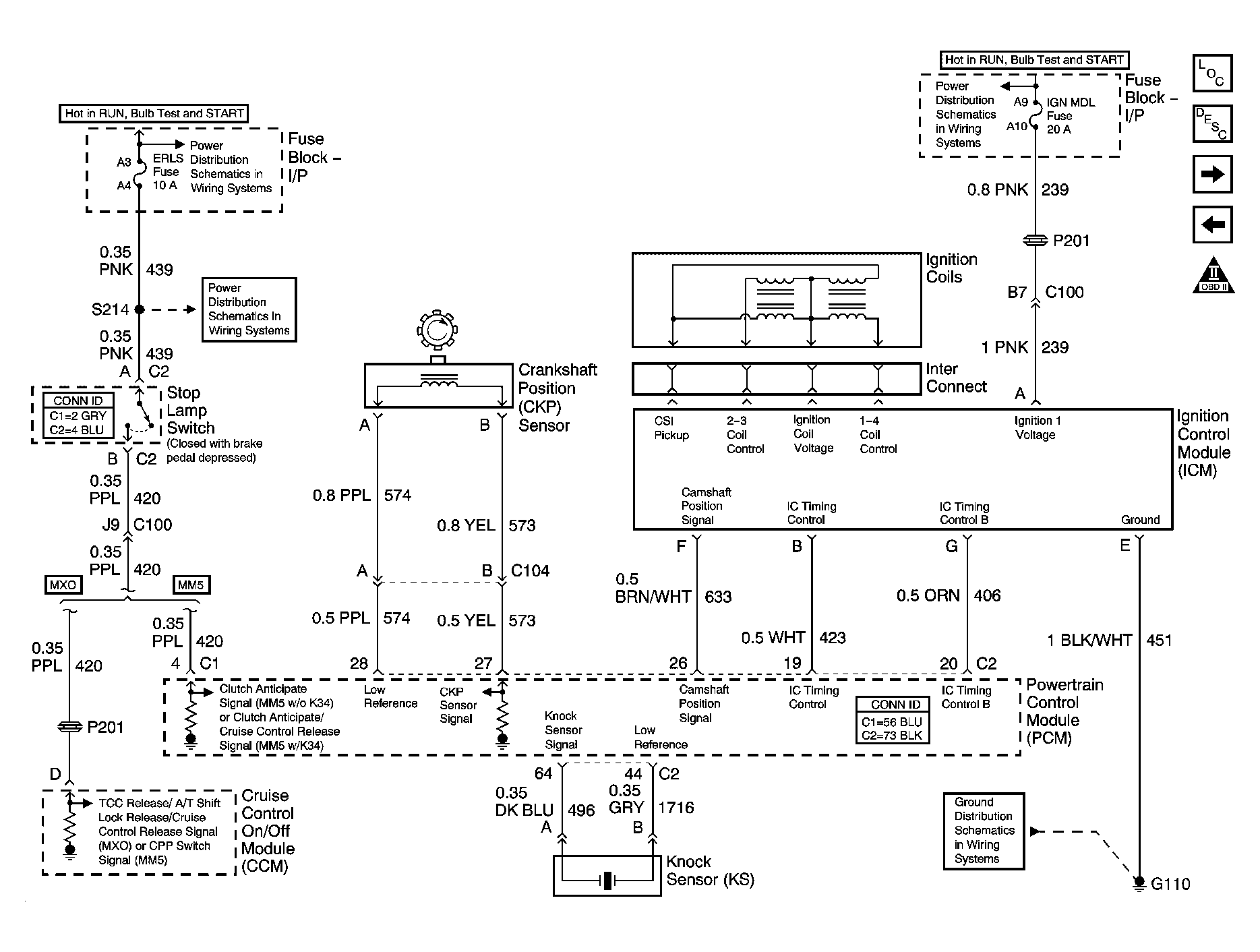

Fig 5: Ignition Controls Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 6: Fuel Delivery Schematics

Courtesy of GENERAL MOTORS CORP.

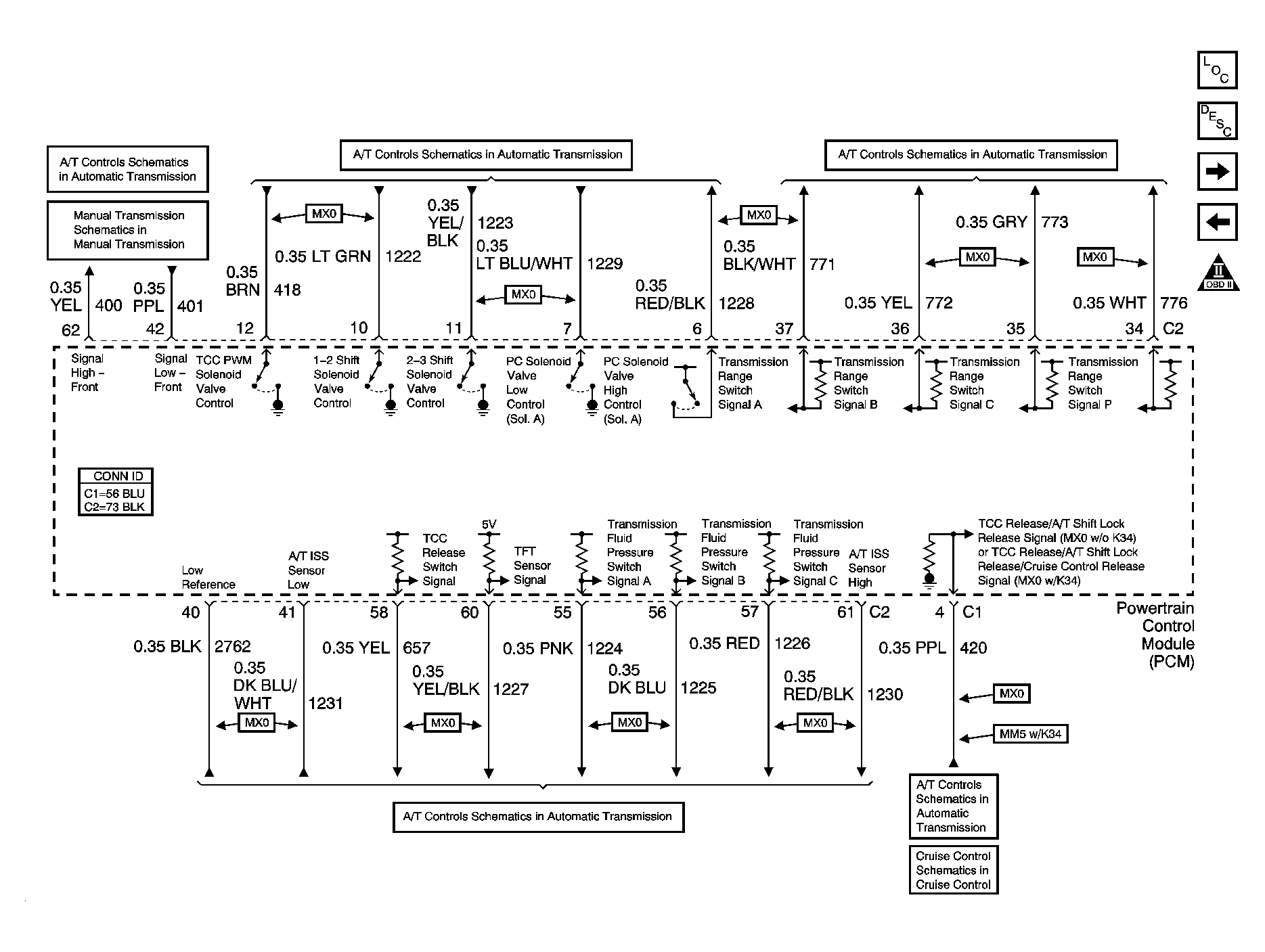

Fig 7: Transmission Controls - A/T Schematics

Courtesy of GENERAL MOTORS CORP.
