Automatic Transmission Shift Lock Control Schematics

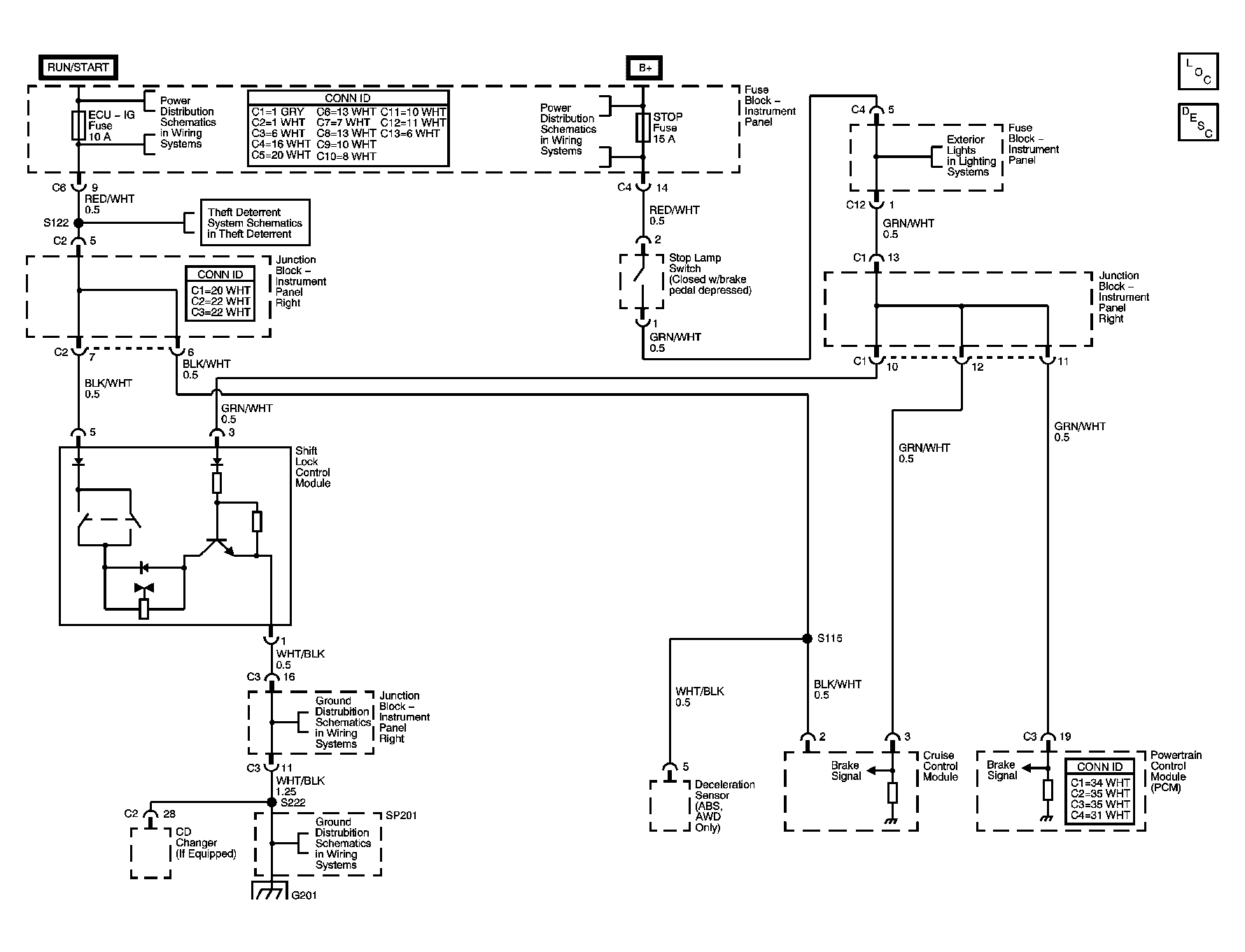

Fig 1: Automatic Transmission Shift Lock Control Schematic
GM785565Courtesy of GENERAL MOTORS CORP.
