Installation Procedure

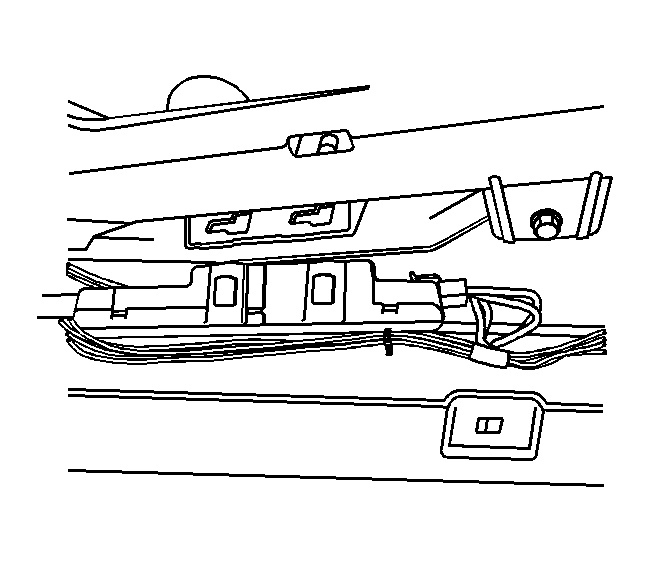

    Fig 1: Locating Sunroof Control Module Retainer Tabs
    GM791684Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors to the sunroof control module.
  2. Position the control module retainer tabs to the slots in the sunroof module.

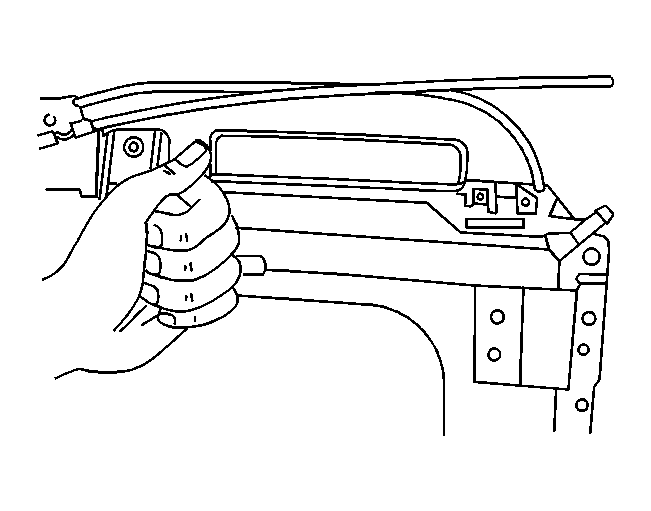

    3. Fig 2: Installing Sunroof Control Module
    GM548333Courtesy of GENERAL MOTORS CORP.
  3. Install the control module to the sunroof module by sliding the control module to the right, pressing into place until fully seated.
  4. Inspect for the proper operation of the sunroof.
  5. Install the headliner. Refer to Headliner Replacement (Rendezvous) in Interior Trim.
