Removal Procedure

Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door (Aztek) or Trim Panel Replacement - Side Front Door (Rendezvous) .
Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
Remove the inside handle rods from the front door inside handle. Refer to Door Handle Replacement - Front Inside .

Fig 1: View Of Outside Door Handle Rod-To-Lock

GM624645

Courtesy of GENERAL MOTORS CORP.

Disconnect the clip securing the outside handle rod to the front door lock.

Fig 2: Identifying Front Door Lock Screws

GM624652

Courtesy of GENERAL MOTORS CORP.

Remove the screws from the front door lock.

Fig 3: Front Door Lock Electrical Connectors

GM624661

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors from the lock.

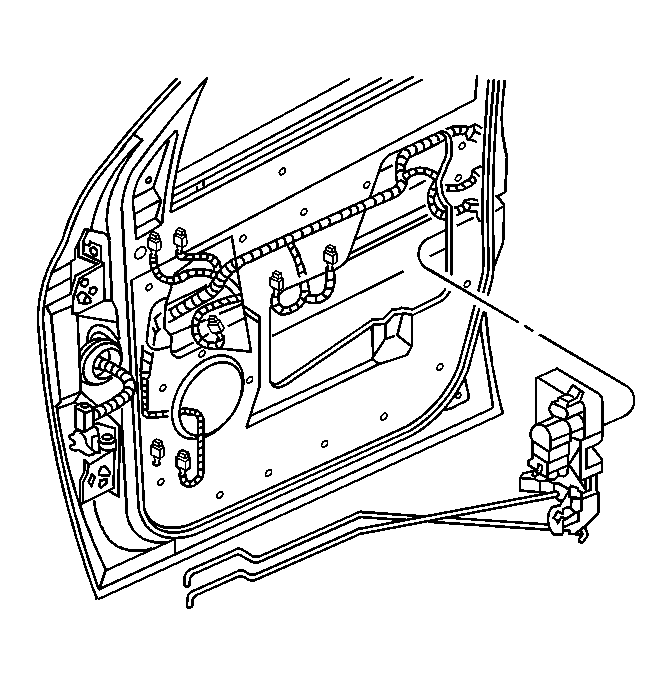

Fig 4: View Of Lock With The Inside Handle Rods

GM624658

Courtesy of GENERAL MOTORS CORP.

Remove the lock with the inside handle rods attached to the lock through the access hole in the front door inner panel.

Fig 5: Identifying Door Lock

GM624640

Courtesy of GENERAL MOTORS CORP.

Remove the inside handle rods from the lock.
