Door Lock/Indicator Schematics

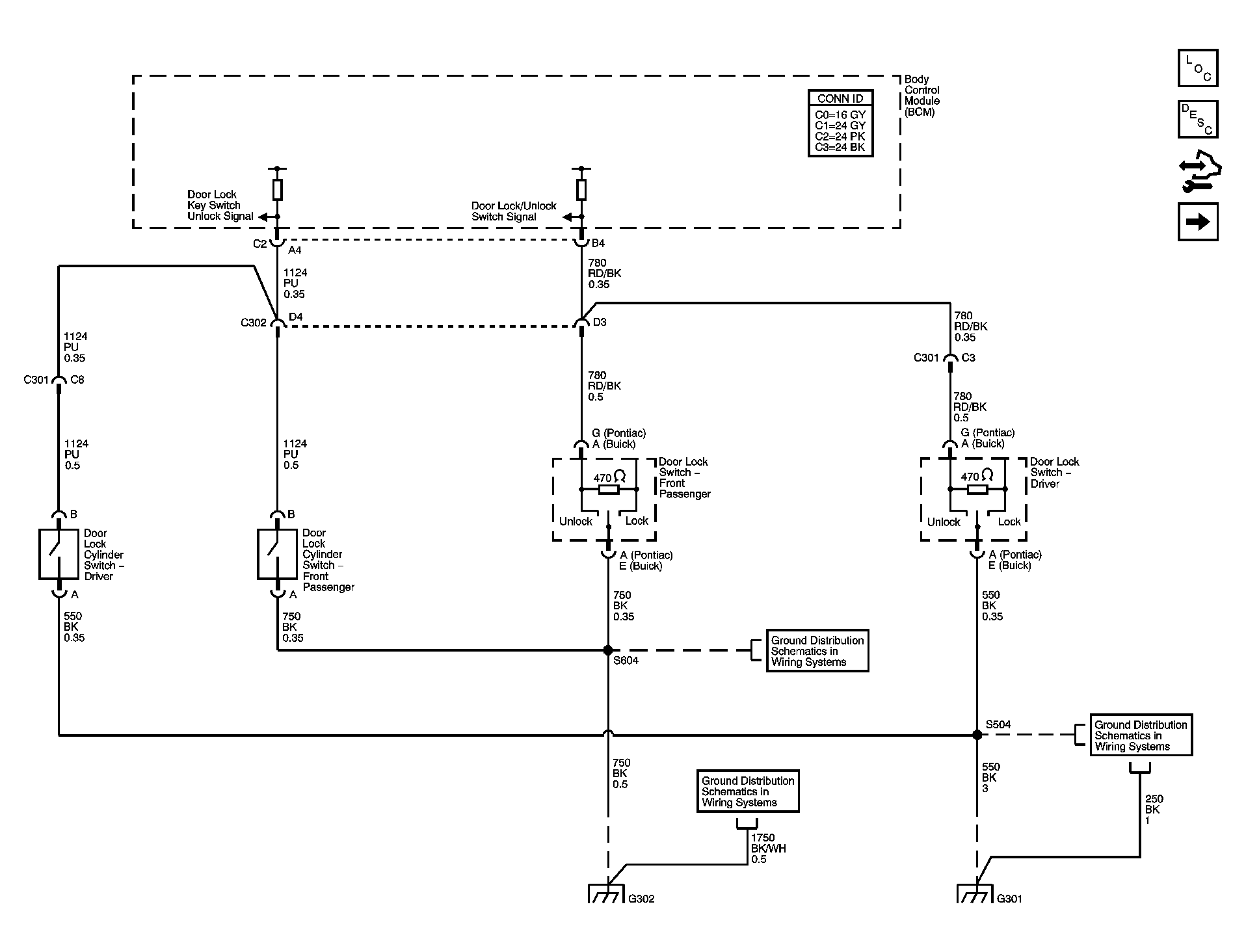

Fig 1: Door Lock Switches
GM1501034Courtesy of GENERAL MOTORS CORP.

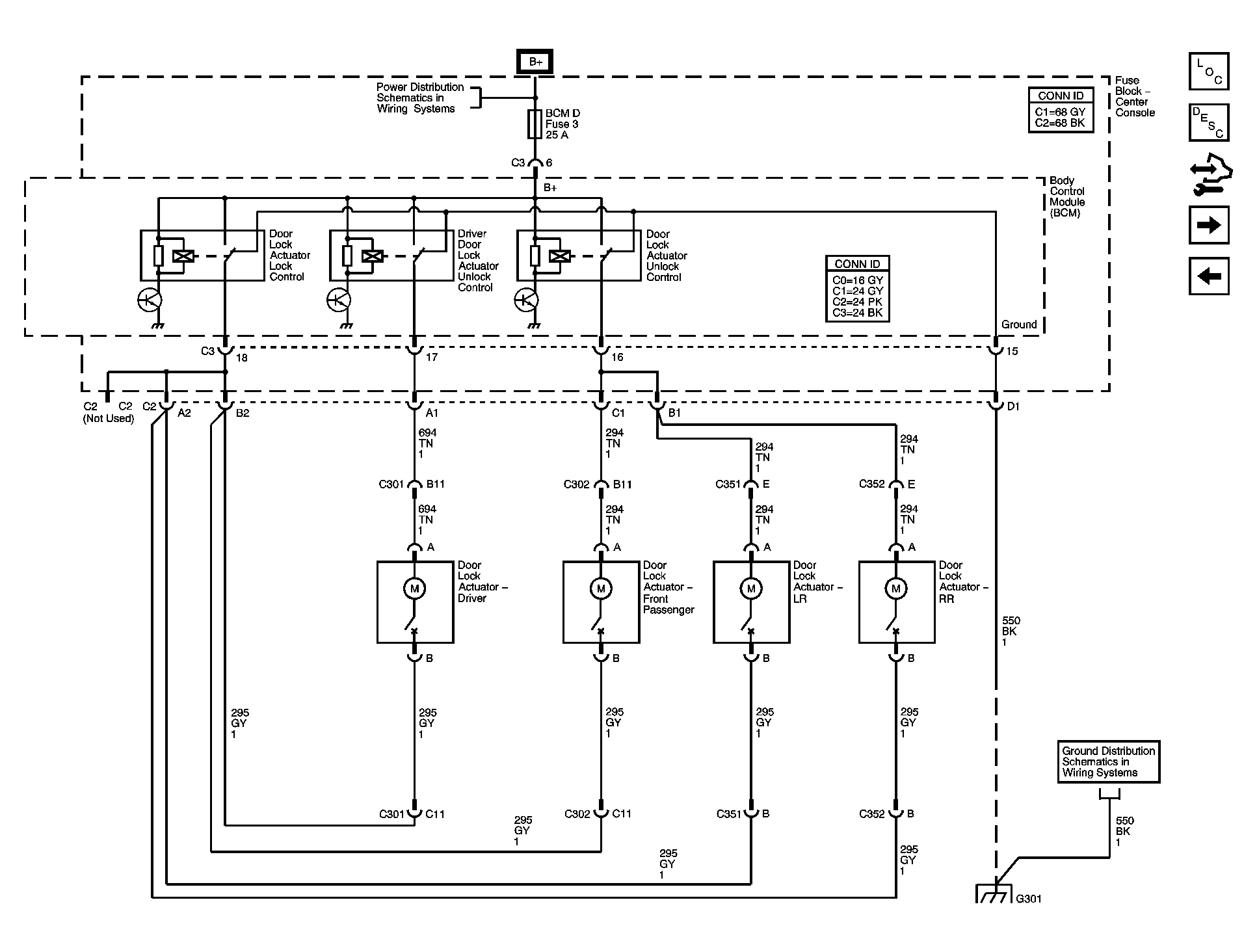

Fig 2: Door Lock Actuators
GM1499860Courtesy of GENERAL MOTORS CORP.

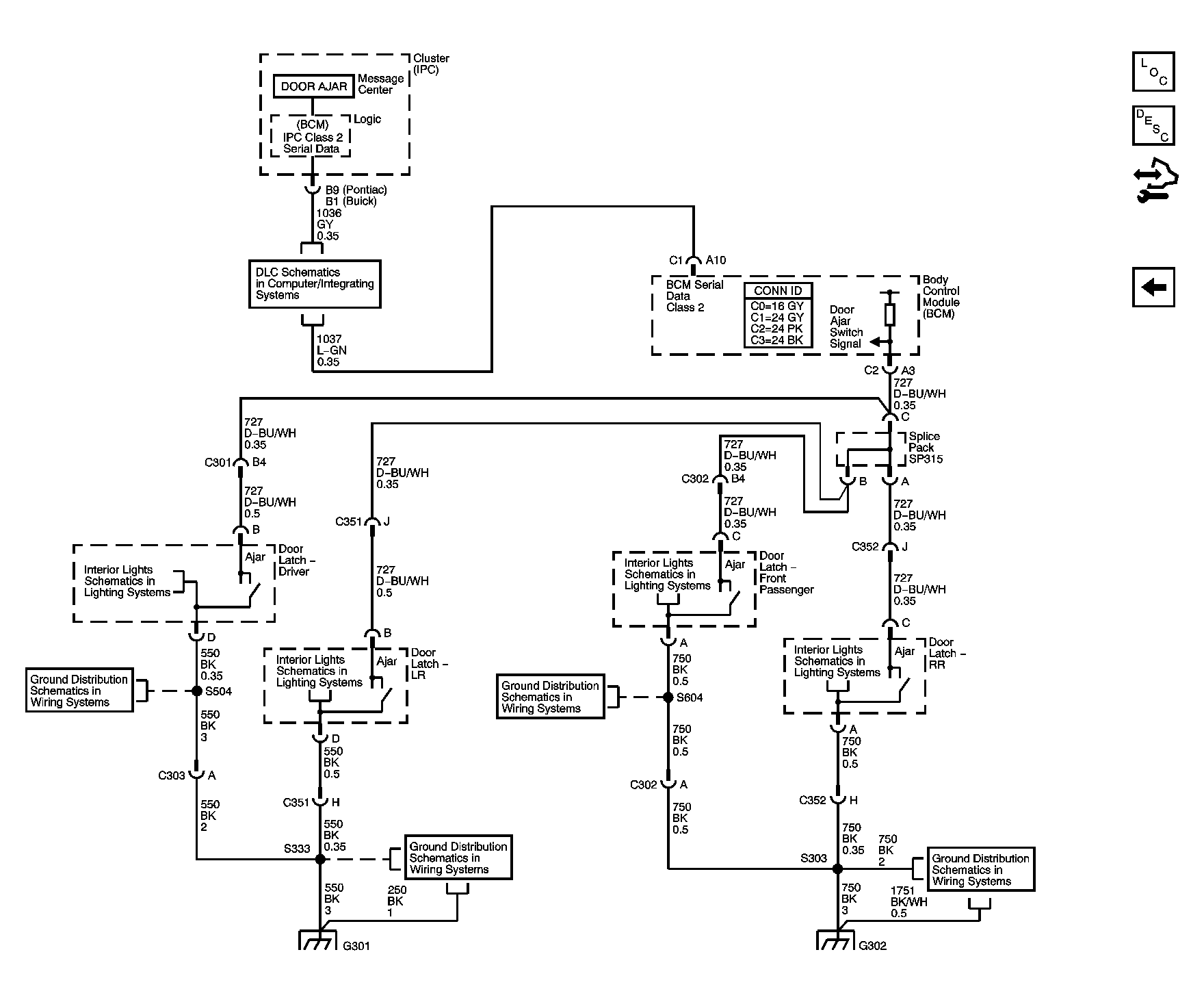

Fig 3: Door Ajar Indicator
GM1501037Courtesy of GENERAL MOTORS CORP.
