Power Windows Schematics

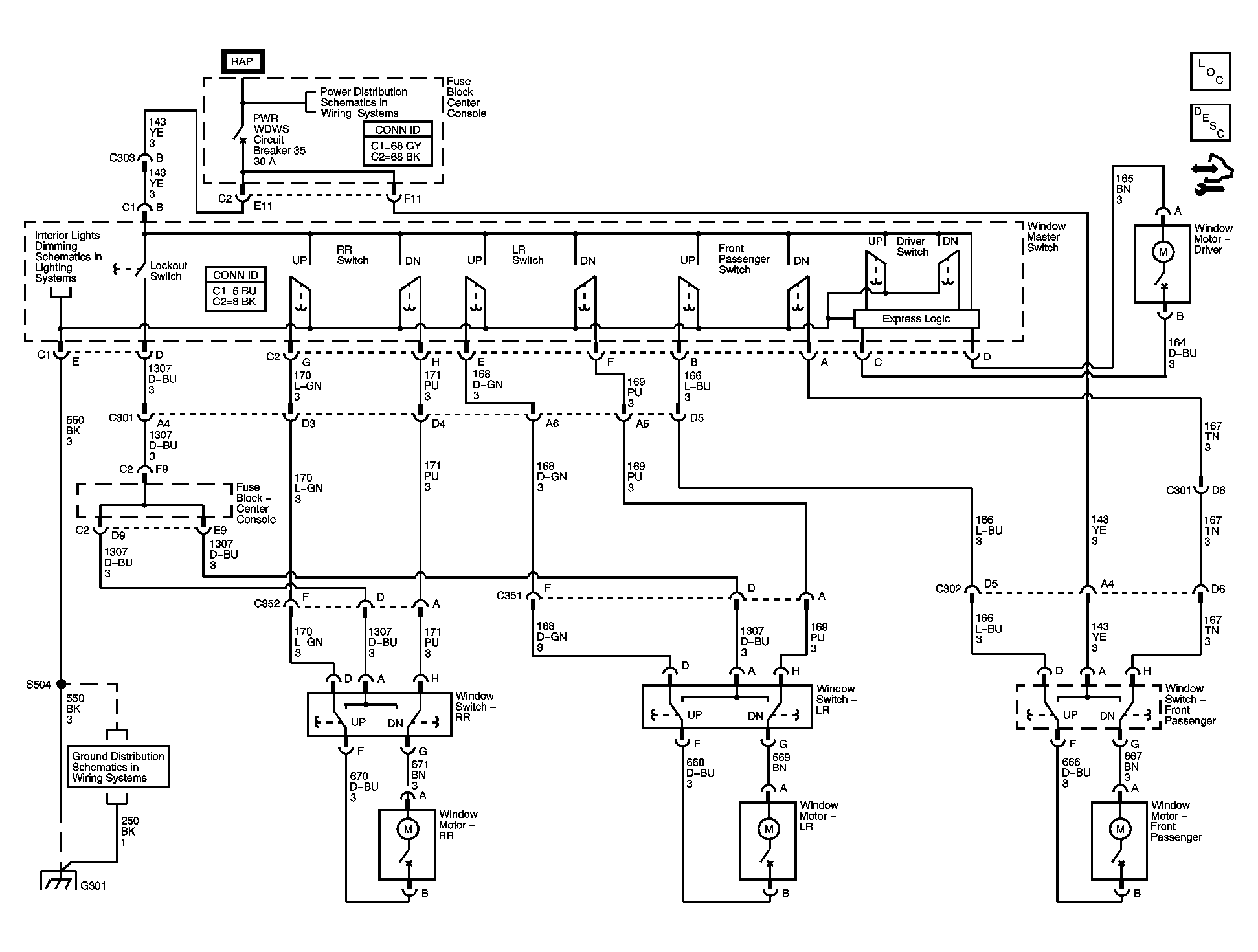

Fig 1: Power Windows
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
