Installation Procedure

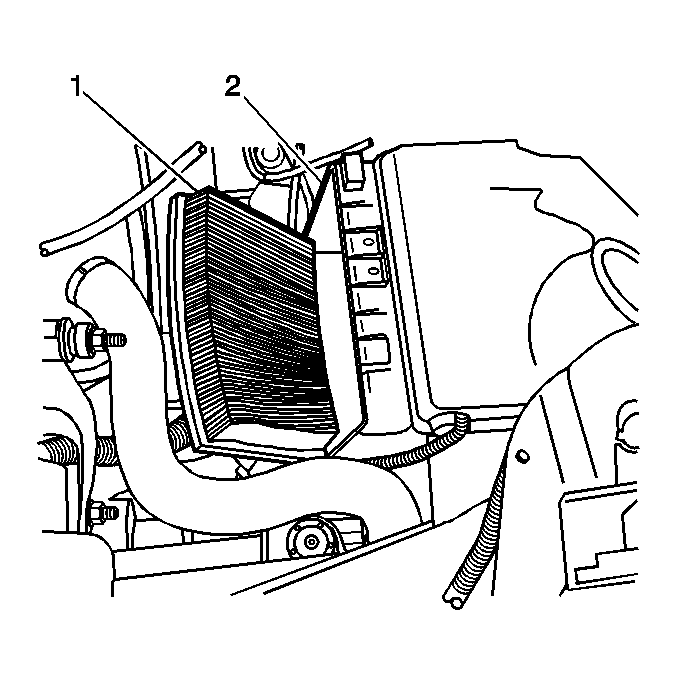

    Fig 1: View Of Air Cleaner Element
    GM763008Courtesy of GENERAL MOTORS CORP.
  1. Install the filter element (1) into the air cleaner housing.
  2. Install the air cleaner intake duct.
