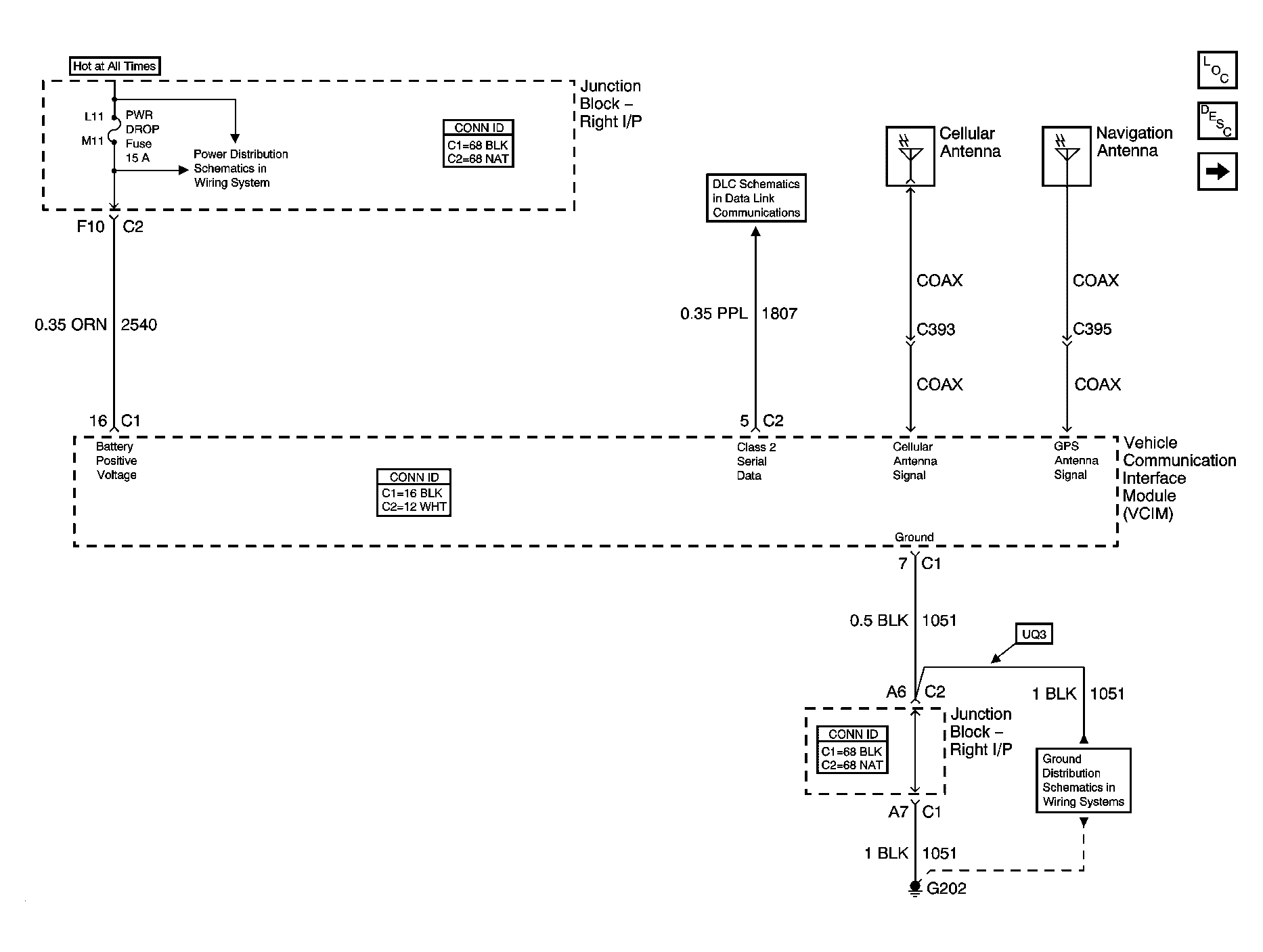

Fig 1: Antennas, Data Link, Ground, and Power
Courtesy of GENERAL MOTORS CORP.

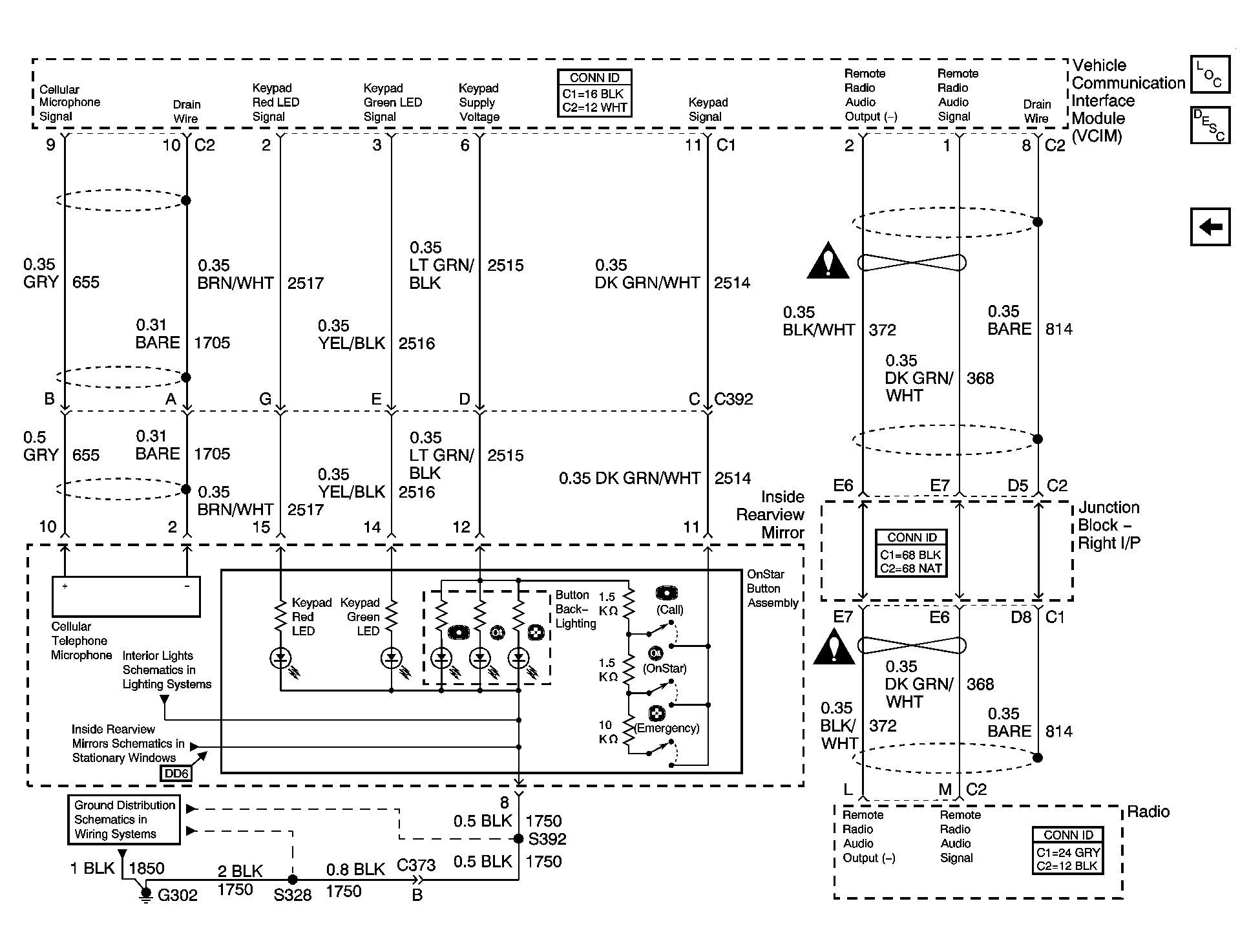

Fig 2: Audio Communication and Inside Rearview Mirror
