Rear Toe Adjustment

IMPORTANT: Make any adjustments to camber before setting toe.

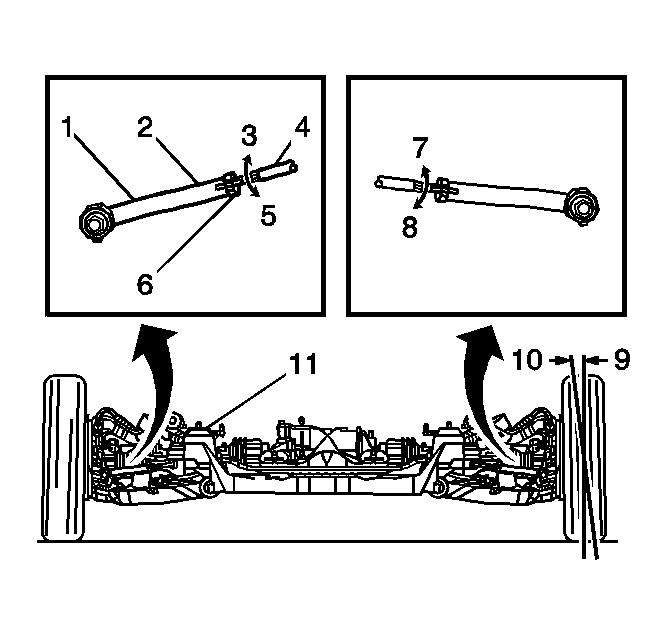

Fig 1: Locating Rear Inner Link Adjustment Hex

Courtesy of GENERAL MOTORS CORP.

Loosen the jam nut (6) at the rear wheel tie rod.
Adjust the toe to the proper setting by turning the inner link adjustment hex (4). Refer to Wheel Alignment Specifications .

NOTE: Refer to Fastener Notice in Cautions and Notices.

When the toe adjustment is correct, tighten the jam nut.
Tighten: Tighten the nut to 62 N.m (45 lb ft).
Recheck the toe alignment.
