Automatic Transmission Internal Connector End Views

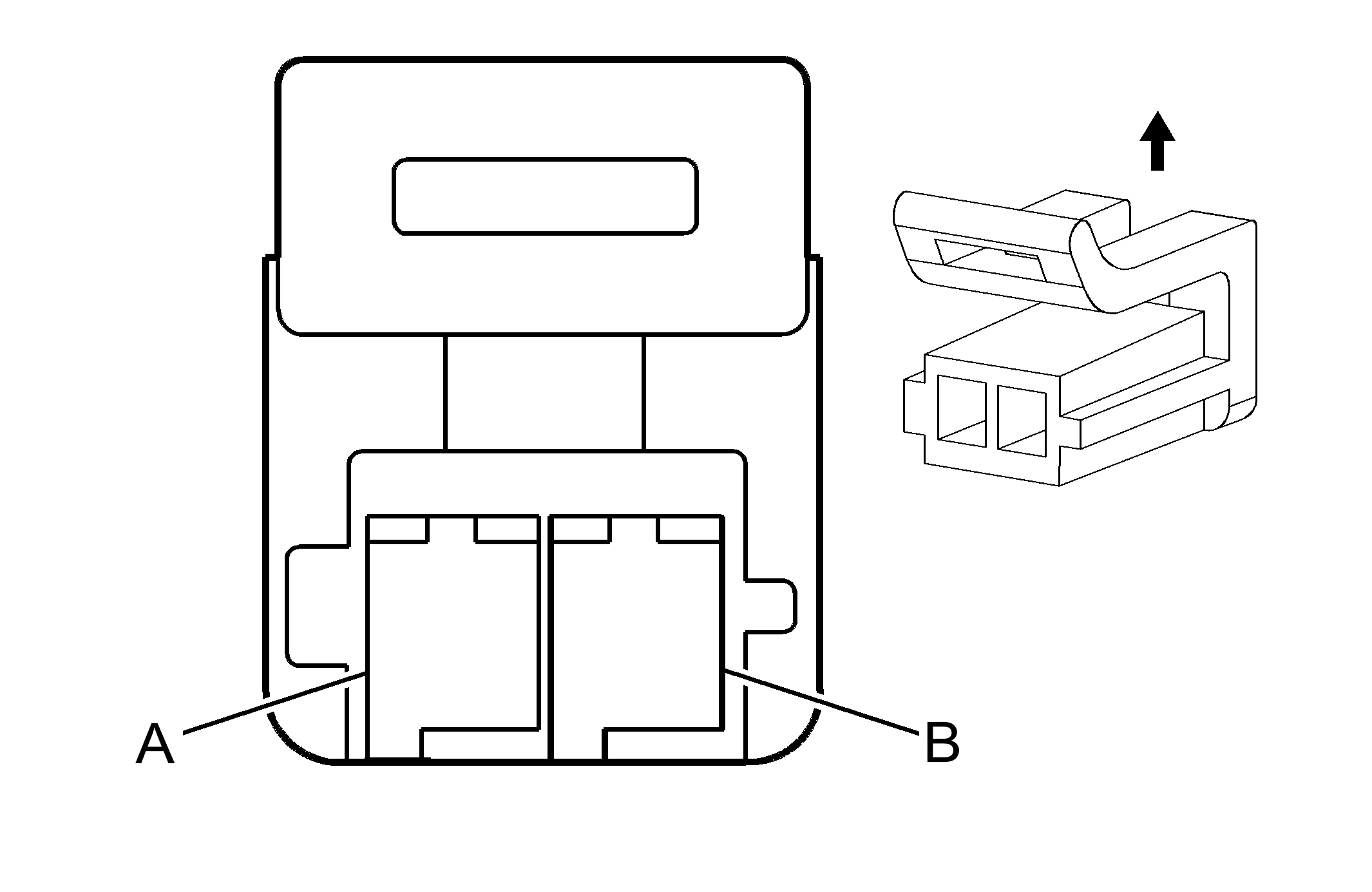

1-2 Shift Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162201 2-Way F Metri-Pack 150 Series (NA)
Pin	Wire Color	Circuit No.	Function
A	RD	839	Ignition 1 Voltage
B	L-GN	1222	1-2 Shift Solenoid Valve Control

2-3 Shift Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162201 2-Way F Metri-Pack 150 Series (NA)
Pin	Wire Color	Circuit No.	Function
A	RD	839	Ignition 1 Voltage
B	YE	1223	2-3 Shift Solenoid Valve Control

Automatic Transmission Fluid Pressure Manual Valve Position Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12146094 2-Way F Metri-Pack 150 Series (GY)
Pin	Wire Color	Circuit No.	Function
A	WH	1804	TCC Release Switch Signal
B	-	-	Not Used

Input Speed Sensor Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162201 2-Way F Metri-Pack 150.2 Series (NA)
Pin	Wire Color	Circuit No.	Function
A	D-GN	1231	ISS Low Signal
B	BK	1230	ISS High Signal

Pressure Control Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12146094 2-Way F Metri-Pack 150 Series (GY)
Pin	Wire Color	Circuit No.	Function
A	PU	1228	PC Solenoid Valve High Control
B	L-BU	1229	PC Solenoid Valve Low Control

Torque Converter Clutch Pulse Width Modulated Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162202 2-Way F Metri-Pack 150.2 Series (BU)
Pin	Wire Color	Circuit No.	Function
A	RD	839	Ignition 1 Voltage
B	TN	418	TCC PWM Solenoid Valve Control

Transmission Fluid Temperature Sensor Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12047662 2-Way F Metri-Pack 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	BN	1227	TFT Sensor Signal
B	GY	452	Low Reference

Transmission Internal Mode Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15336500 6-Way F Metri-Pack 150.2 Series (GN)
Pin	Wire Color	Circuit No.	Function
A	OG	1786	Park/Neutral Signal
B	GY/WH	776	Transmission Range Signal P
C	YE/BK	773	Transmission Range Signal C
D	D-GN/WH	772	Transmission Range Signal B
E	RD/BK	771	Transmission Range Signal A
F	BK/WH	1050	Ground
