Installation Procedure

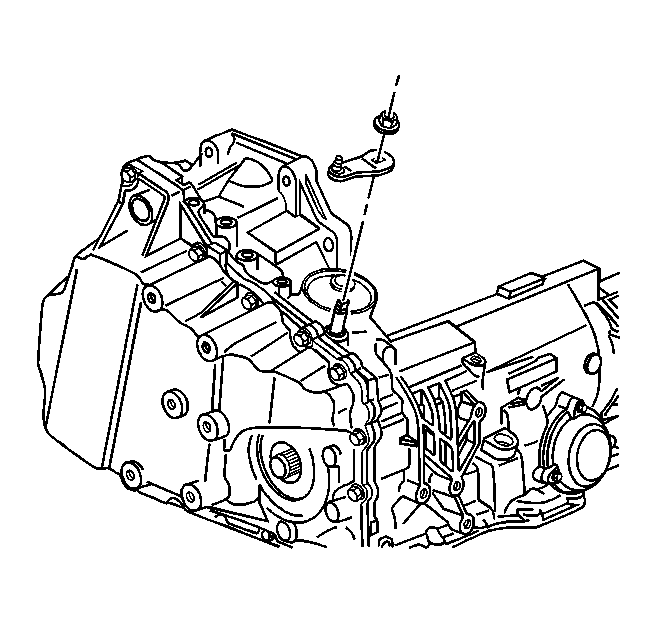

Fig 1: Identifying Automatic Transaxle Range Selector Lever Retaining Nut

Courtesy of GENERAL MOTORS CORP.

Install the automatic transaxle range selector lever to the automatic transaxle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the automatic transaxle range selector lever retaining nut.
Tighten: Tighten the automatic transaxle range selector lever retaining nut to 20 N.m (15 lb ft).

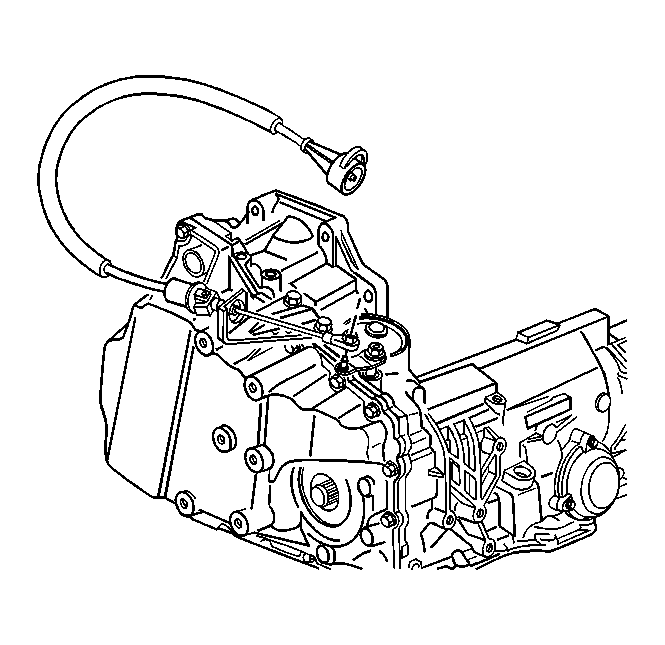

Fig 2: Identifying Automatic Transaxle Range Selector Cable To Cable Bracket

Courtesy of GENERAL MOTORS CORP.

Install the automatic transaxle range selector lever cable to the automatic transaxle range selector lever.
Adjust the automatic transaxle range selector lever cable if necessary. Refer to Automatic Transmission Range Selector Cable Adjustment .
Install the throttle body air inlet duct. Refer to Air Cleaner Assembly Replacement in Engine Controls-3.4L.
