Installation Procedure

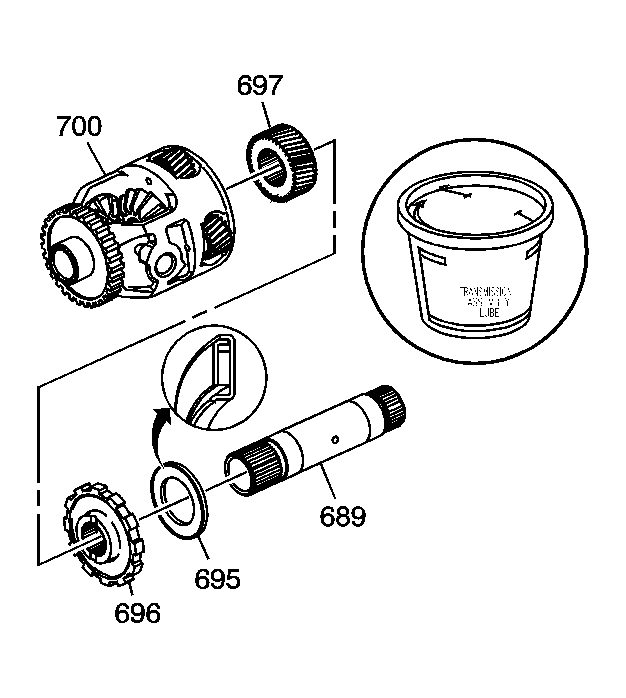

    Fig 1: Assembling Differential Carrier
    GM214412Courtesy of GENERAL MOTORS CORP.
  1. Assemble the sun gear thrust bearing (698), the differential carrier sun gear (697), the park gear (696), the internal gear thrust bearing (695) and the sun gear shaft (689) into the differential carrier (700).

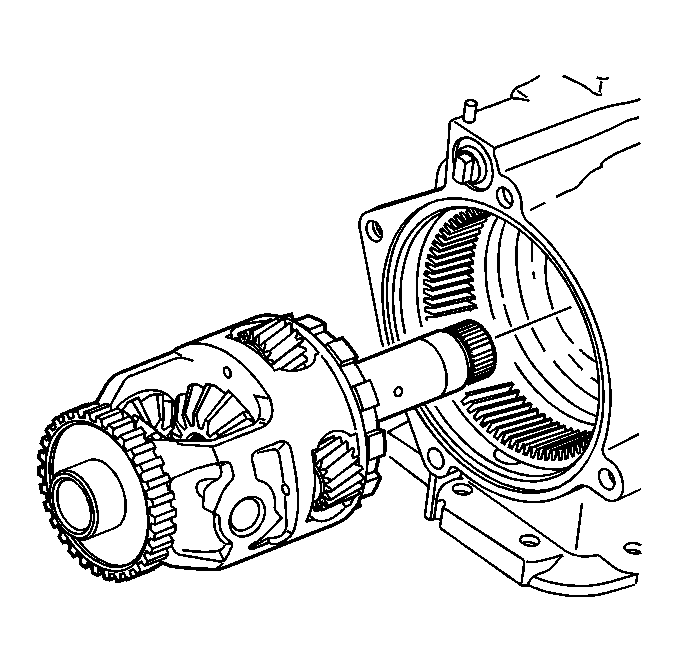

    2. Fig 2: Installing Differential Carrier
    GM214413Courtesy of GENERAL MOTORS CORP.
  2. Install the differential carrier into the case.
  3. Install the case extension housing. Refer to Case Extension Housing Replacement .
