Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement .

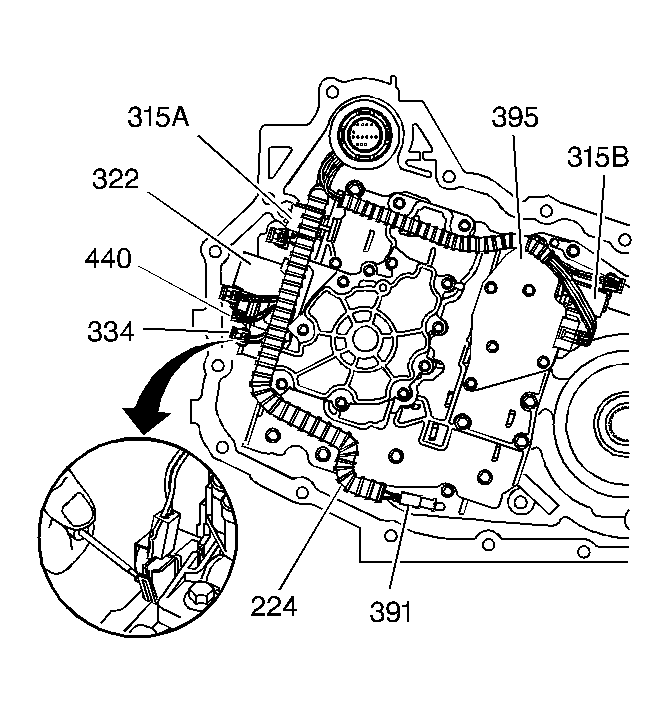

    2. Fig 1: Locating Wiring Harness & Electrical Connectors
    GM48209Courtesy of GENERAL MOTORS CORP.
  2. Use a small flat-bladed tool in order to remove the wiring harness from the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).
    3. Fig 2: View Of Transmission Internal Wiring Harness
    GM48210Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiring harness (224).
