Installation Procedure

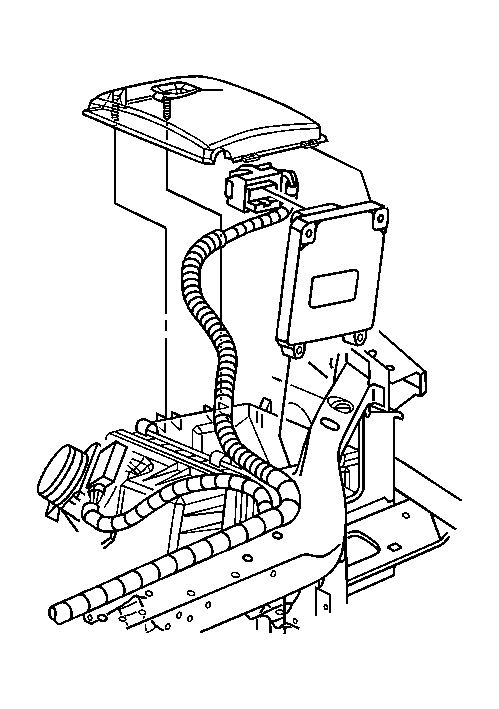

    Fig 1: Identifying Transmission Control Module
    GM1395508Courtesy of GENERAL MOTORS CORP.
  1. Connect the transmission control module electrical connectors to the transmission control module.
  2. Install the transmission control module to the air cleaner.
    3. Fig 2: View Of Air Cleaner Upper Cover
    GM1404634Courtesy of GENERAL MOTORS CORP.
  3. Install the air cleaner upper cover. Refer to Air Cleaner Assembly Replacement in Engine Controls - 3.6L (LY7).
