Installation Procedure

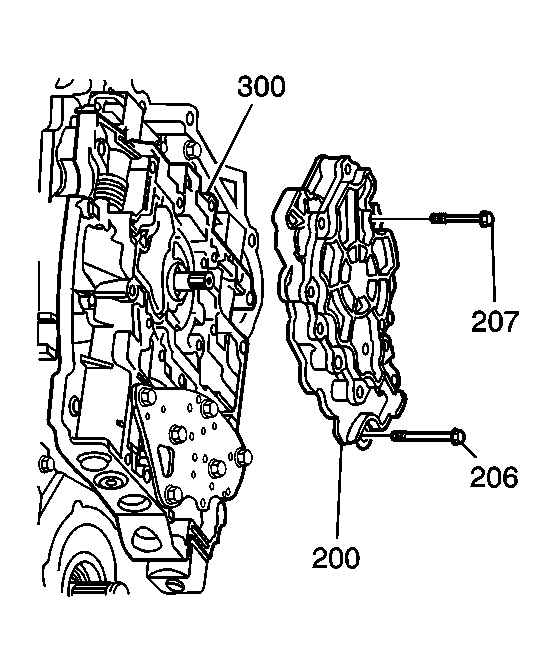

    Fig 1: View Of Oil Pump
    GM688273Courtesy of GENERAL MOTORS CORP.
  1. Install the oil pump (200) to the valve body (300).

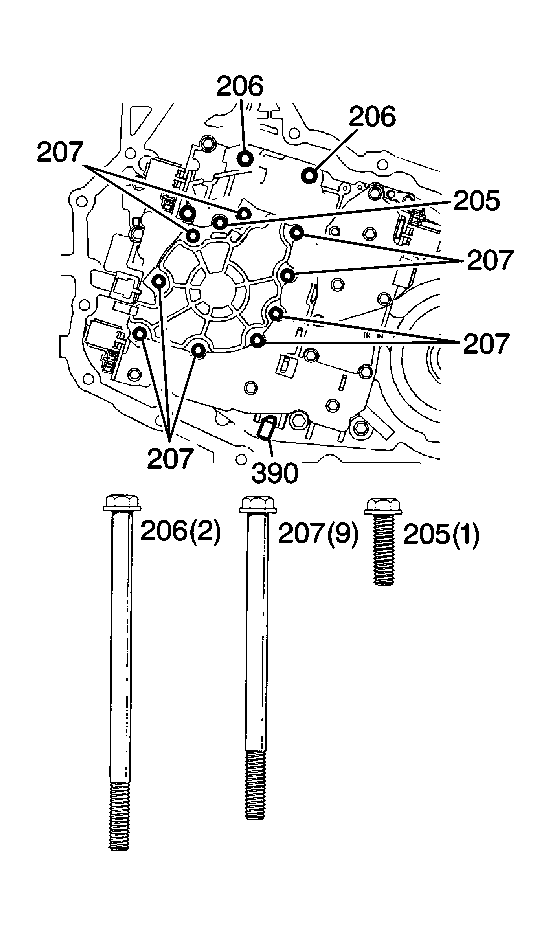

    2. Fig 2: Identifying Oil Pump Bolt Lengths And Positions
    GM164795Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the oil pump bolts (205-207).

    Tighten:

    • Tighten the M6 X 1.0 X 20 bolt to 8 N.m (70 lb in).
    • Tighten the M6 X 1.0 X 85 bolt to 12 N.m (106 lb in).
    • Tighten the M6 X 1.0 X 95 bolt to 12 N.m (106 lb in).

  3. Install the case side cover. Refer to Case Side Cover Replacement .
