Installation Procedure

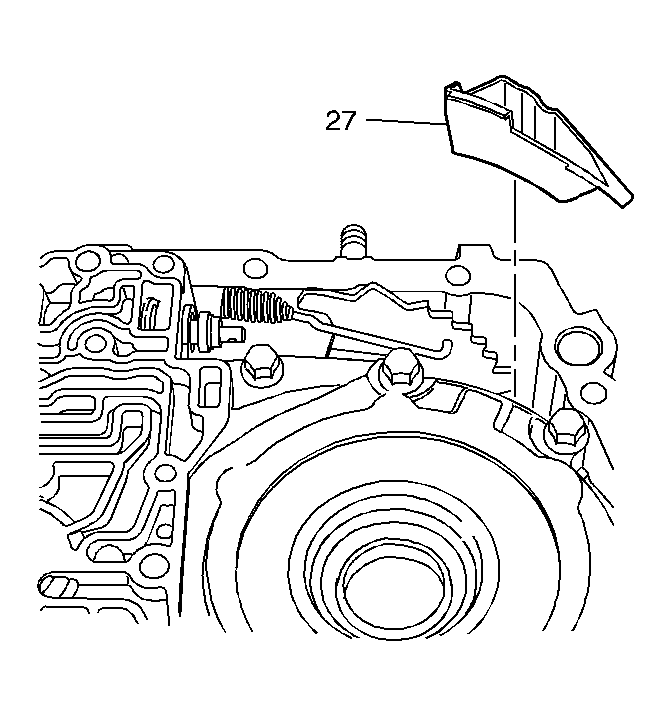

    Fig 1: Identifying Oil Reservoir Weir
    GM48191Courtesy of GENERAL MOTORS CORP.
  1. Install the oil reservoir weir (27).
  2. Install the case side cover. Refer to Case Side Cover Replacement .
