Installation Procedure

  1. Install the transaxle mount to the transaxle mount frame bracket.

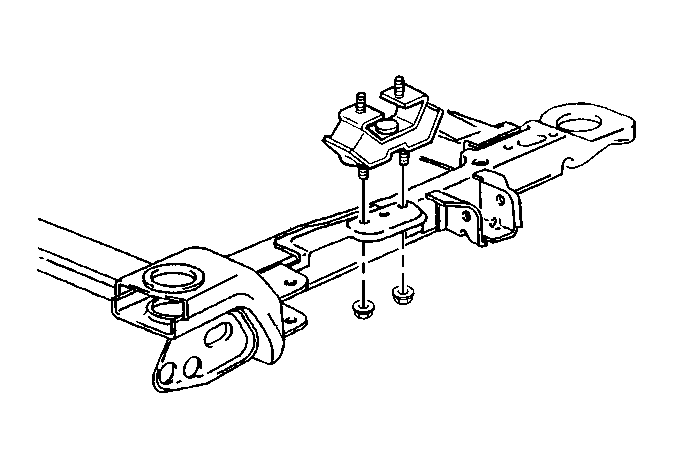

    2. Fig 1: View Of Transaxle Mount Frame Bracket
    GM161239Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the transaxle mount lower nuts to the transaxle mount frame bracket.

    Tighten:  Tighten the transaxle mount lower nuts to 47 N.m (35 lb ft).

  3. Install the transaxle mount bracket to the transaxle. Refer to Automatic Transmission Mount Bracket Replacement .
