Keyless Entry Connector End Views

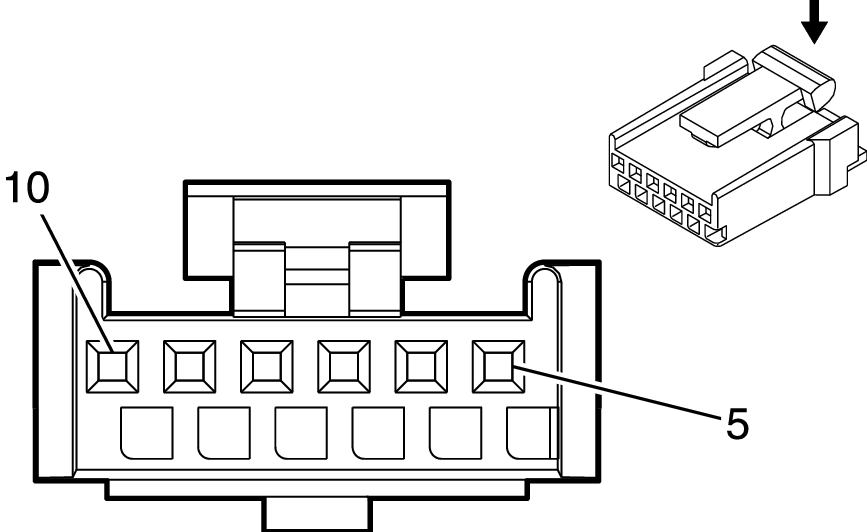

Remote Control Door Lock Receiver (RCDLR)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 5 | OG | 640 | Battery Positive Voltage |
| 6 | BK/WH | 1455 | Keyless Entry Program Enable Signal |
| 7 | - | - | Not Used |
| 8 | BK | 1550 | Ground |
| 9 | - | - | Not Used |
| 10 | PU | 218 | Keyless Entry Antenna Signal |
