Engine Controls Connector End Views

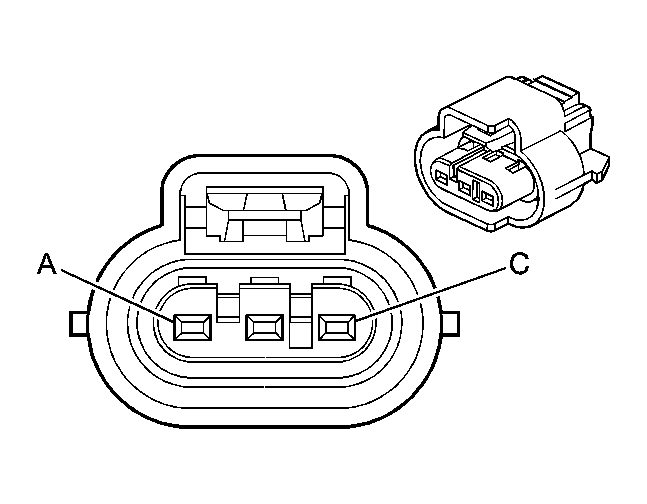

Camshaft Position (CMP) Sensor

GM833724Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336065
  • 3-Way F Metri-Pack 150 Series GT (NAT)
Pin Wire Color Circuit No. Function
A BRN/WHT 633 CMP Sensor Signal
B BLK 407 Low Reference
C RED/WHT 812 12 Volt Reference
Crankshaft Position (CKP) Sensor A

GM684807Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110293
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A L-GN 1867 12-Volt Reference
B L-BU/BK 647 Medium Resolution Engine Speed Signal
C YE/BK 1868 Low Reference
Crankshaft Position (CKP) Sensor B

GM237066Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162194
  • 2-Way F Metri-Pack 150.2 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A YE 573 CKP Sensor 1 Signal
B PU 574 Low Reference
Engine Coolant Temperature (ECT) Sensor

GM237066Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162194
  • 2-Way F Metri-Pack 150.2 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B YE 410 ECT Sensor Signal
Evaporative Emission (EVAP) Canister Purge Solenoid

GM684829Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124037
  • 2-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 339 Ignition 1 Voltage
B D-GN/WH 428 EVAP Canister Purge Solenoid Control

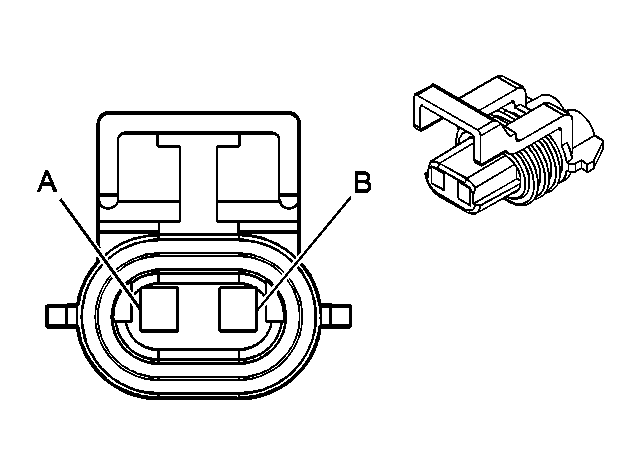

Evaporative Emission (EVAP) Canister Vent Solenoid

GM334626Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059863
  • 2-Way F Metri-Pack 150 Series (BN)
Pin Wire Color Circuit No. Function
A PK 1239 Ignition 1 Voltage
B WH 1310 EVAP Canister Vent Solenoid Control

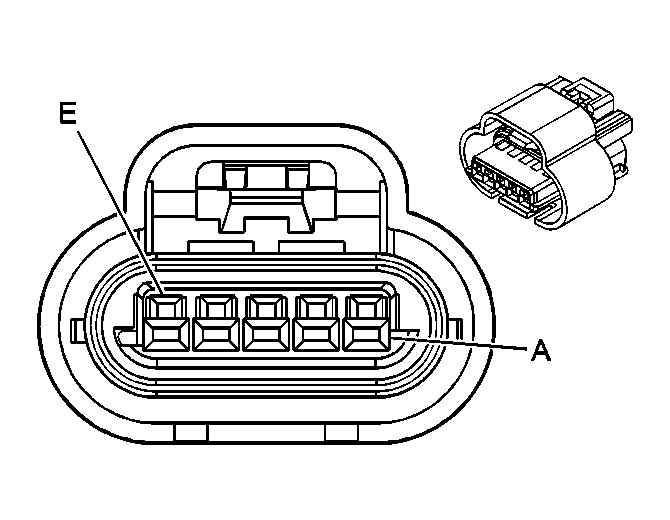

Exhaust Gas Recirculation (EGR) Valve

GM594477Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326389
  • 5-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A GY 435 EGR Solenoid Low Control
B BK 2753 Low Reference
C BN 1456 EGR Solenoid Position Signal
D GY 2702 5-Volt Reference
E RD 1676 EGR Solenoid High Control
Fuel Injector 1

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F (GY)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B BK 1744 Fuel Injector 1 Control
Fuel Injector 2

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F (GY)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B L-GN/BK 1745 Fuel Injector 2 Control
Fuel Injector 3

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F (GY)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B PK/BK 1746 Fuel Injector 3 Control
Fuel Injector 4

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F (GY)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B L-BU/BK 844 Fuel Injector 4 Control
Fuel Injector 5

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F (GY)
Pin Wire Color Circuit No. Function
A PK 639 Ignition1 Voltage
B BK/WH 845 Fuel Injector 5 Control
Fuel Injector 6

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F (GY)
Pin Wire Color Circuit No. Function
A PK 639 Ignition 1 Voltage
B YE/BK 846 Fuel Injector 6 Control
Fuel Pump and Sender Assembly

GM518981Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160482
  • 4-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 1589 Fuel Level Sensor Signal
B GY 120 Fuel Pump Supply Voltage
C BK 250 Ground
D BK 2759 Low Reference
Fuel Tank Pressure (FTP) Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK/WH 2759 Low Reference
B D-GN 890 Fuel Tank Pressure Sensor Signal
C GY/BK 2709 5-Volt Reference
Heated Oxygen Sensor (HO2S) 1

GM474210Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176897
  • 4-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A TN 413 Low Reference
B PU 412 HO2S 1 High Signal
C BK/WH 3113 HO2S 1 Heater Low Control
D PK 839 Ignition 1 Voltage
Heated Oxygen Sensor (H02S) 2

GM280761Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160825
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A TN/WH 1669 HO2S 2 Low Signal
B PU/WH 1668 HO2S 2 High Signal
C BK 1050 Ground
D PK 839 Ignition 1 Voltage
Idle Air Control (IAC) Valve

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162190
  • 4-Way F Metri-Pack 150.2 Series Sealed P2S (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 444 IAC Coil B Low Control
B L-GN/WH 1749 IAC Coil B High Control
C L-BU/BK 1748 IAC Coil A Low Control
D L-BU/WH 1747 IAC Coil A High Control

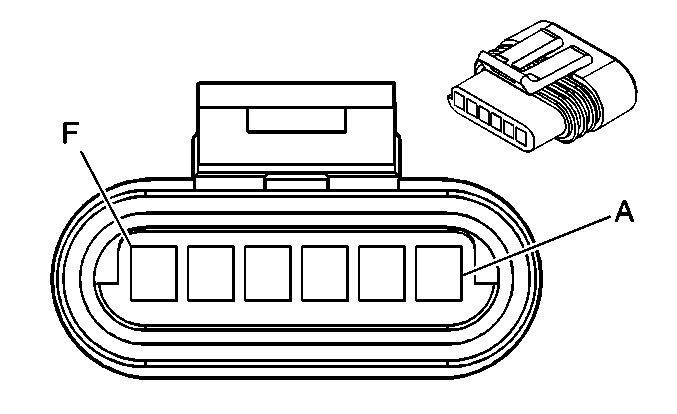

Ignition Control Module (ICM) - C1

GM697032Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162261
  • 6-Way F Metri-Pack 150.2 Series (BK)
Pin Wire Color Circuit No. Function
A TN/BK 424 IC Timing Signal
B WH 423 IC Timing Control
C-D - - Not Used
E PU/WH 430 Low Resolution Engine Speed Signal
F RD/BK 453 Low Reference

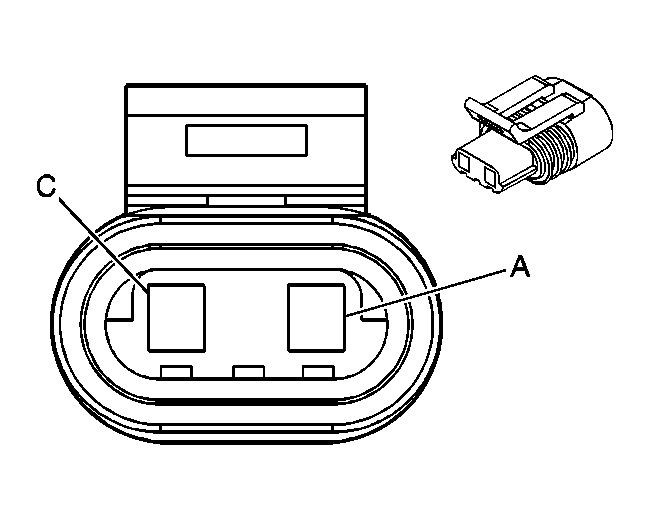

Ignition Control Module (ICM) - C2

GM697033Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162184
  • 2-Way F Metri-Pack 150.2 Series Sealed Pull To Seat (BK)
Pin Wire Color Circuit No. Function
A YE 573 CKP Sensor 1 Signal
C PU 574 Low Reference
Ignition Control Module (ICM) - C3

GM237066Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162194
  • 2-Way F Metri-Pack 150.2 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK/WH 51 Ground
B PK/BK 239 Ignition 1 Voltage
Intake Air Temperature (IAT) Sensor

GM646180Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162199
  • 2-Way F 150.2 Series (M-GY)
Pin Wire Color Circuit No. Function
A BK 2760 Low Reference
B TN 472 IAT Sensor Signal
Knock Sensor (KS)

GM95764Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176800
  • 1-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
1 D-BU 496 KS Signal

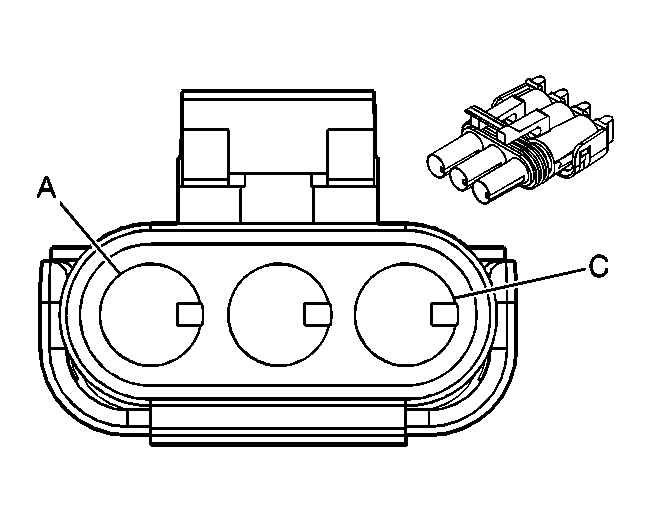

Manifold Absolute Pressure (MAP) Sensor

GM622368Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020403
  • 3-Way M Weather Pack (GN)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B L-GN 432 MAP Sensor Signal
C GY 2704 5-Volt Reference
Mass Air Flow (MAF) Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A YE 492 MAF Sensor Signal
B BK/WH 451 Ground
C PK 339 Ignition 1 Voltage
Throttle Position (TP) Sensor

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110192
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A GY 2701 5-Volt Reference
B BK 2752 Low Reference
C D-BU 417 TP Sensor Signal
