Installation Procedure

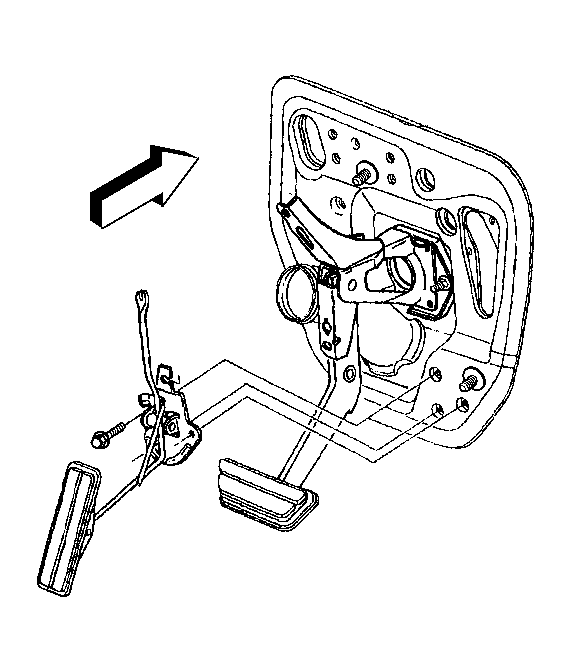

    Fig 1: View Of Accelerator Pedal Assembly
    GM50412Courtesy of GENERAL MOTORS CORP.
  1. Position the accelerator pedal to the bulkhead.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Reinstall the accelerator pedal bolt and stud.

    Tighten:  Tighten the bolts and studs to 3.0 N.m (27 lb in).

  3. Connect the accelerator cable to the accelerator pedal.
  4. Check for complete throttle opening and closing positions by operating the accelerator pedal. Also inspect the carpet fit under the accelerator pedal.
  5. Reinstall the left instrument panel sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges, and Console.
