Installation Procedure

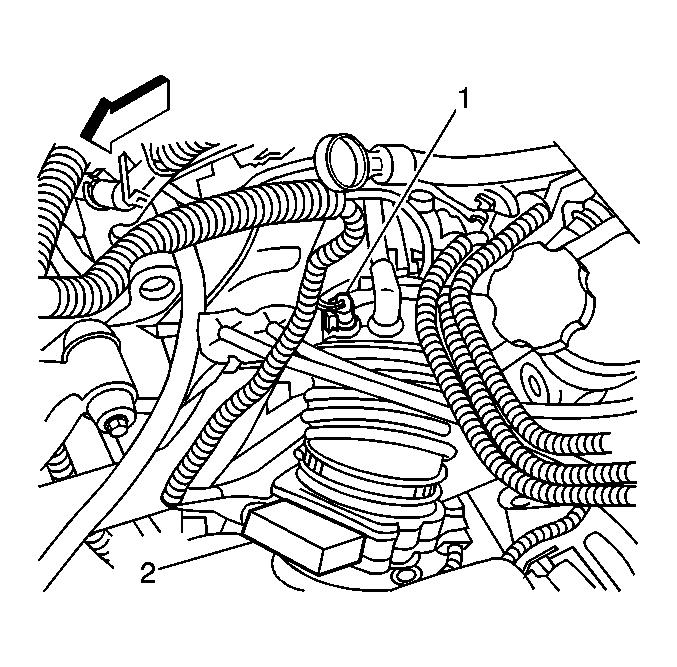

    Fig 1: Locating Intake Air Temperature (IAT) Sensor Electrical Connector
    GM740106Courtesy of GENERAL MOTORS CORP.
  1. Install the IAT sensor (1) by snapping into place.
  2. Connect the IAT sensor electrical connector.
