Body Control System Component Views
WARNING:
This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

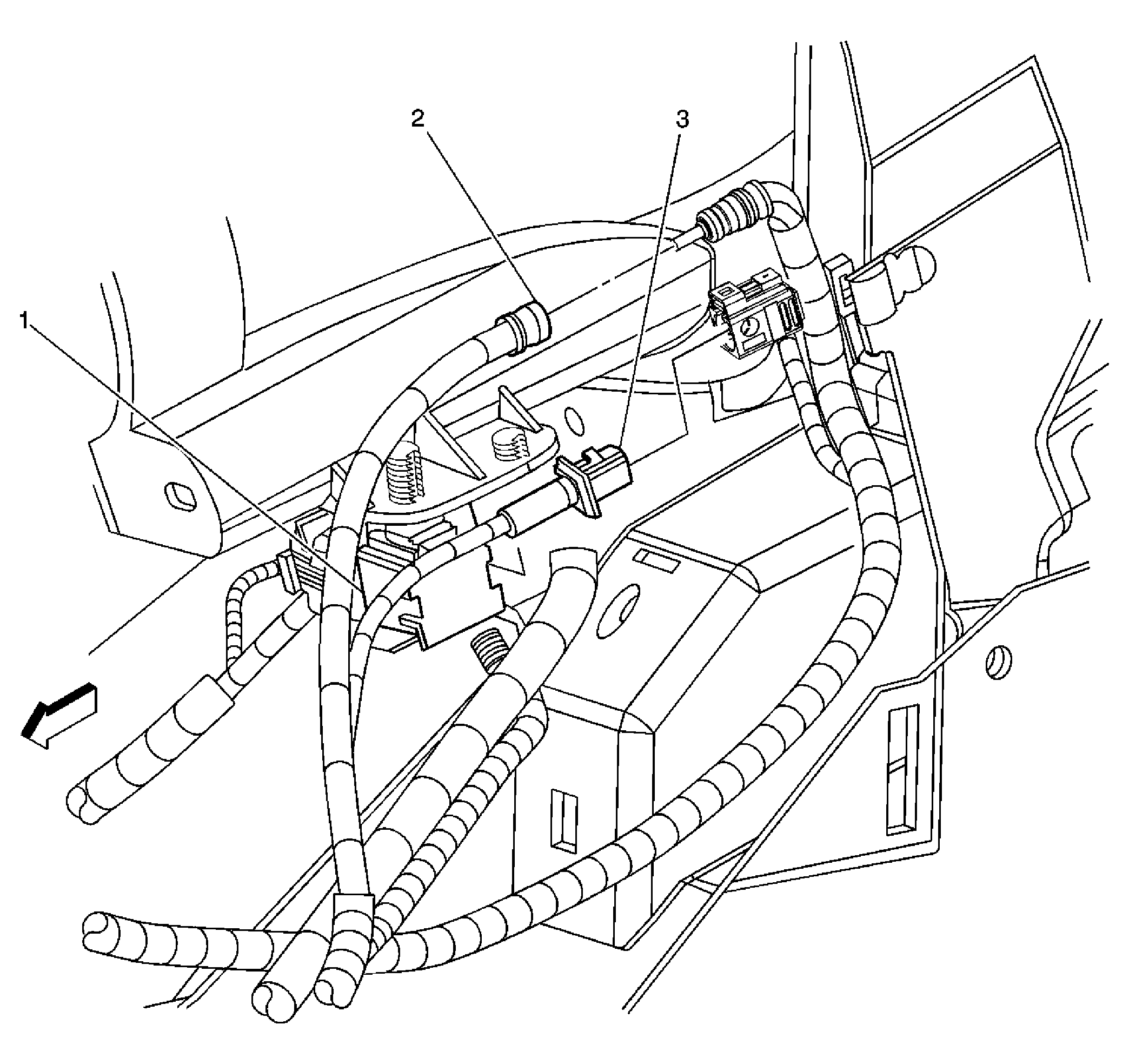

Fig 1: Left Side Of Upper Left Footwell Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Body Control Module (BCM)
2
C290
3
C291
