Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector.
Install the receiver by positioning the inboard retainer to the I/P trim pad slot. Press the outboard retainers into the I/P trim pad openings.

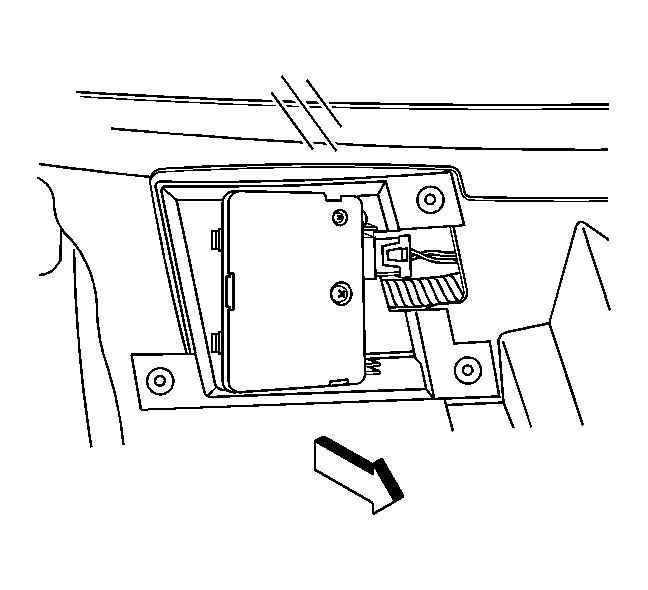

Fig 1: View Of Outboard Receiver & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the I/P upper trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper in Instrument Panel, Gages and Console.
If a new remote control door lock receiver is being installed, synchronize the transmitter. Refer to Transmitter Resynchronization .
If a new remote control door lock receiver is being installed, program the transmitter. Refer to Transmitter Programming .
