Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) upper trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper in Instrument Panel, Gages and Console.
  2. Disengage the outboard receiver retainers from the I/P trim pad.
  3. Lift the receiver from the I/P trim pad and disconnect the electrical connector.

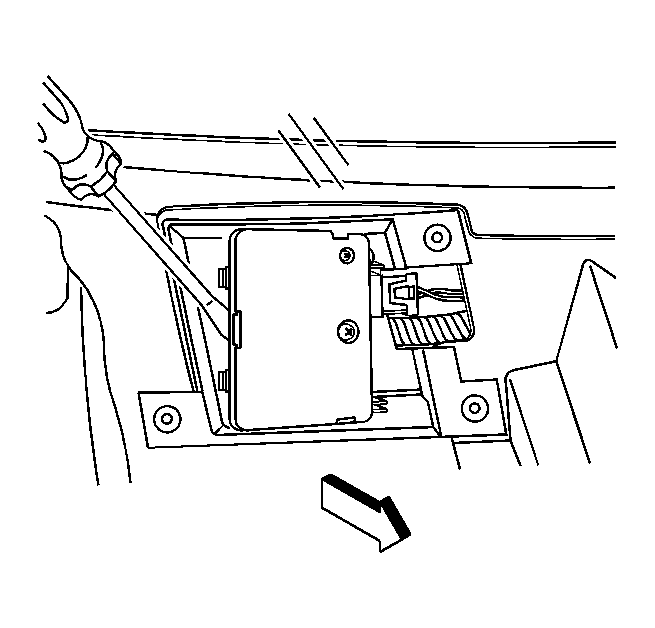

    4. Fig 1: View Of Outboard Receiver
    GM1205341Courtesy of GENERAL MOTORS CORP.
  4. Remove the receiver.
