Installation Procedure

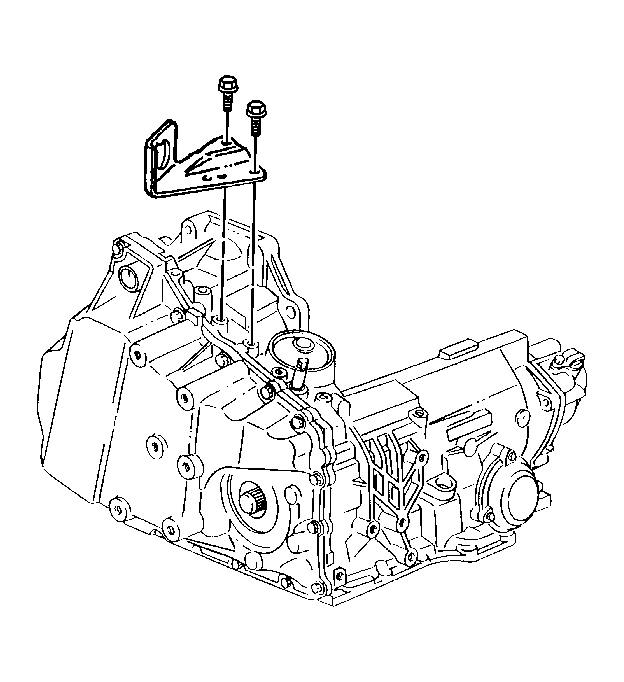

    Fig 1: View Of Automatic Transaxle Range Selector Cable Bracket Bolts
    GM161088Courtesy of GENERAL MOTORS CORP.
  1. Install the automatic transaxle range selector cable bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the automatic transaxle range selector cable bracket bolts.

    Tighten:  Tighten the automatic transaxle range selector cable bracket bolts to 25 N.m (18 lb ft).

  3. Install the automatic transaxle range selector cable to the cable lever and the bracket. Refer to Automatic Transmission Range Selector Cable Replacement .
  4. Adjust the automatic transaxle range selector cable. Refer to Automatic Transmission Range Selector Cable Adjustment .
  5. Install the throttle body air inlet duct. Refer to Air Cleaner Assembly Replacement in Engine Controls-3.4L.
