Installation Procedure
- If removed, install the drive axle seal.

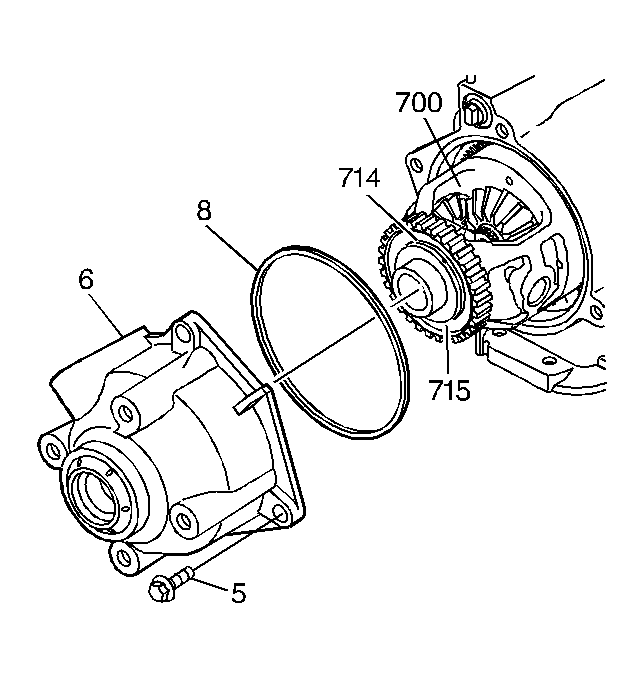

- Install the case extension housing (6) with the axle seal and with the O-ring (8).
- Install the case extension housing bolts (5).
Tighten: Tighten the bolts (5) to 36 N.m (27 lb ft).
- Install the vehicle speed sensor. Refer to Input Speed Sensor Replacement .
- Install the transaxle brace. Refer to Automatic Transmission Brace Replacement (LA1) or Automatic Transmission Brace Replacement (LY7) .
- Connect the right drive axle to the transaxle. Refer to Wheel Drive Shaft Replacement - Front in Wheel Drive Shafts.
- Lower the vehicle.
- Adjust the fluid level. Refer to the following information.
- Transmission Fluid Checking Procedure .
- Fluid and Lubricant Recommendations in Maintenance and Lubrication
- Capacities - Approximate Fluid in Maintenance and Lubrication
- Inspect for completion of the repairs.
- Inspect for fluid leaks.
NOTE:
Refer to Fastener Notice in Cautions and Notices.
NOTE:
Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle.
