Removal Procedure

  1. Remove the oil pan. Refer to Oil Pan Replacement .

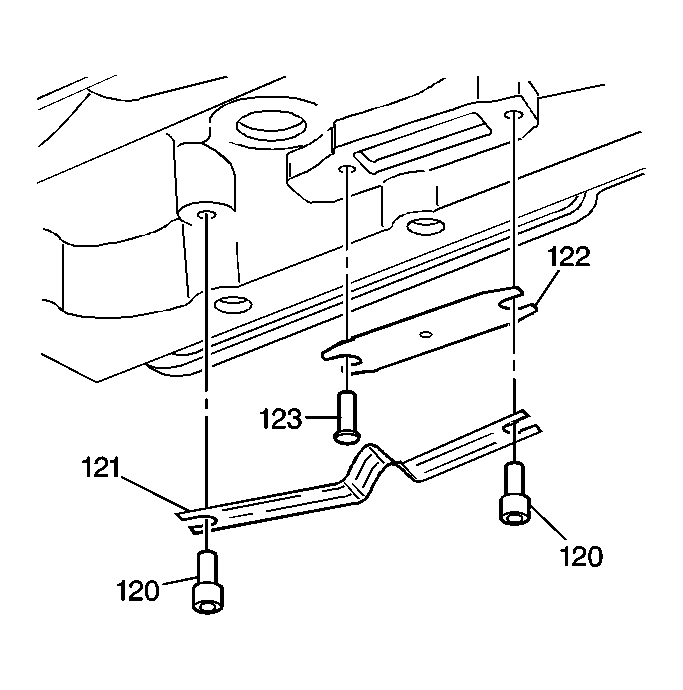

    2. Fig 1: View Of Thermo Element & Plate
    GM164817Courtesy of GENERAL MOTORS CORP.
  2. Remove the thermo element pins and washers (120 and 123).
  3. Remove the thermo element (121) and the thermo element plate (122).
