Installation Procedure

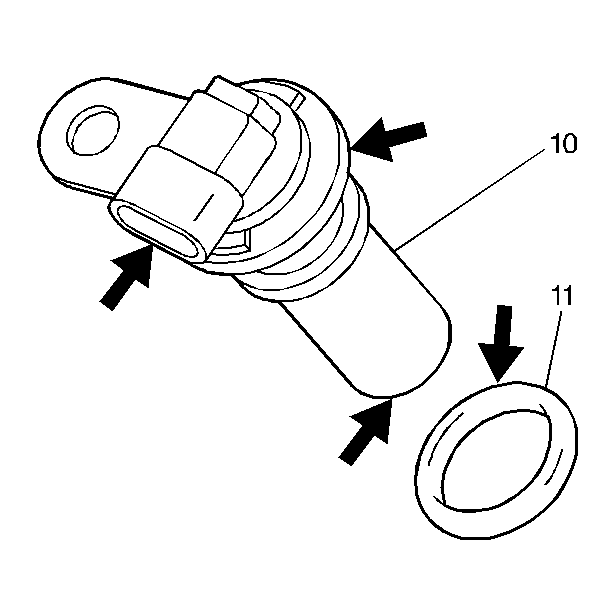

    Fig 1: View Of VSS & O-Ring
    GM10711Courtesy of GENERAL MOTORS CORP.
  1. Inspect the O-ring (11). If damaged, replace as necessary.

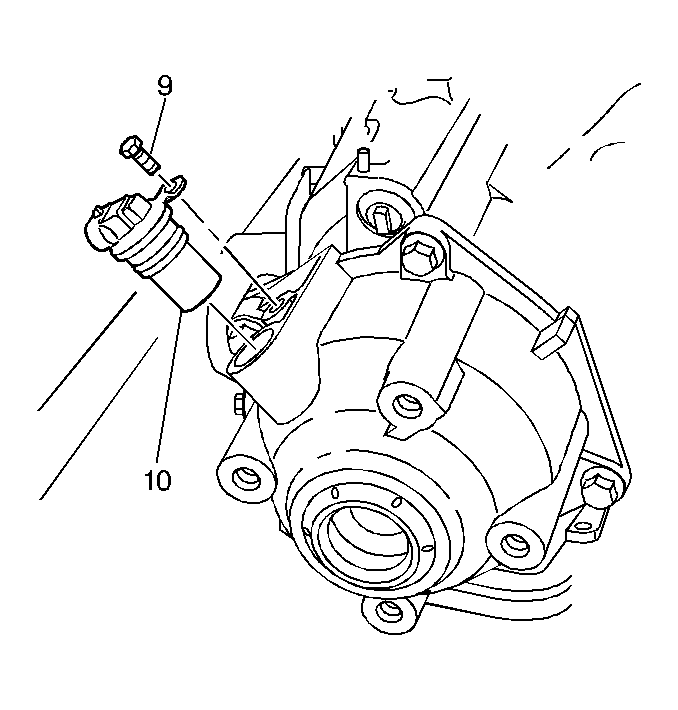

    2. Fig 2: Identifying Vehicle Speed Sensor (VSS)
    GM10516Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the vehicle speed sensor (10) and the retaining bolt (9).

    Tighten:  Tighten the bolt to 12 N.m (106 lb in).

  3. Connect the electrical connector to the sensor.
  4. Lower the vehicle.
