Stationary Windows Component Views

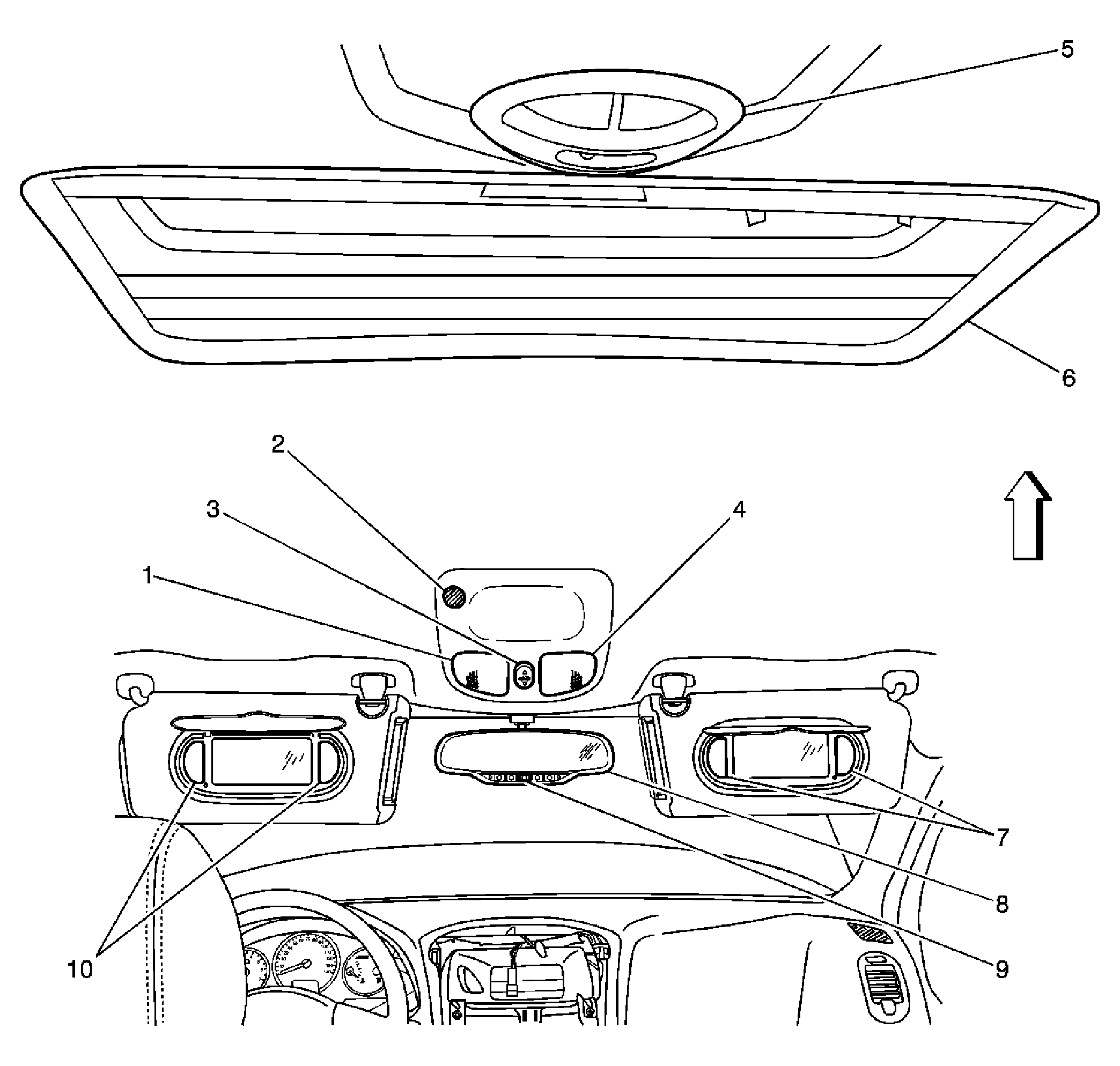

Fig 1: Forward Overhead
GM1508891Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Courtesy/Reading Lamp - LF
2 Cellular Microphone (UE1)
3 Sunroof Switch (CF5/C3Y)
4 Courtesy/Reading Lamp - RF
5 Dome/Reading Lamp (w/o C3Y)
6 Sunroof (CF5/C3Y)
7 Vanity Mirror Lamp - Right
8 Inside Rearview Mirror
9 OnStar Keypad (UE1)
10 Vanity Mirror Lamp - Left

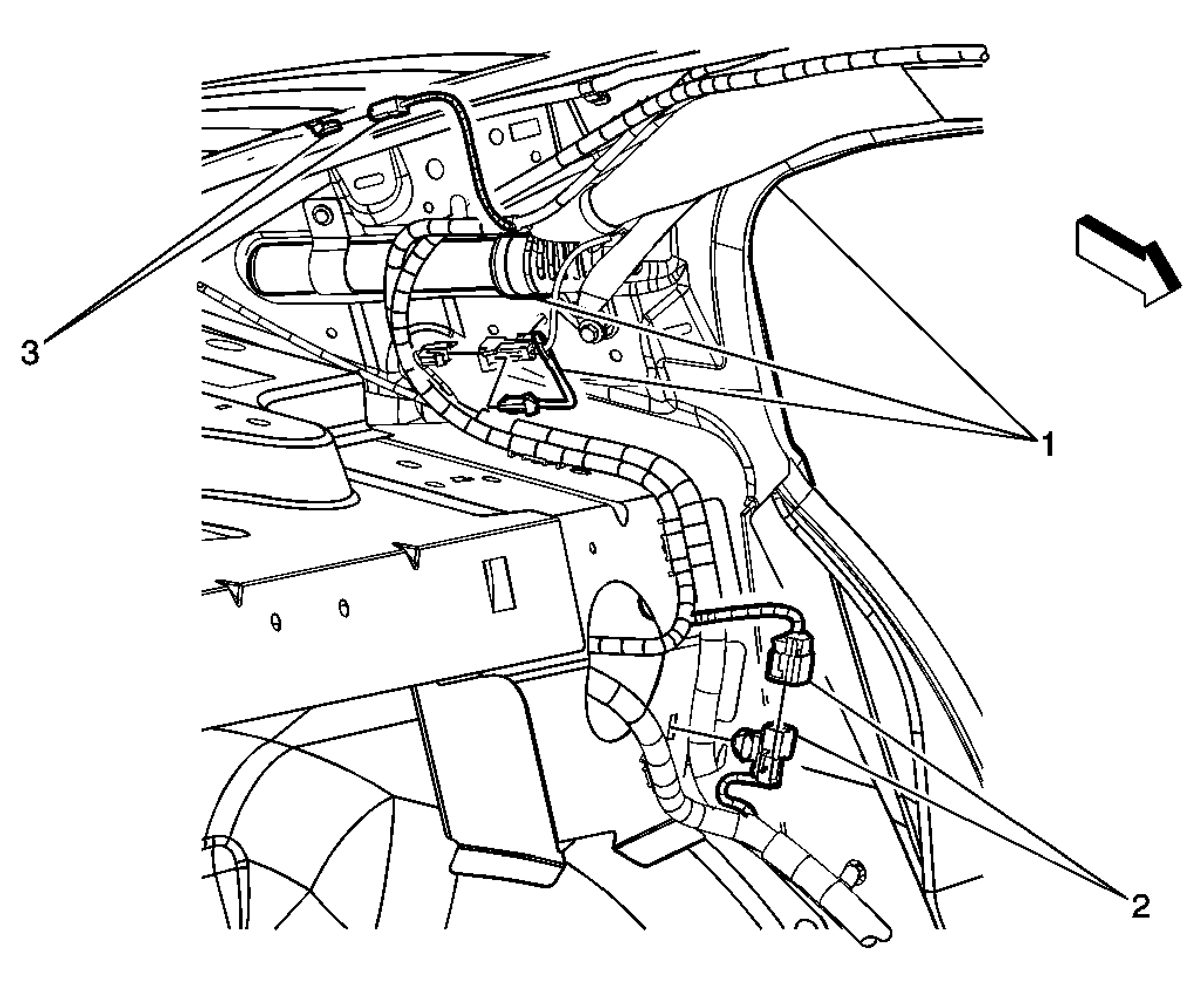

Fig 2: Inside of the Left C-Pillar - Sedan
GM1265823Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Roof Rail Module - Left
2 C351 (UE1)
3 Rear Window Defogger Grid - C1

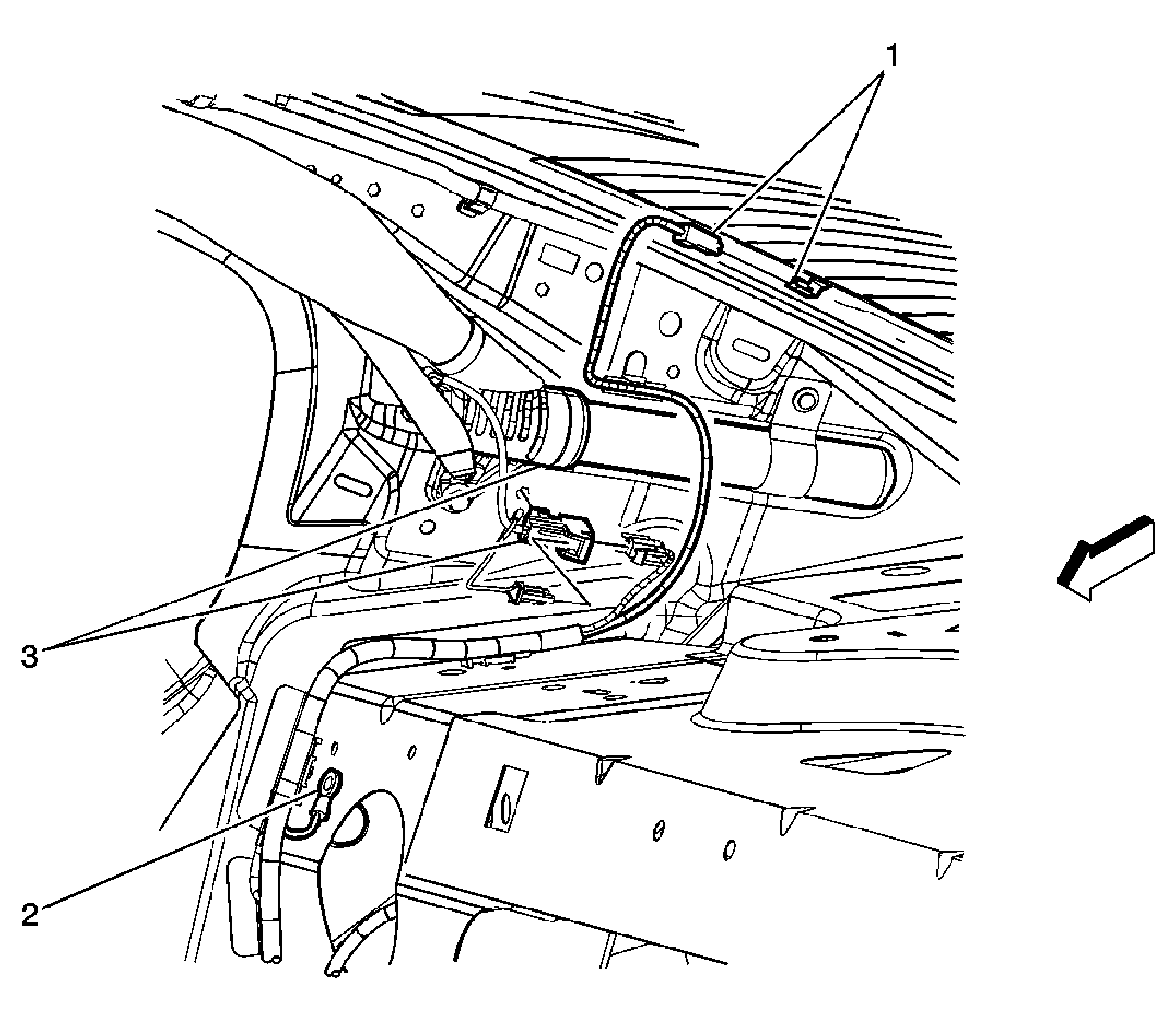

Fig 3: Inside of Right C-Pillar - Sedan
GM1265829Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Defogger Grid, C2
2 G301
3 Inflatable Restraint Roof Rail Module - Right
