Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

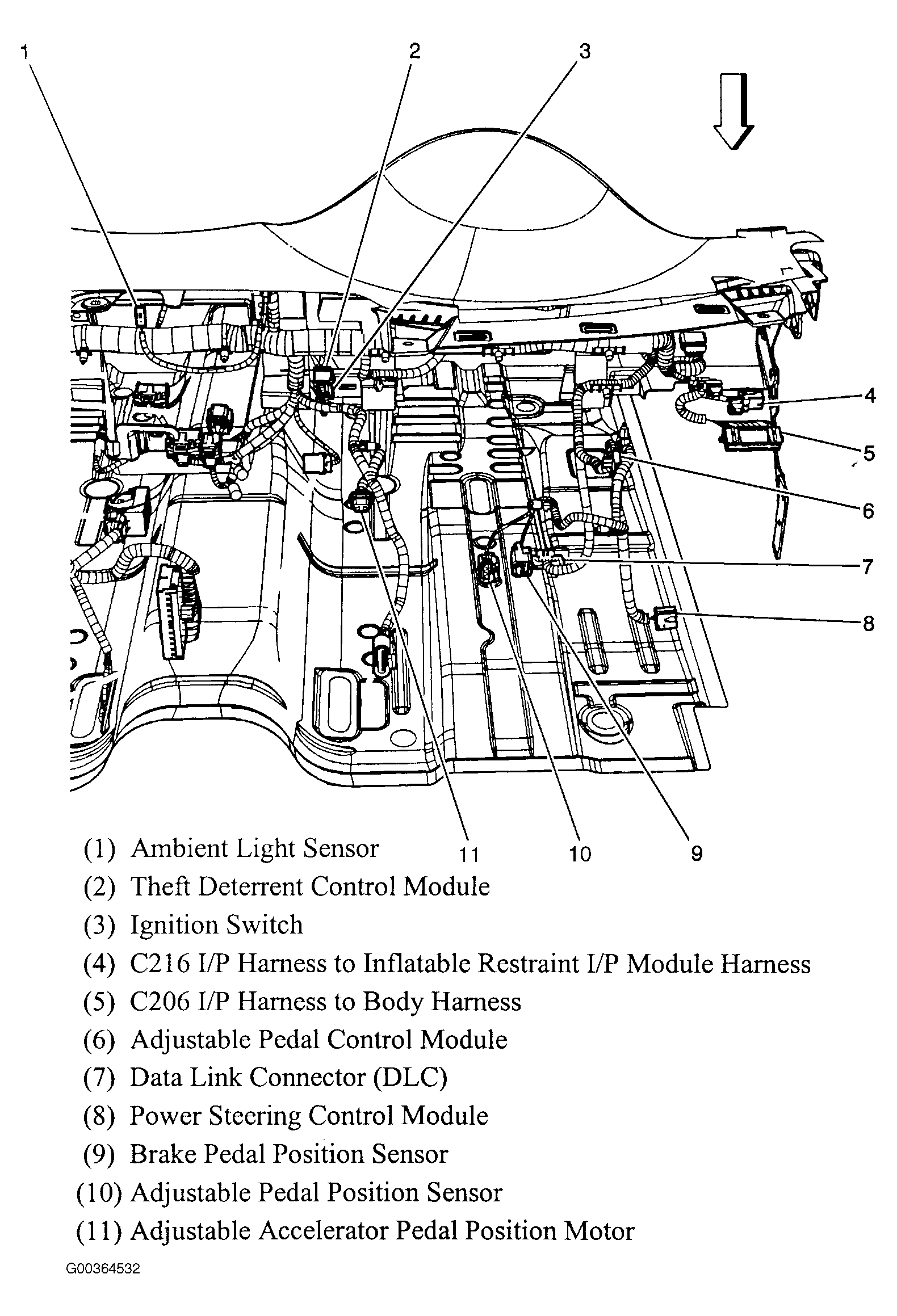

Fig 1: Dash
Courtesy of GENERAL MOTORS CORP.

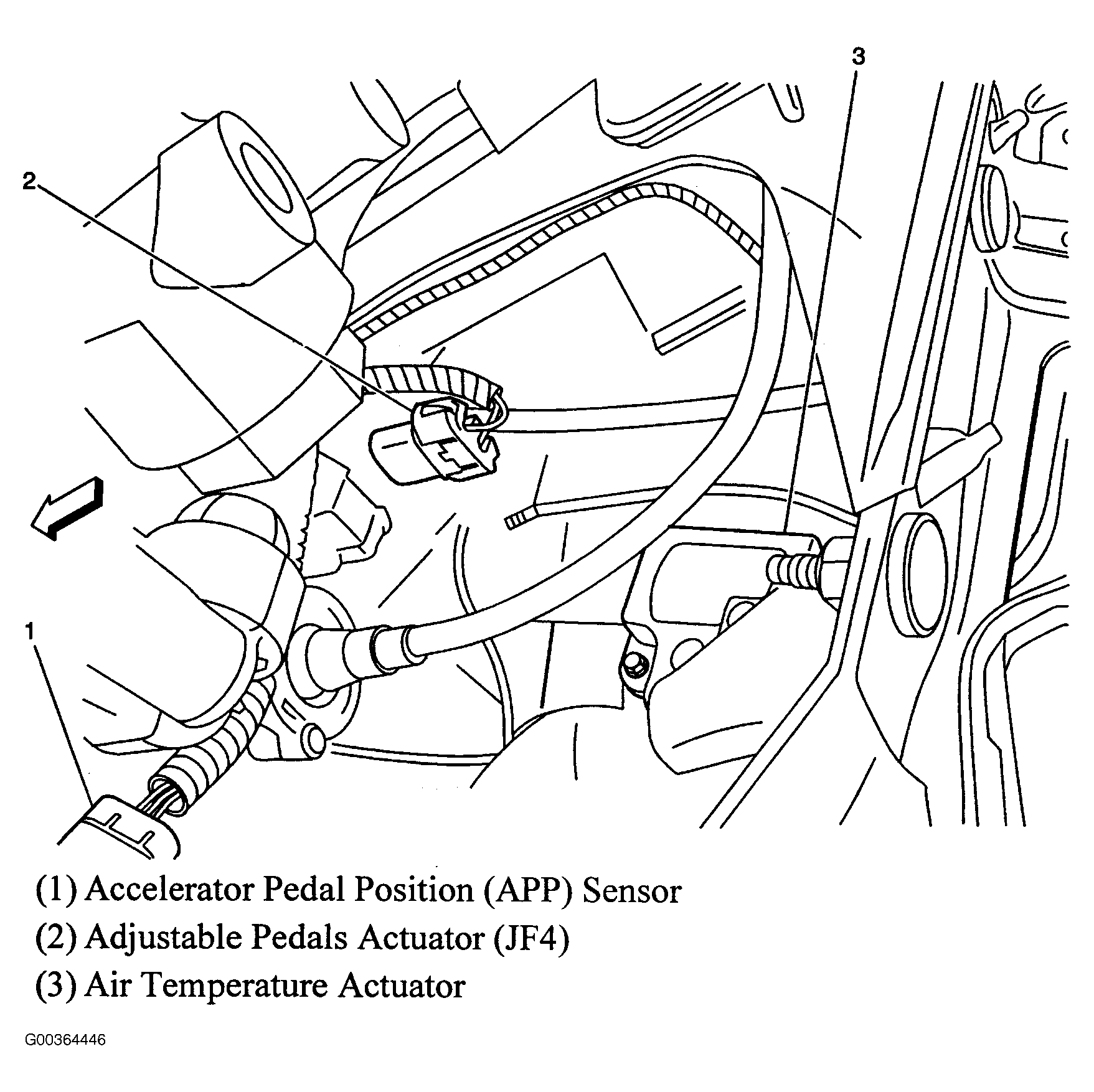

Fig 2: Left Of Brake Pedal
Courtesy of GENERAL MOTORS CORP.

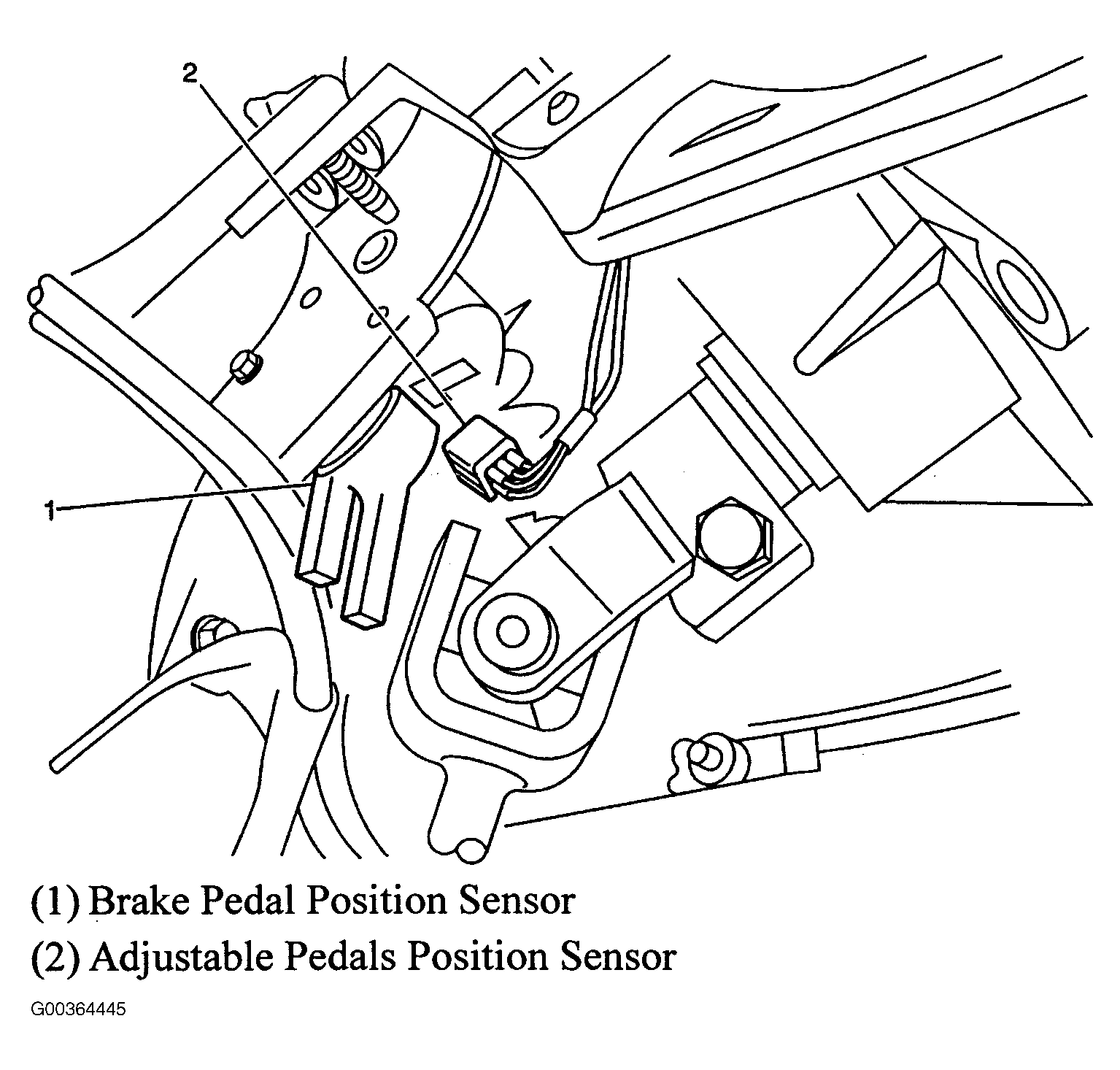

Fig 3: Above Brake Pedal
Courtesy of GENERAL MOTORS CORP.

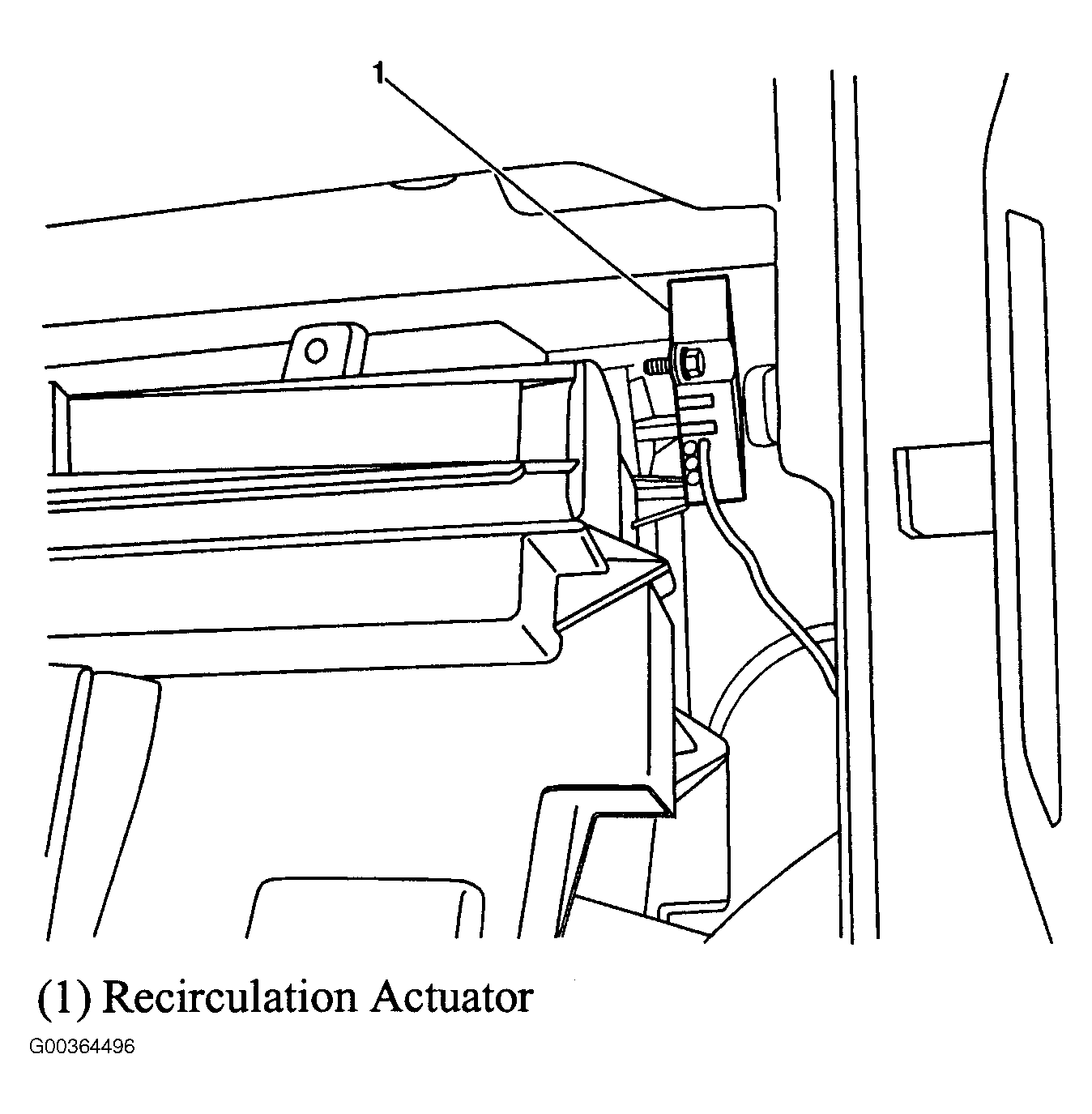

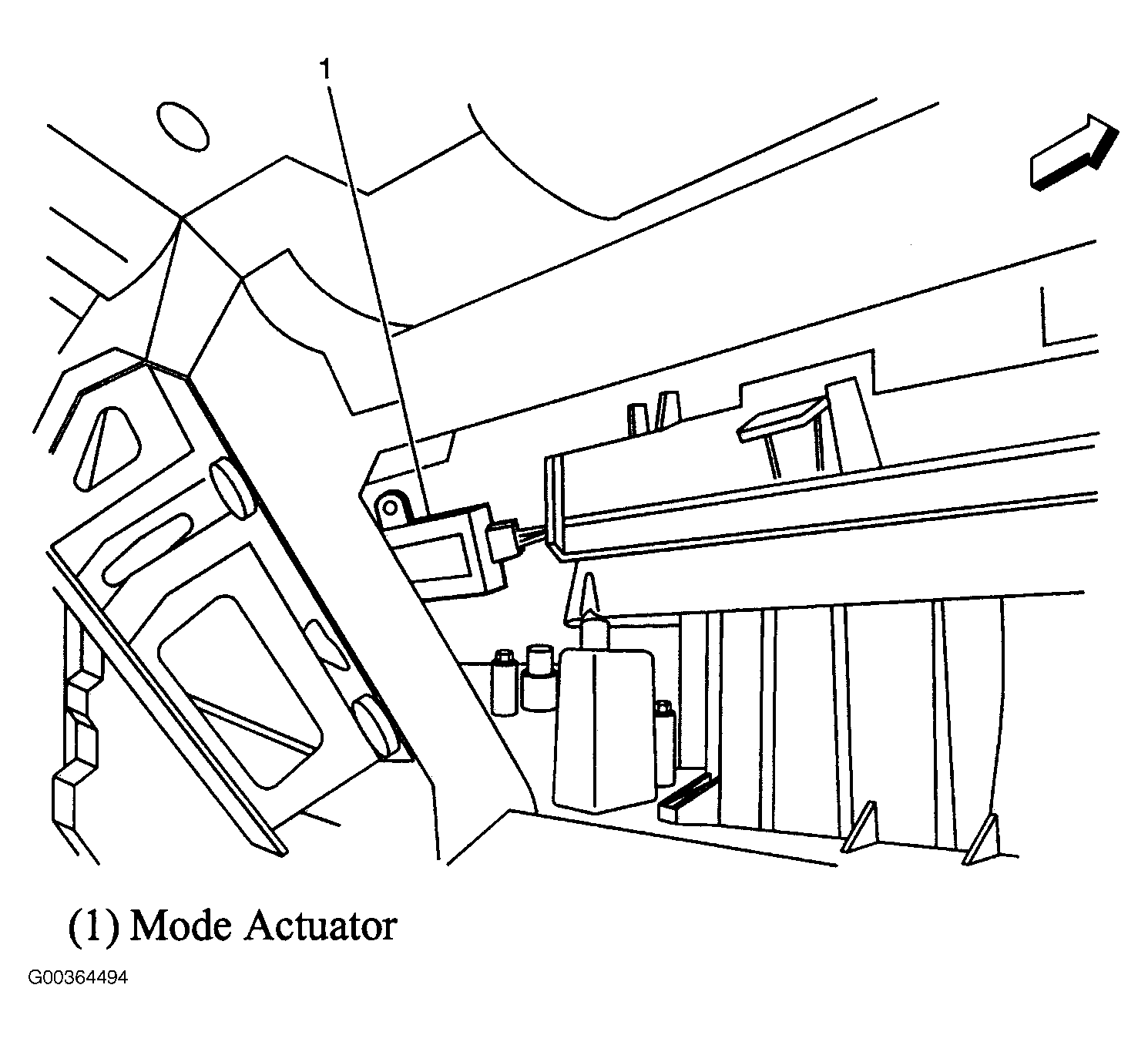

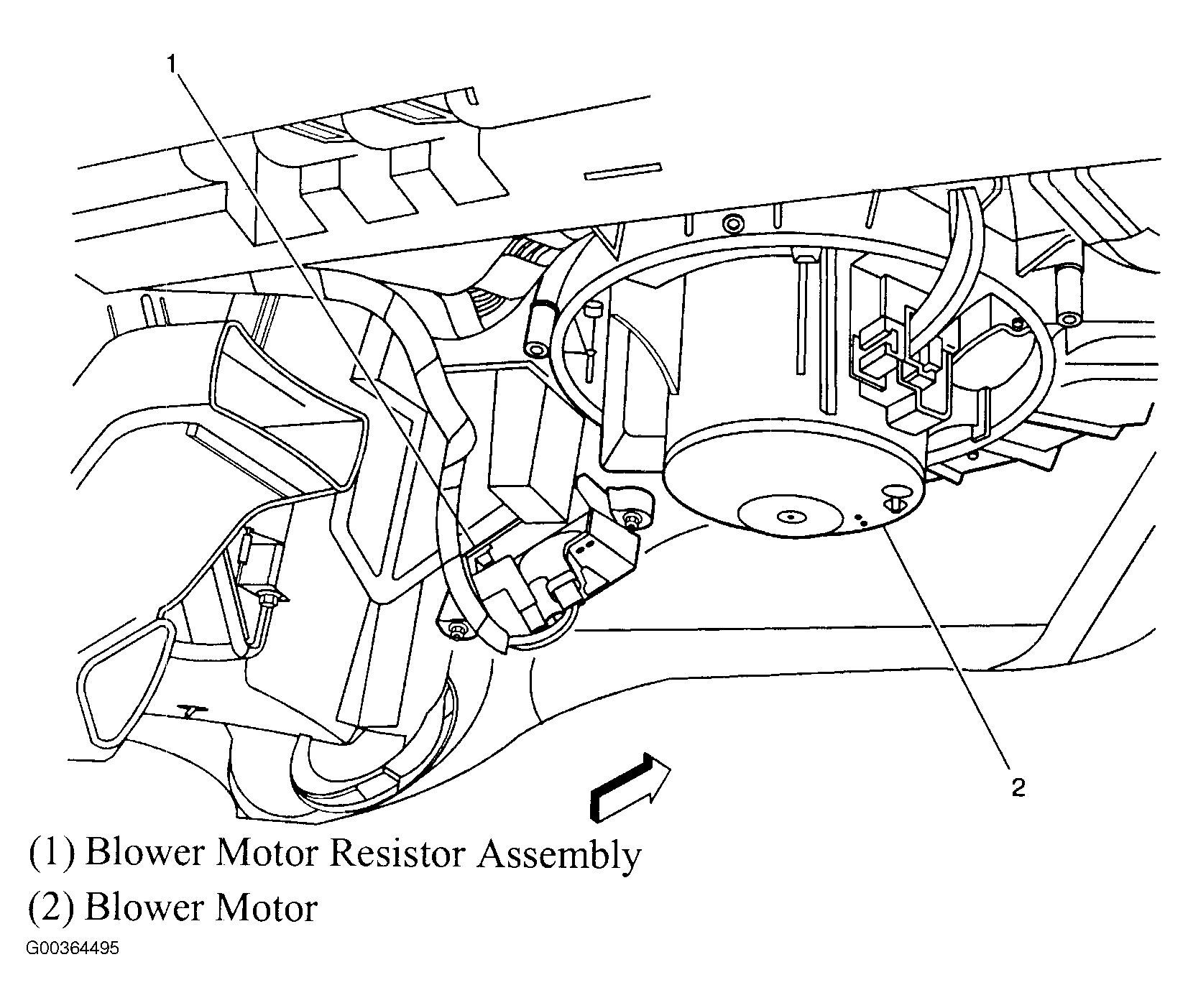

Fig 4: Left Side Of HVAC Case
Courtesy of GENERAL MOTORS CORP.

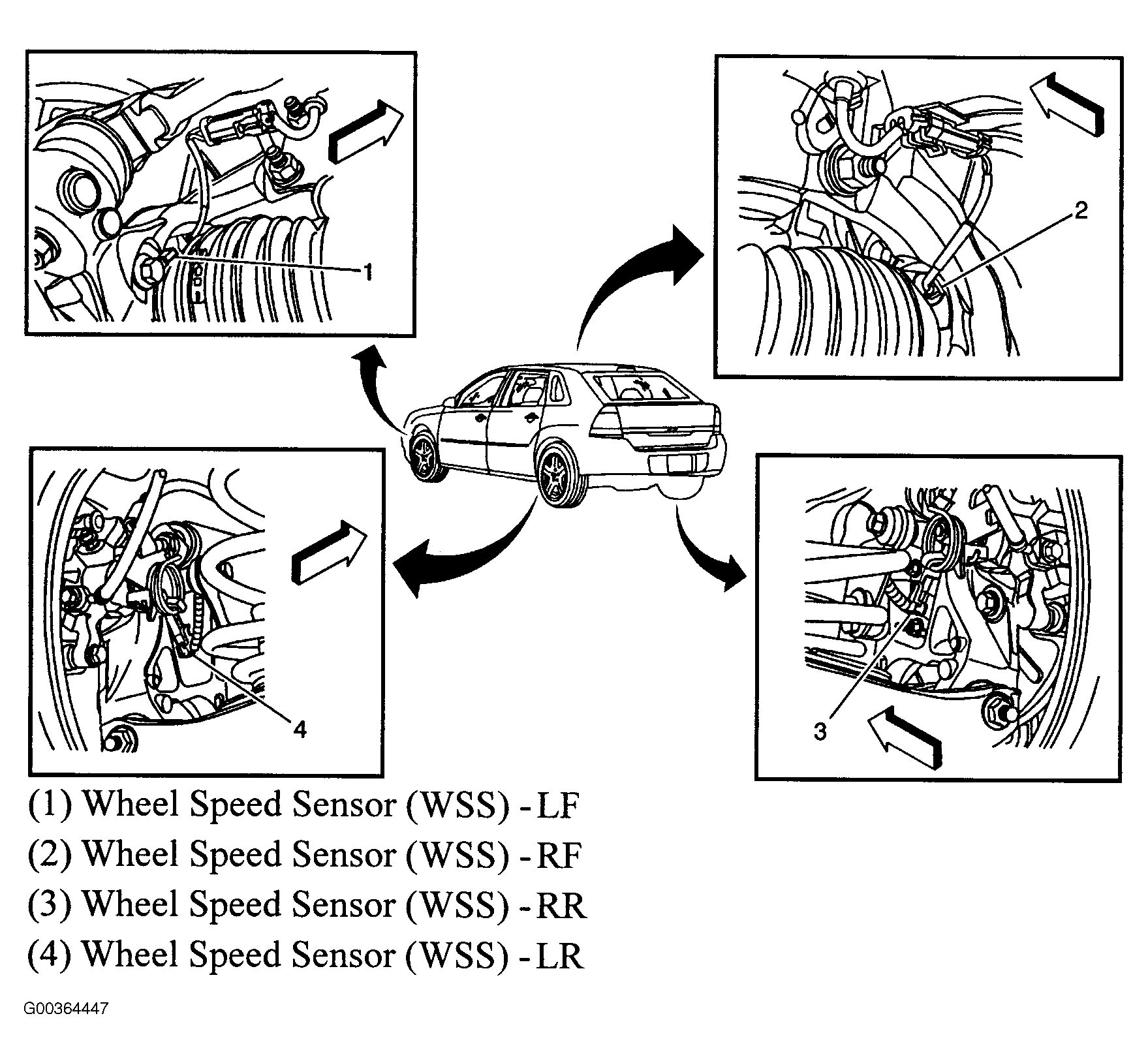

Fig 5: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

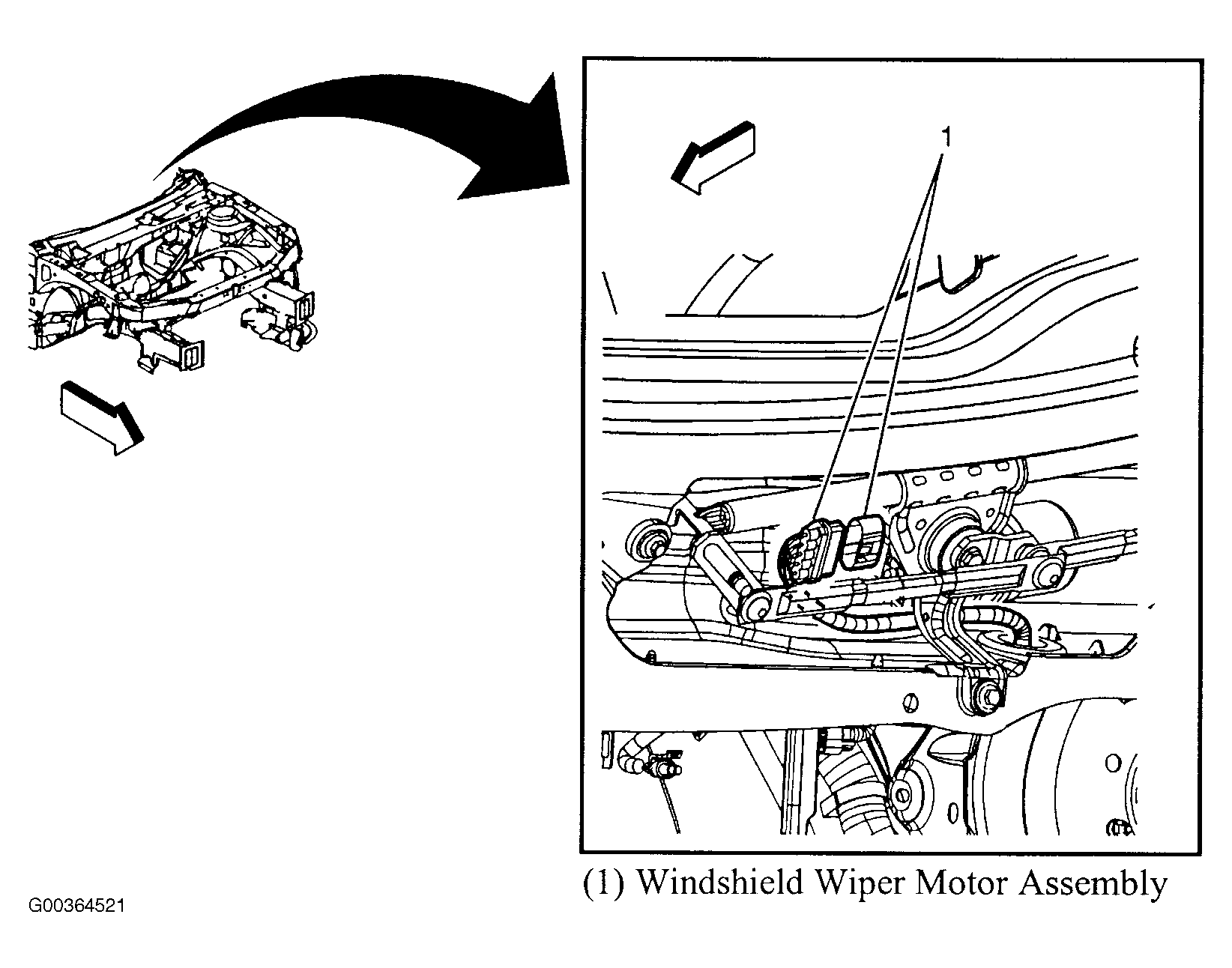

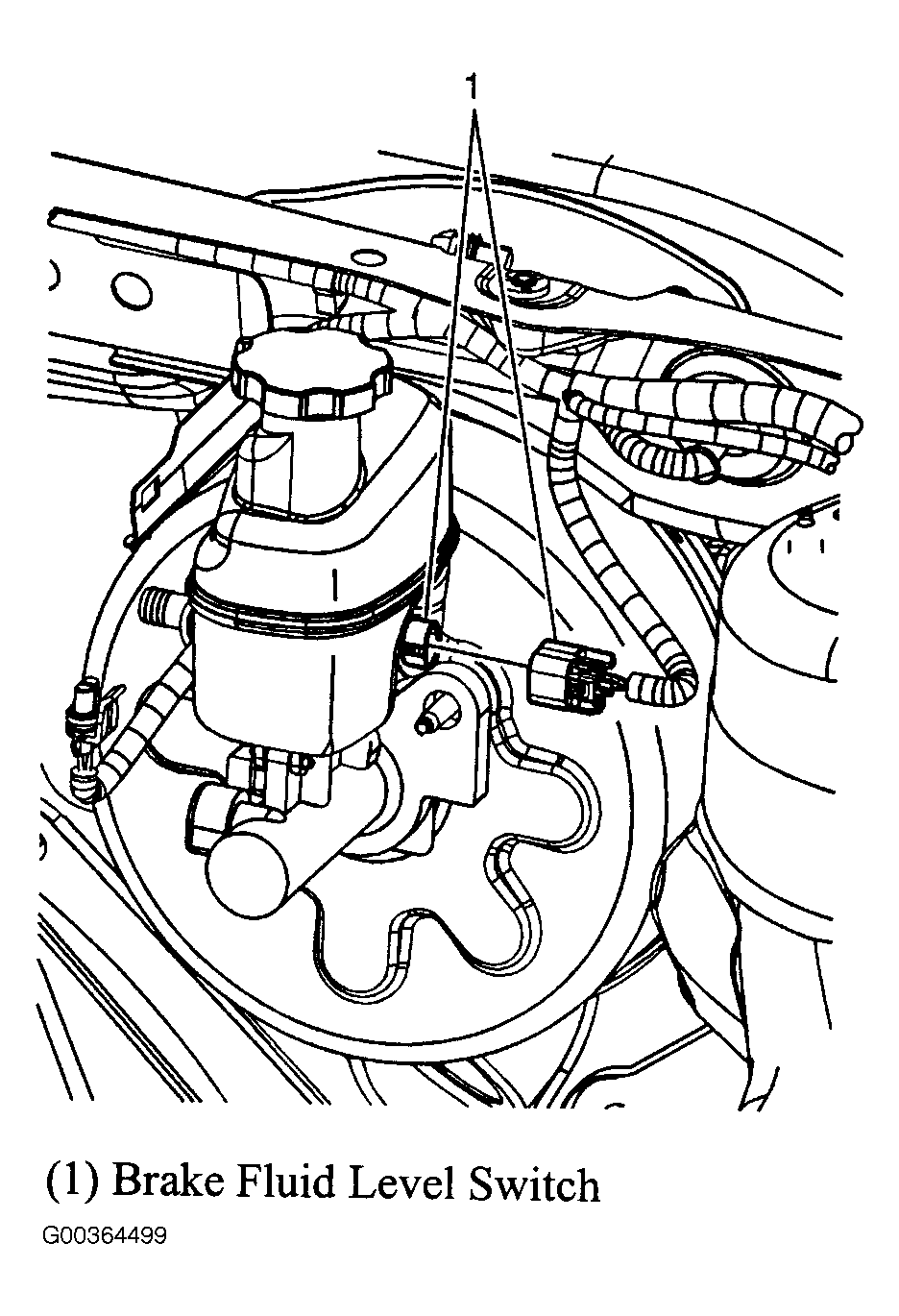

Fig 6: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

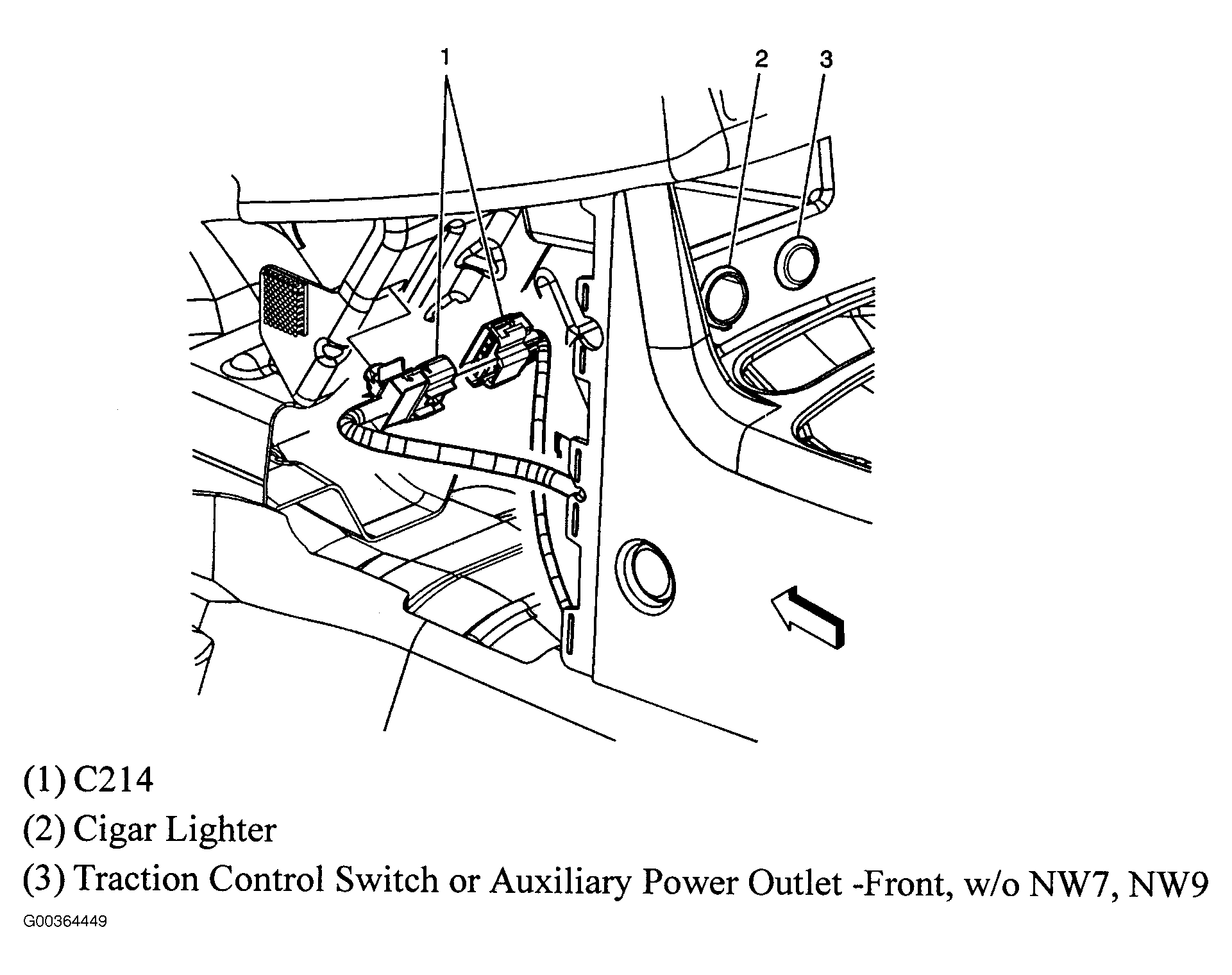

Fig 7: Left Front Of Floor Console
Courtesy of GENERAL MOTORS CORP.

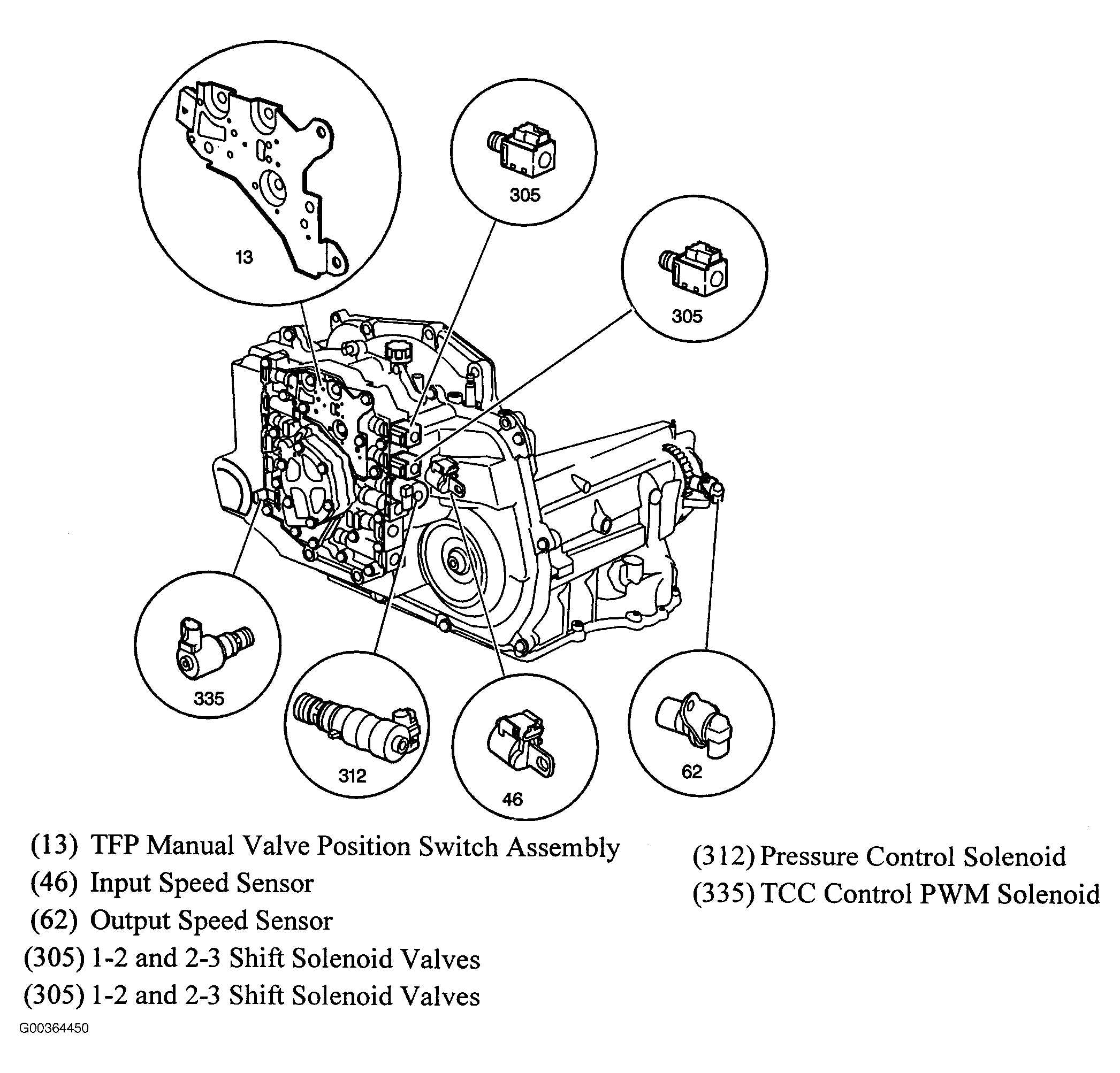

Fig 8: Automatic Transmission Electronic Component Views
Courtesy of GENERAL MOTORS CORP.

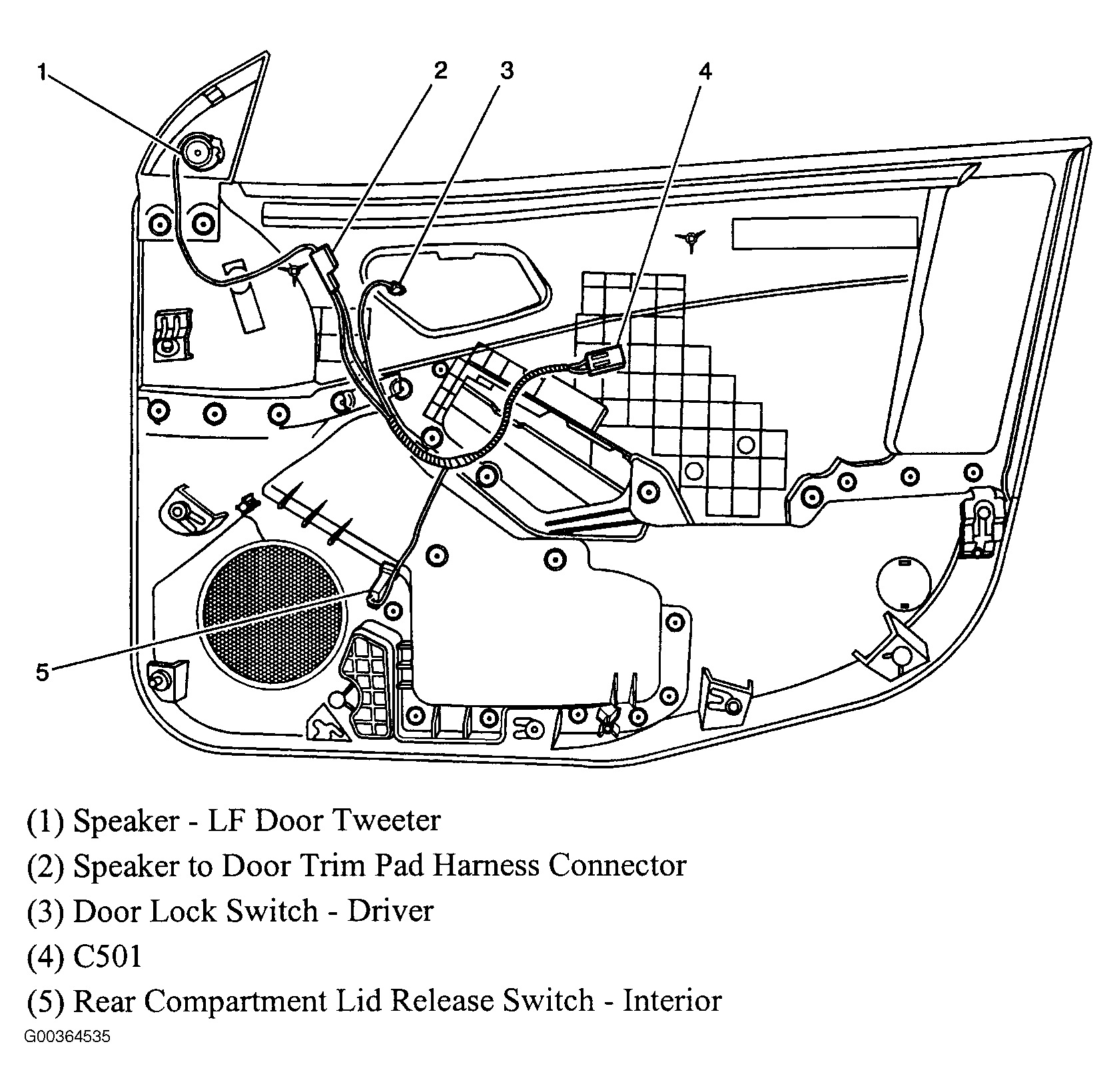

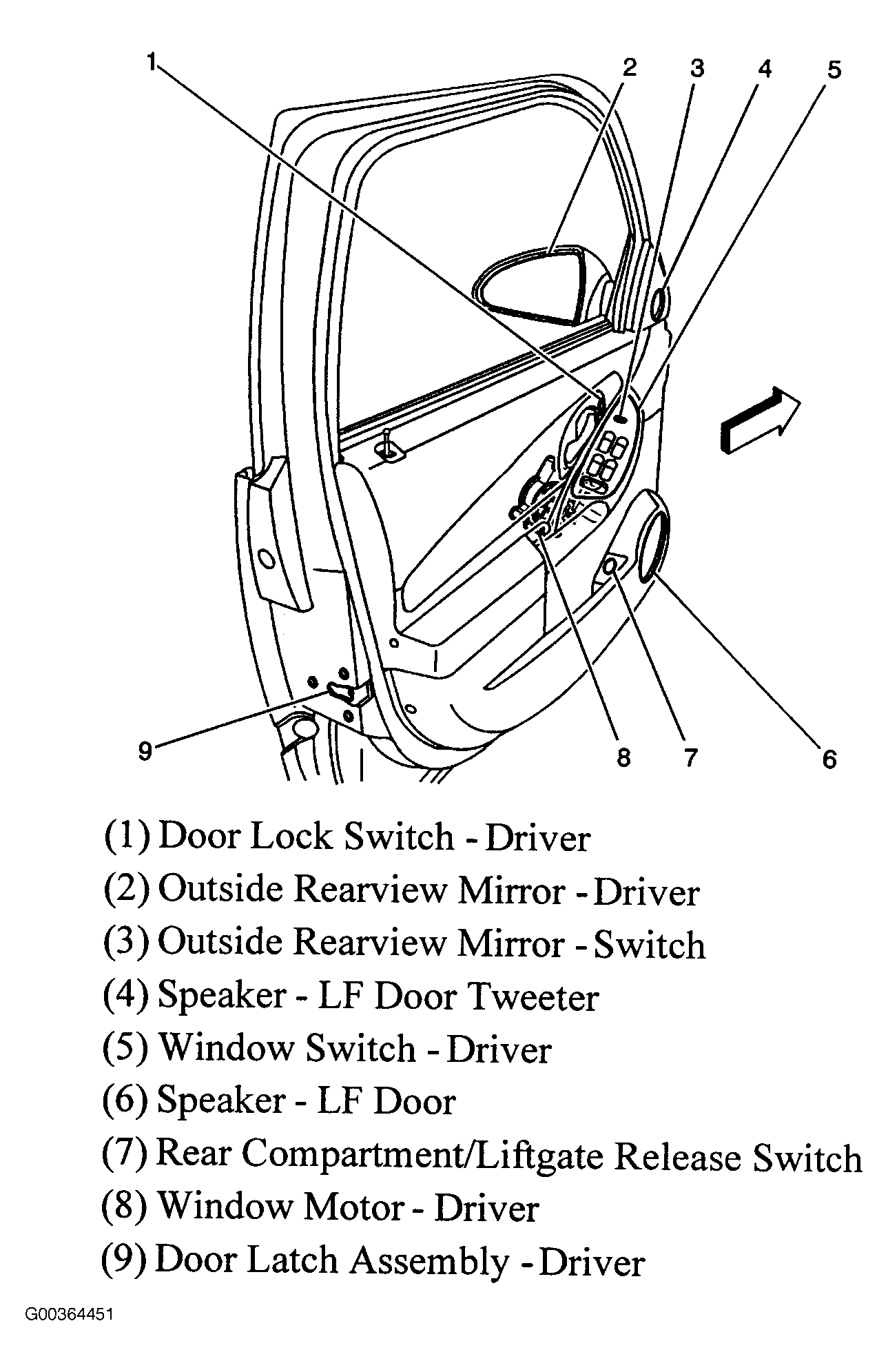

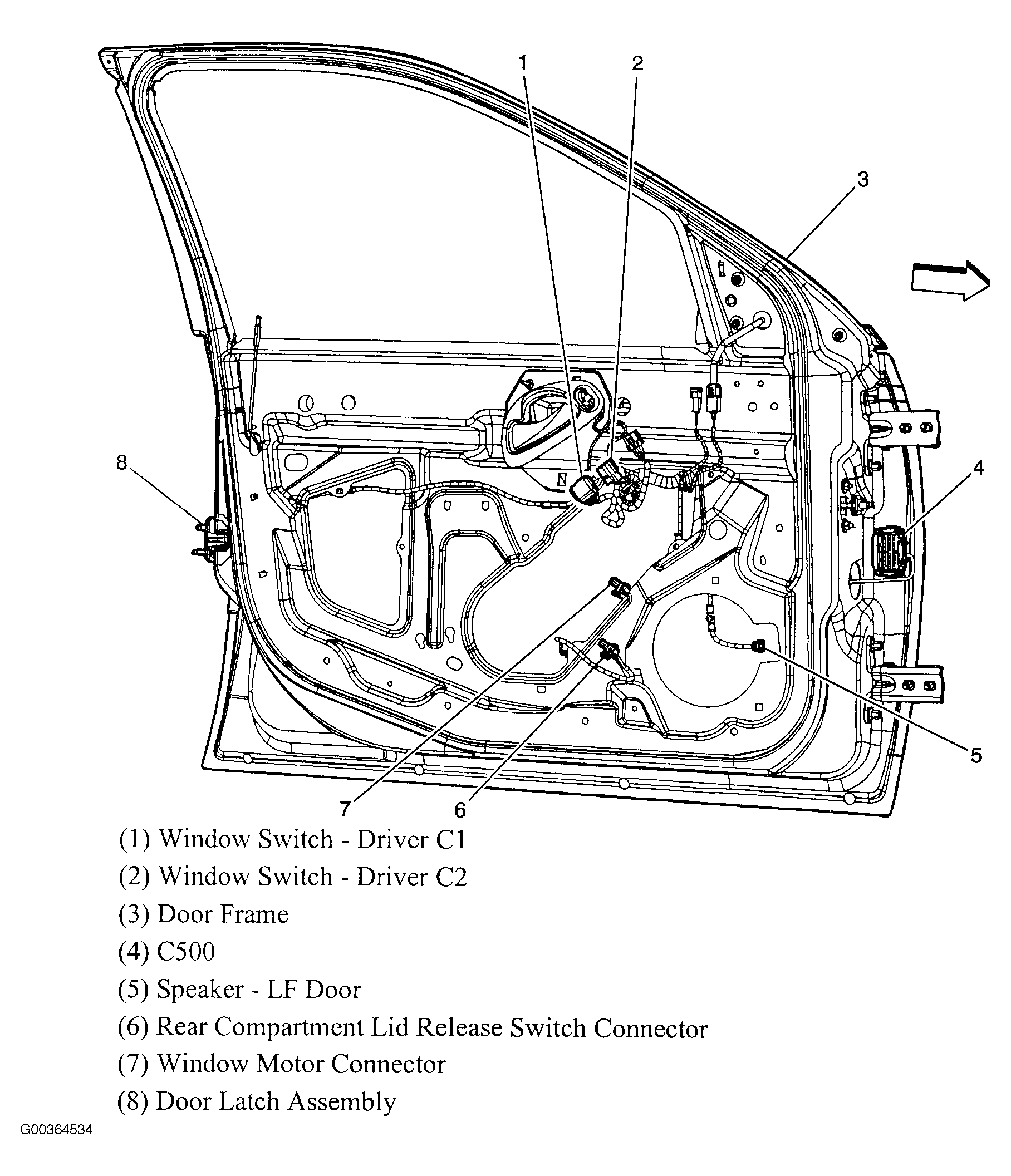

Fig 9: Left Front Door
Courtesy of GENERAL MOTORS CORP.

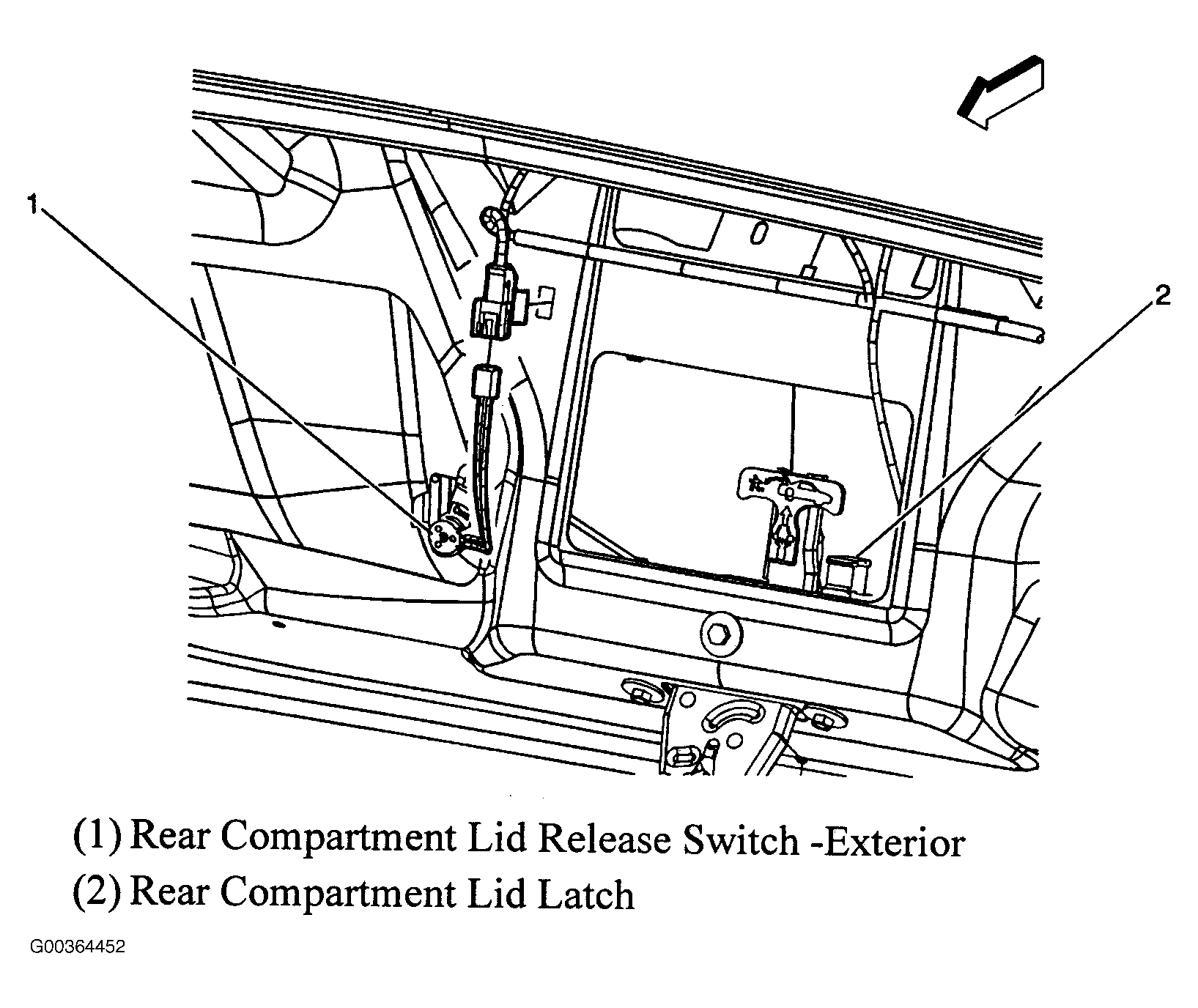

Fig 10: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.

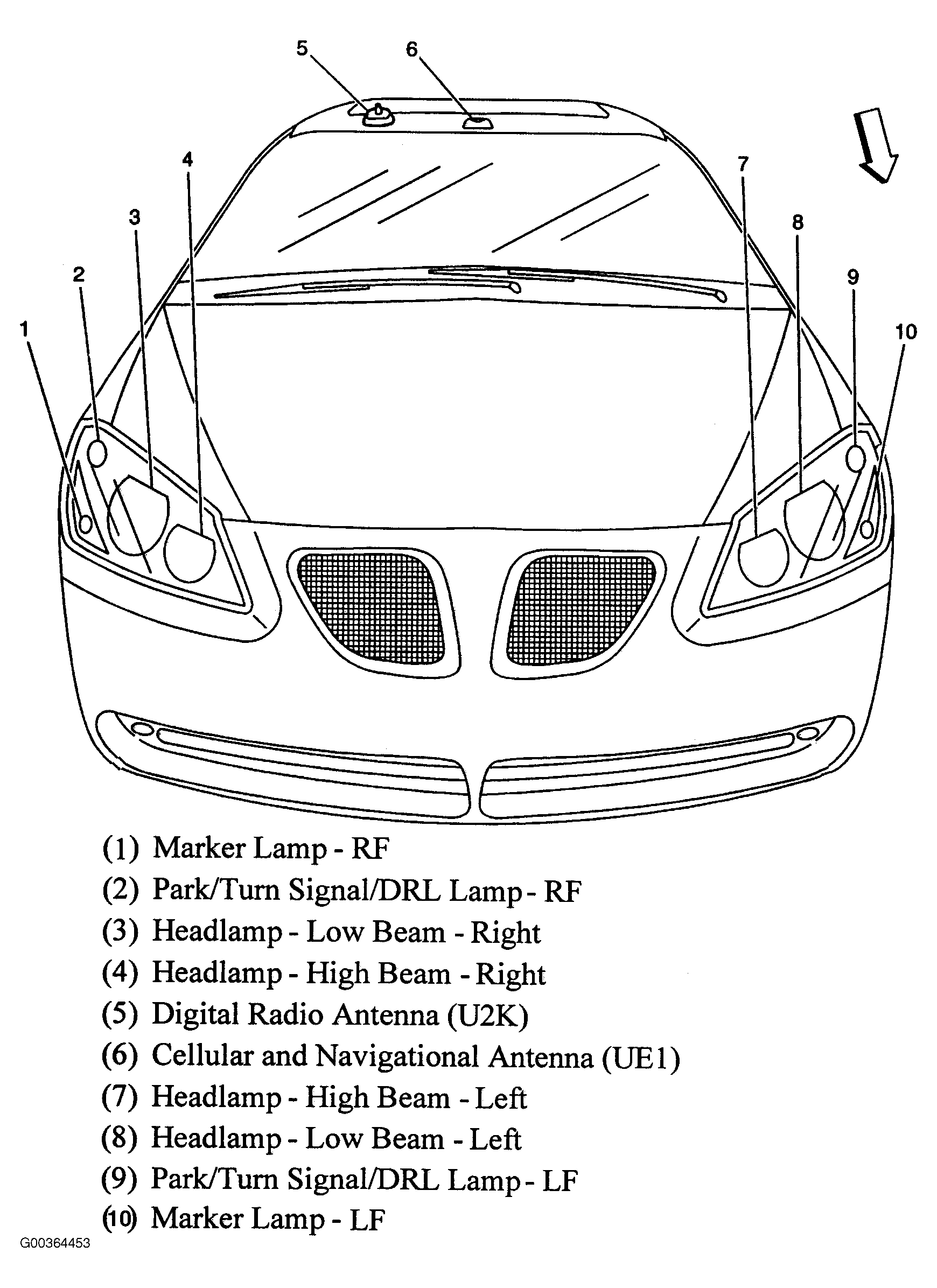

Fig 11: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

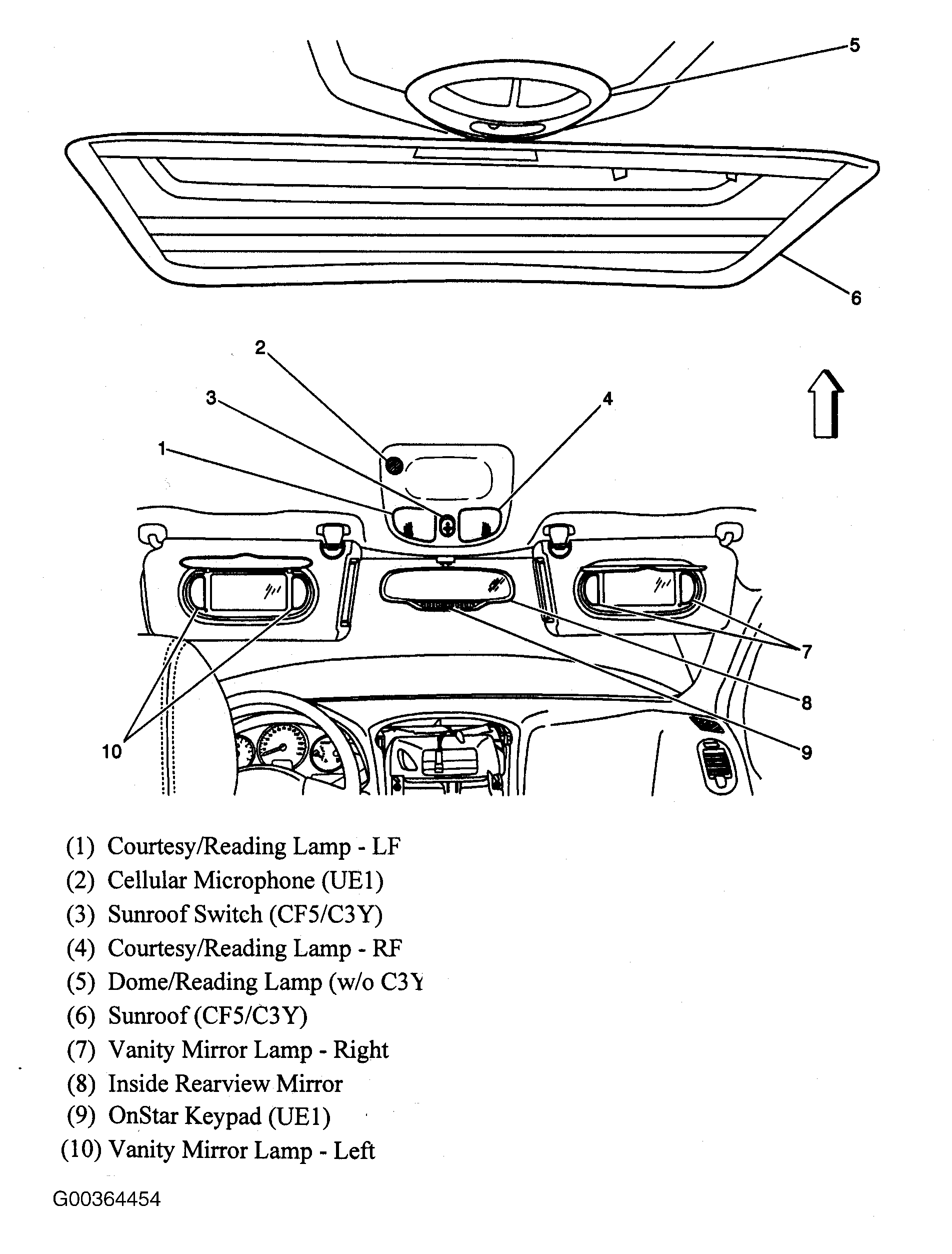

Fig 12: Interior
Courtesy of GENERAL MOTORS CORP.
Fig 13: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 15: Rear Of Steering Wheel
Courtesy of GENERAL MOTORS CORP.

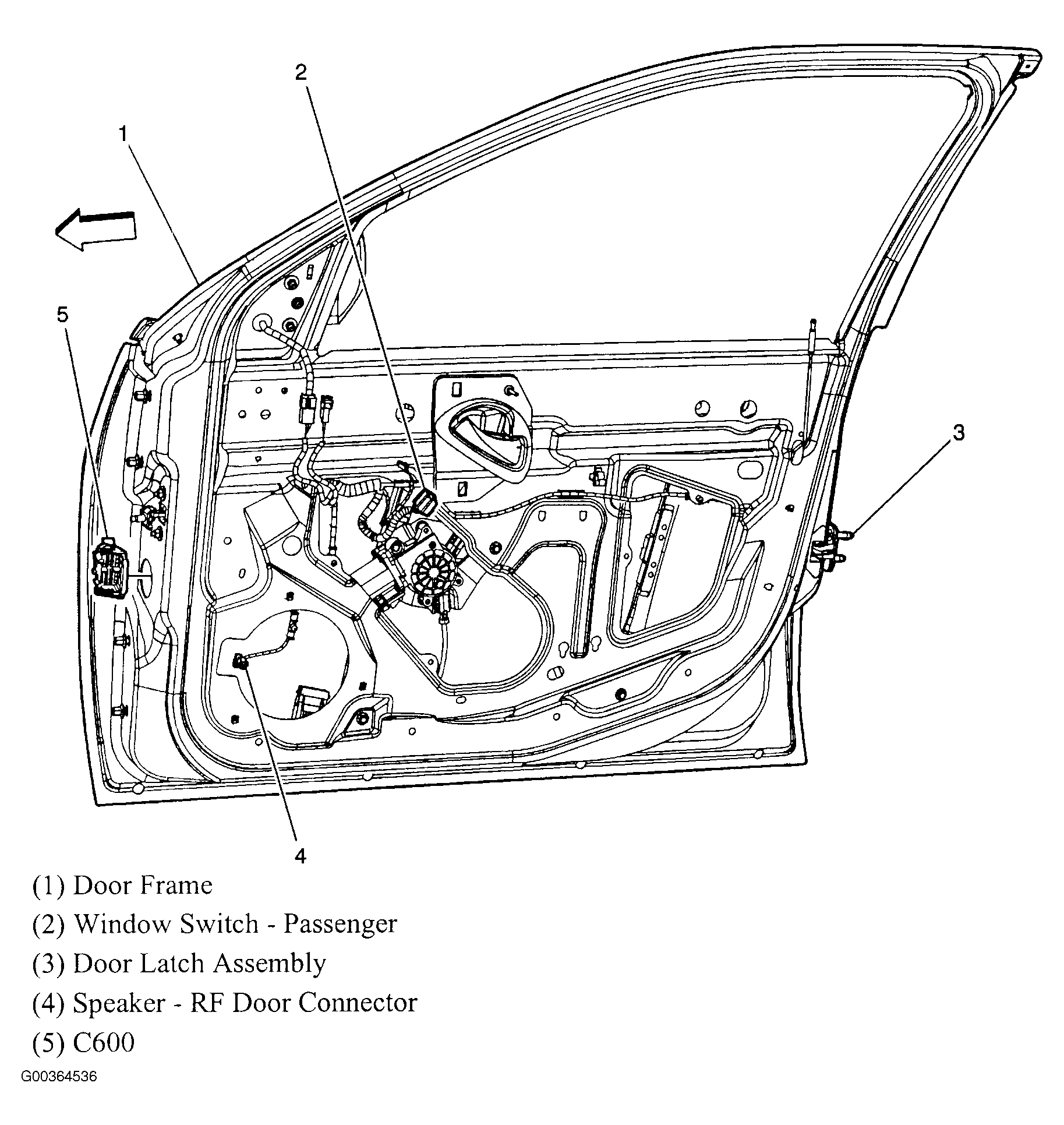

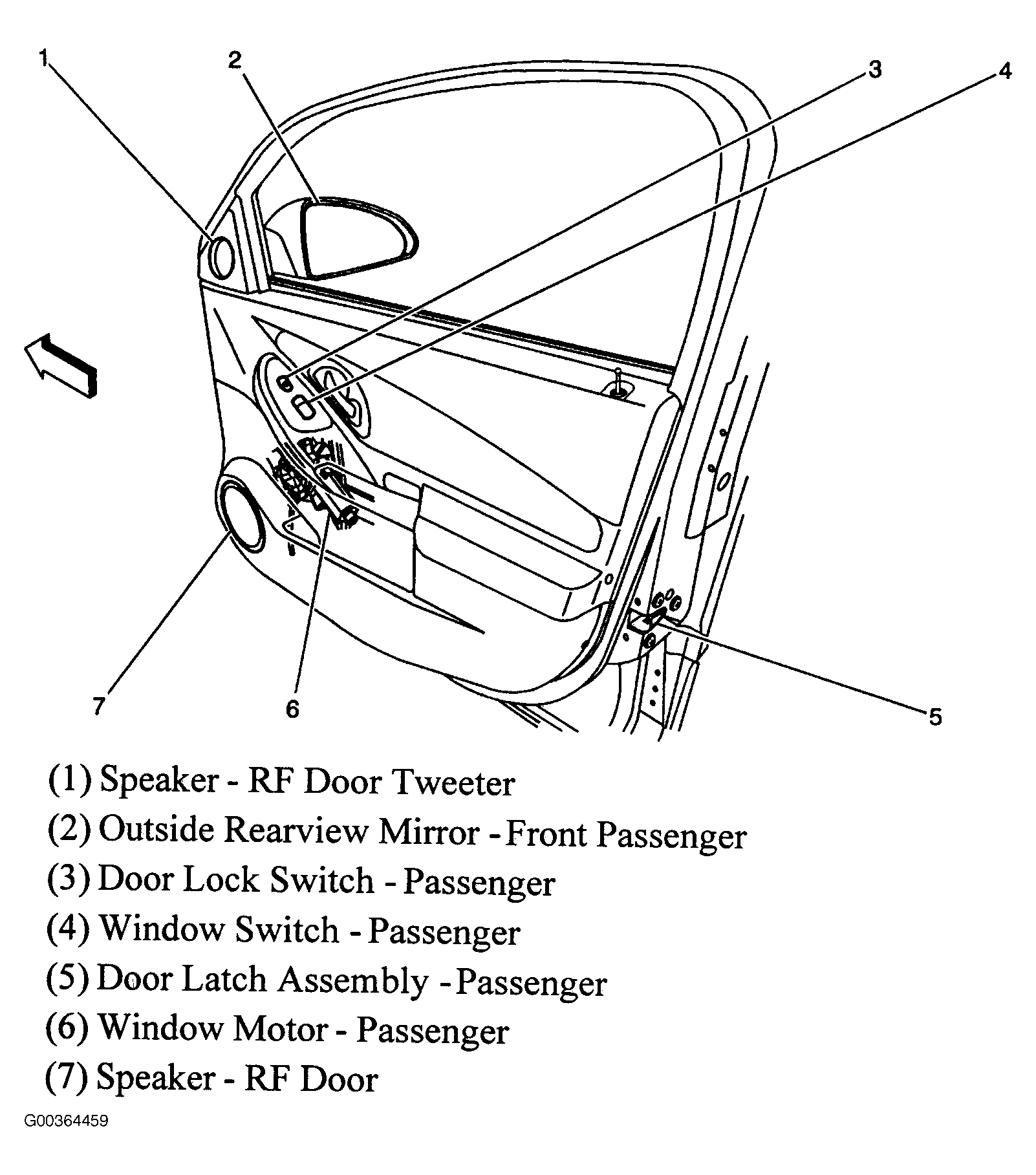

Fig 16: Right Front Door
Courtesy of GENERAL MOTORS CORP.

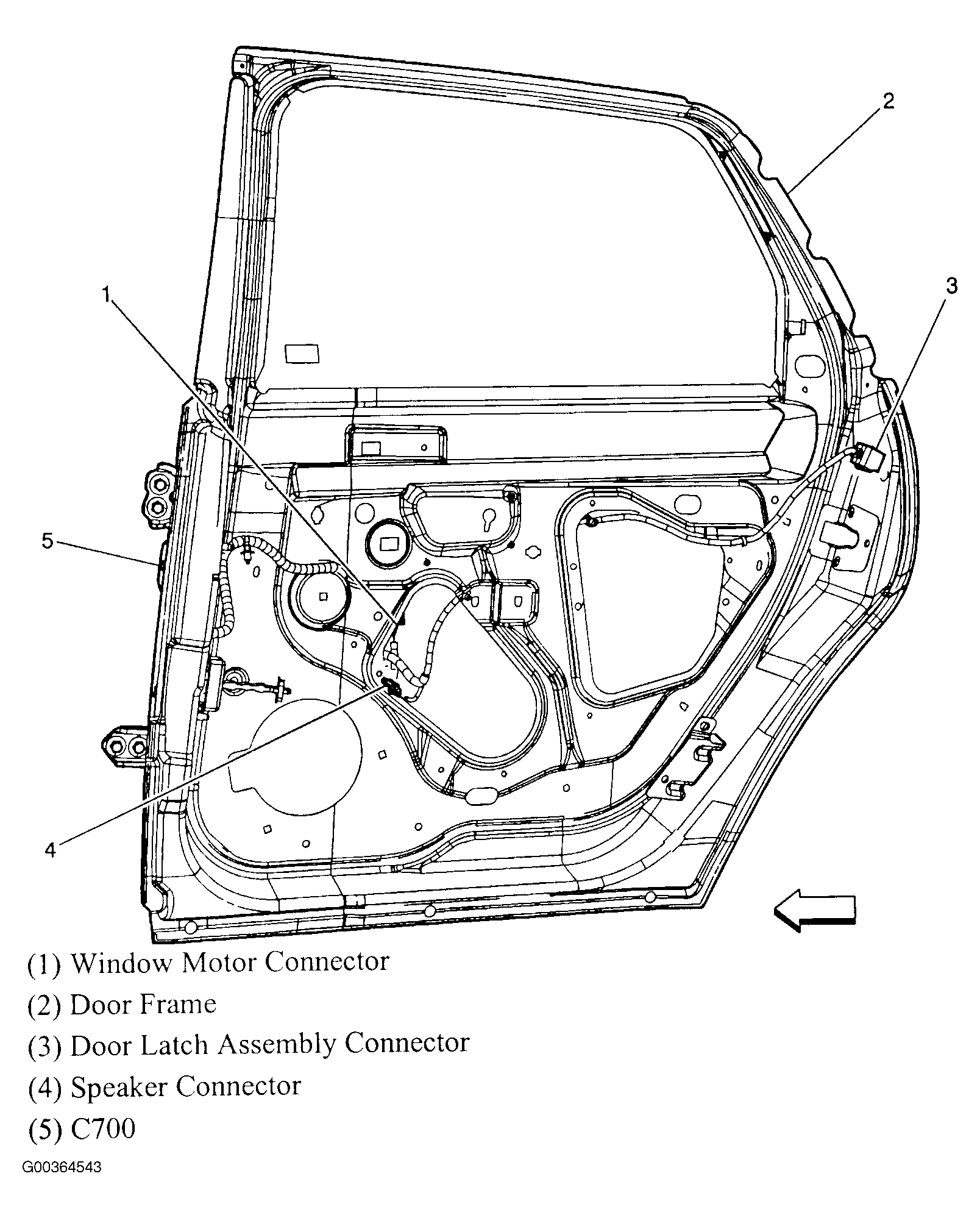

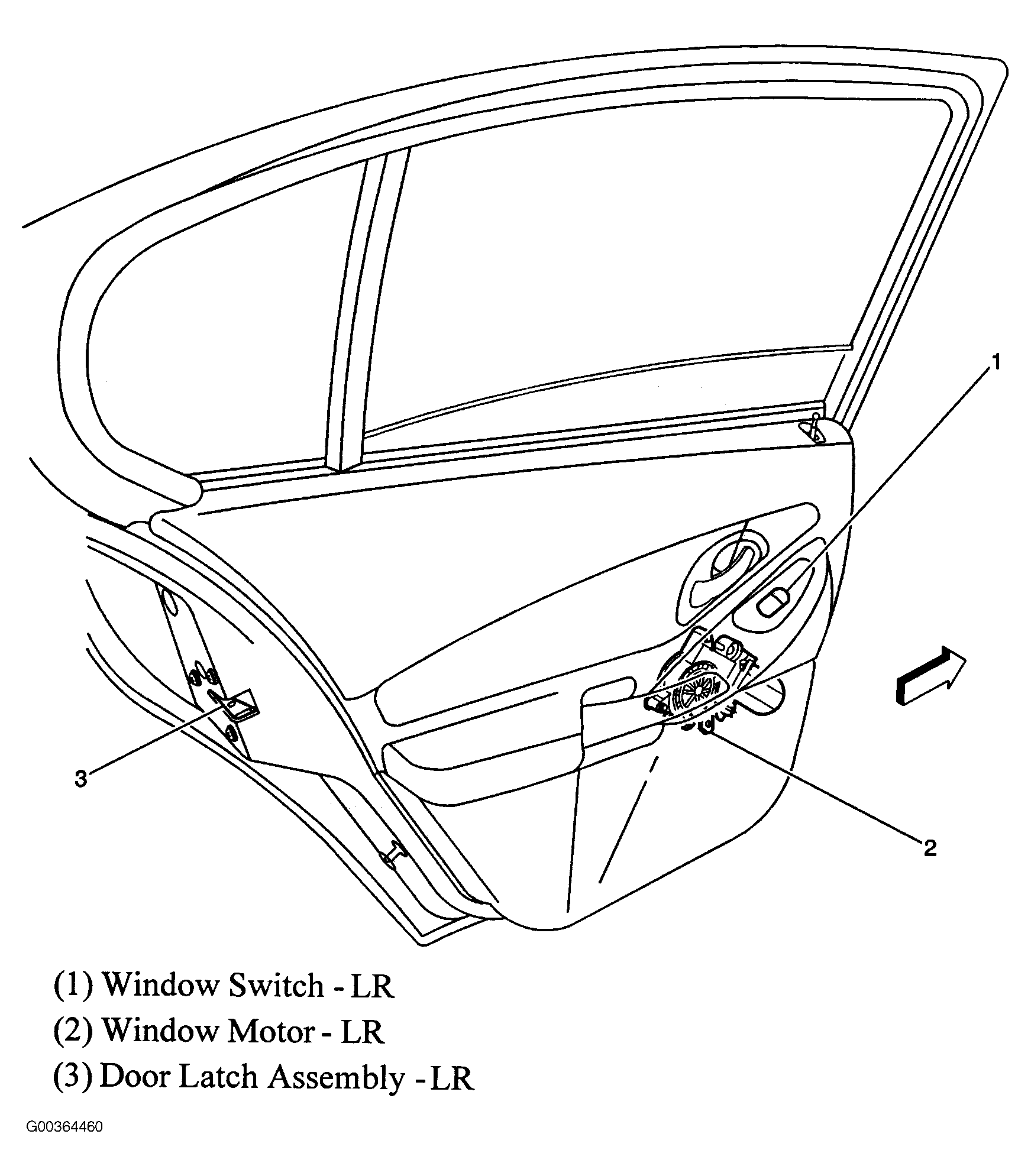

Fig 17: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

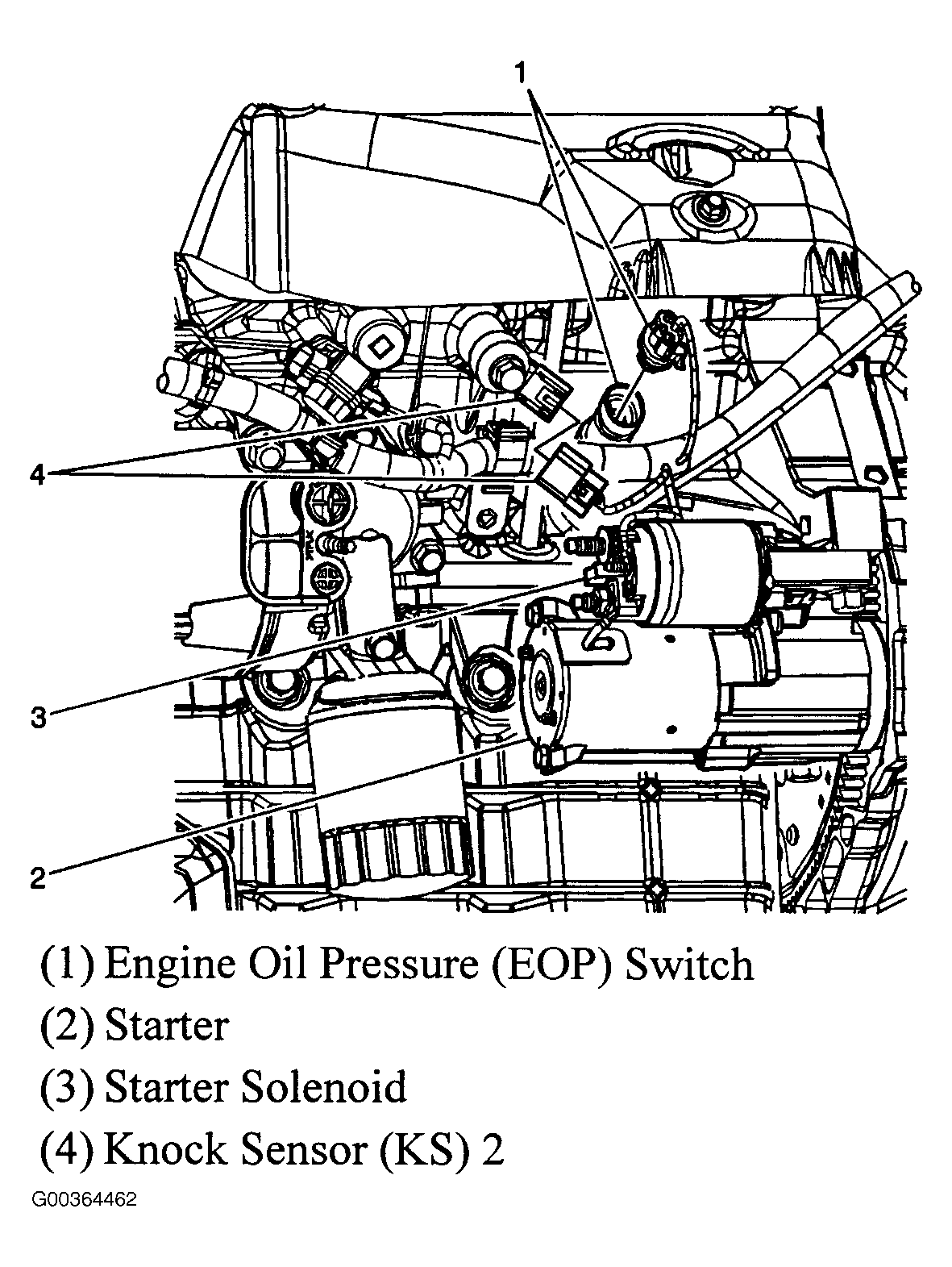

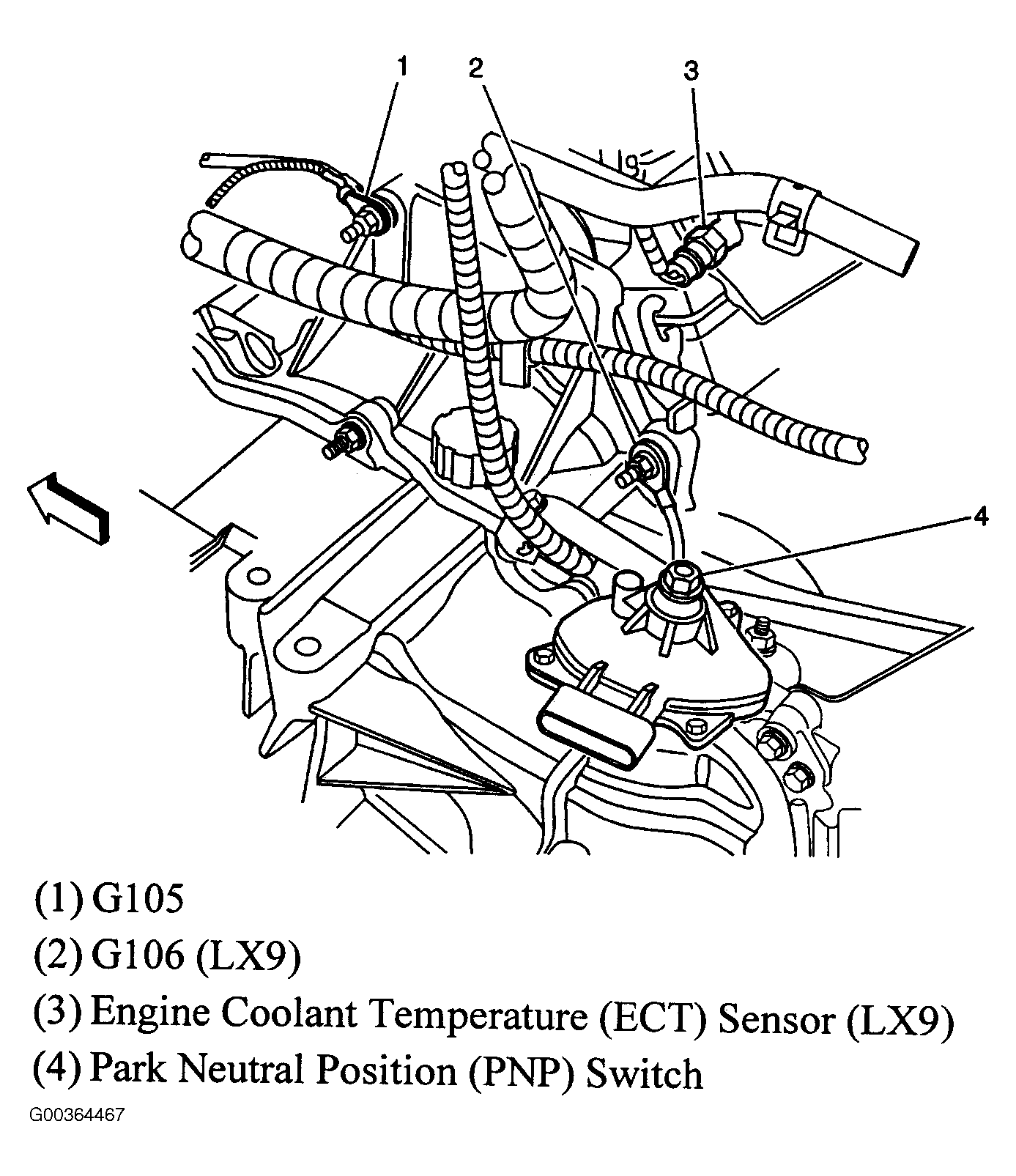

Fig 19: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

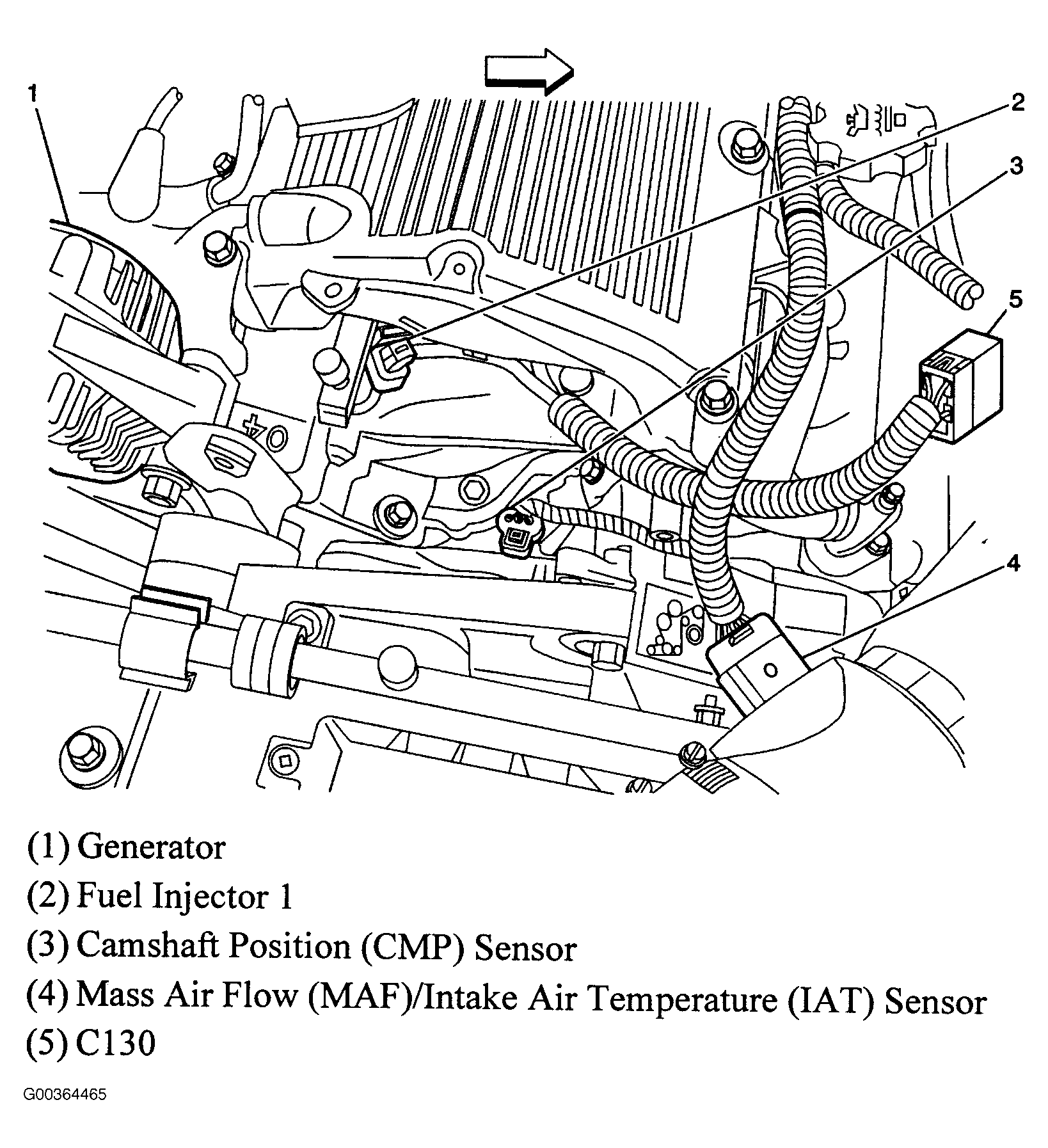

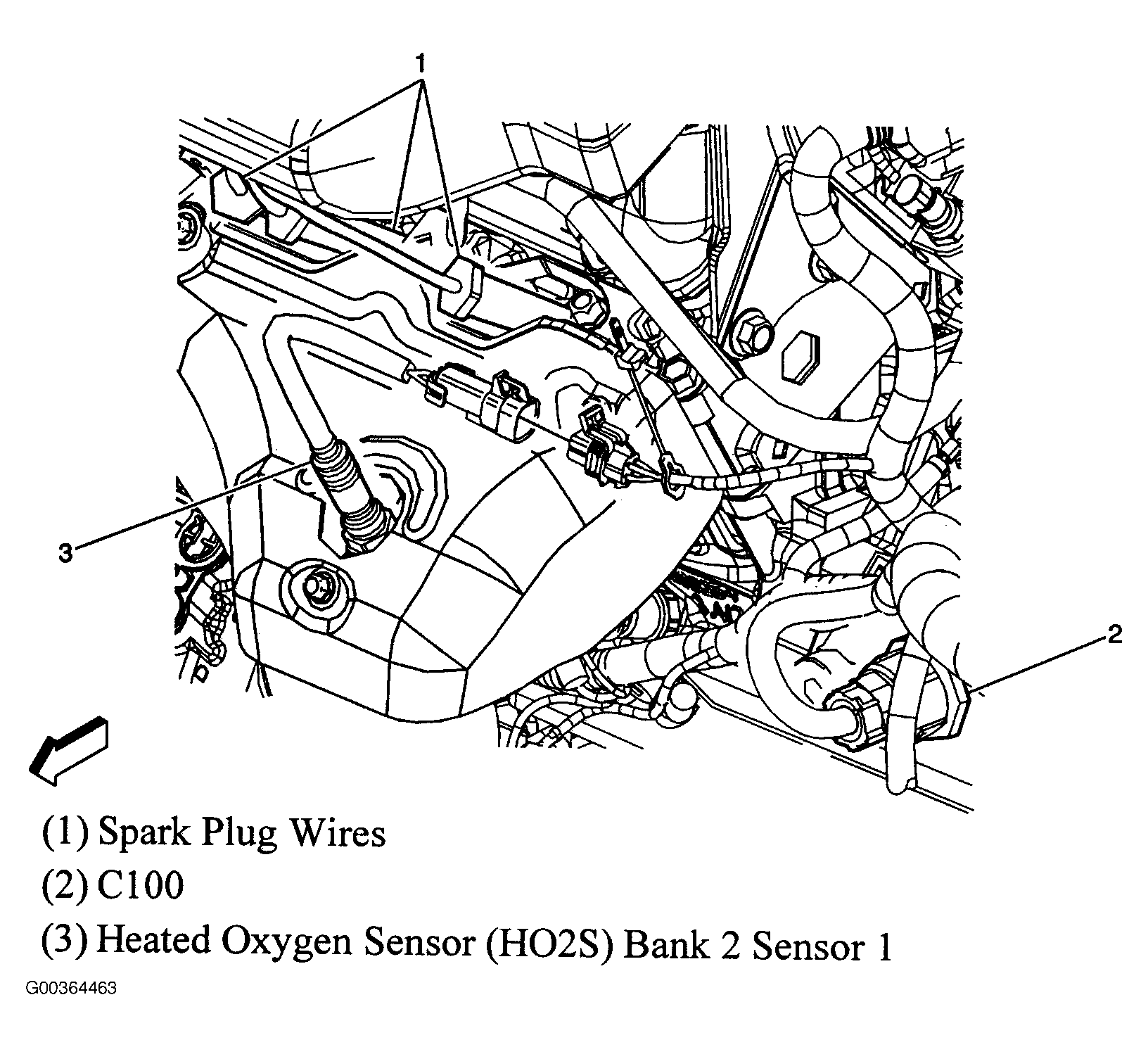

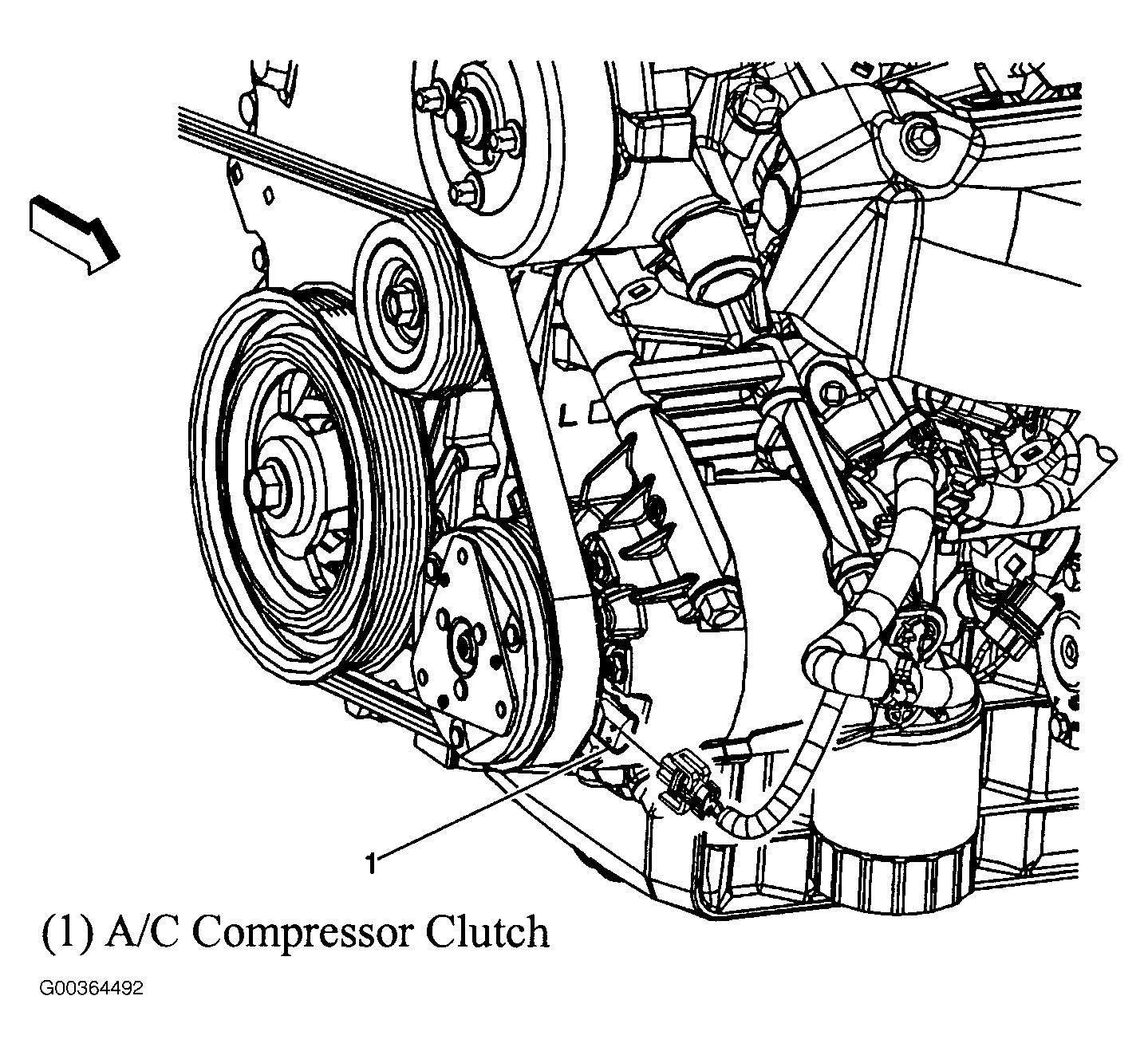

Fig 20: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

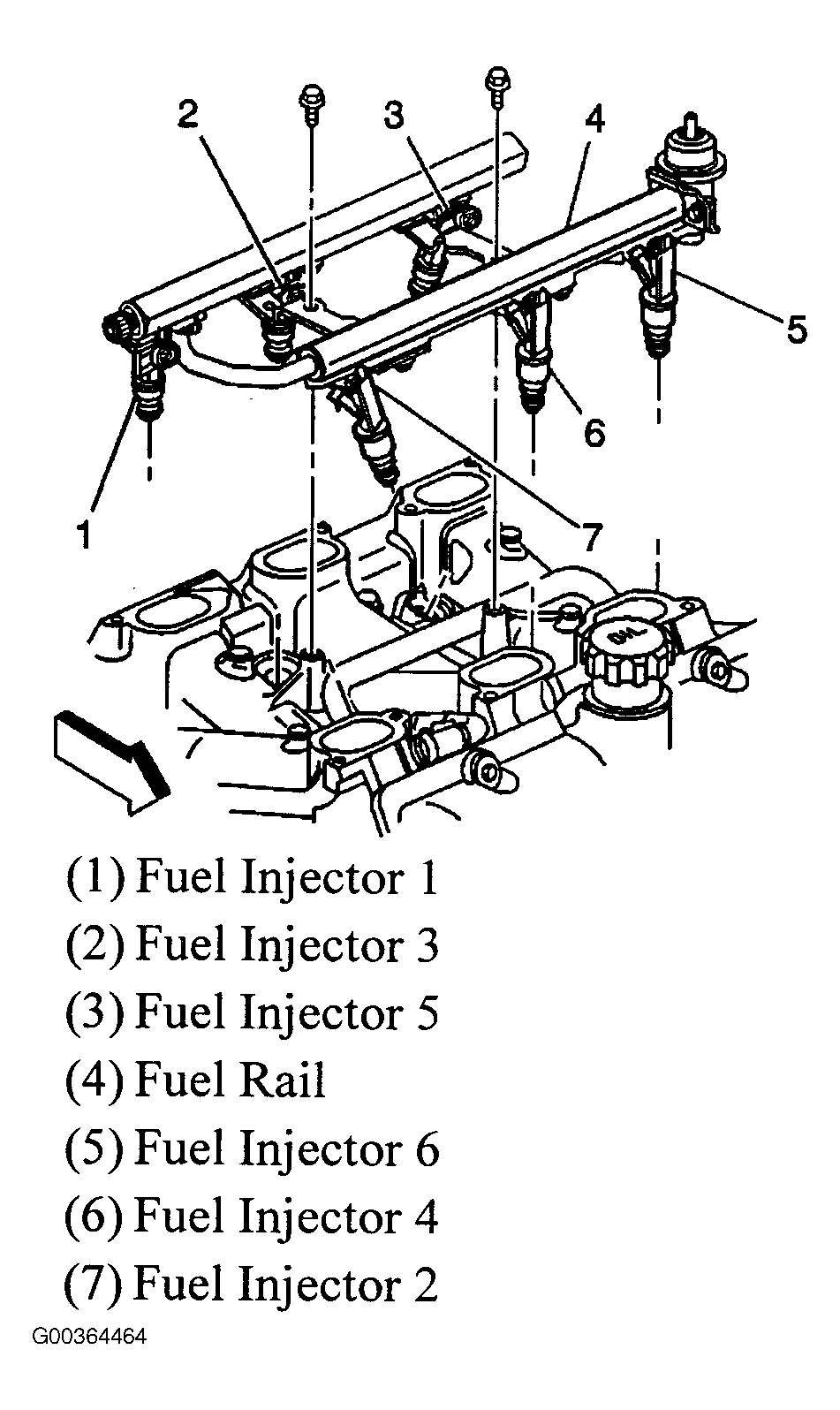

Fig 21: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 22: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

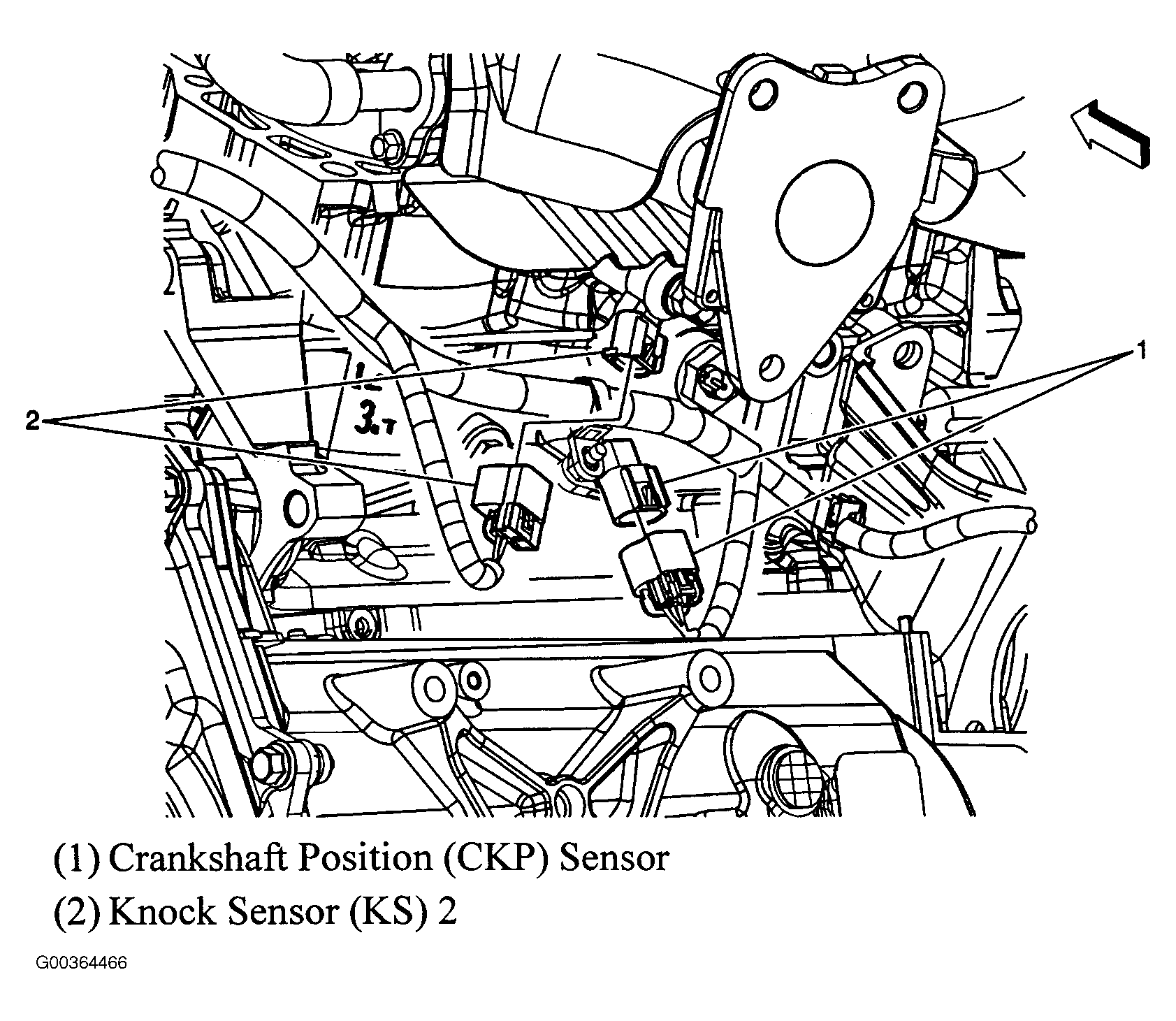

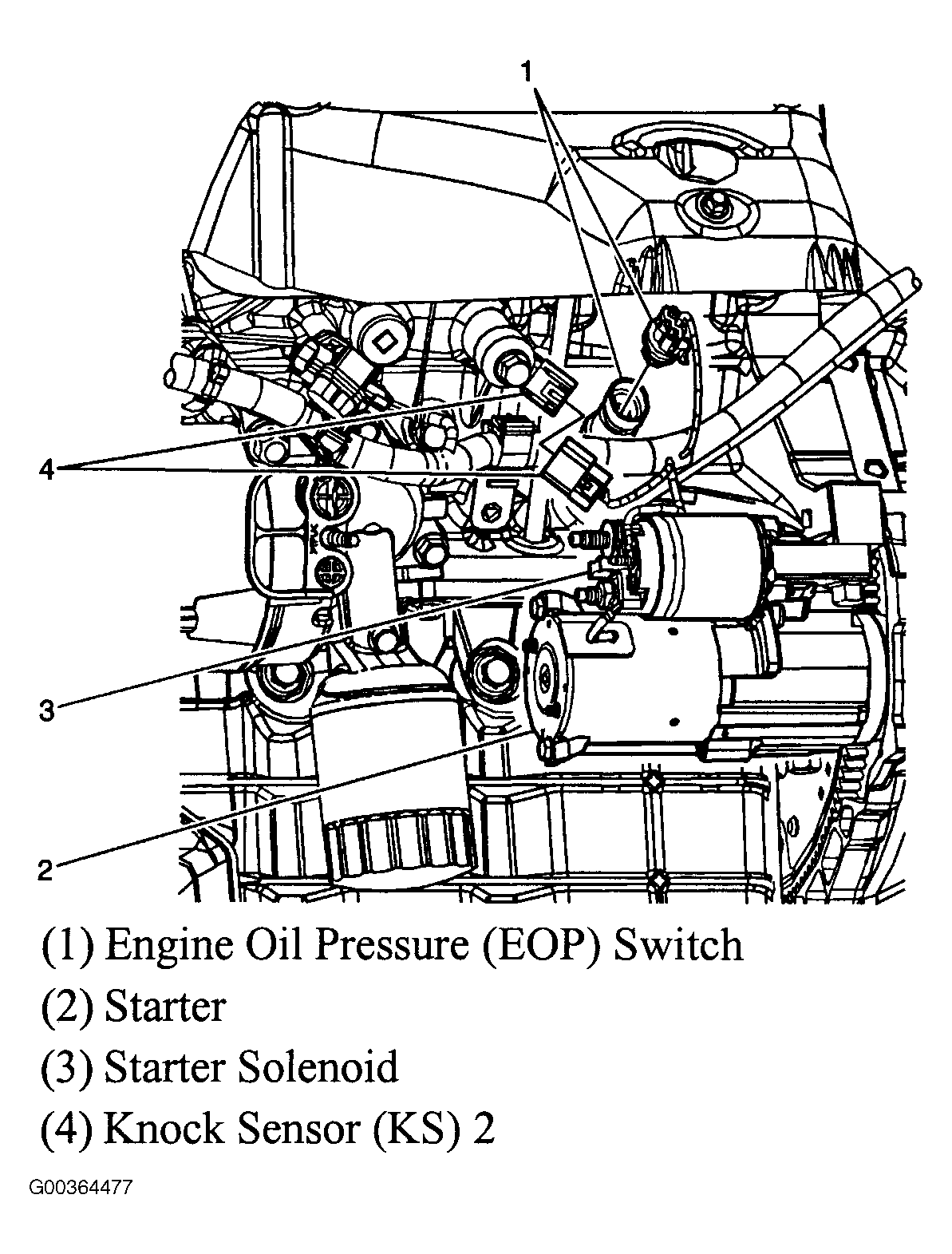

Fig 23: Lower Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 24: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 25: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

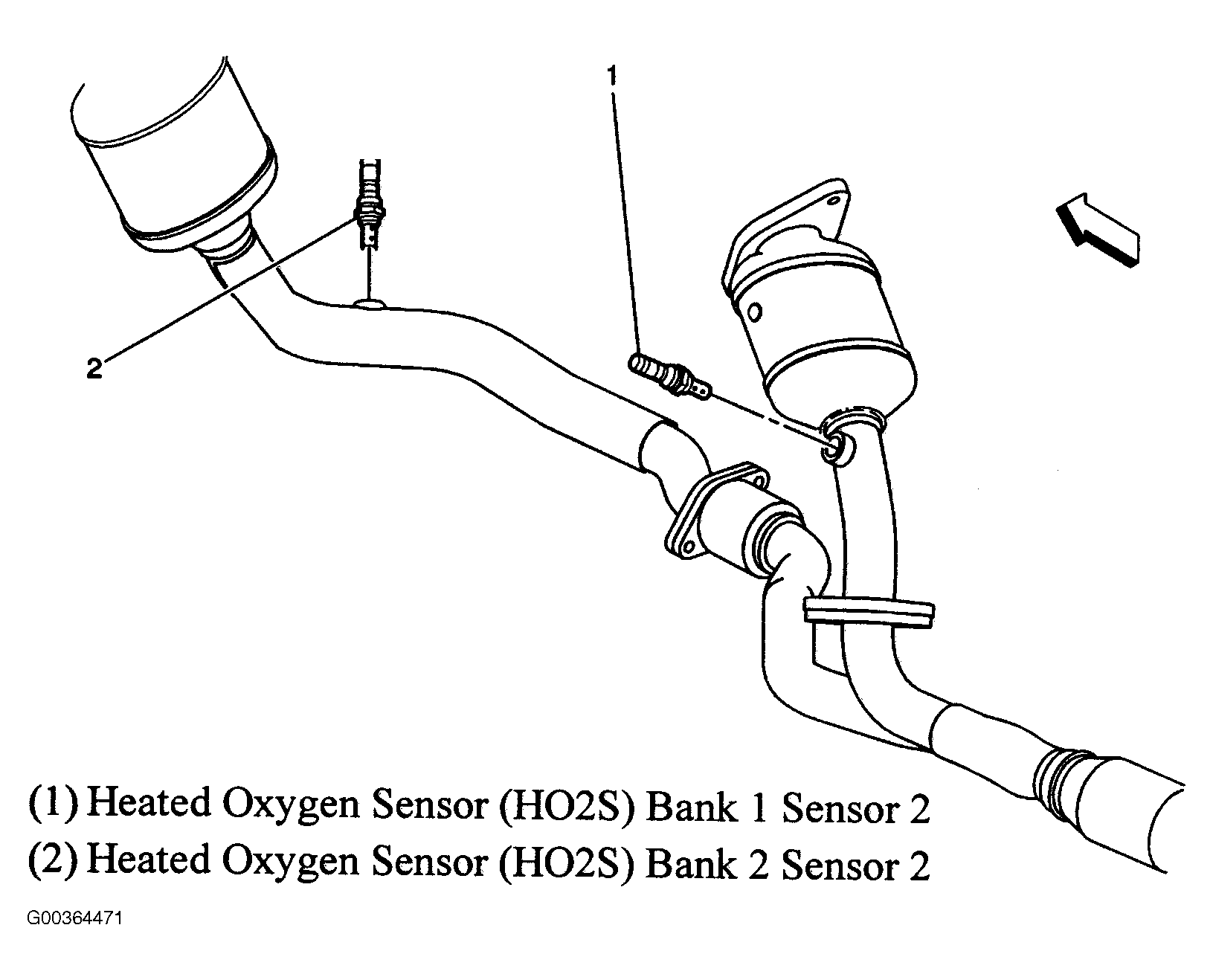

Fig 27: Exhaust Assembly
Courtesy of GENERAL MOTORS CORP.

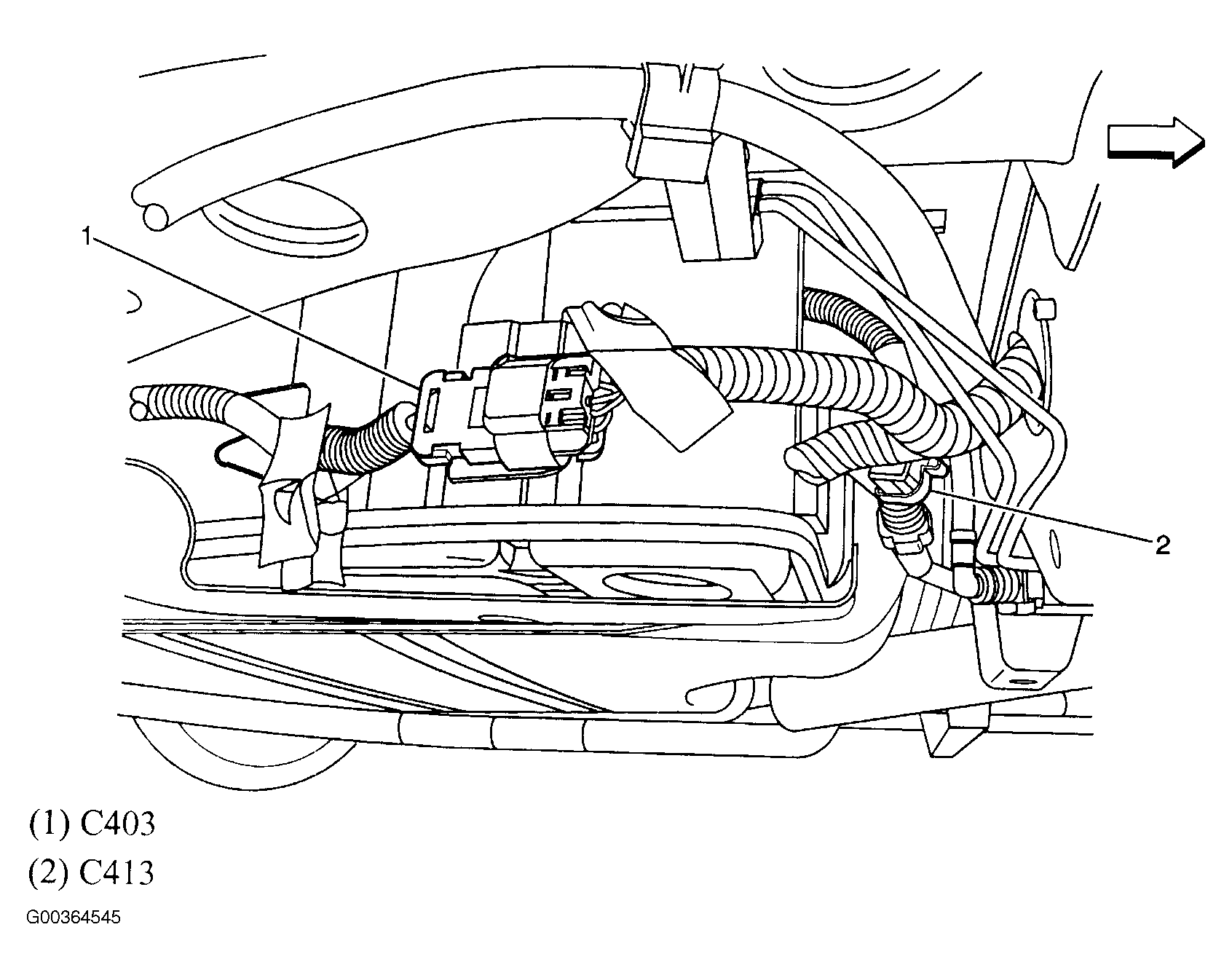

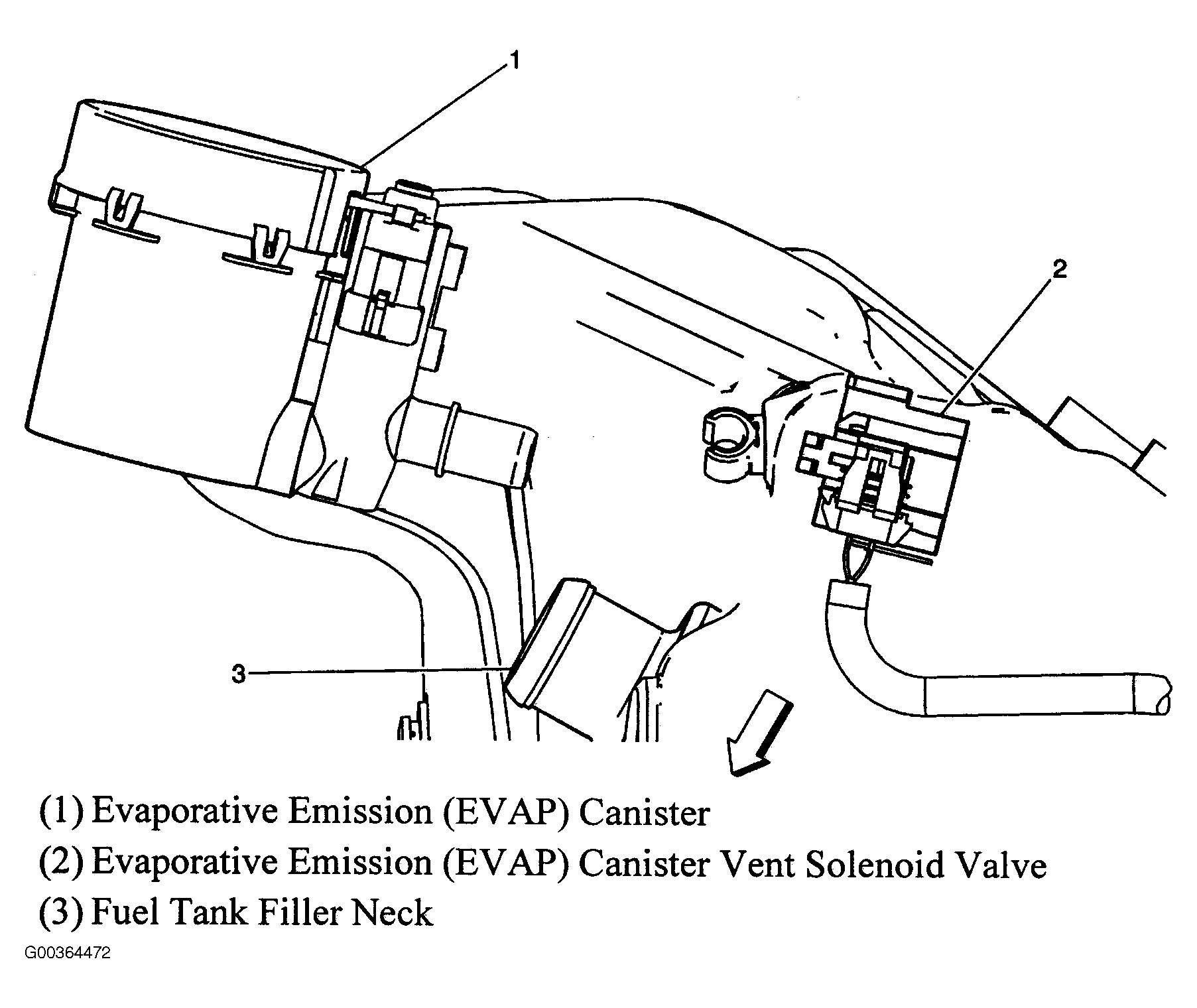

Fig 28: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

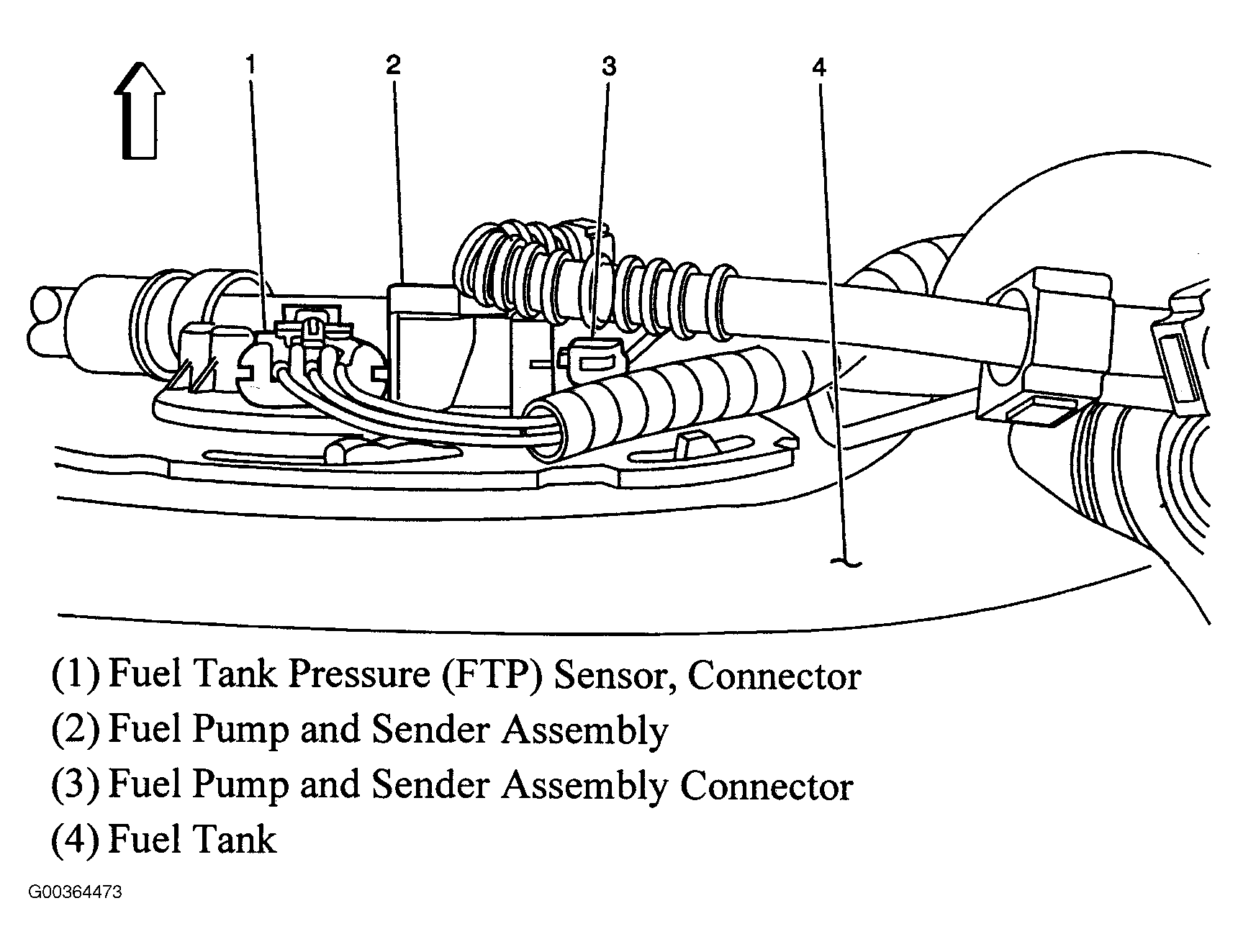

Fig 29: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.

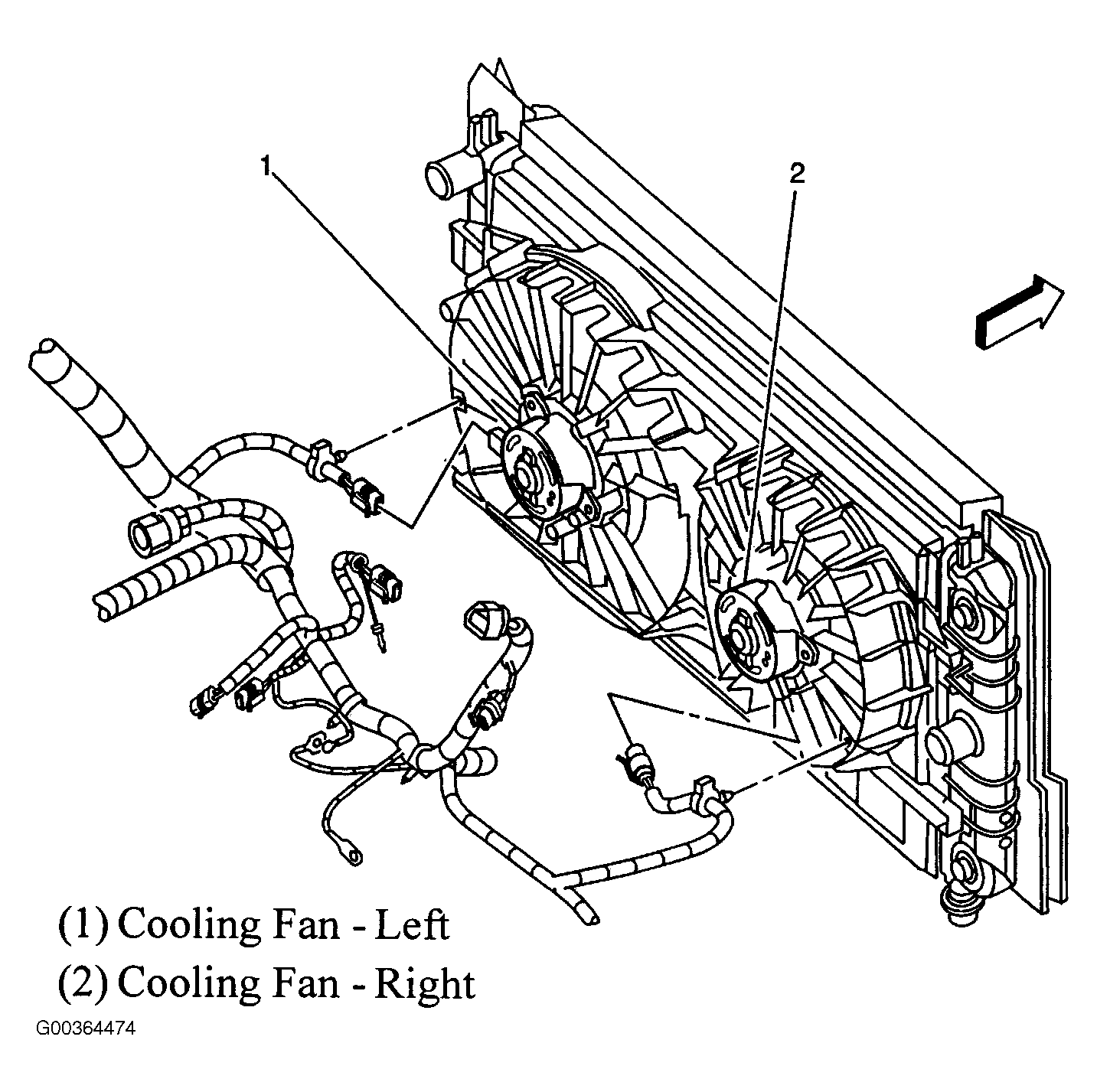

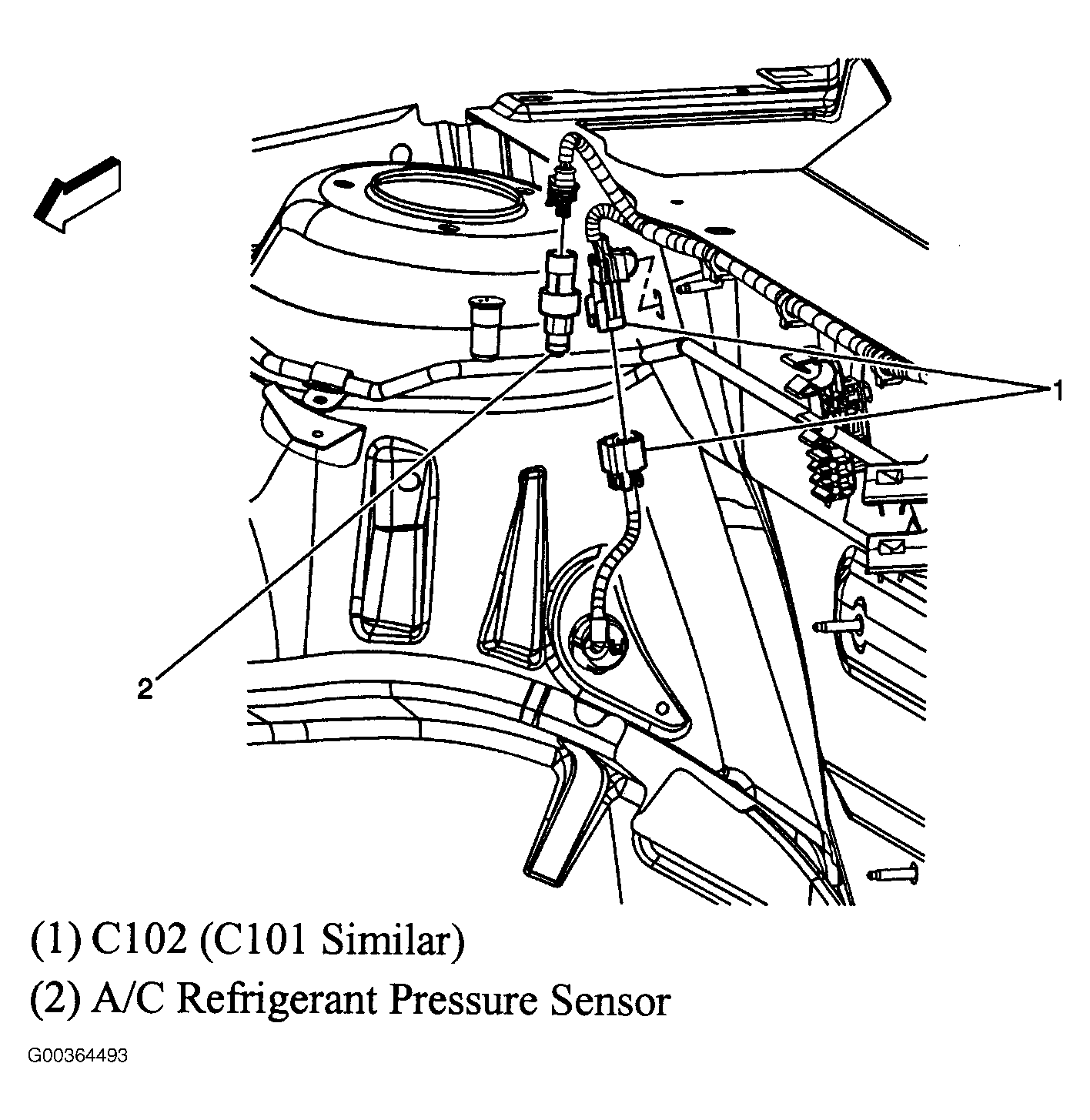

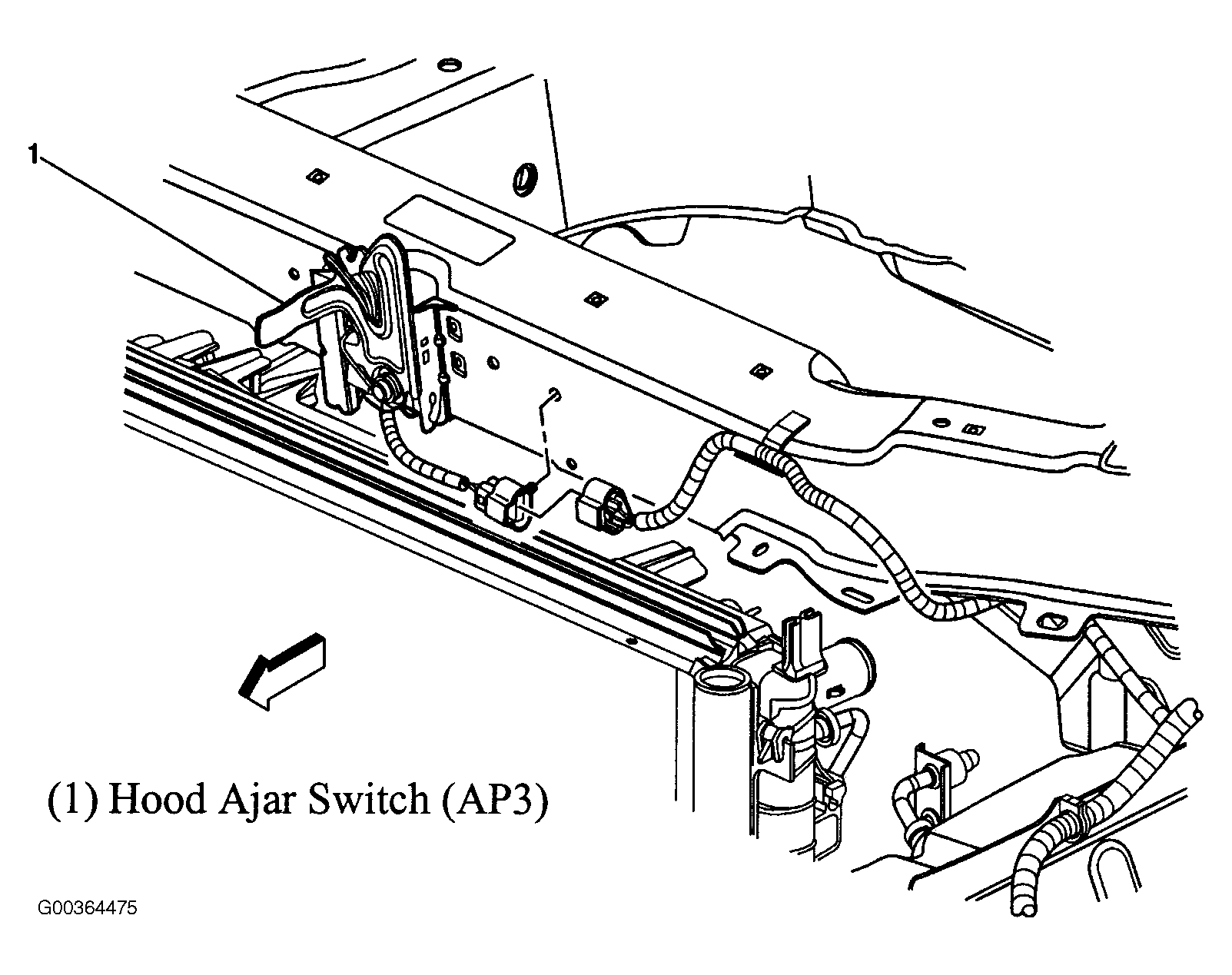

Fig 30: Radiator Support
Courtesy of GENERAL MOTORS CORP.
Fig 31: Radiator Support
Courtesy of GENERAL MOTORS CORP.

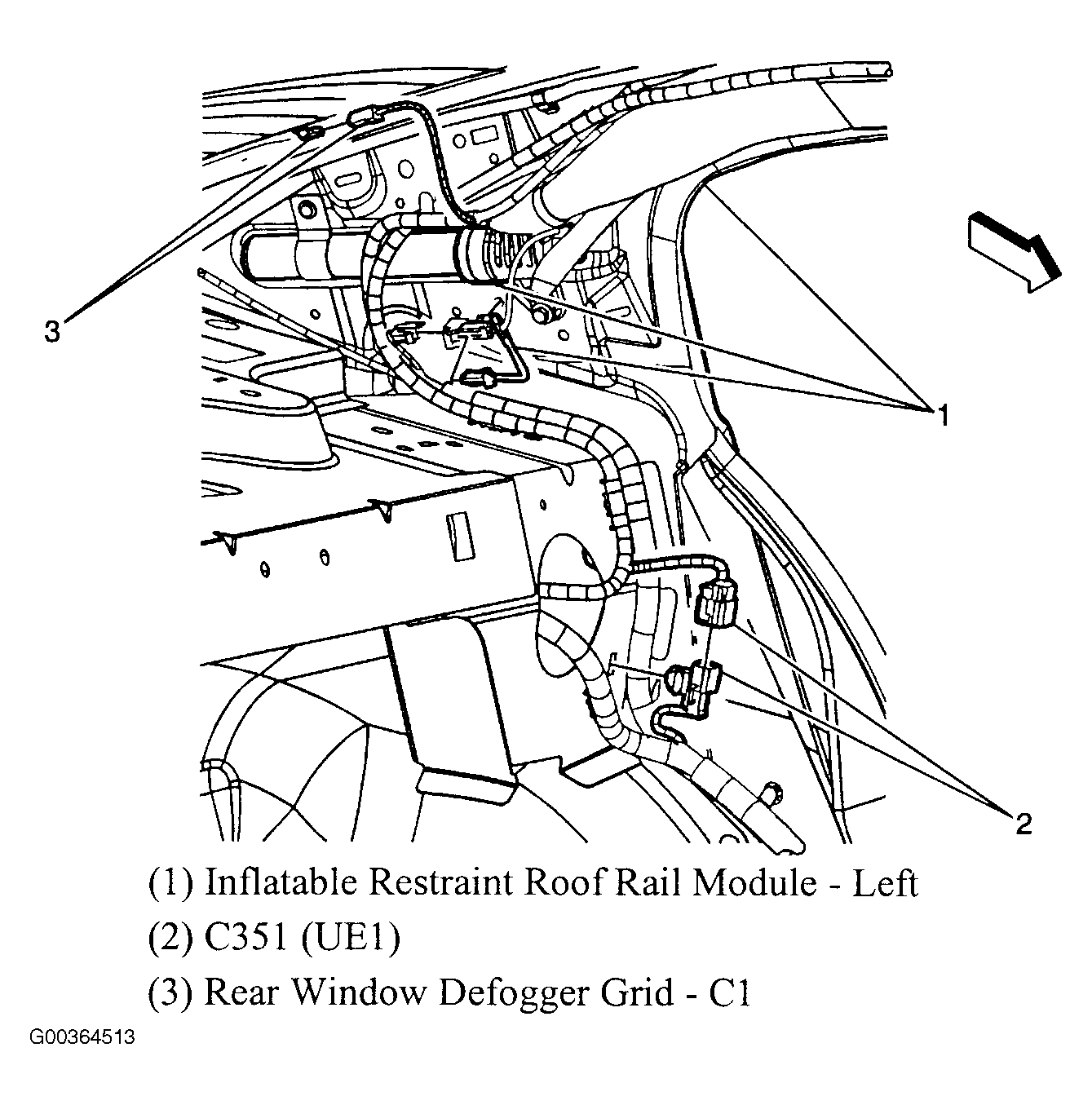

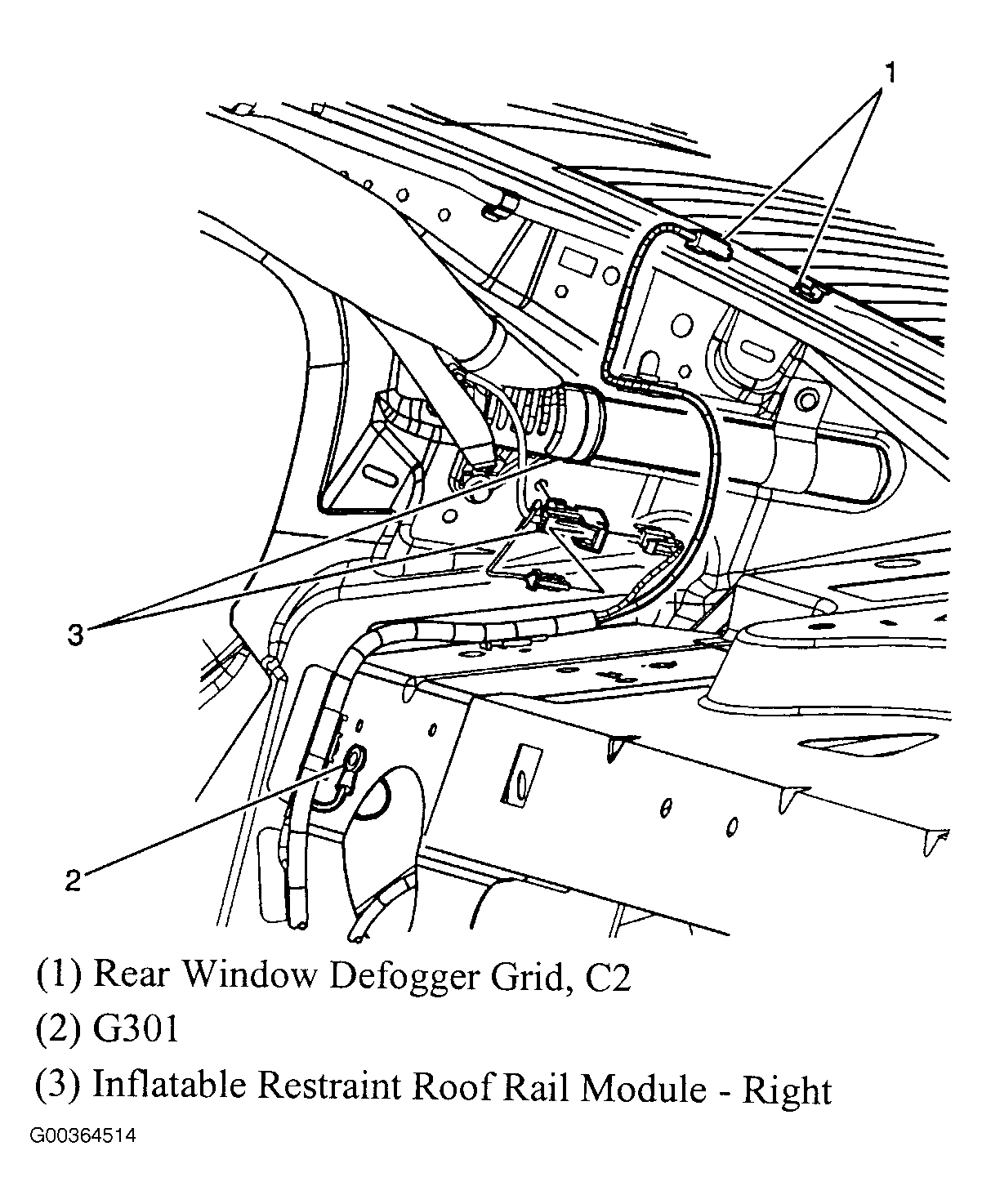

Fig 32: Rear Roof Rail
Courtesy of GENERAL MOTORS CORP.
Fig 33: Right Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.

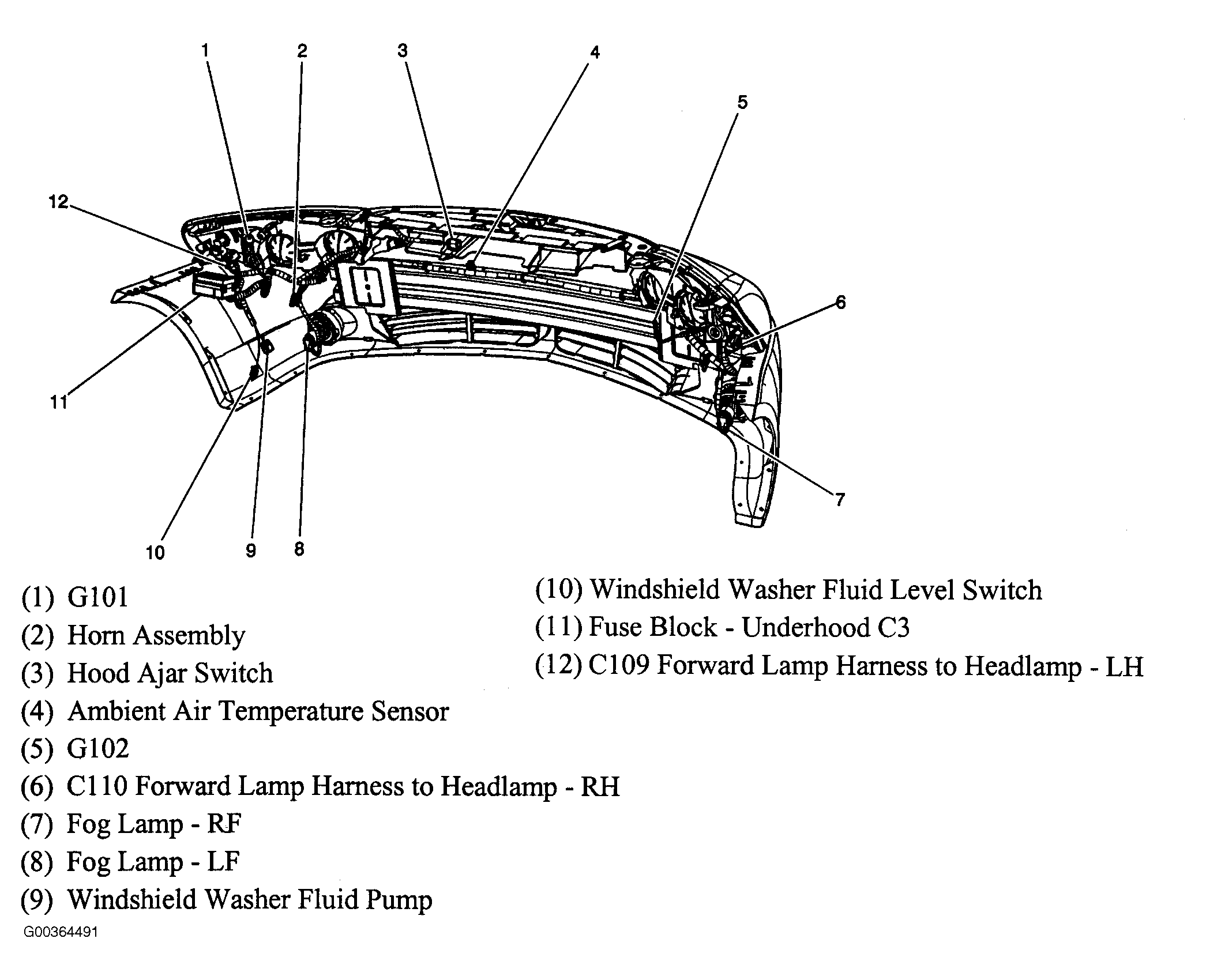

Fig 34: Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 35: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 36: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 37: Left Side Of HVAC Case
Courtesy of GENERAL MOTORS CORP.
Fig 38: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 39: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

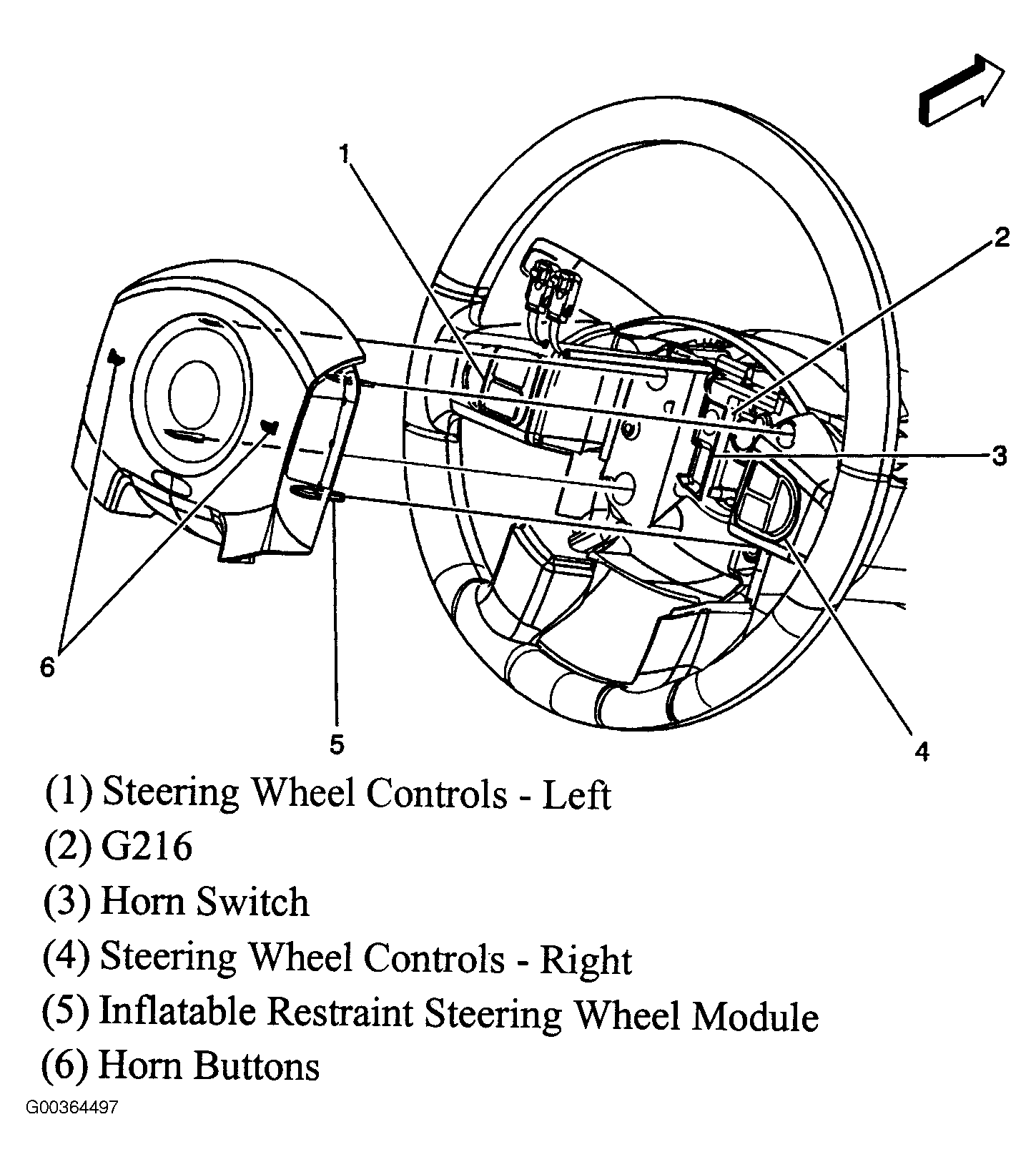

Fig 40: Steering Wheel
Courtesy of GENERAL MOTORS CORP.

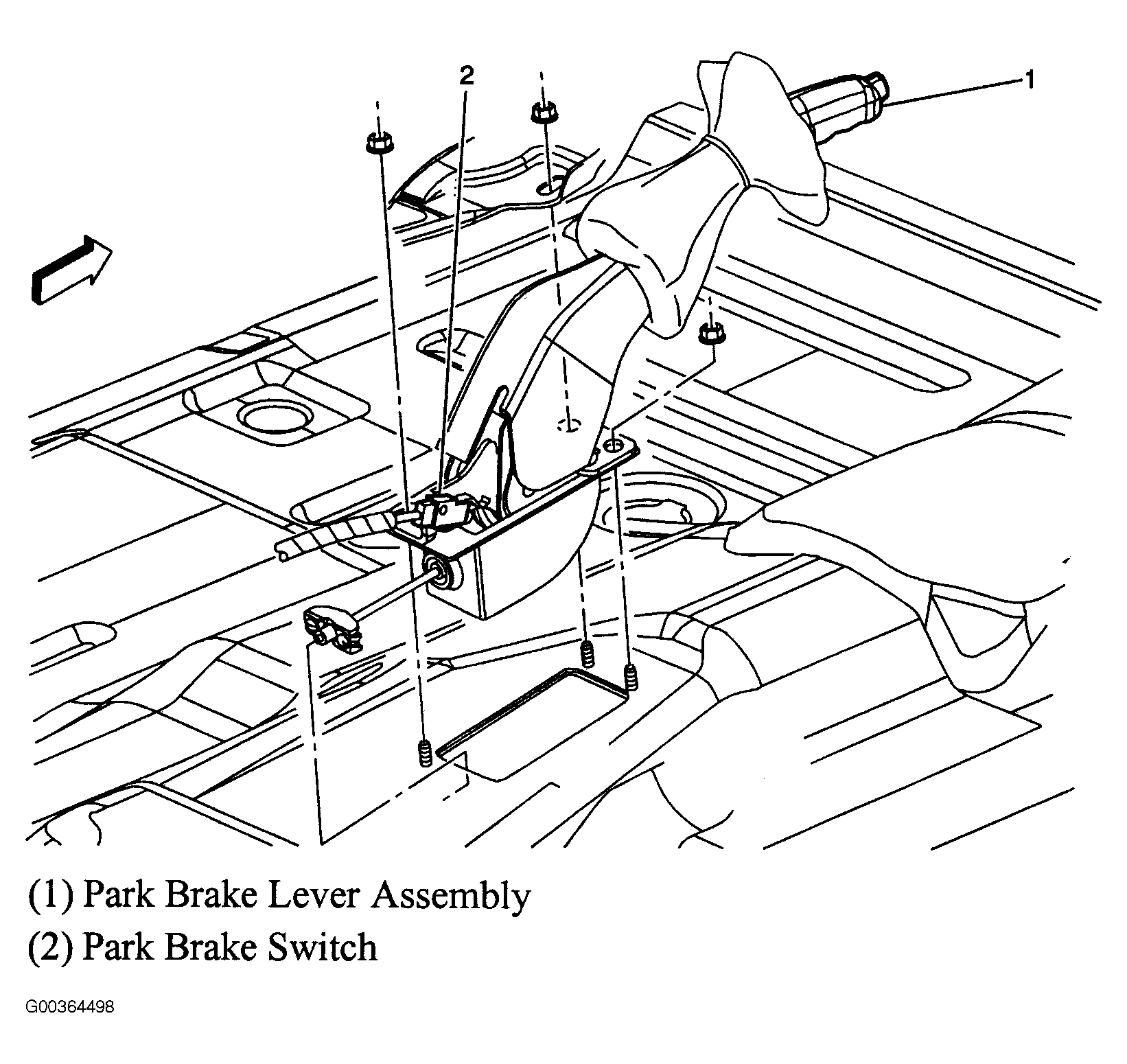

Fig 41: Parking Brake Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 42: Upper Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Inside Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 44: Rear Of Sunroof
Courtesy of GENERAL MOTORS CORP.
Fig 45: Sunroof Assembly
Courtesy of GENERAL MOTORS CORP.

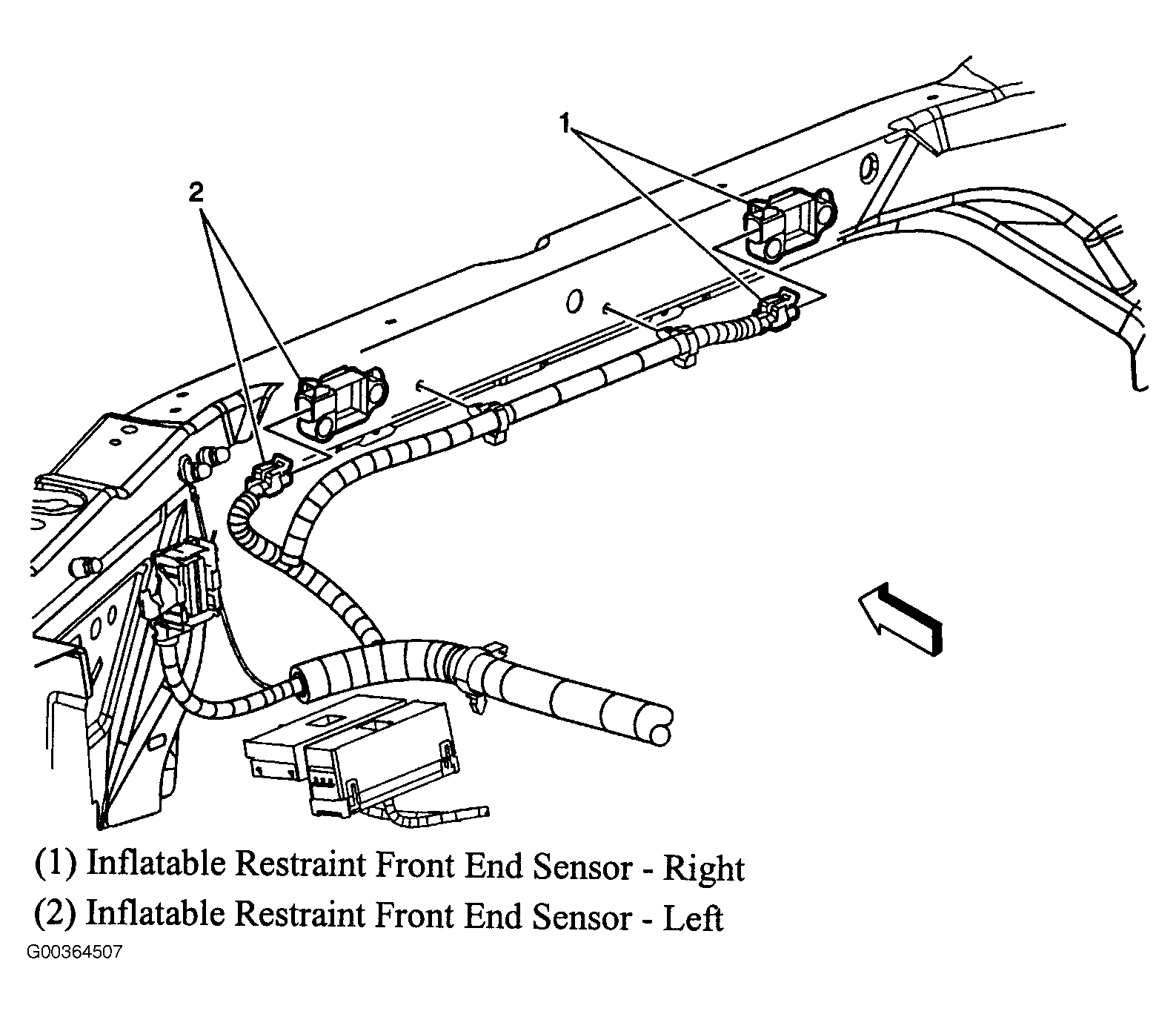

Fig 46: Front Impact Bar
Courtesy of GENERAL MOTORS CORP.

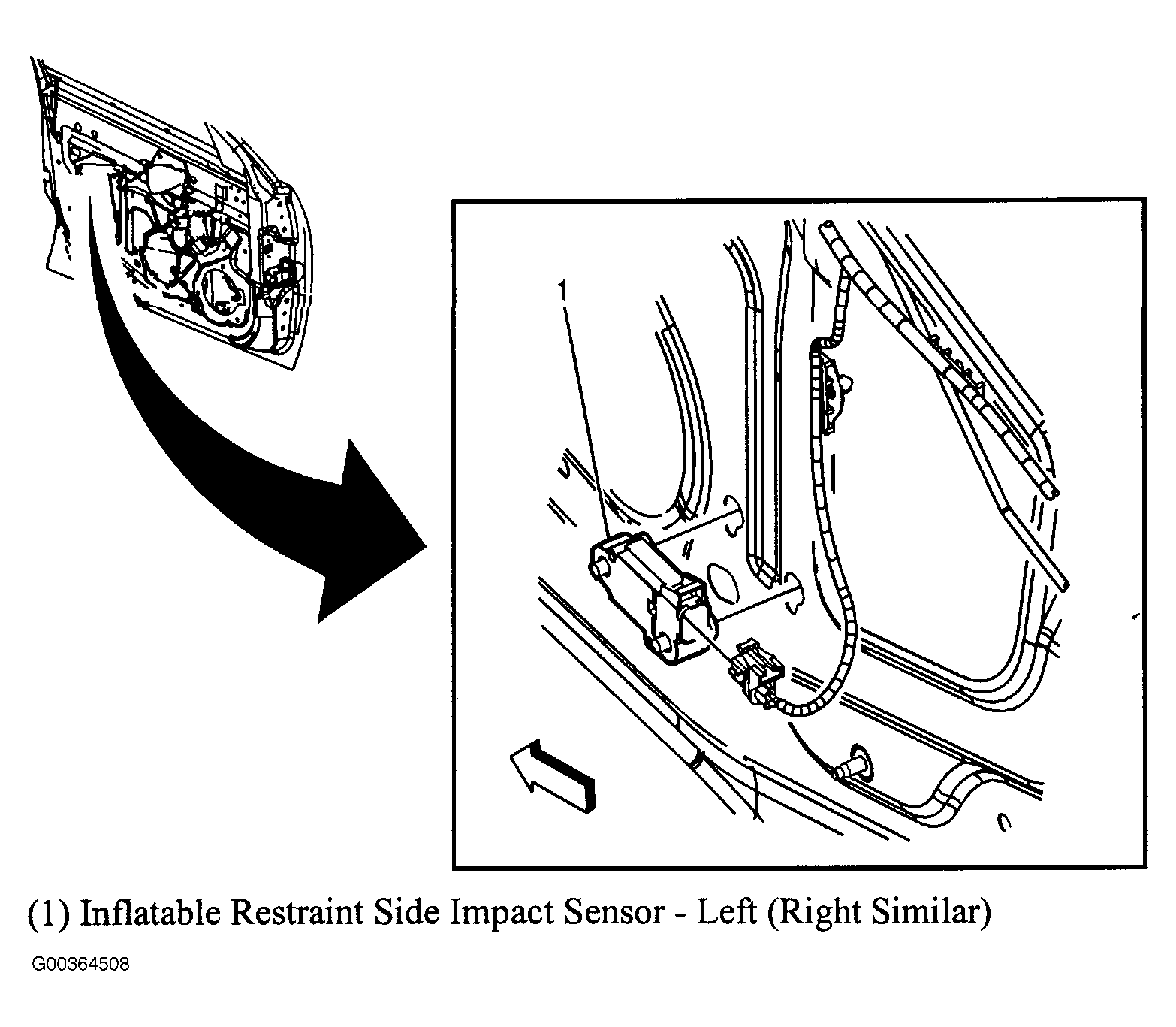

Fig 47: Left Door
Courtesy of GENERAL MOTORS CORP.
Fig 48: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 49: Side Impact Modules
Courtesy of GENERAL MOTORS CORP.

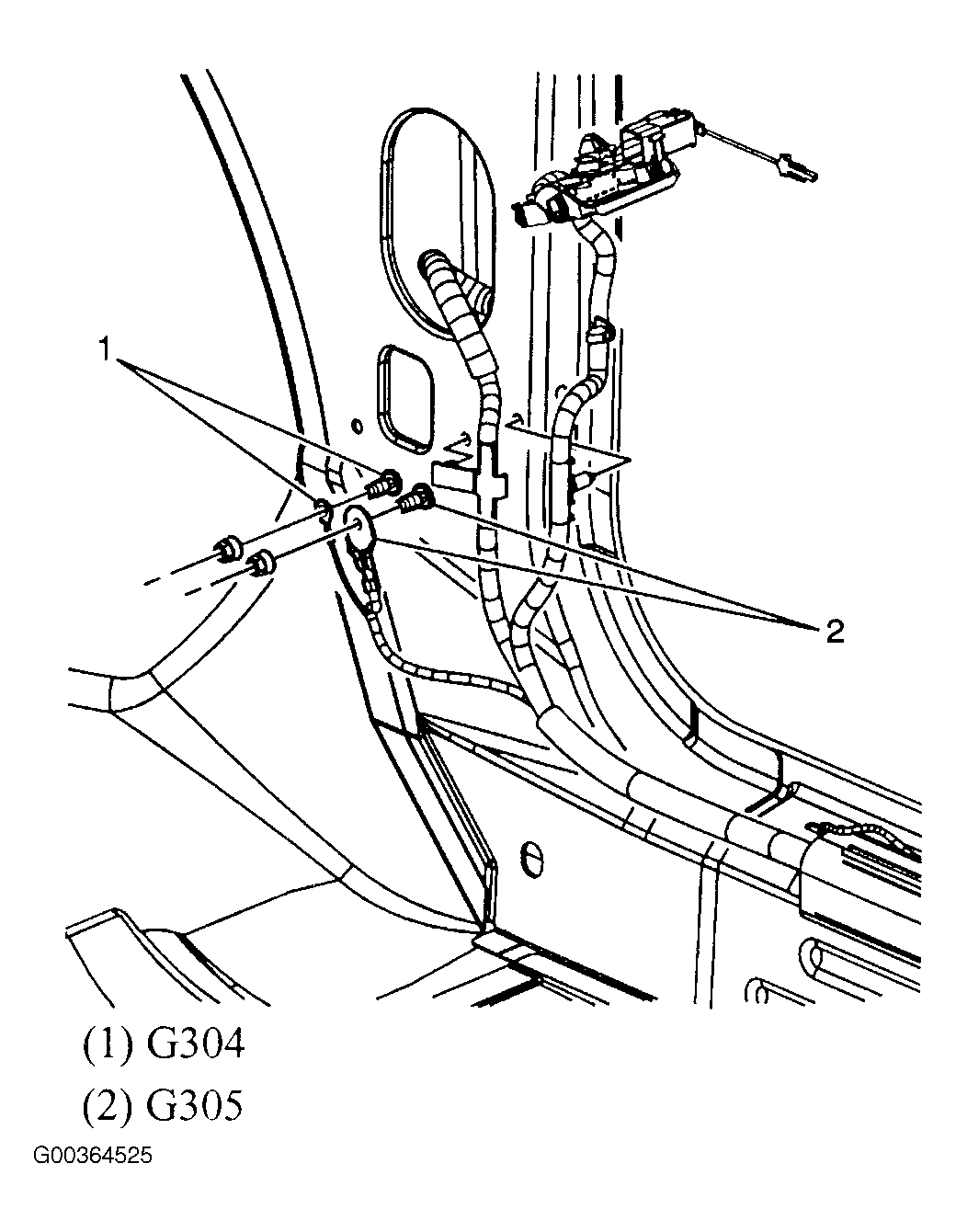

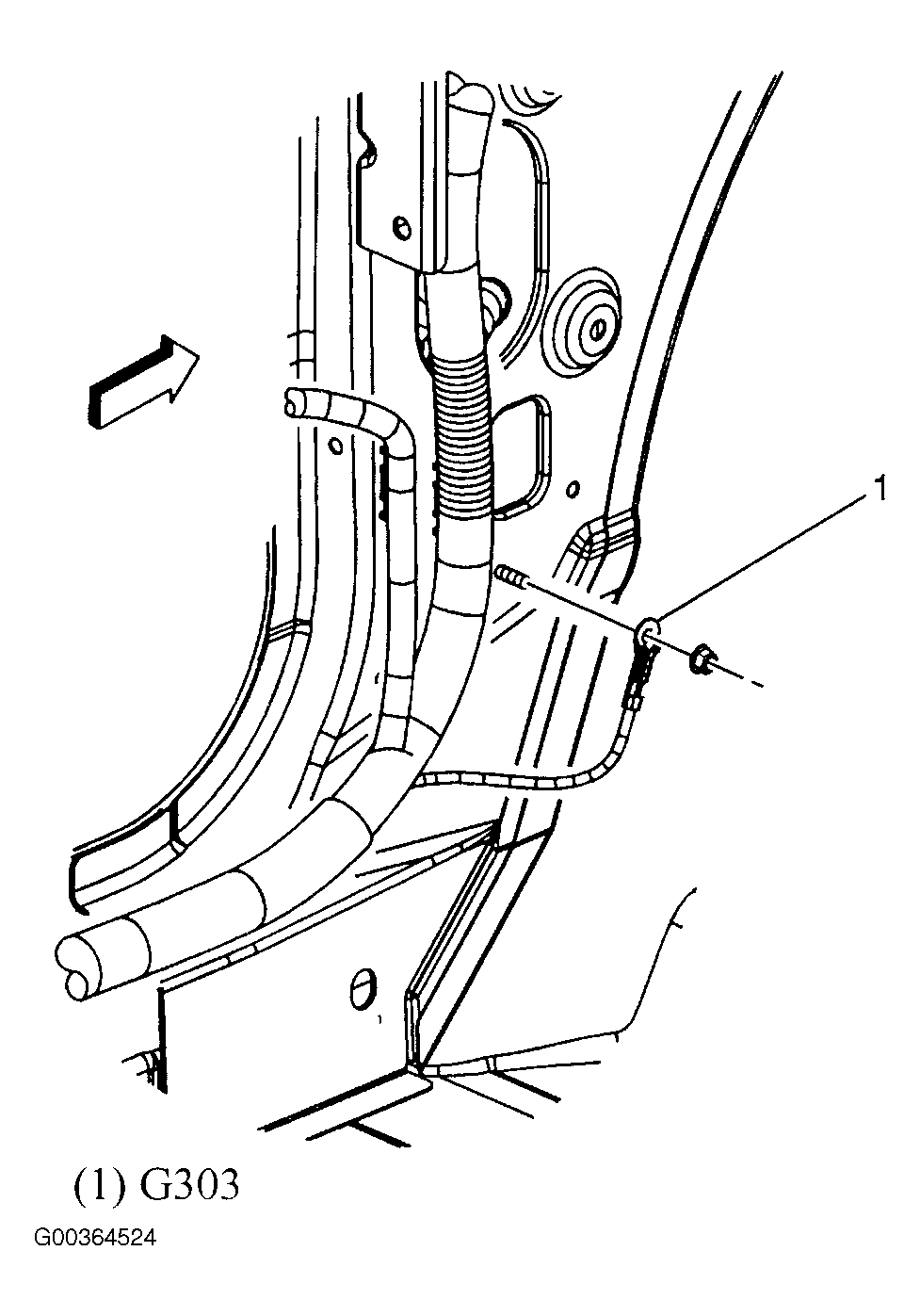

Fig 50: Lower Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

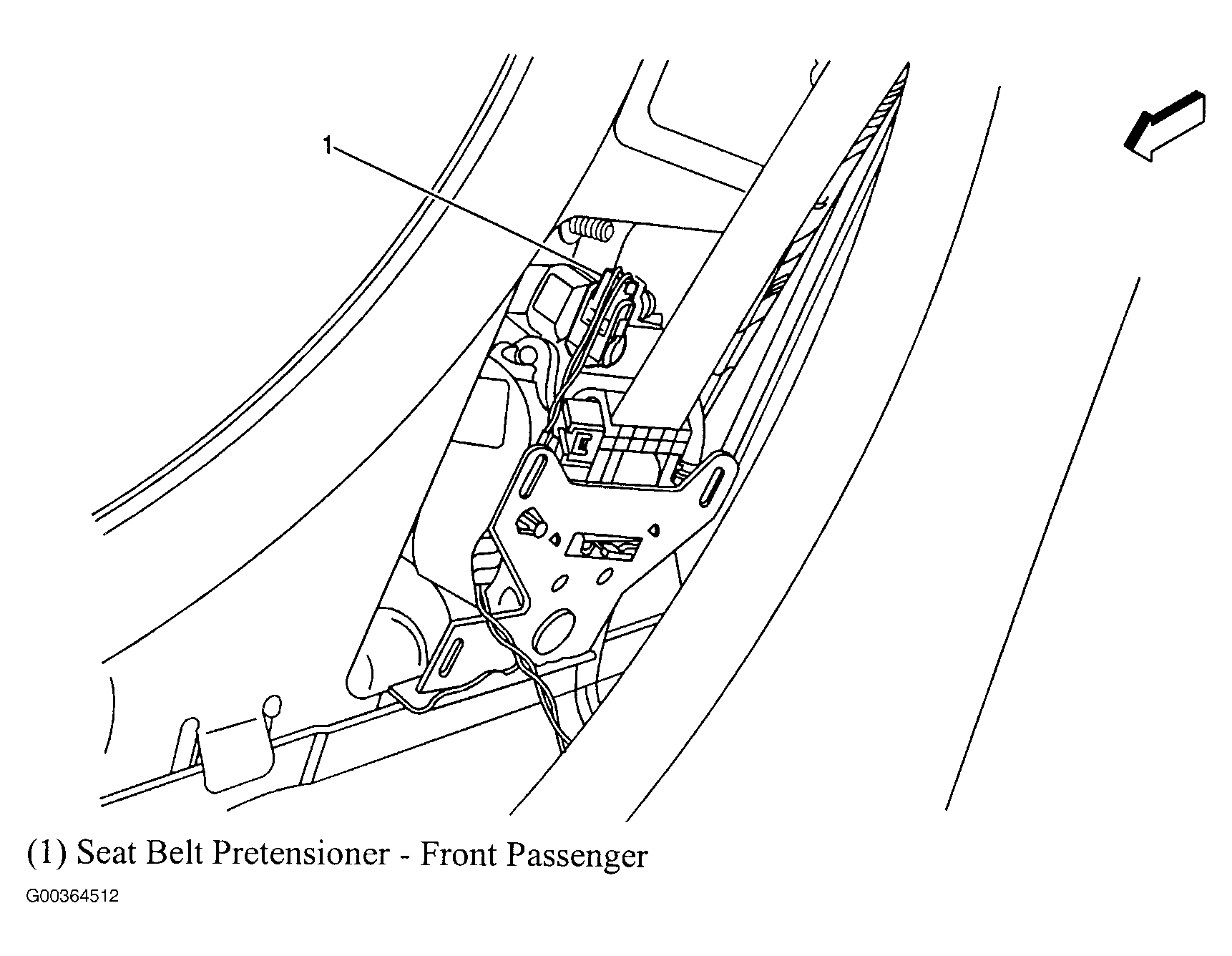

Fig 51: Lower Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 52: Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.

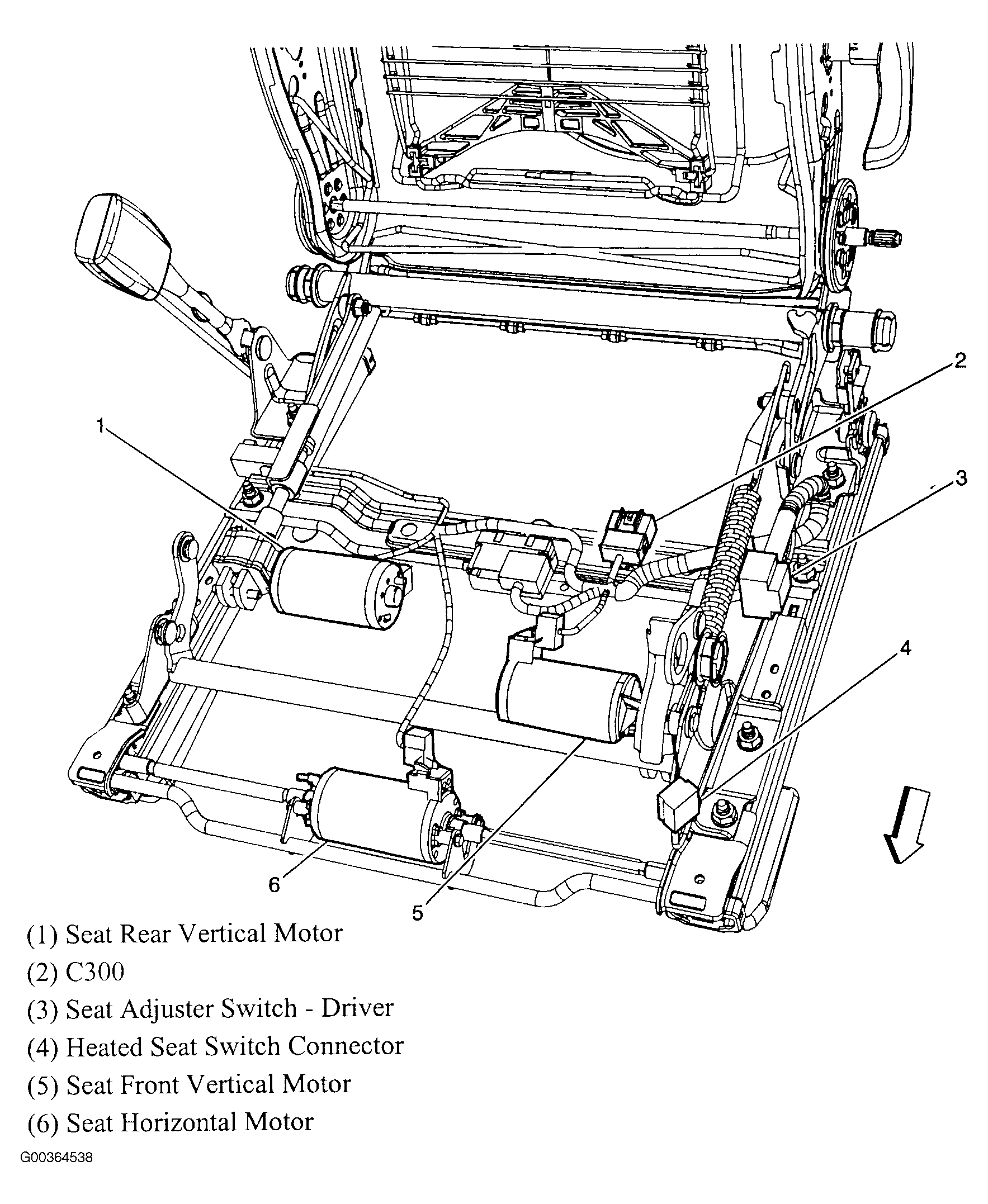

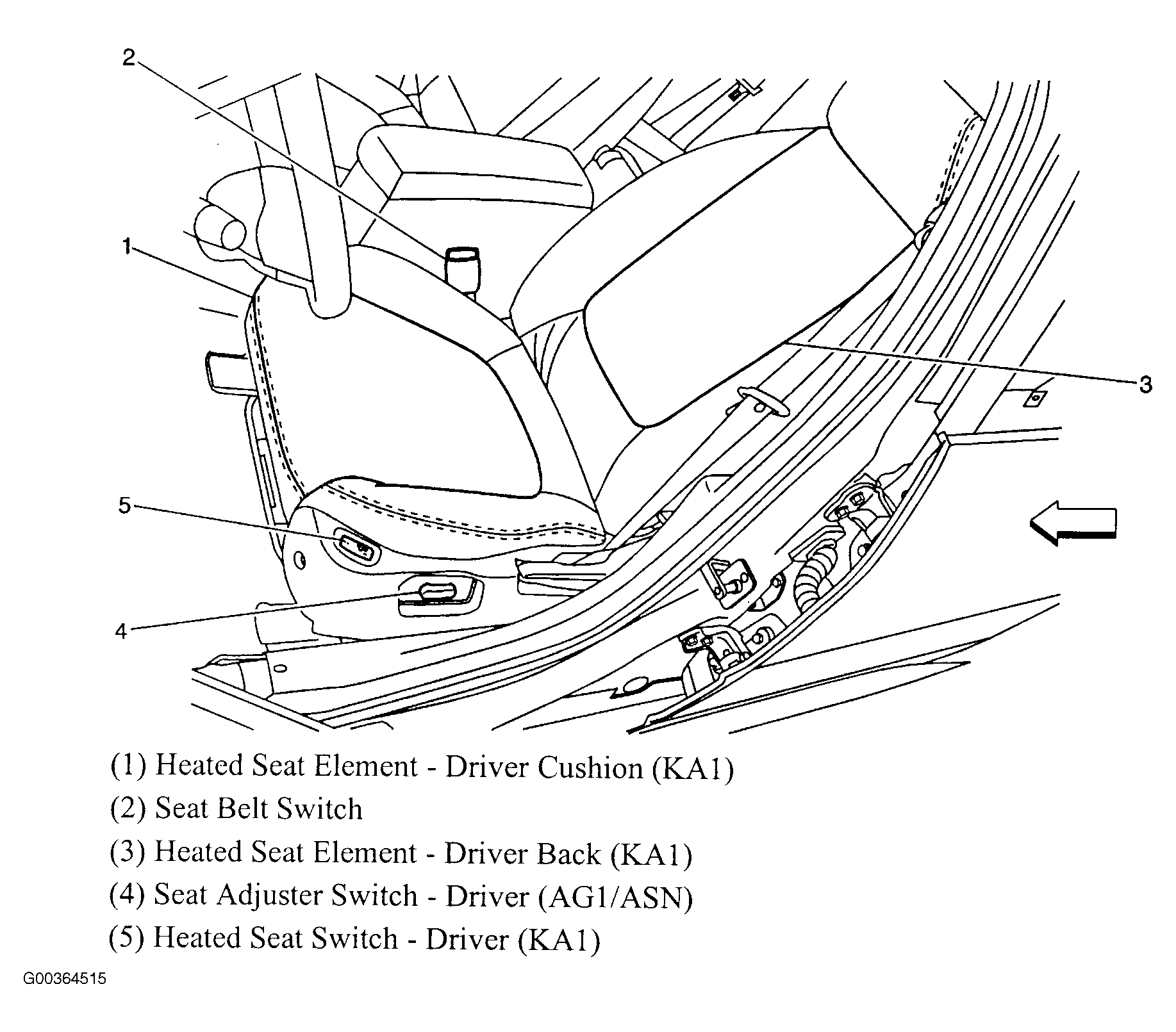

Fig 54: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 55: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.

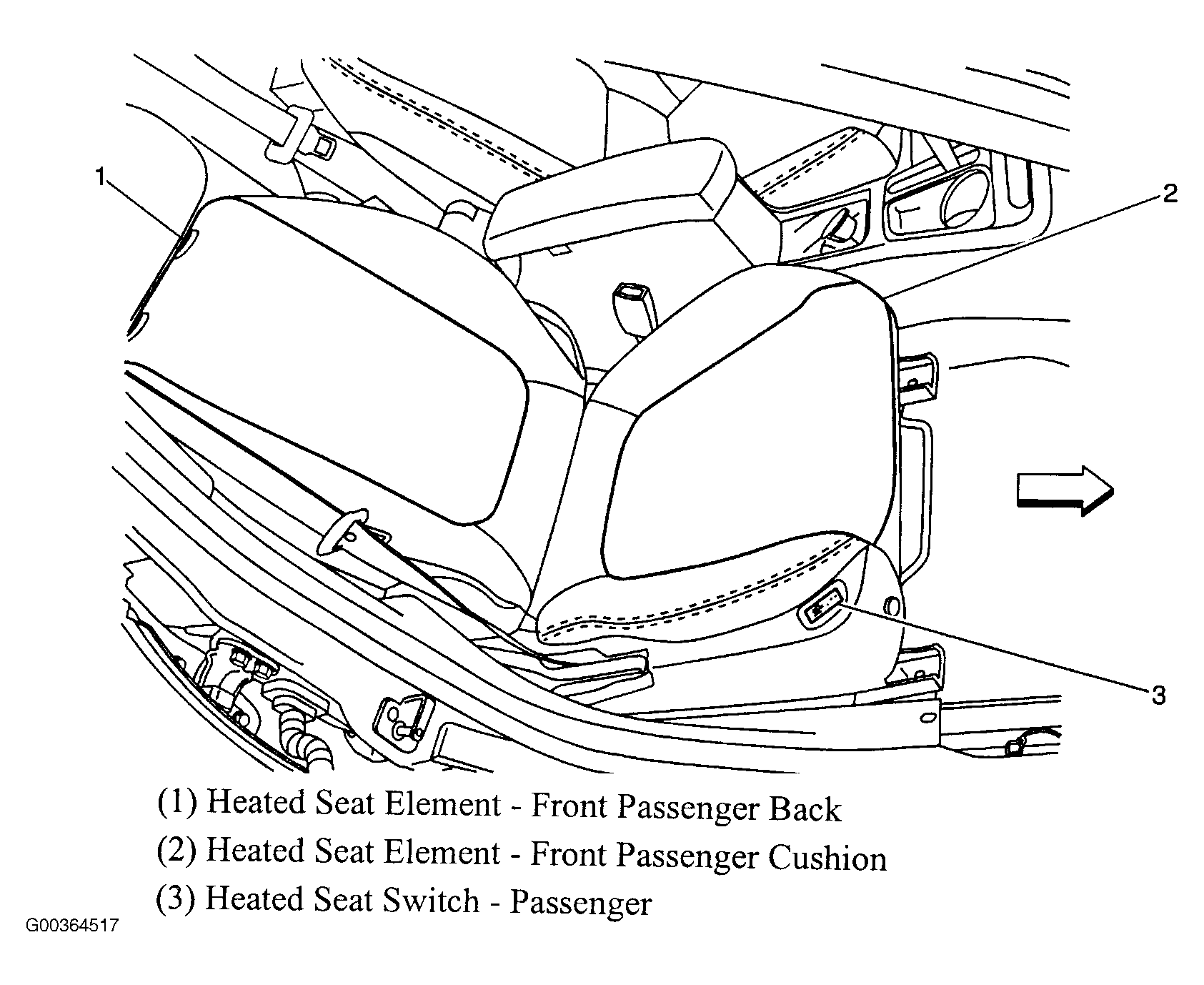

Fig 56: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 57: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

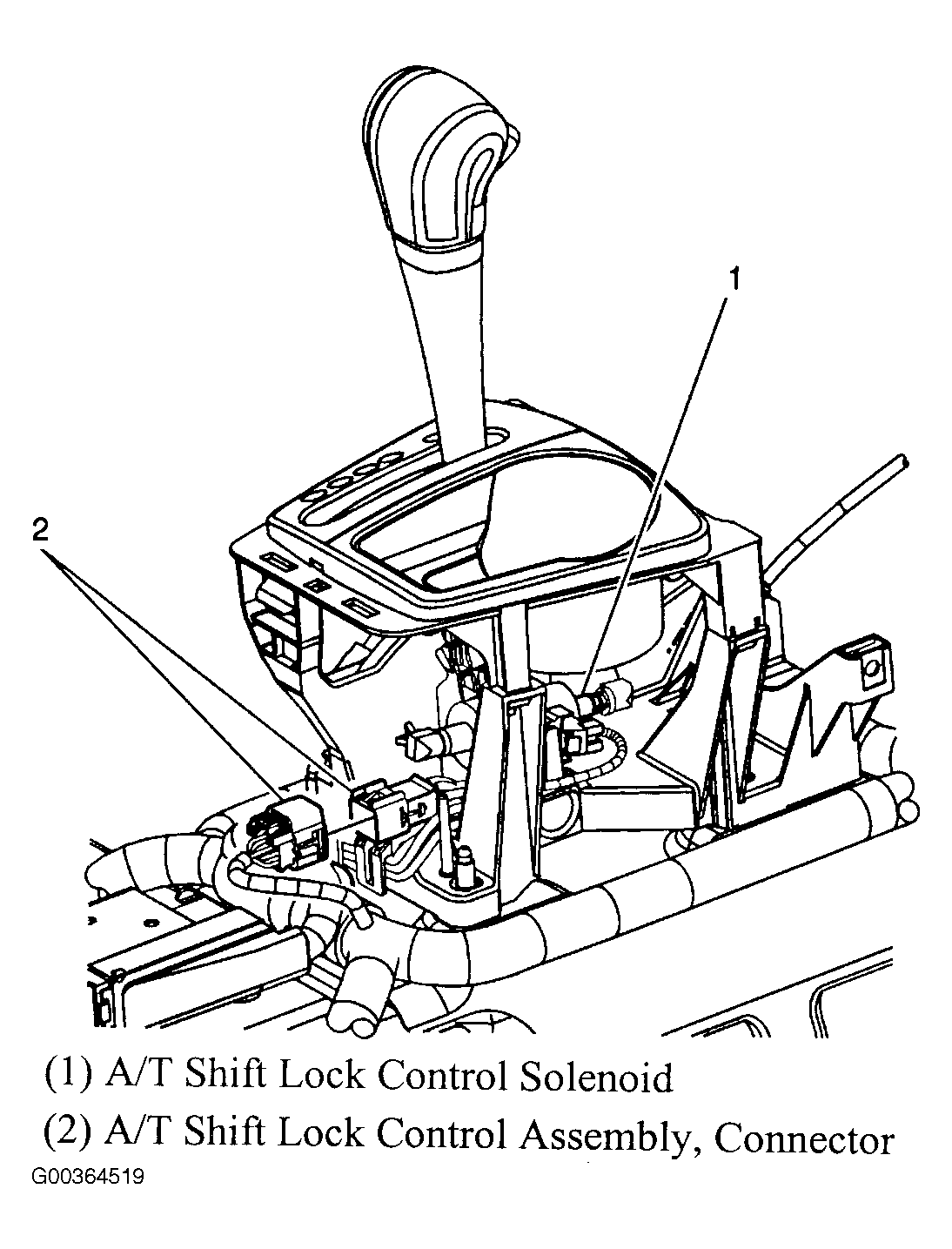

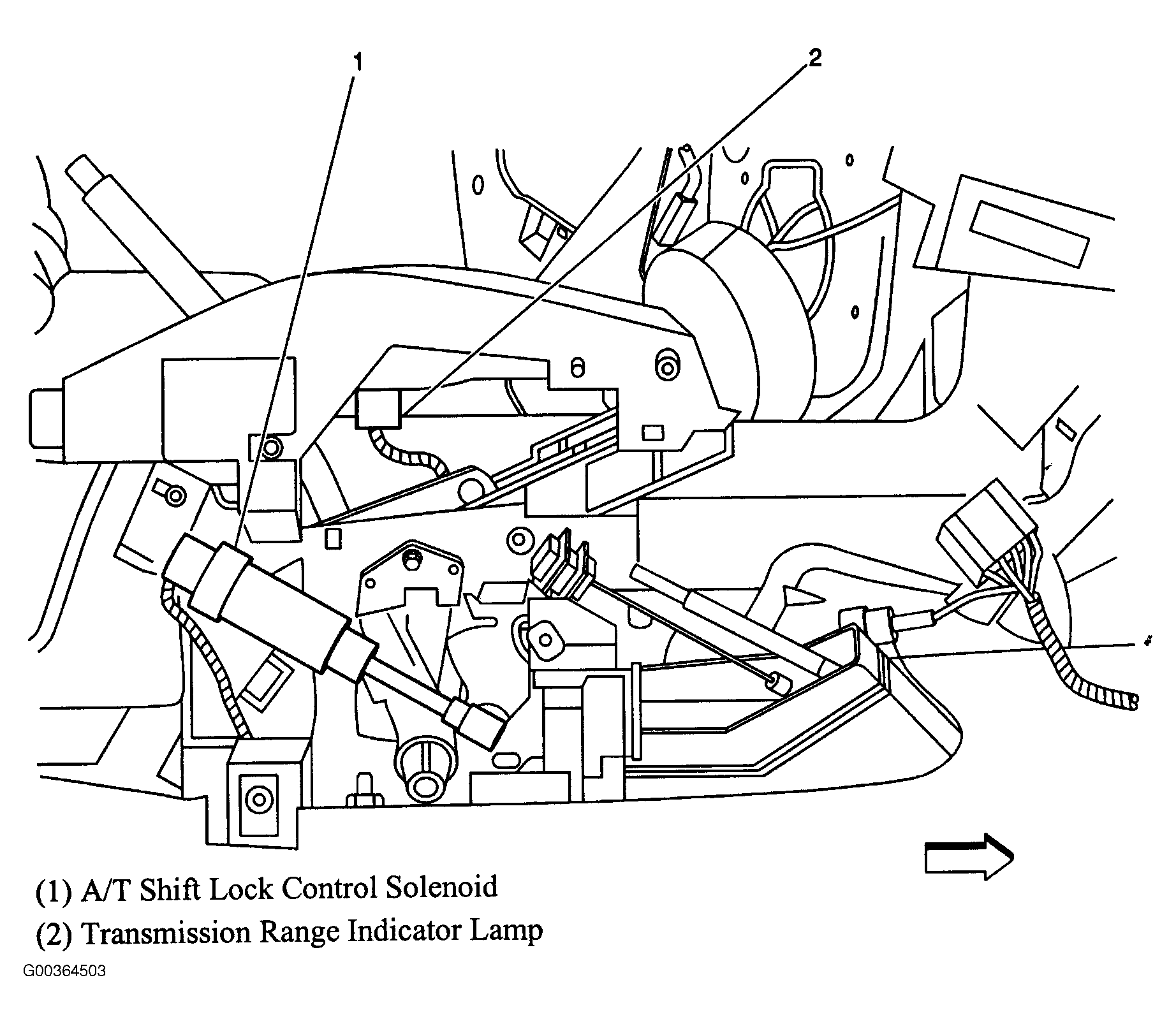

Fig 58: Automatic Transmission Shift Lock Control Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 59: Theft Deterrent System Component Views
Courtesy of GENERAL MOTORS CORP.

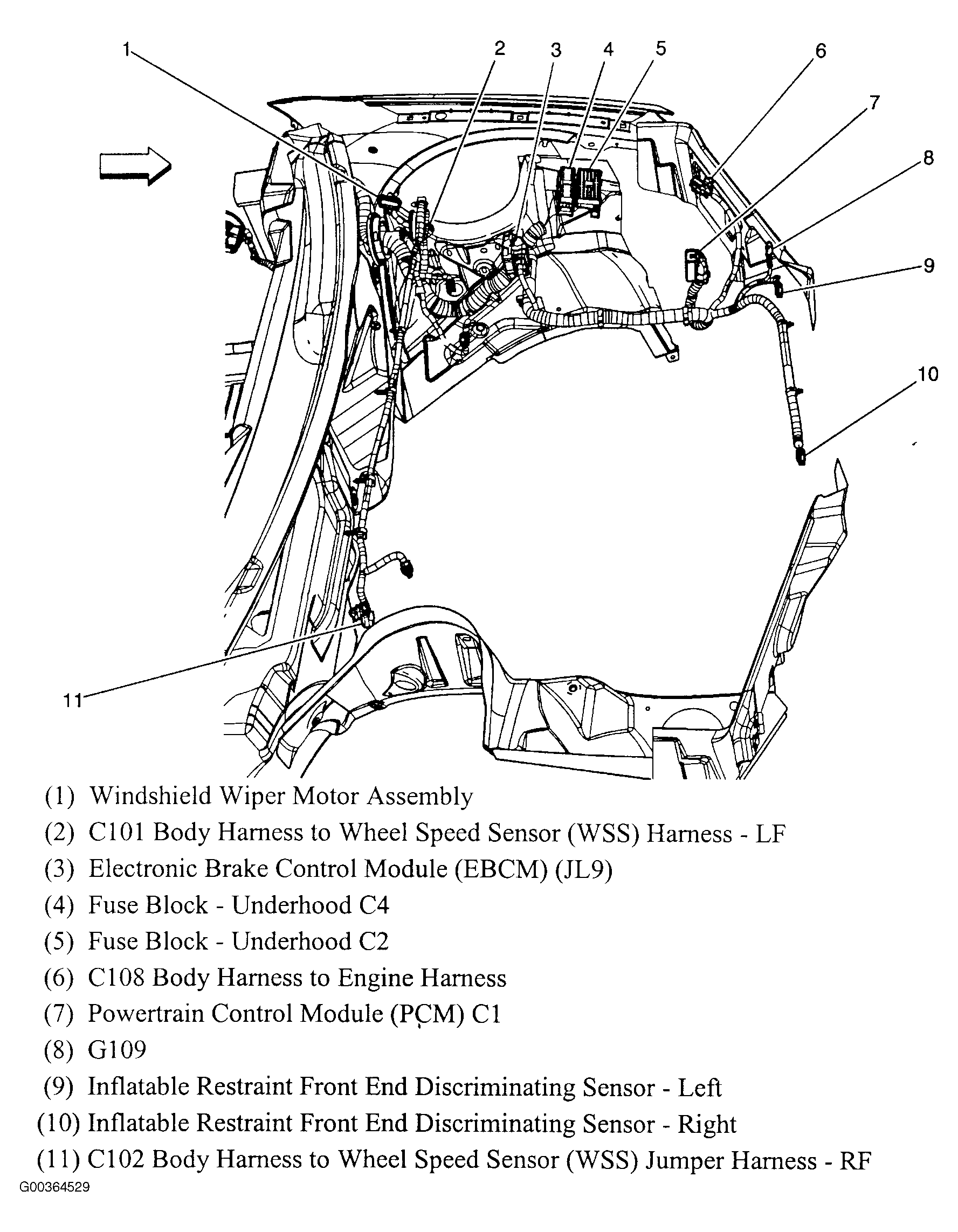

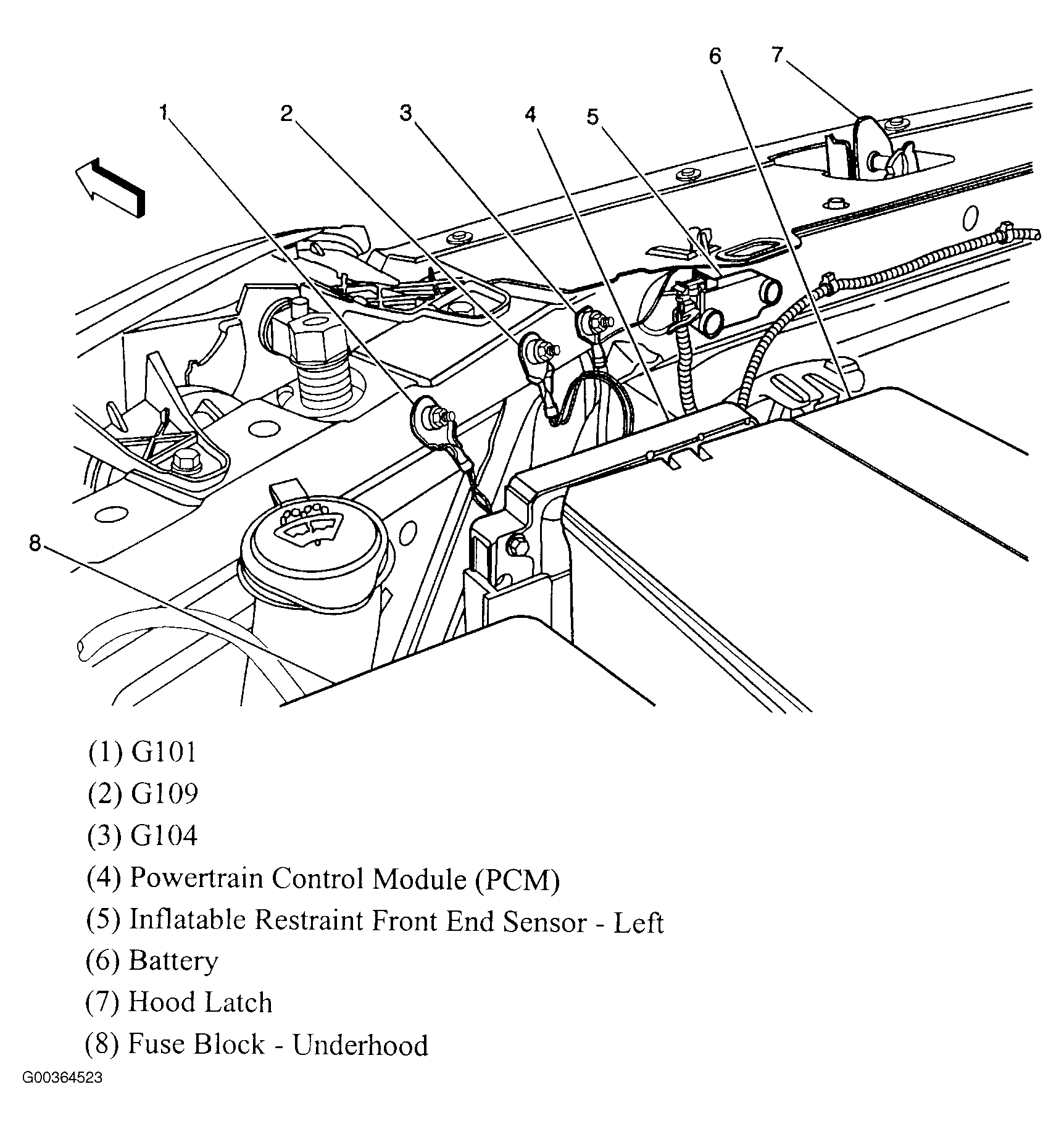

Fig 60: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 61: Front Side Of Core Support
Courtesy of GENERAL MOTORS CORP.

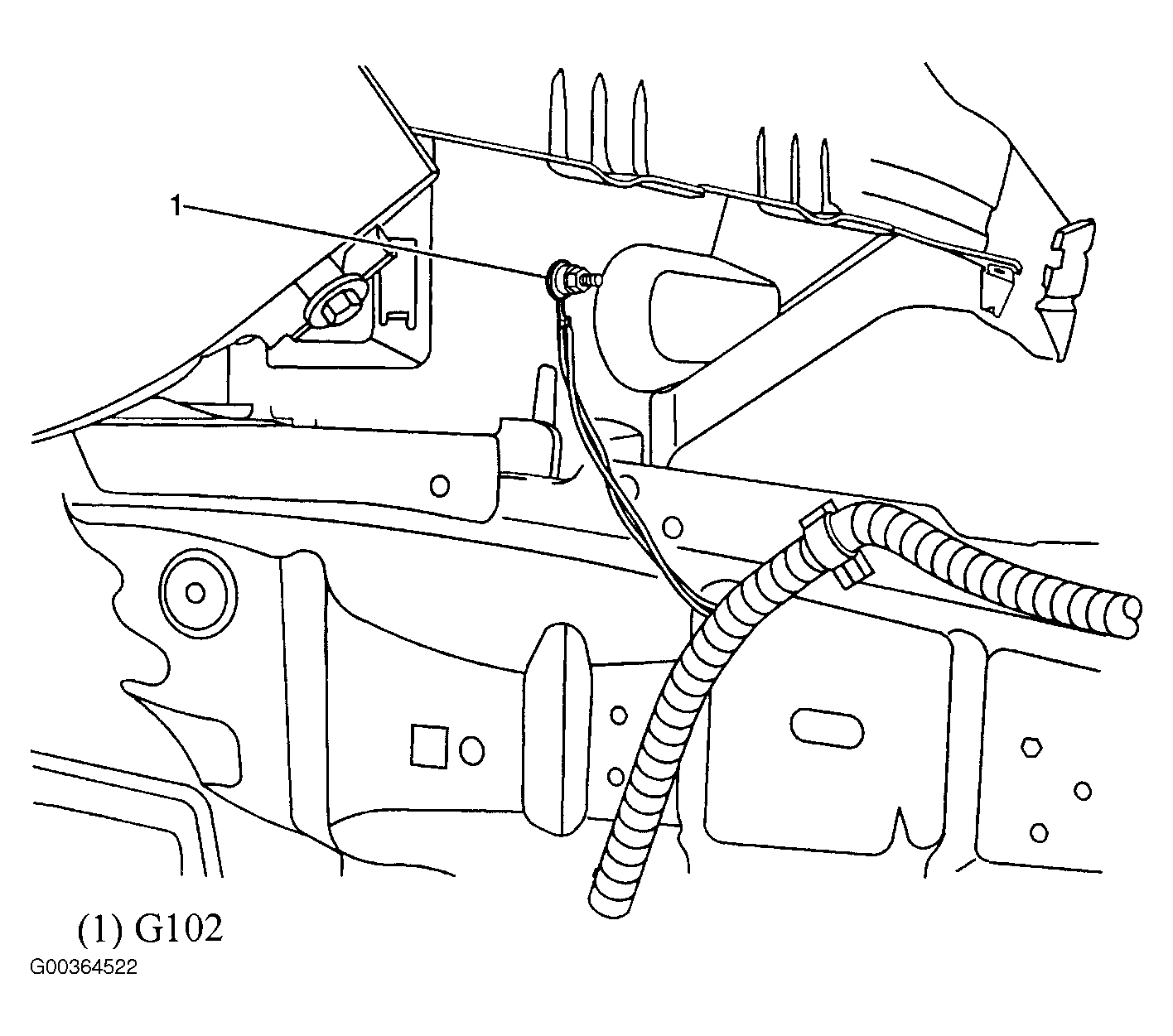

Fig 62: Left Side Of Core Support
Courtesy of GENERAL MOTORS CORP.
Fig 63: Under Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 64: Under Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 65: Behind Left Side Of Rear Seat
Courtesy of GENERAL MOTORS CORP.

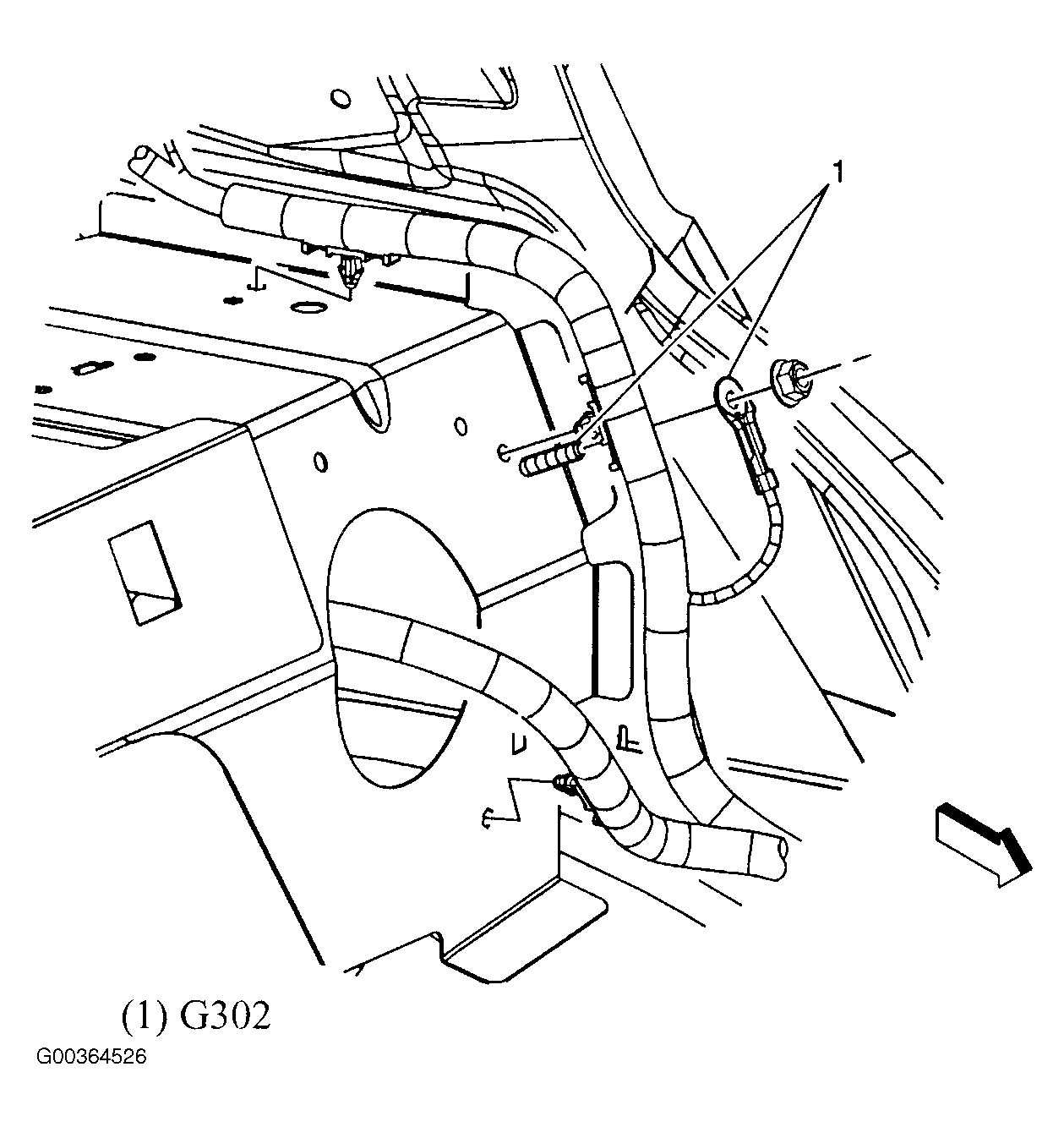

Fig 66: Left Rear Quarter Panel
Courtesy of GENERAL MOTORS CORP.

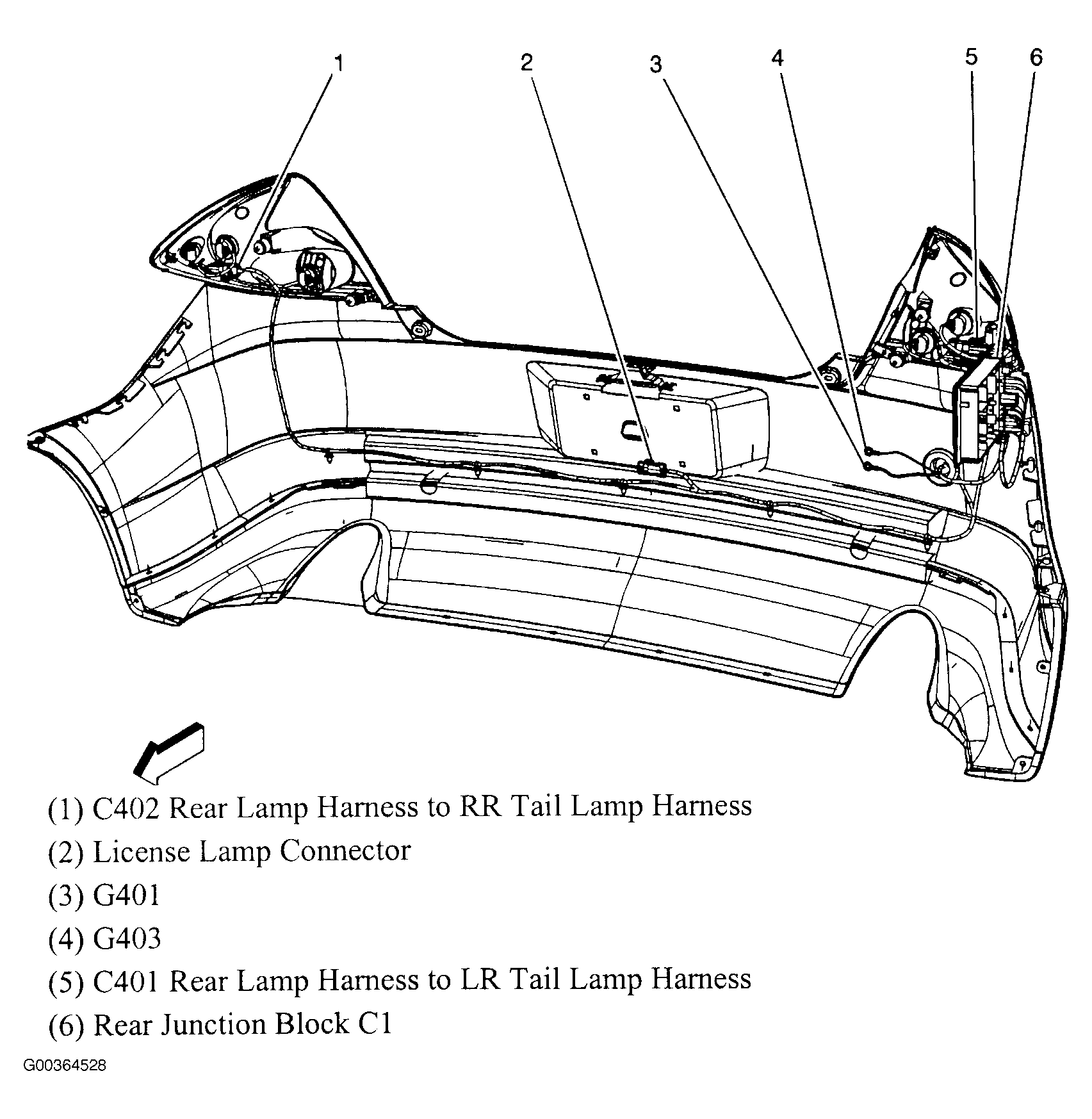

Fig 67: Rear Bumper Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 68: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

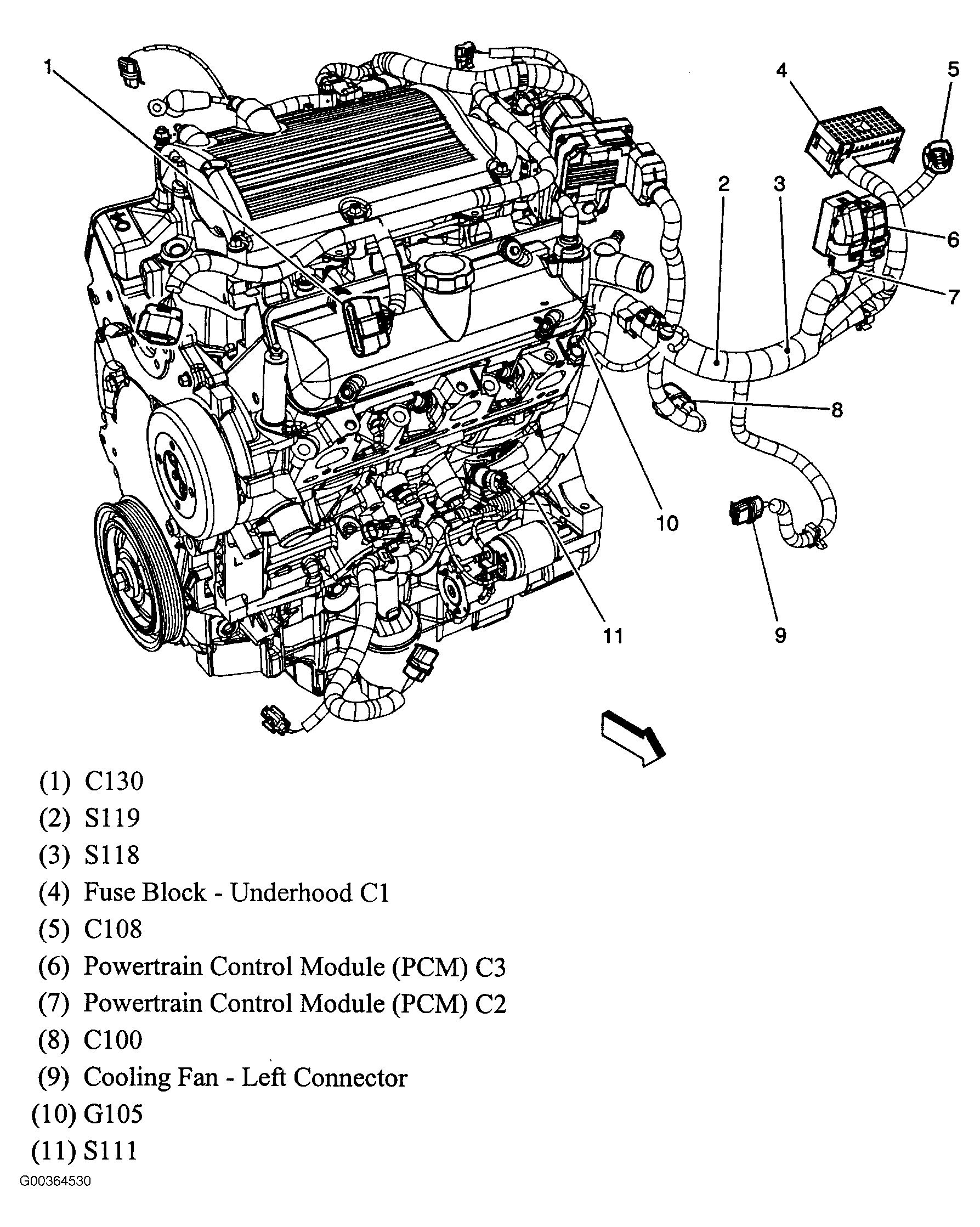

Fig 69: Engine Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 70: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 71: Left Side Of Console
Courtesy of GENERAL MOTORS CORP.

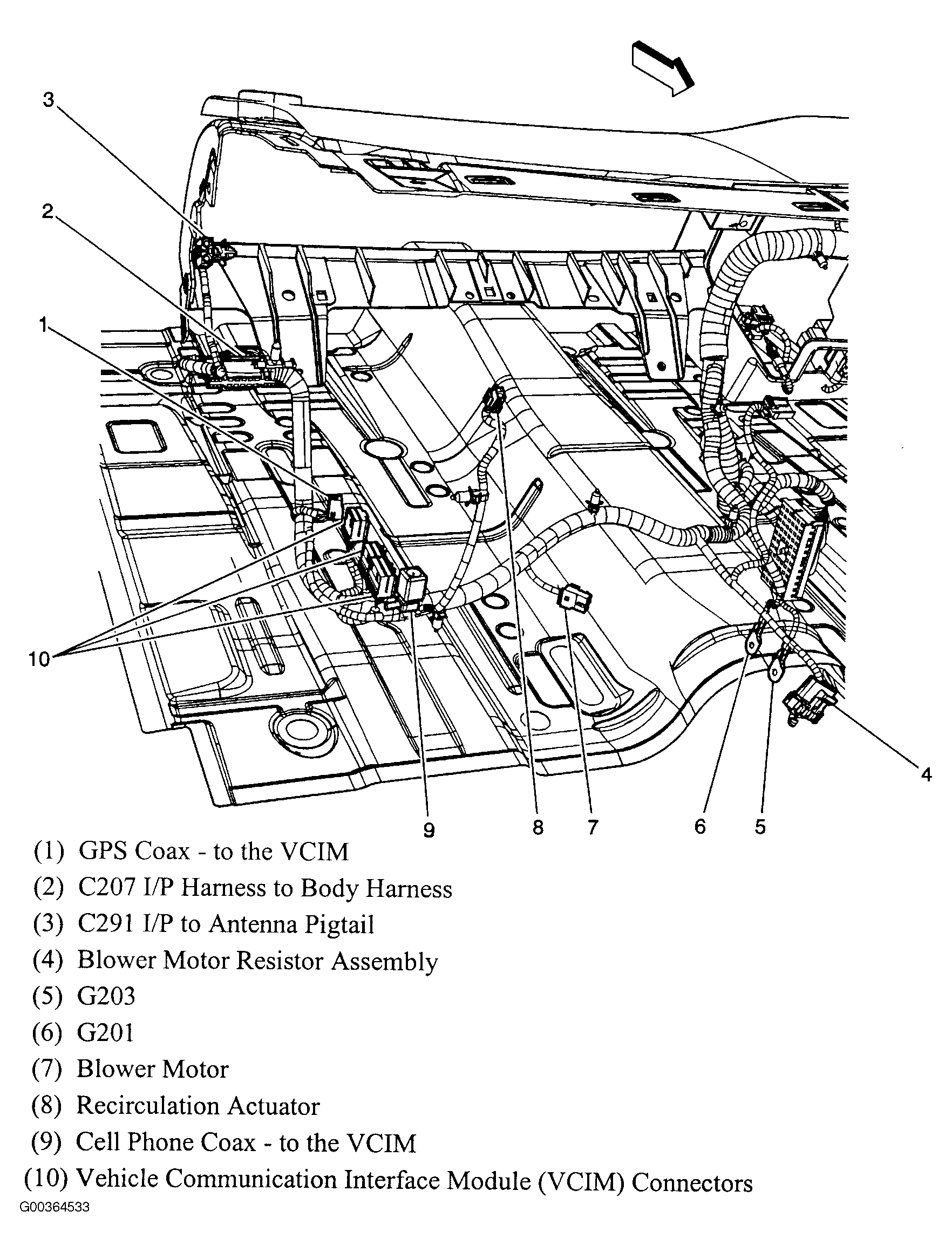

Fig 72: Right Side Of Floor Pan
Courtesy of GENERAL MOTORS CORP.

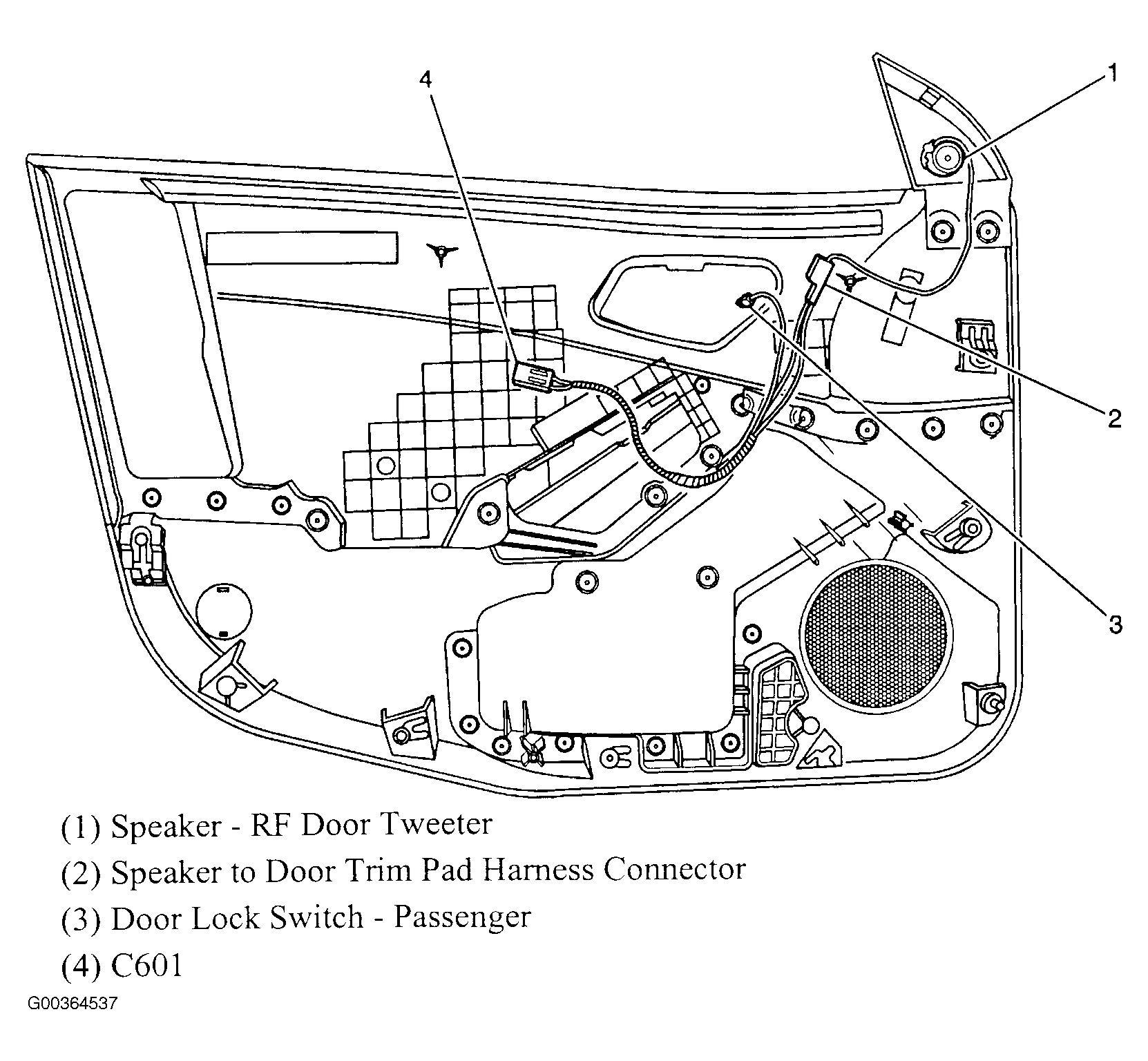

Fig 73: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Front Door Trim Pad
Courtesy of GENERAL MOTORS CORP.
Fig 75: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 76: Right Front Door Trim Pad
Courtesy of GENERAL MOTORS CORP.
Fig 77: Driver's Seat
Courtesy of GENERAL MOTORS CORP.

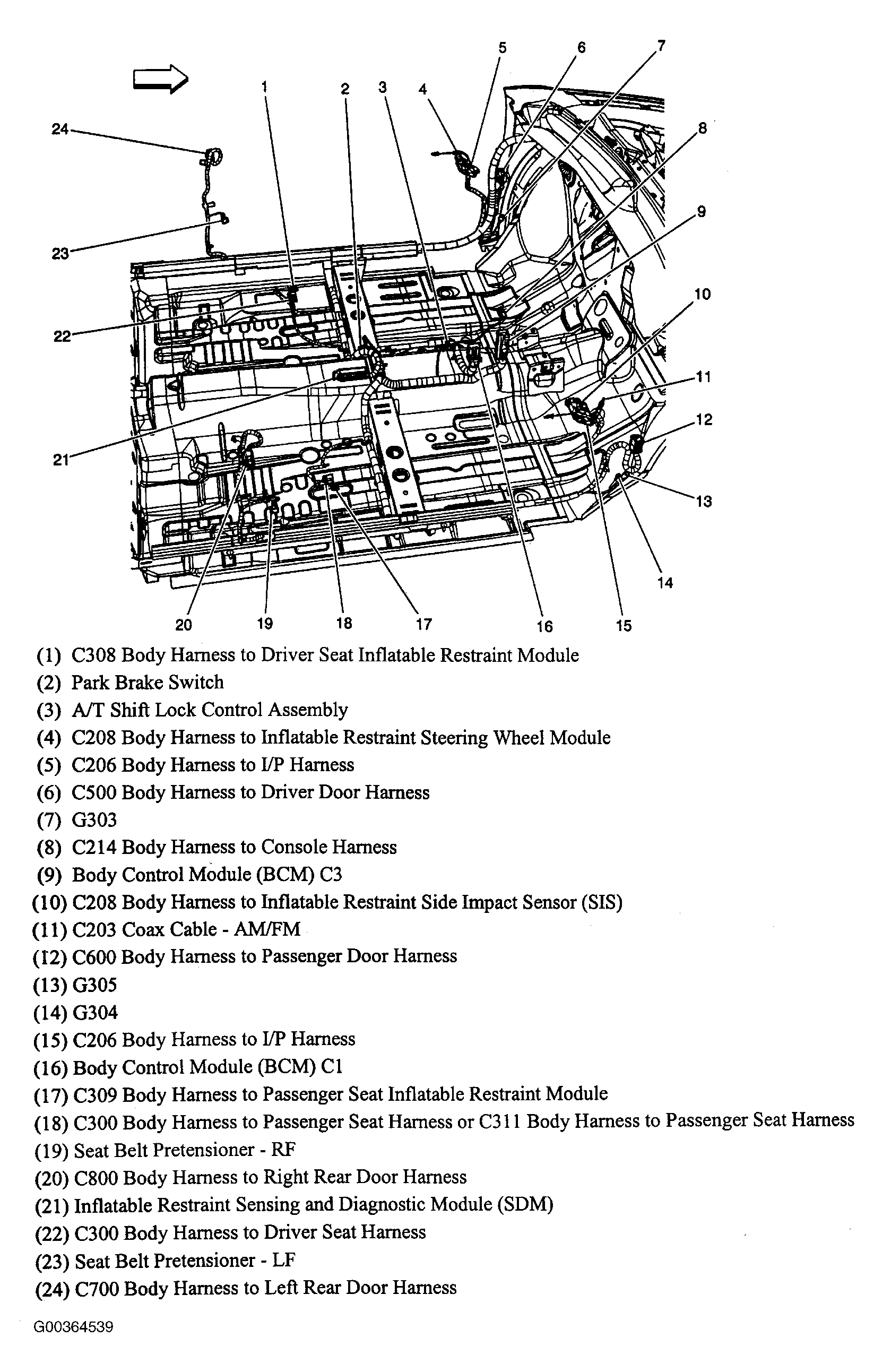

Fig 78: Front Pan
Courtesy of GENERAL MOTORS CORP.
Fig 79: Rear Compartment
Courtesy of GENERAL MOTORS CORP.

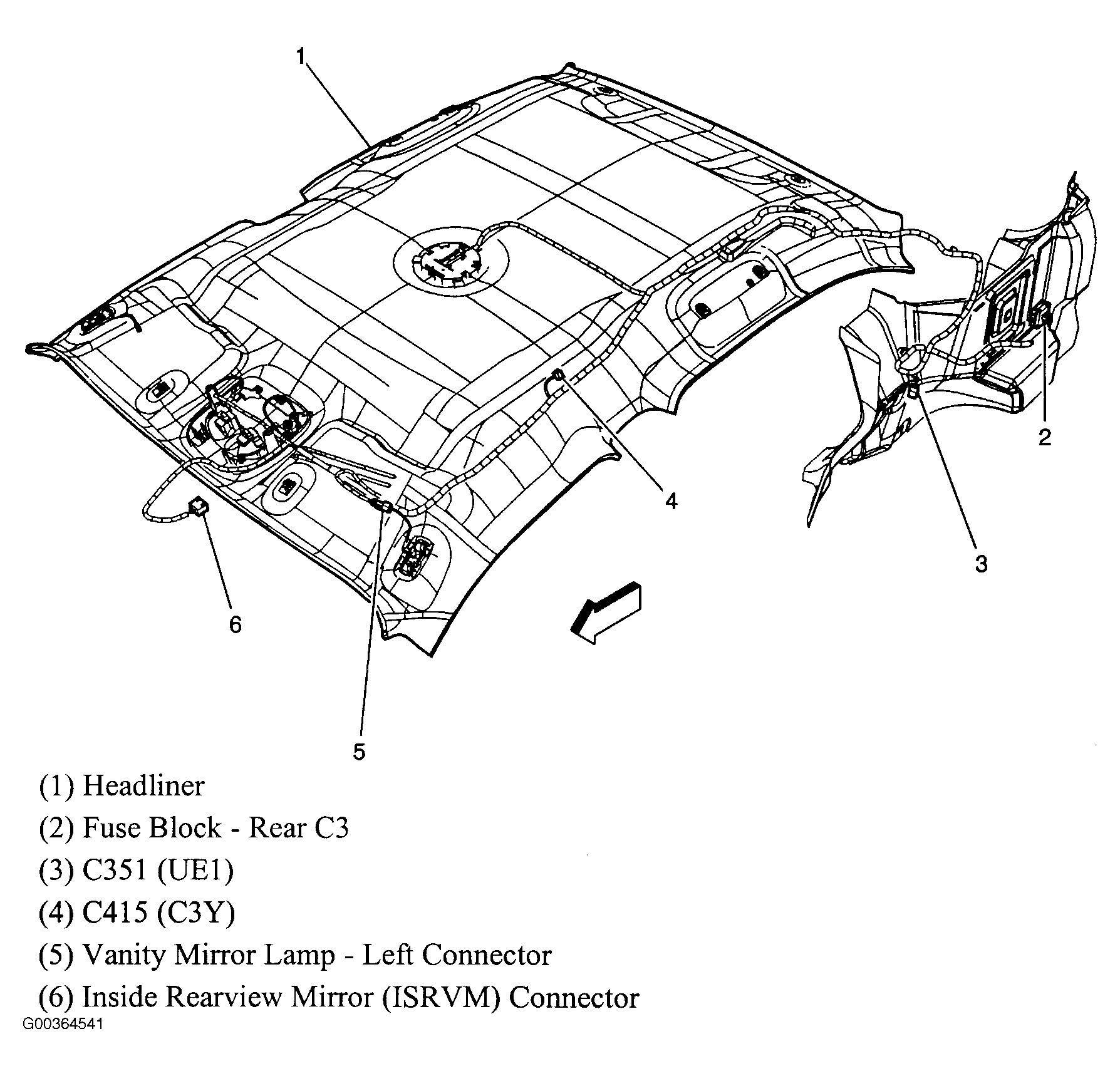

Fig 80: Headliner (W/O Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 81: Headliner (W/ Sunroof)
Courtesy of GENERAL MOTORS CORP.

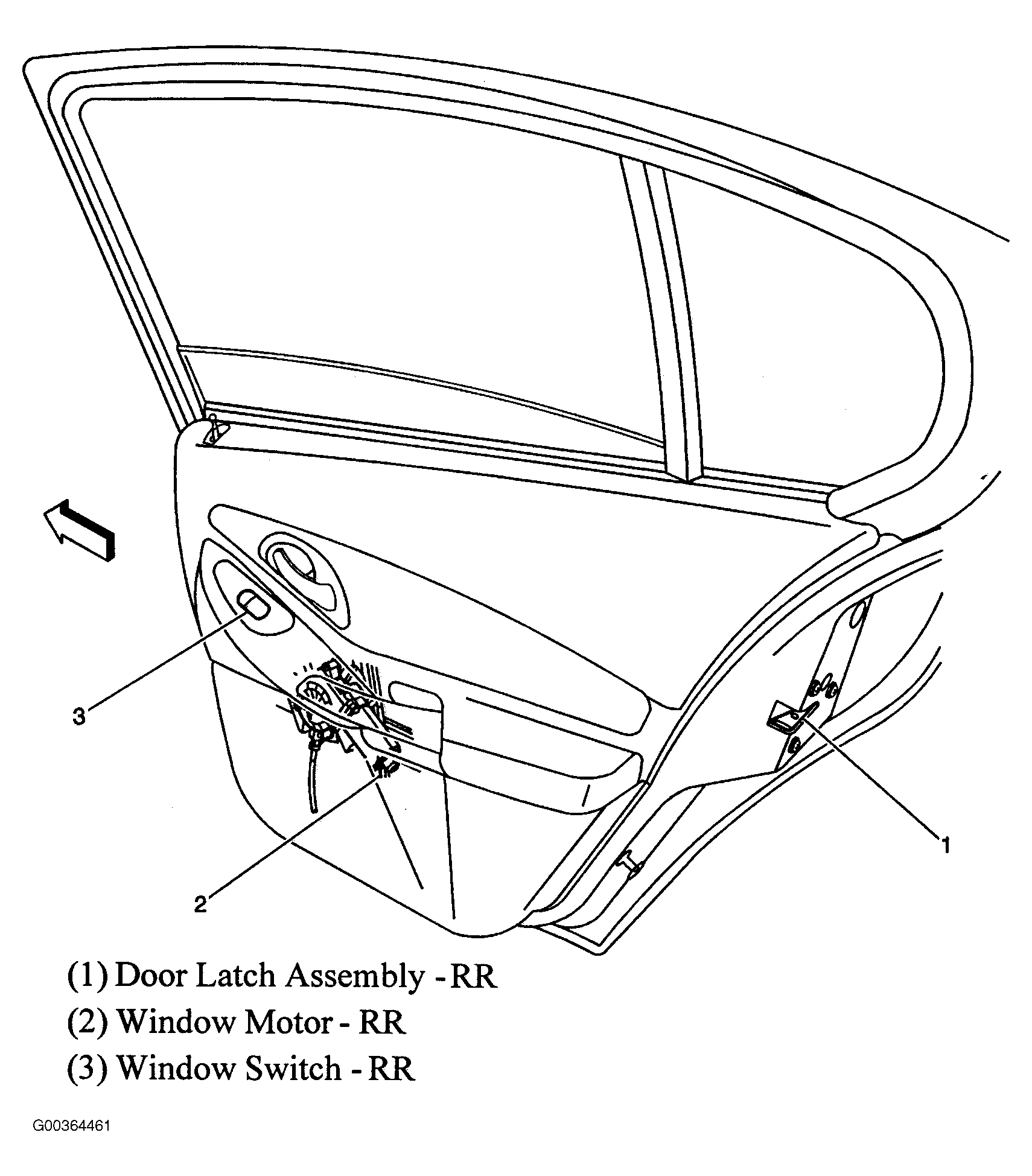

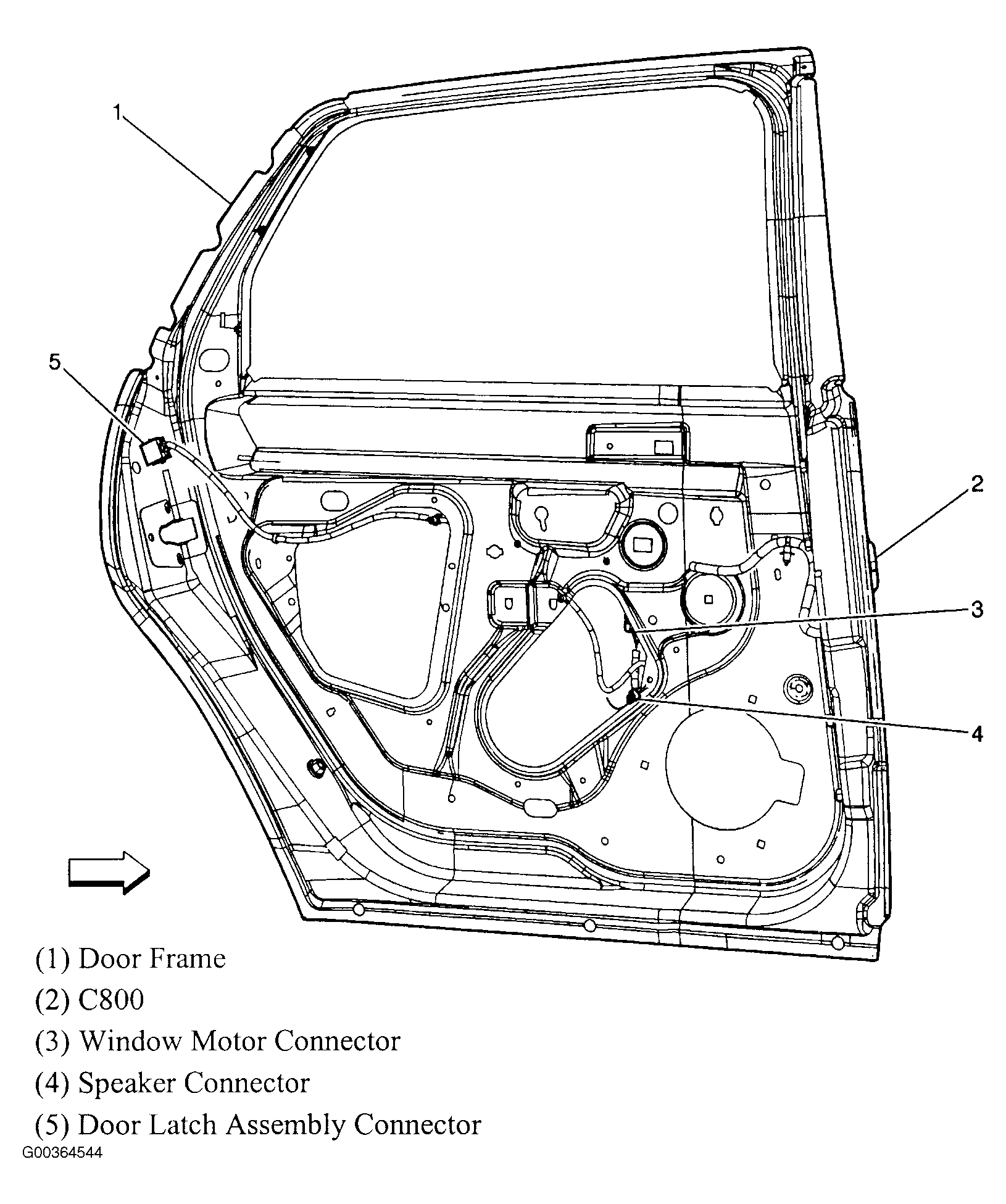

Fig 82: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 83: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 84: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

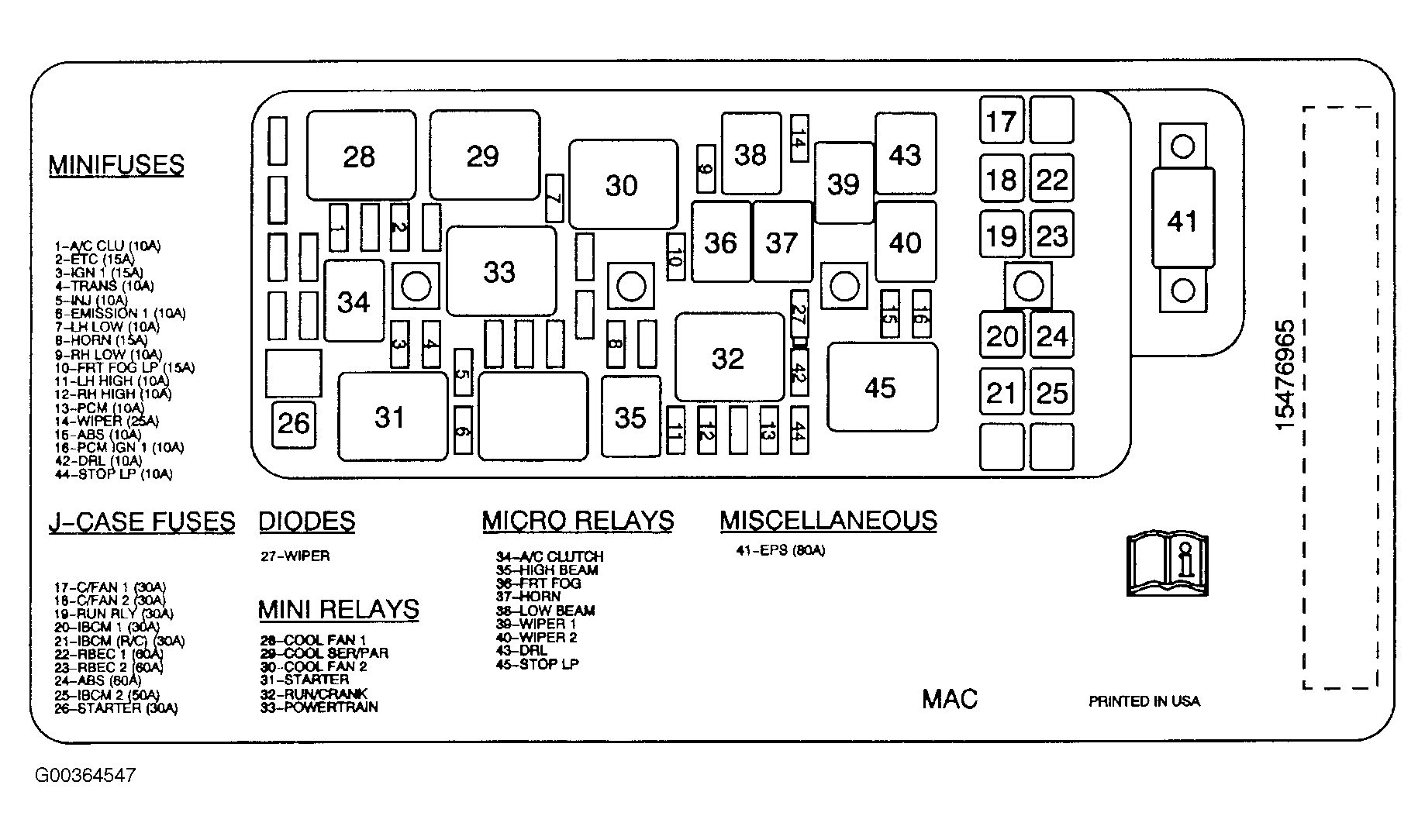

Fig 85: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

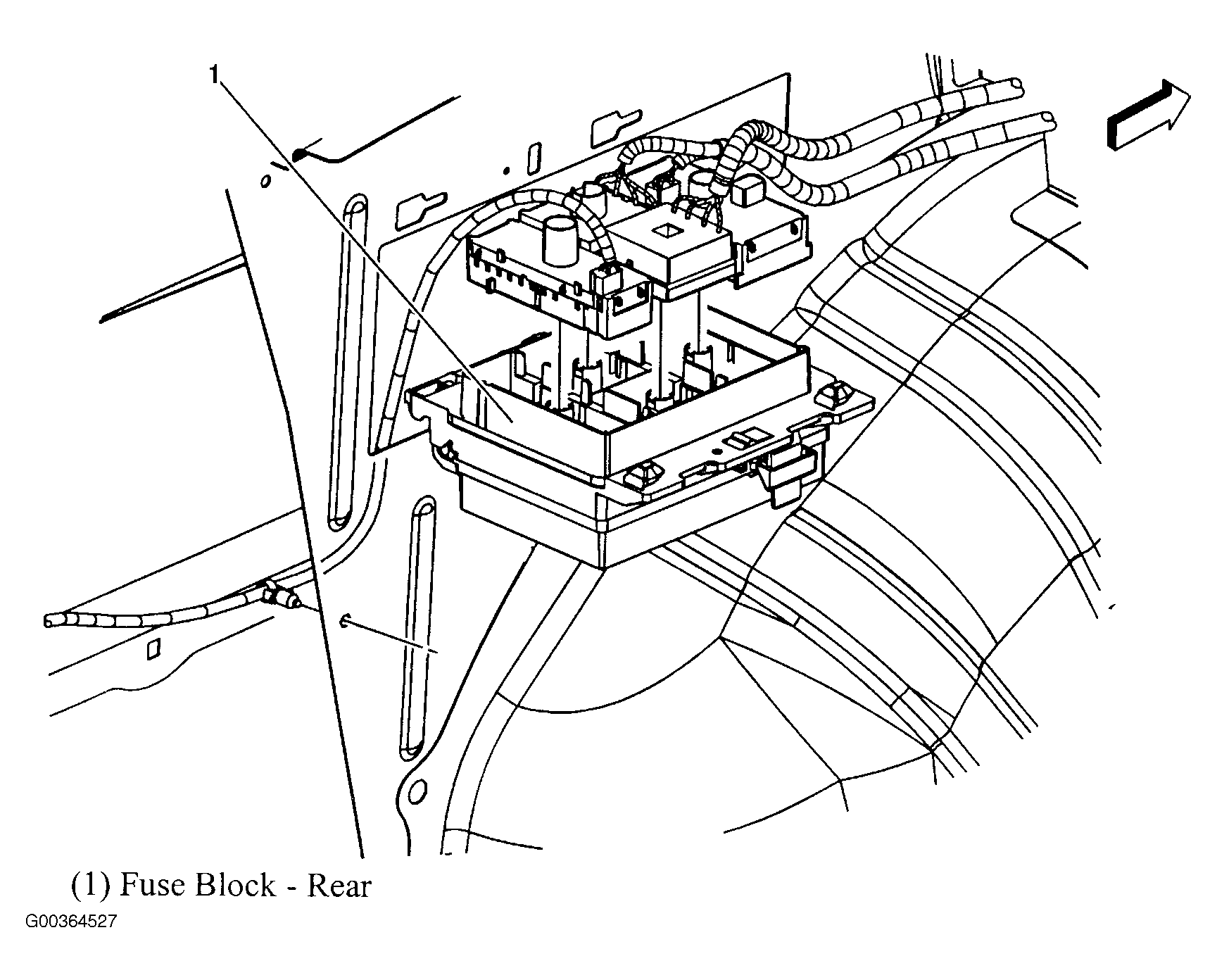

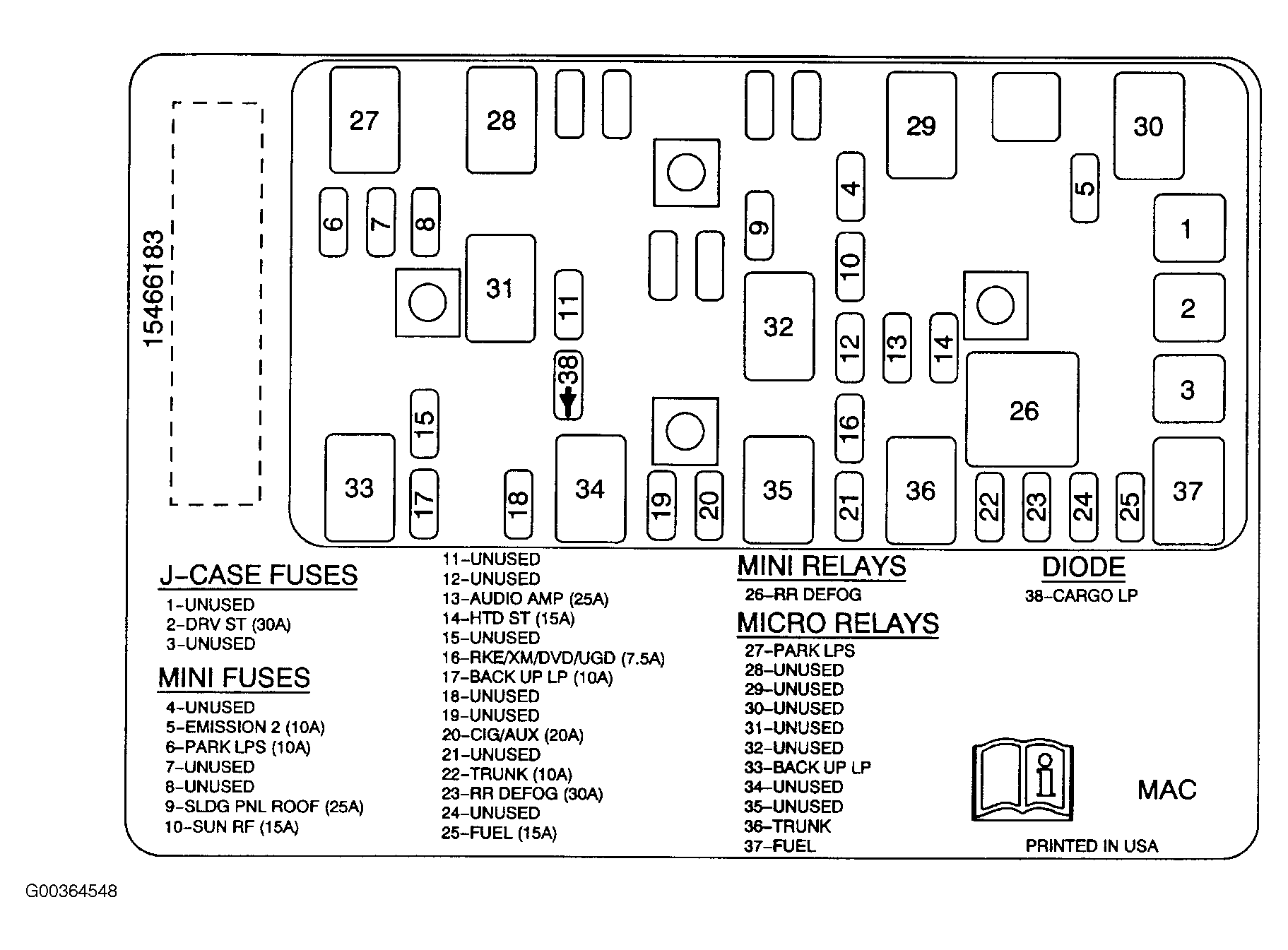

Fig 86: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

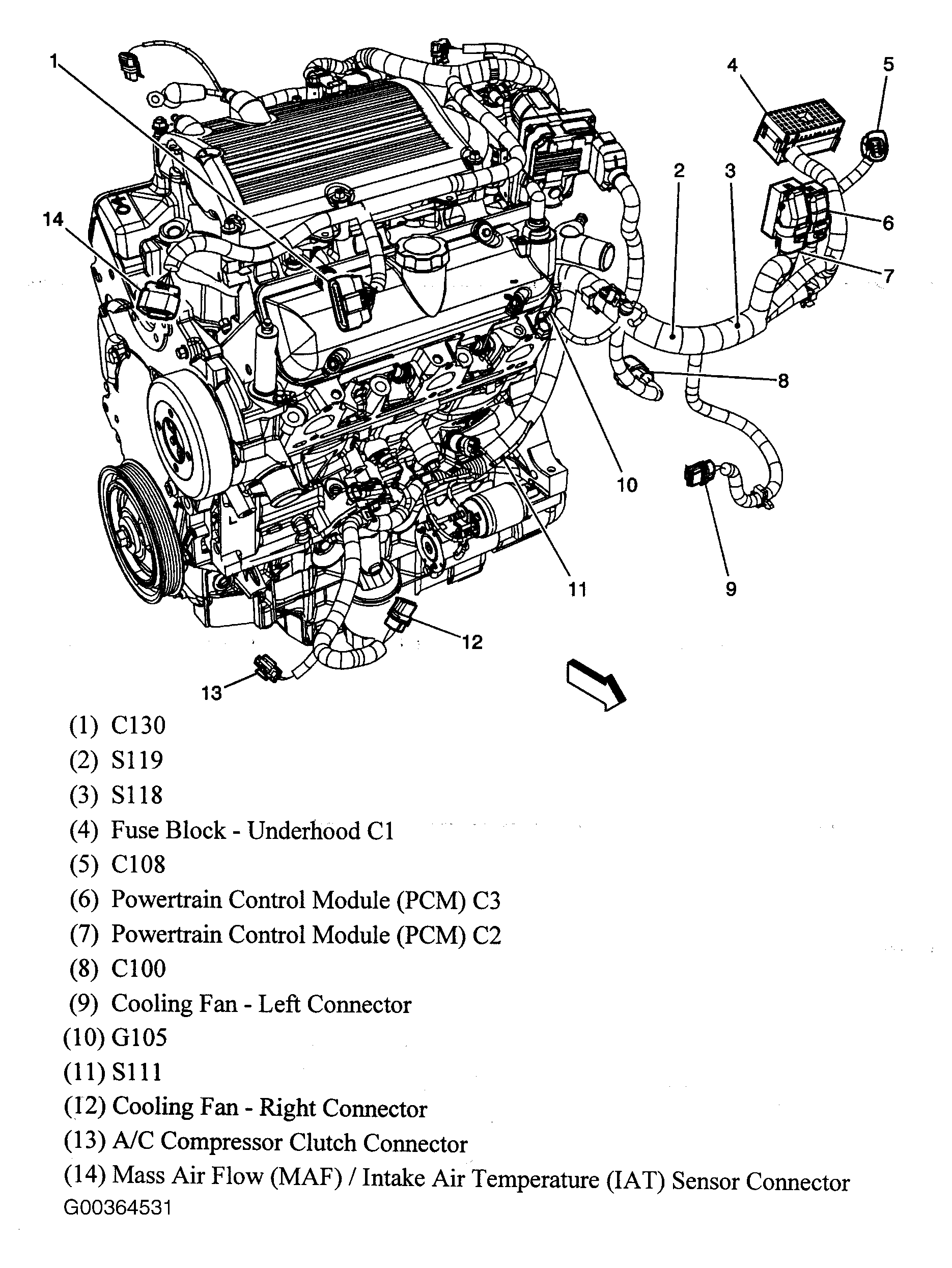

Fig 87: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
