Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

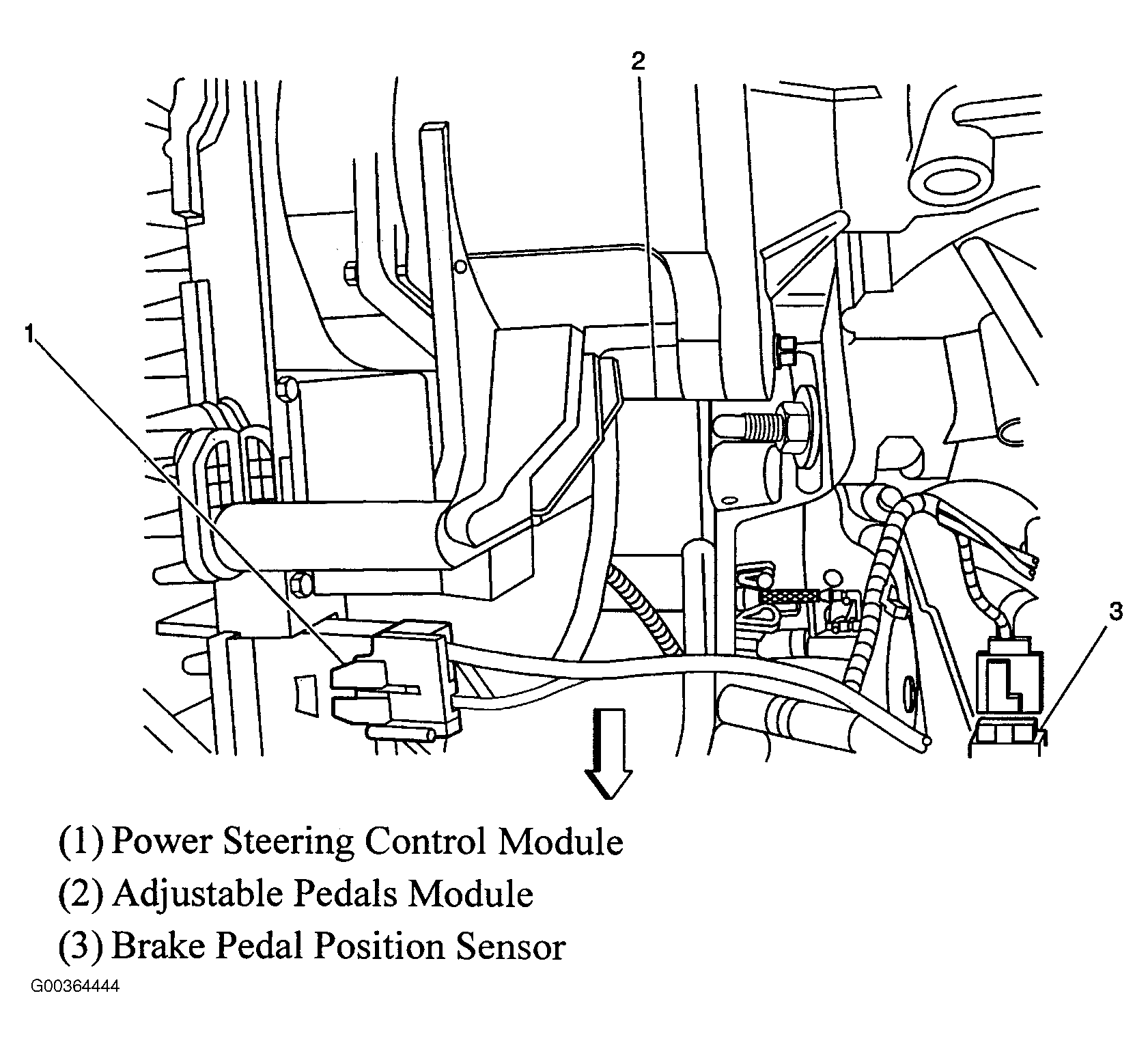

| Adjustable Pedal Control Module | Below left side of dash, above pedals. See Figure. |
| Antenna Amplifier Module | Left rear of luggage compartment. See Figure. |

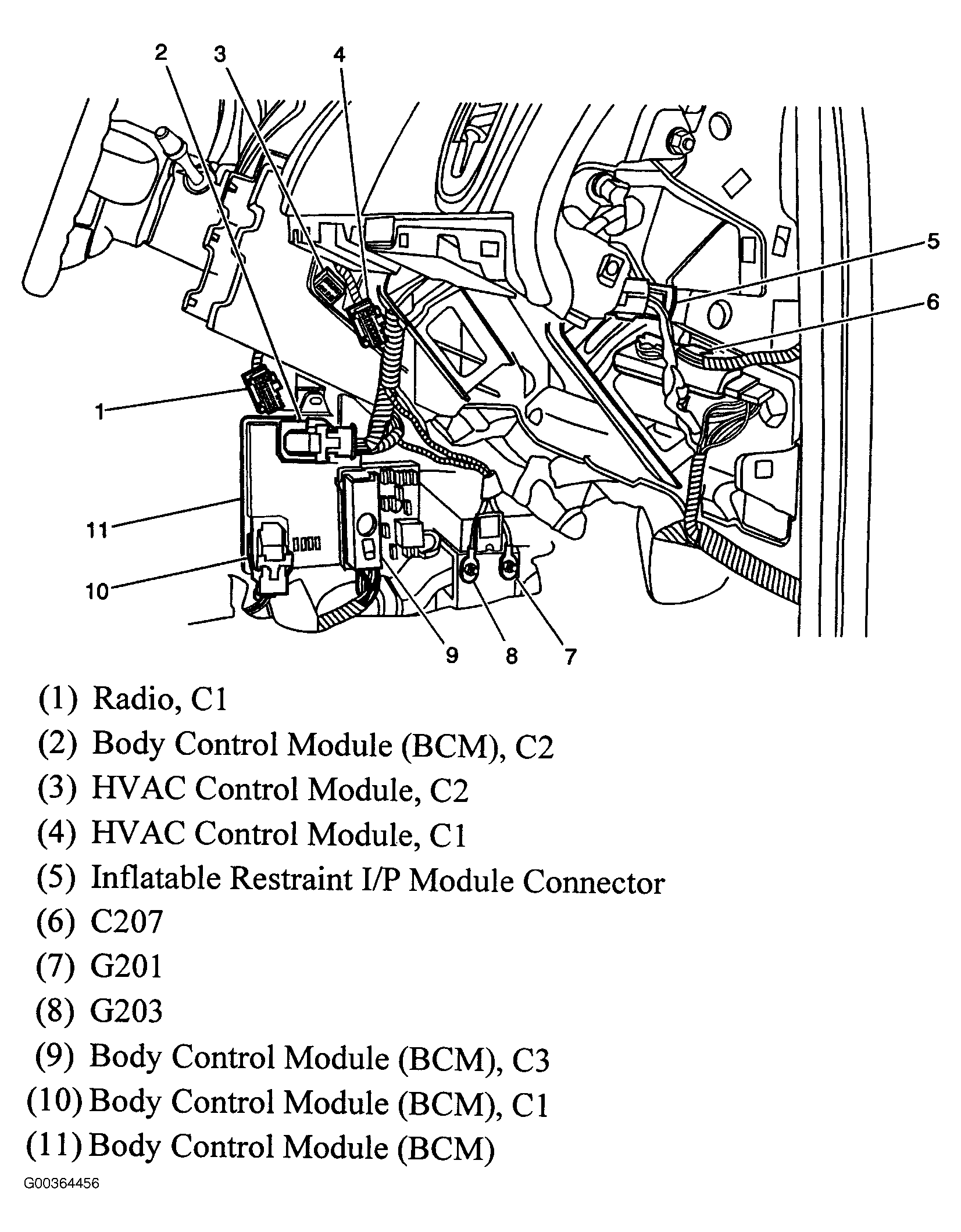

| Body Control Module (BCM) | Under right side of center console, near dash. See Figure. |

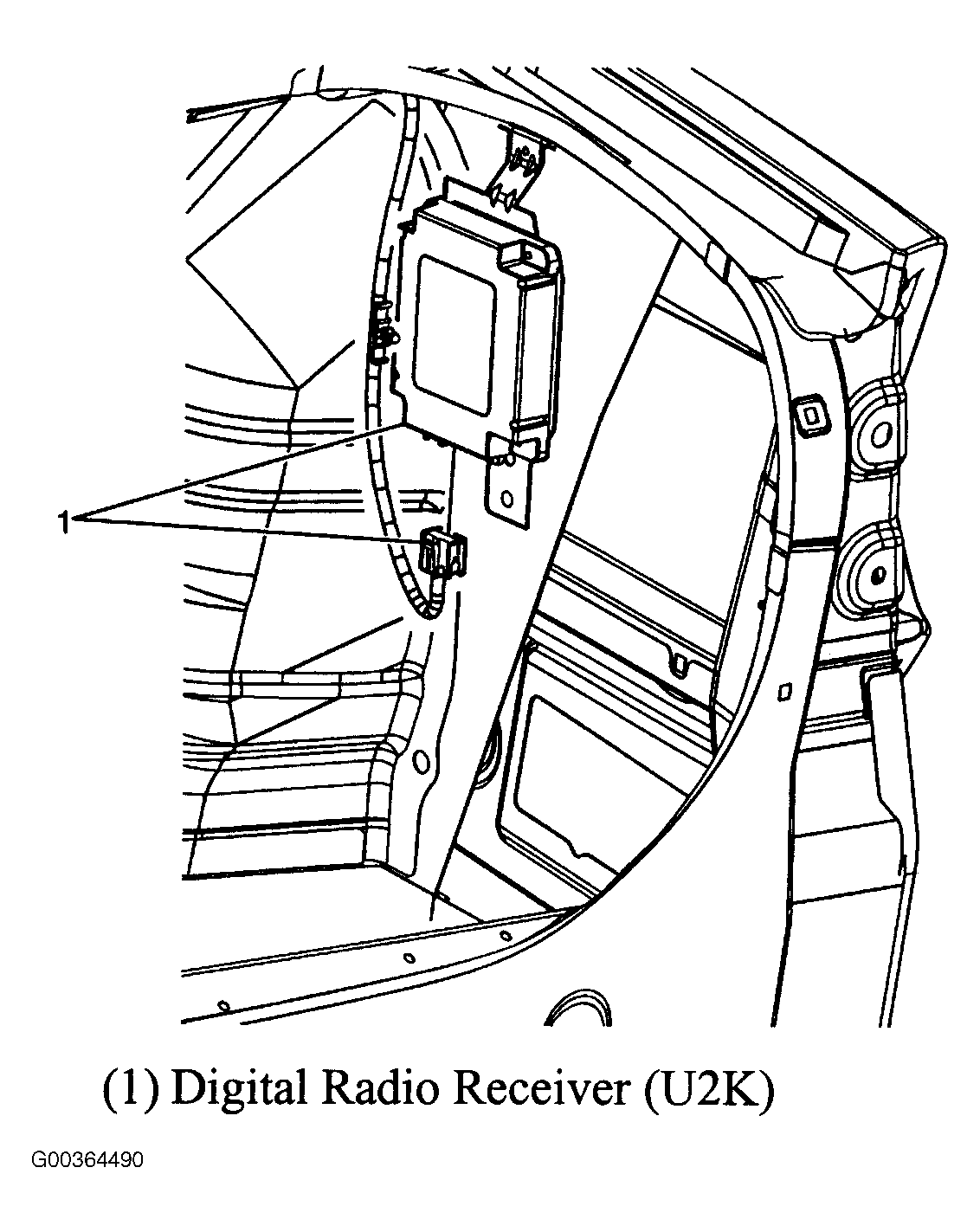

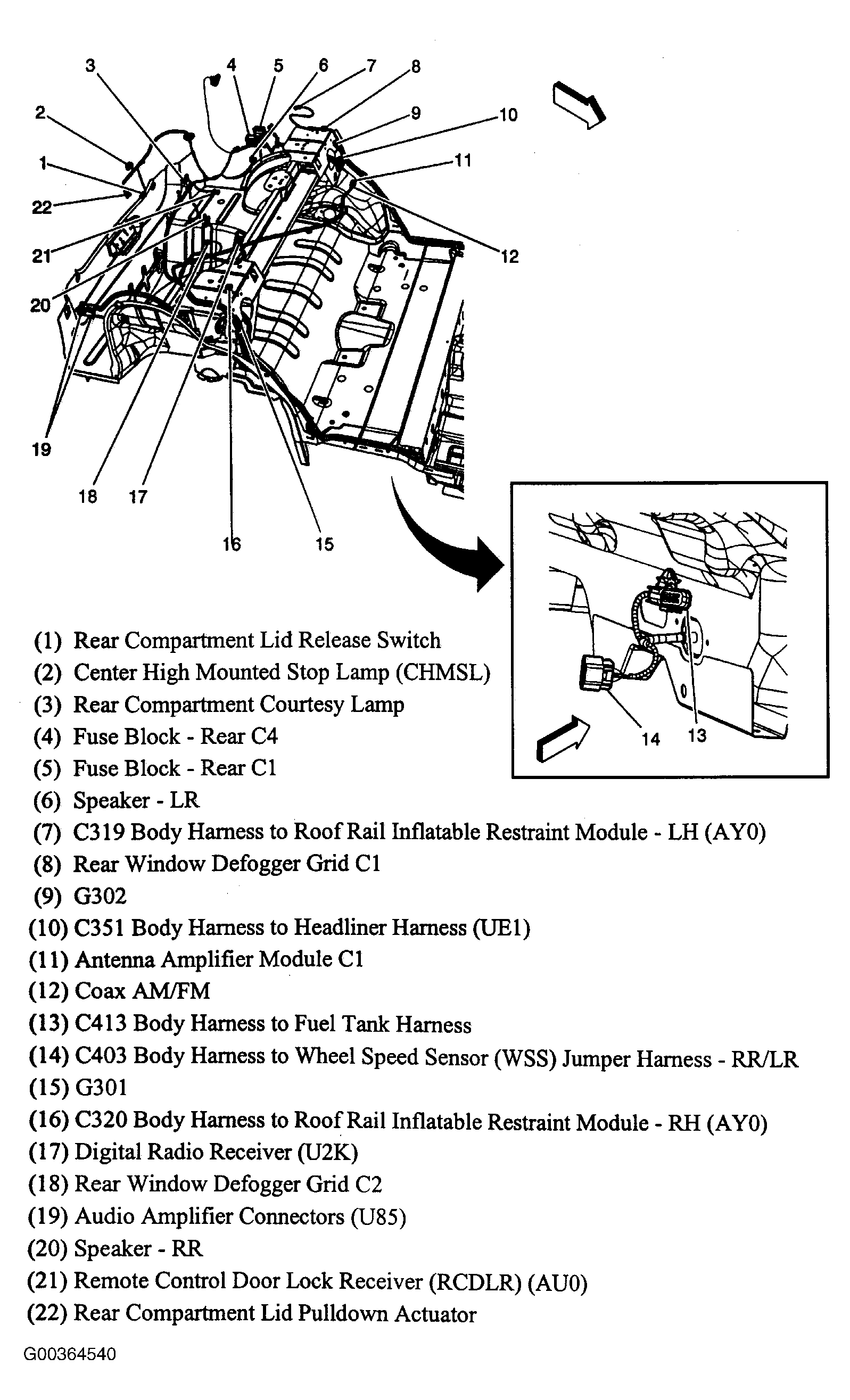

| Digital Radio Receiver | In rear compartment, attached to left rear wheel well, under trim. See Figure. |

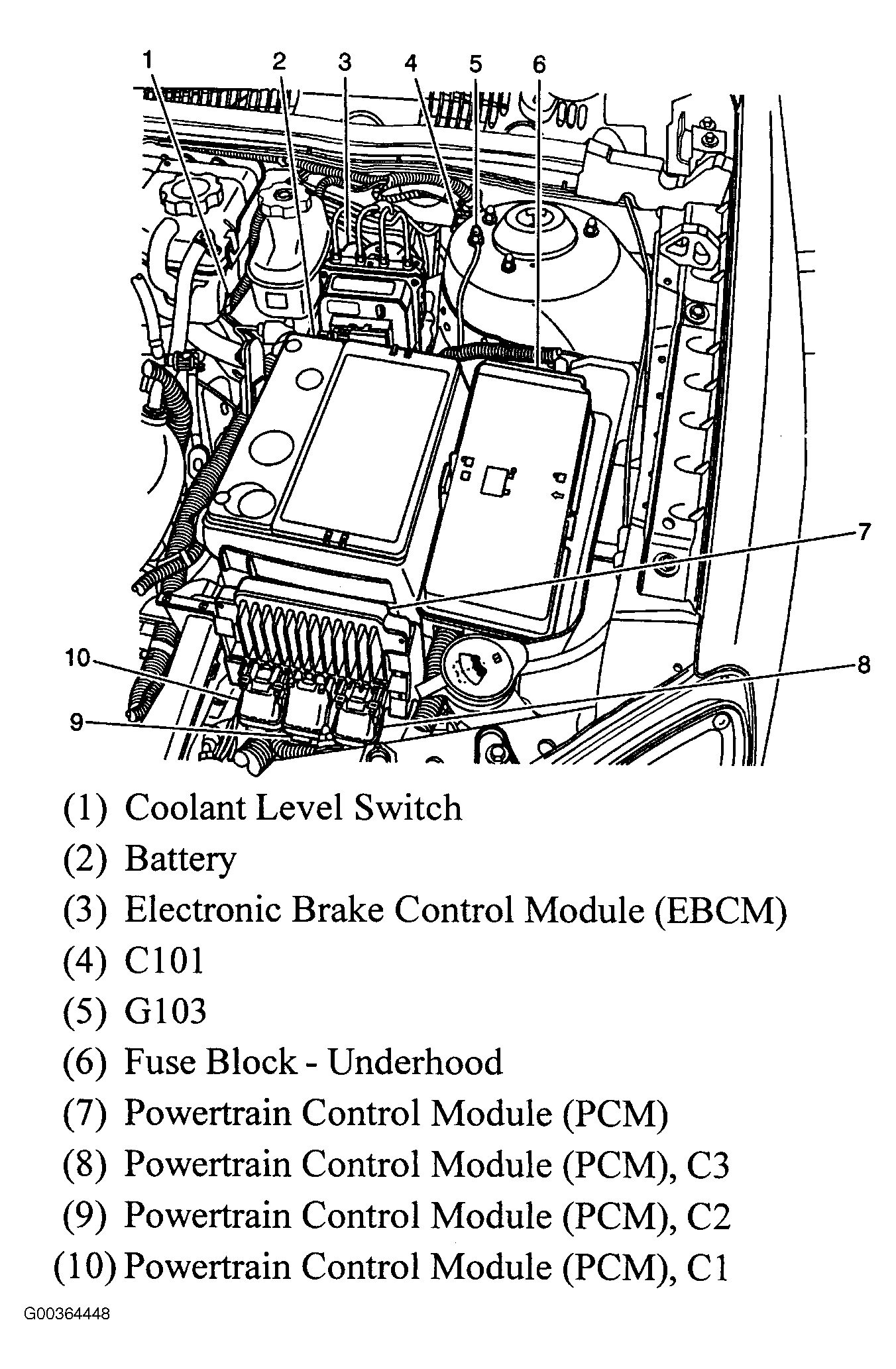

| Electronic Brake Control Module (EBCM) | Left side of engine compartment, mounted to back side of strut tower, part of brake pressure modulator valve (BPMV). See Figure. |

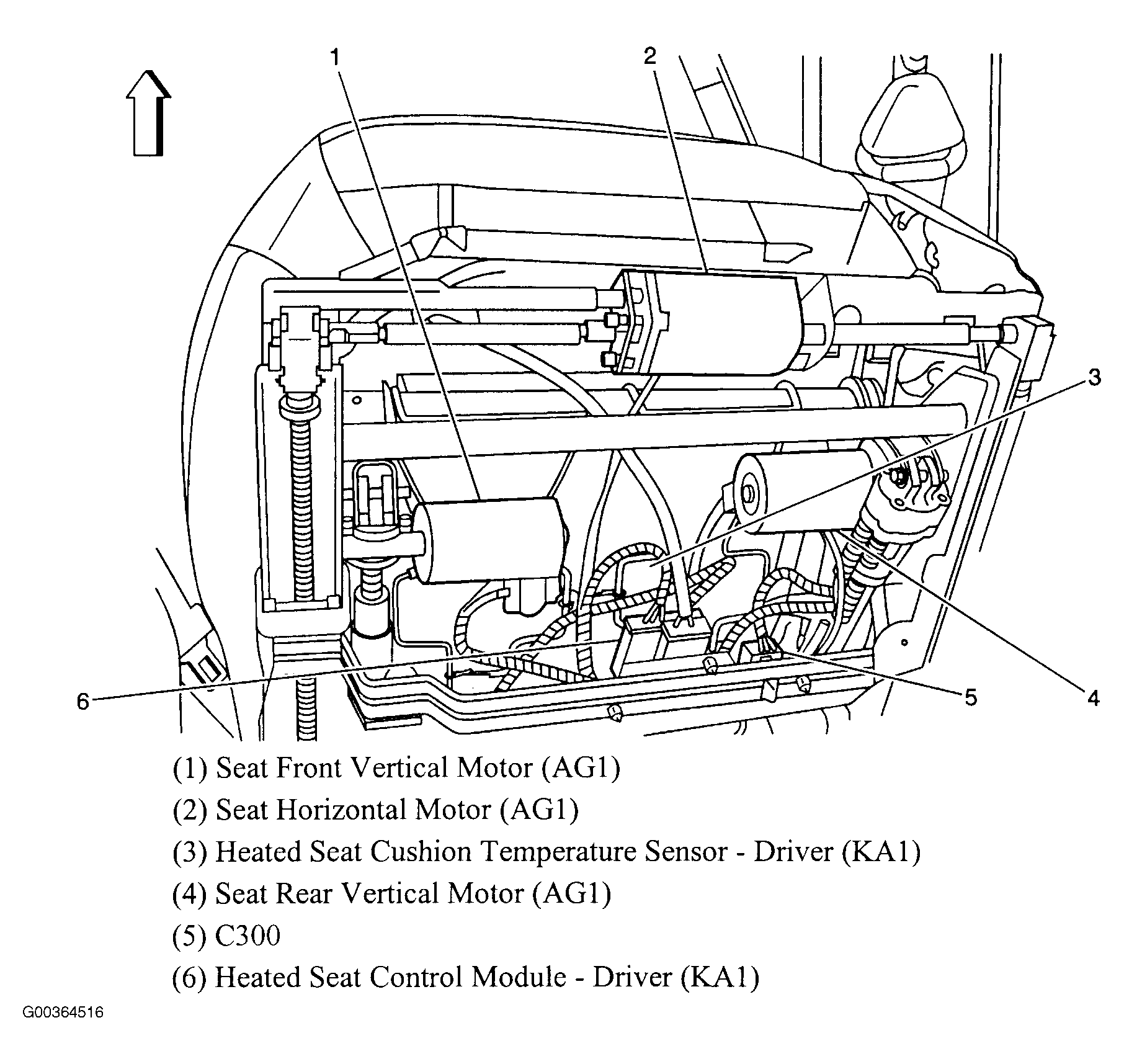

| Heated Seat Control Module - Driver | In left front of passenger compartment, under driver seat. See Figure. |

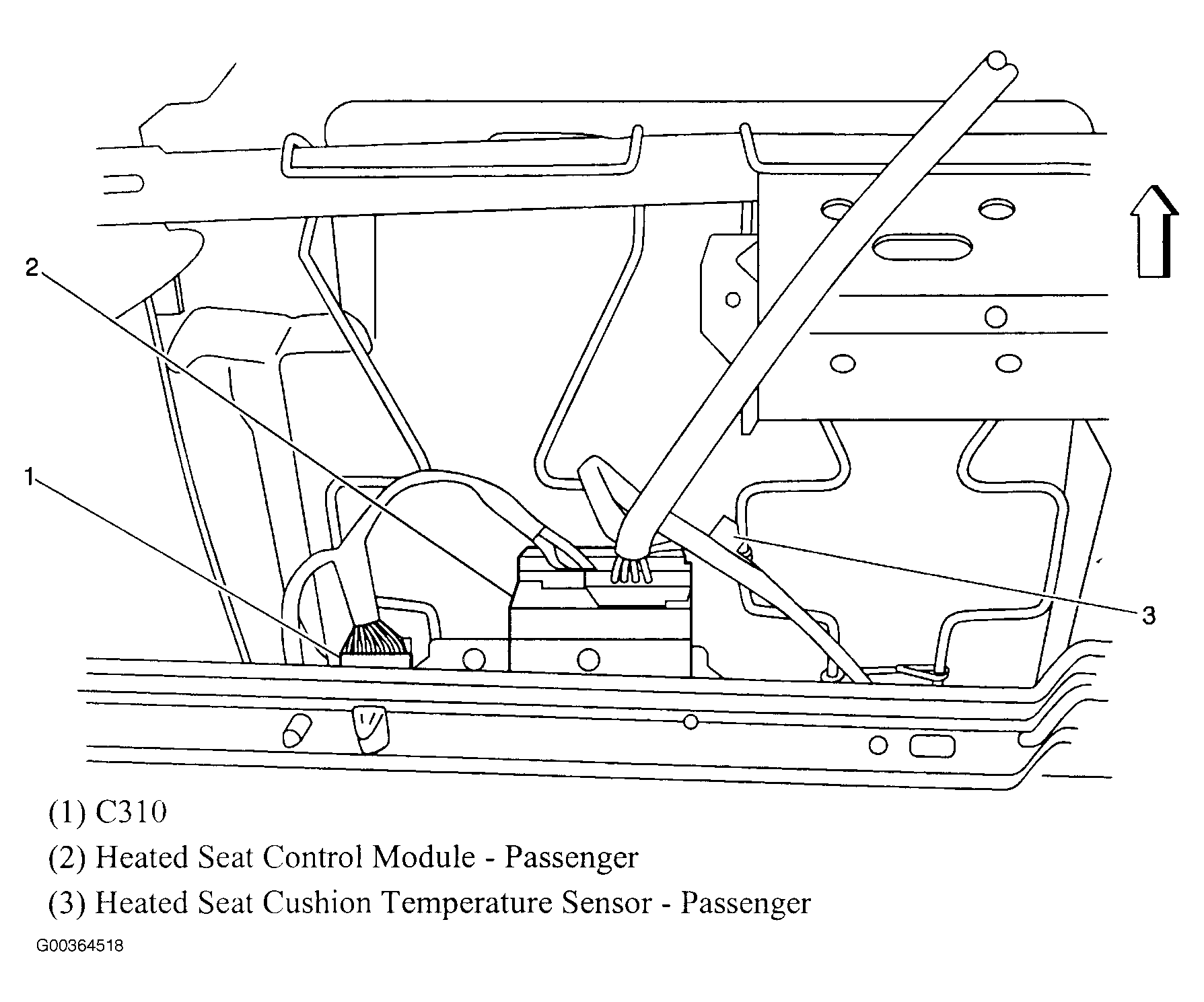

| Heated Seat Control Module - Passenger | In left front of passenger compartment, under passenger seat. See Figure. |

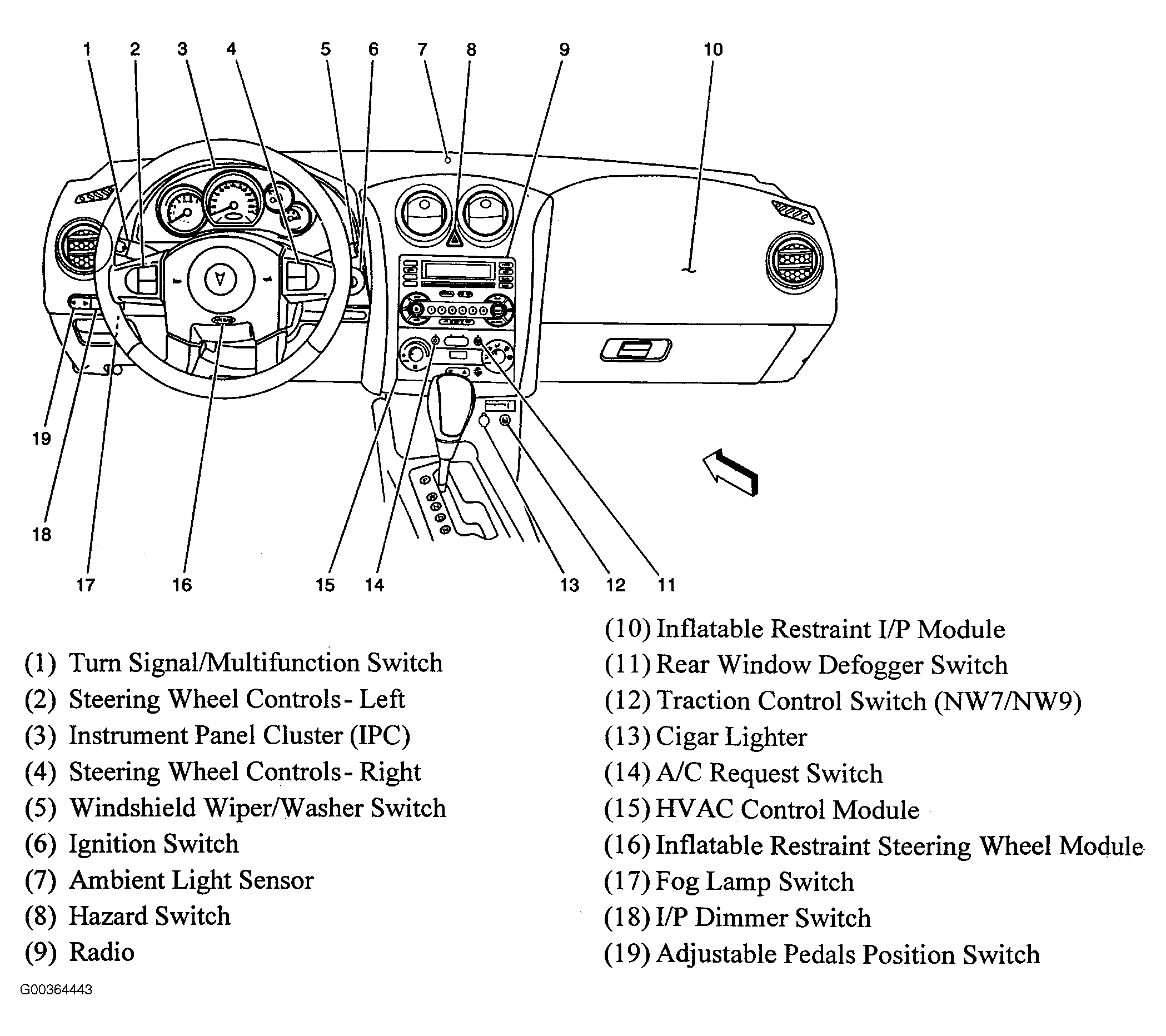

| HVAC Control Module | In lower center of dash, below radio. See Figure. |

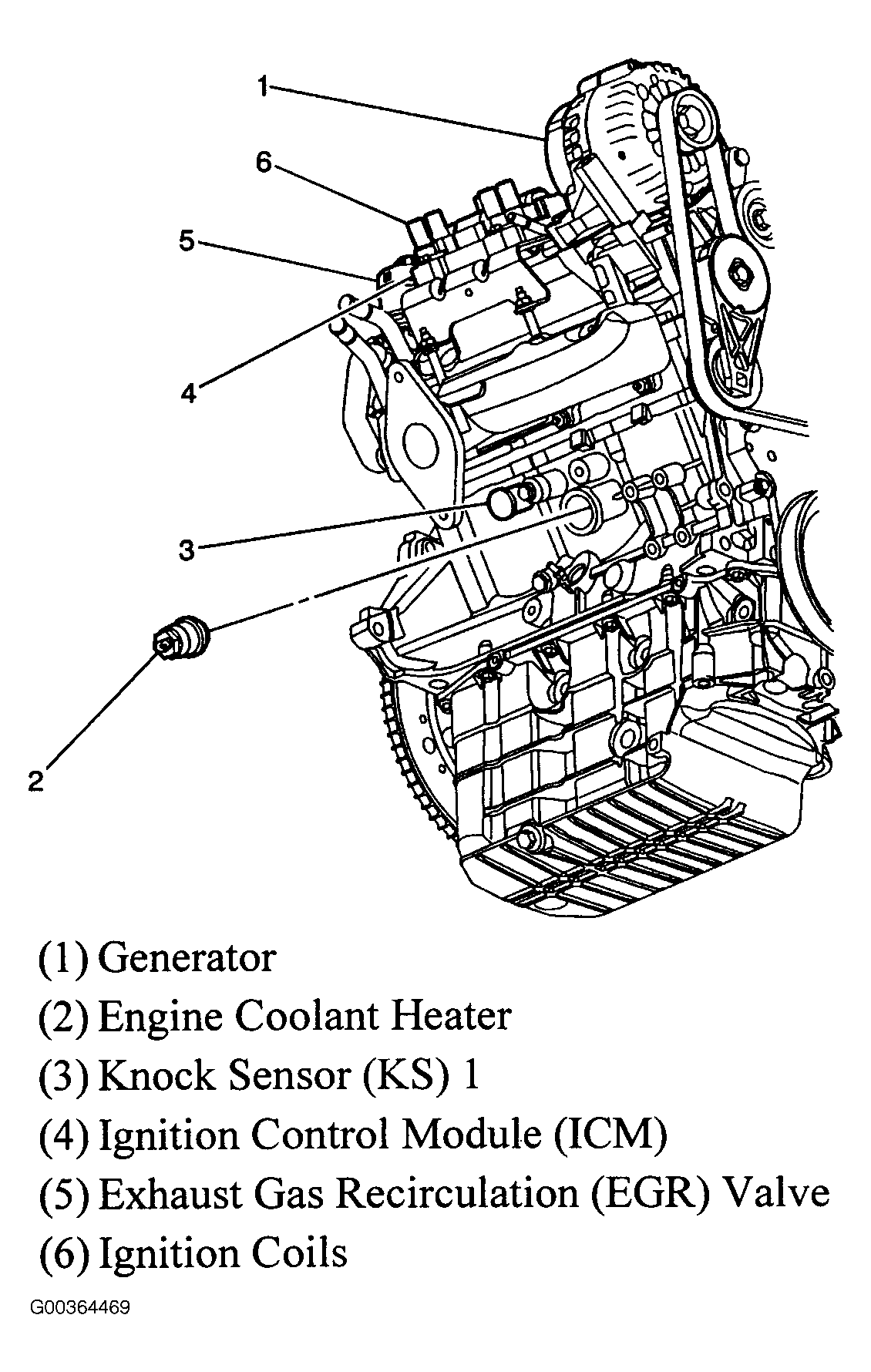

| Ignition Control Module (ICM) | Top right of engine. See Figure. |
| Ignition Control Module (ICM) | Upper rear of engine, on right side. See Figure. |
| Inflatable Restraint I/P Module | Right side of dash. See Figure. |

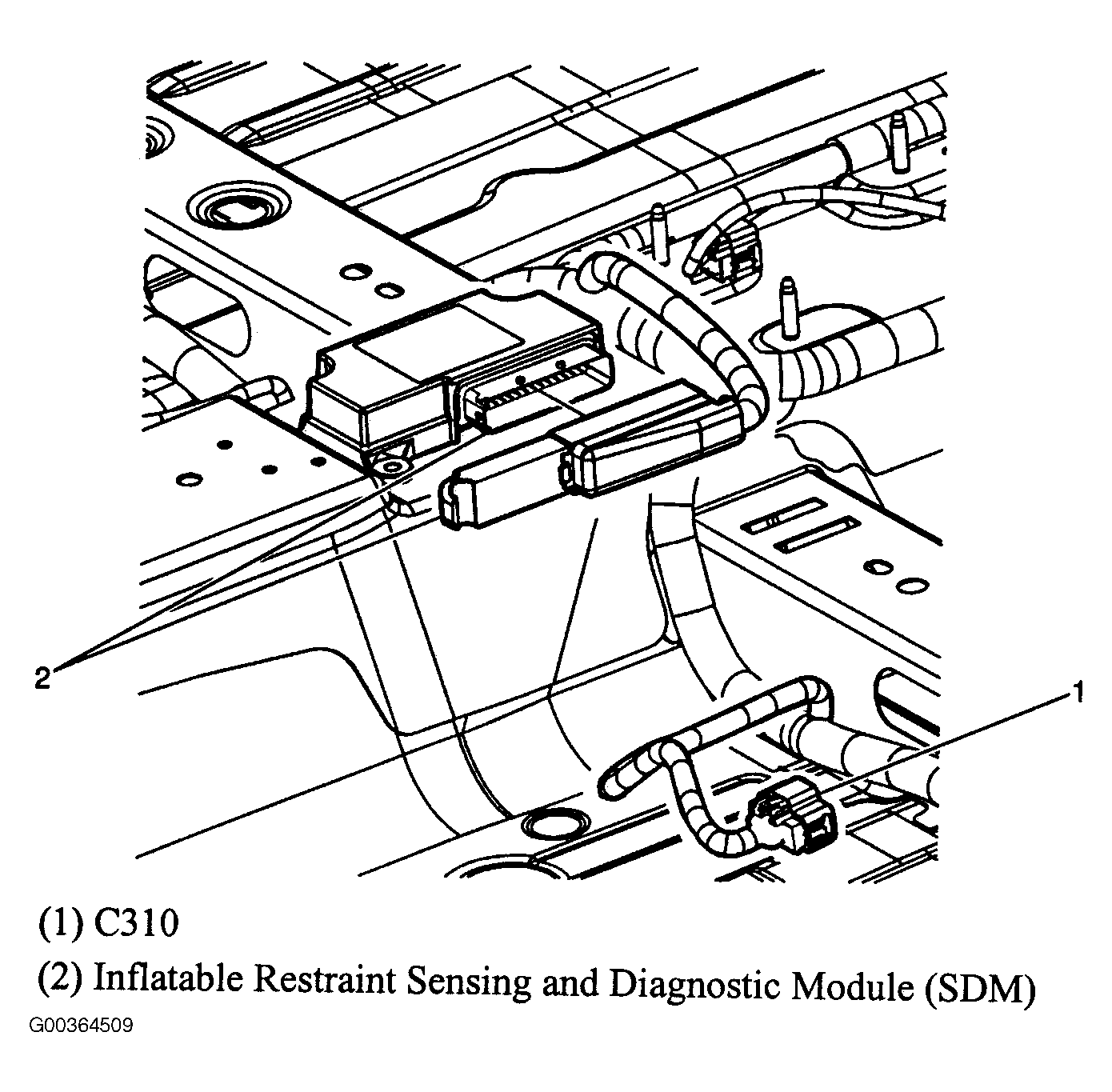

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console. See Figure. |

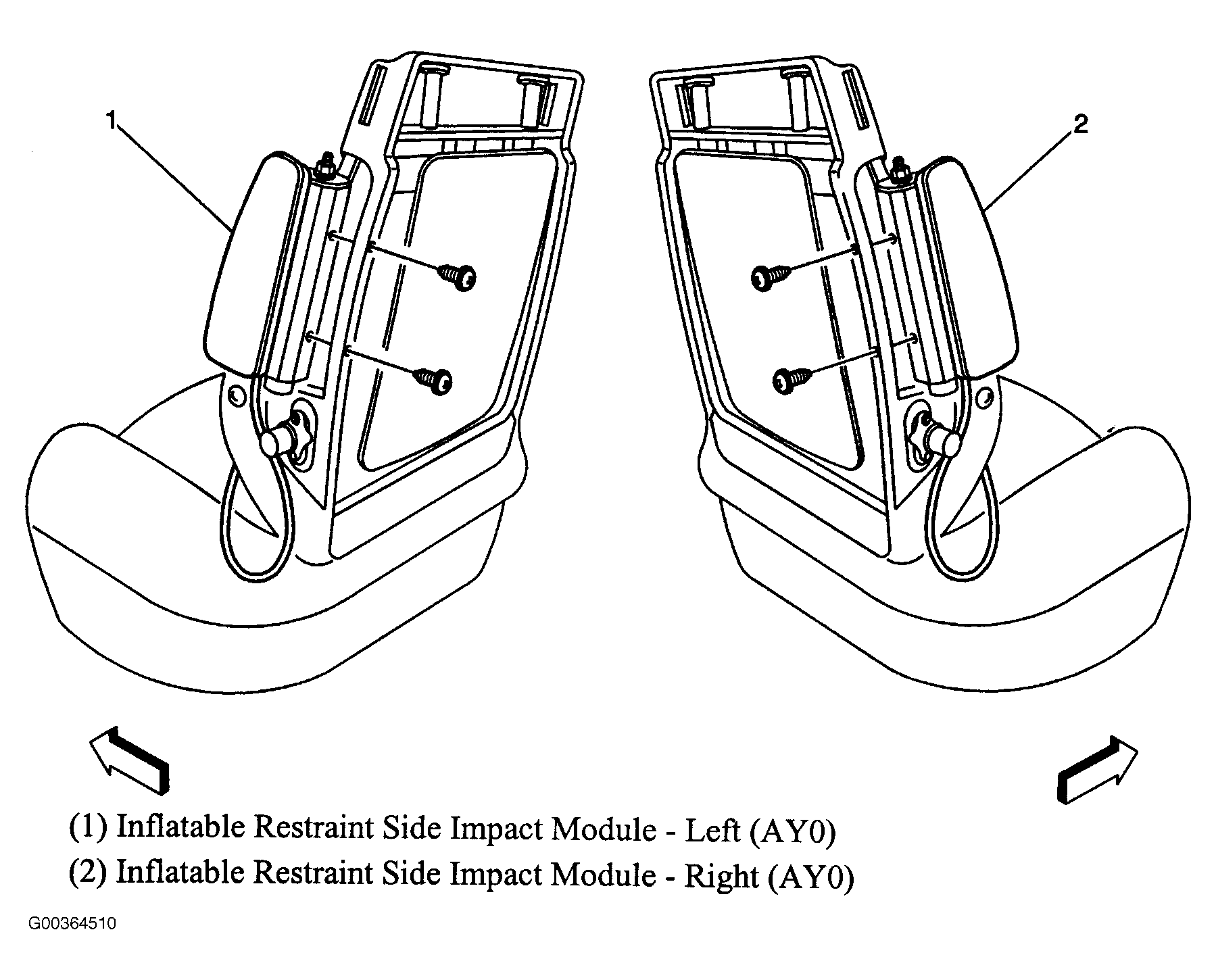

| Inflatable Restraint Side Impact Module - Left | In left front seat back, facing towards door. See Figure. |
| Inflatable Restraint Side Impact Module - Right | In right front seat back, facing towards door. See Figure. |
| Inflatable Restraint Side Impact Sensor - Left | In lower center of driver door. |
| Inflatable Restraint Side Impact Sensor - Right | In lower center of passenger door. |
| Inflatable Restraint Steering Wheel Module | In center of steering wheel. See Figure. |

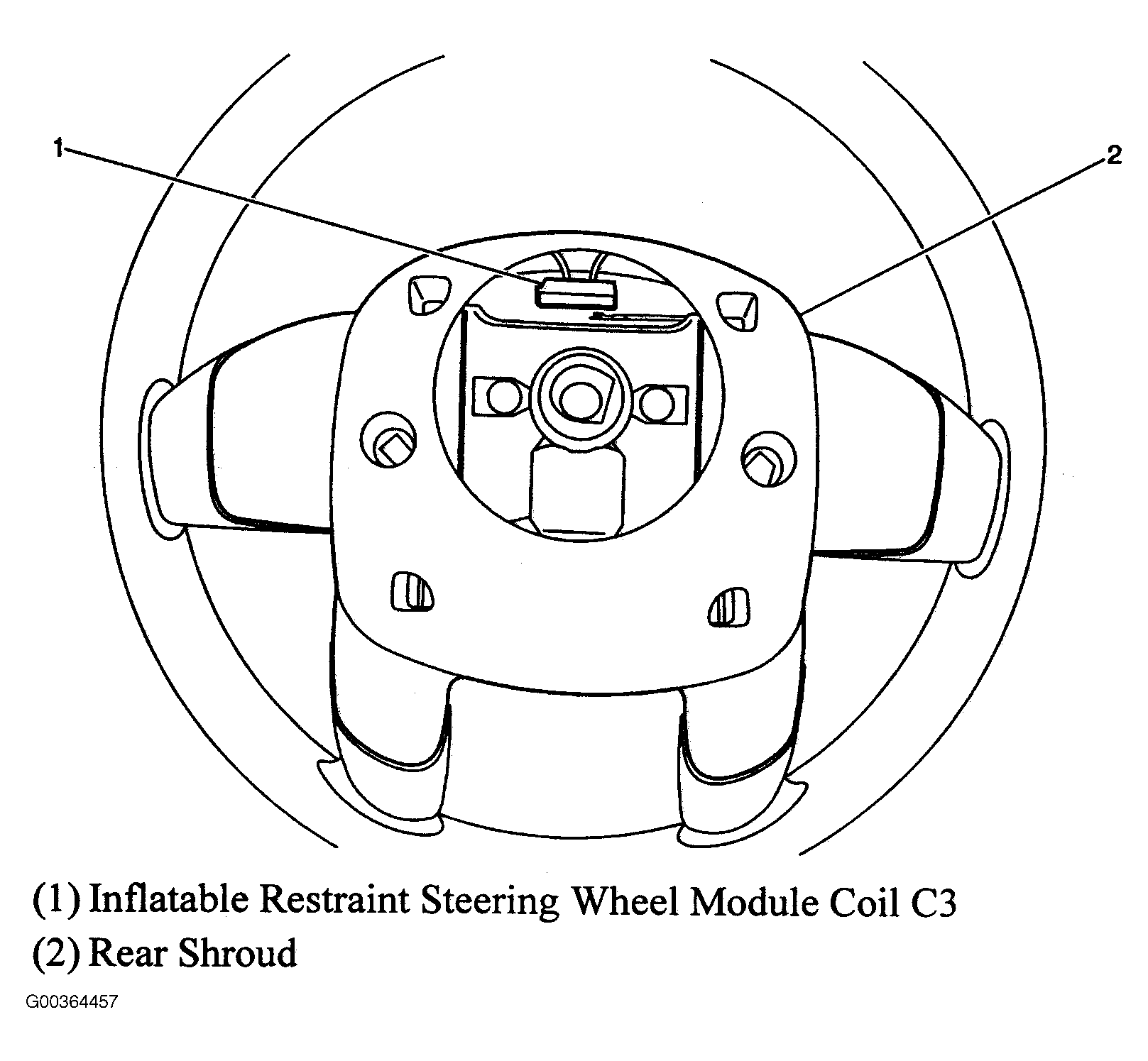

| Inflatable Restraint Steering Wheel Module Coil | In center of steering wheel. See Figure. |
| Power Steering Control Module | Under left knee bolster, to left of steering column. See Figure. |
| Powertrain Control Module (PCM) | Left side of engine compartment, in front of battery. See Figure. |

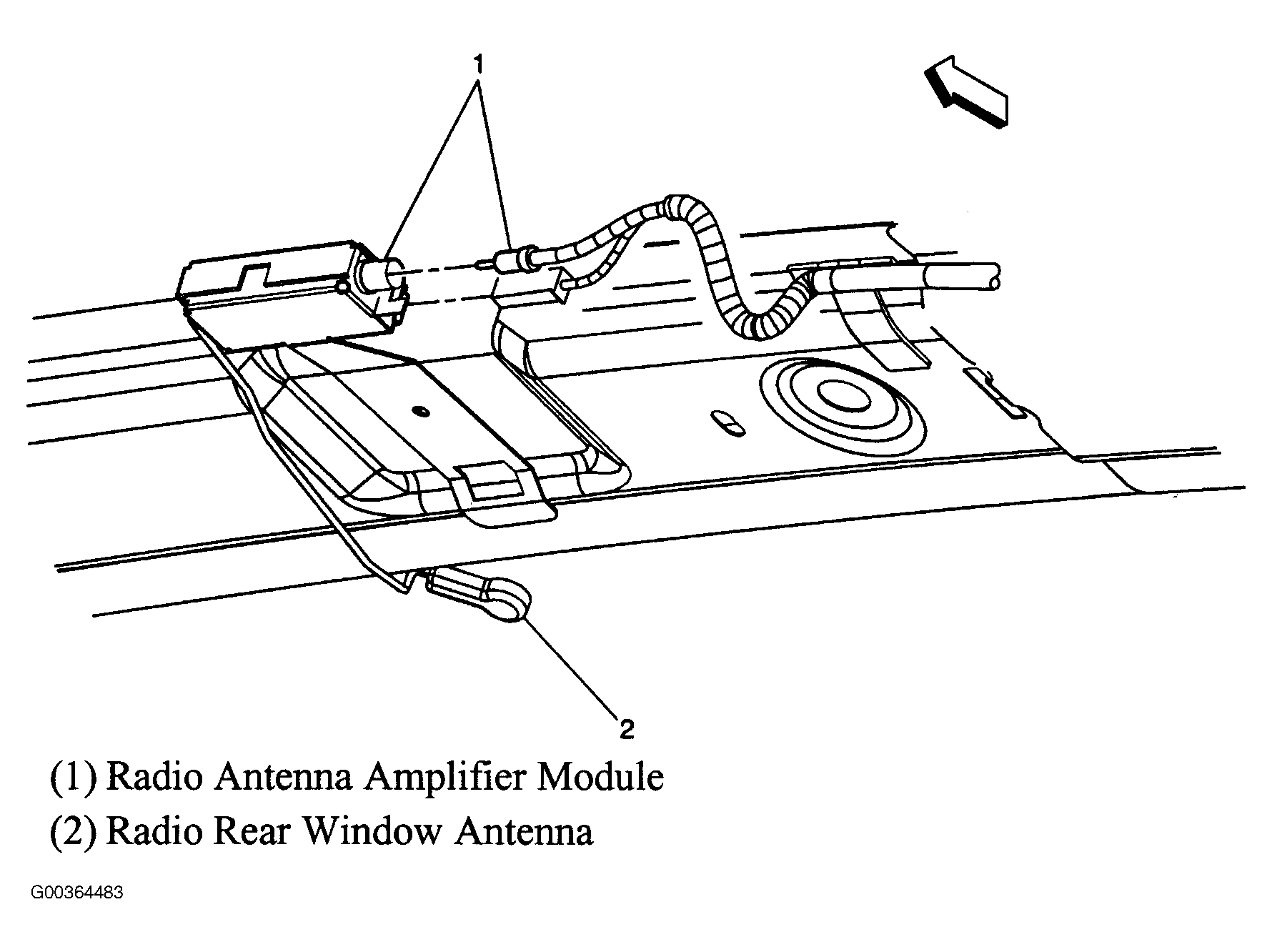

| Radio Antenna Amplifier Module | Right rear of roof under headliner. See Figure. |
| Radio Rear Window Antenna | Rear roof rail. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | Left rear of luggage compartment. See Figure. |

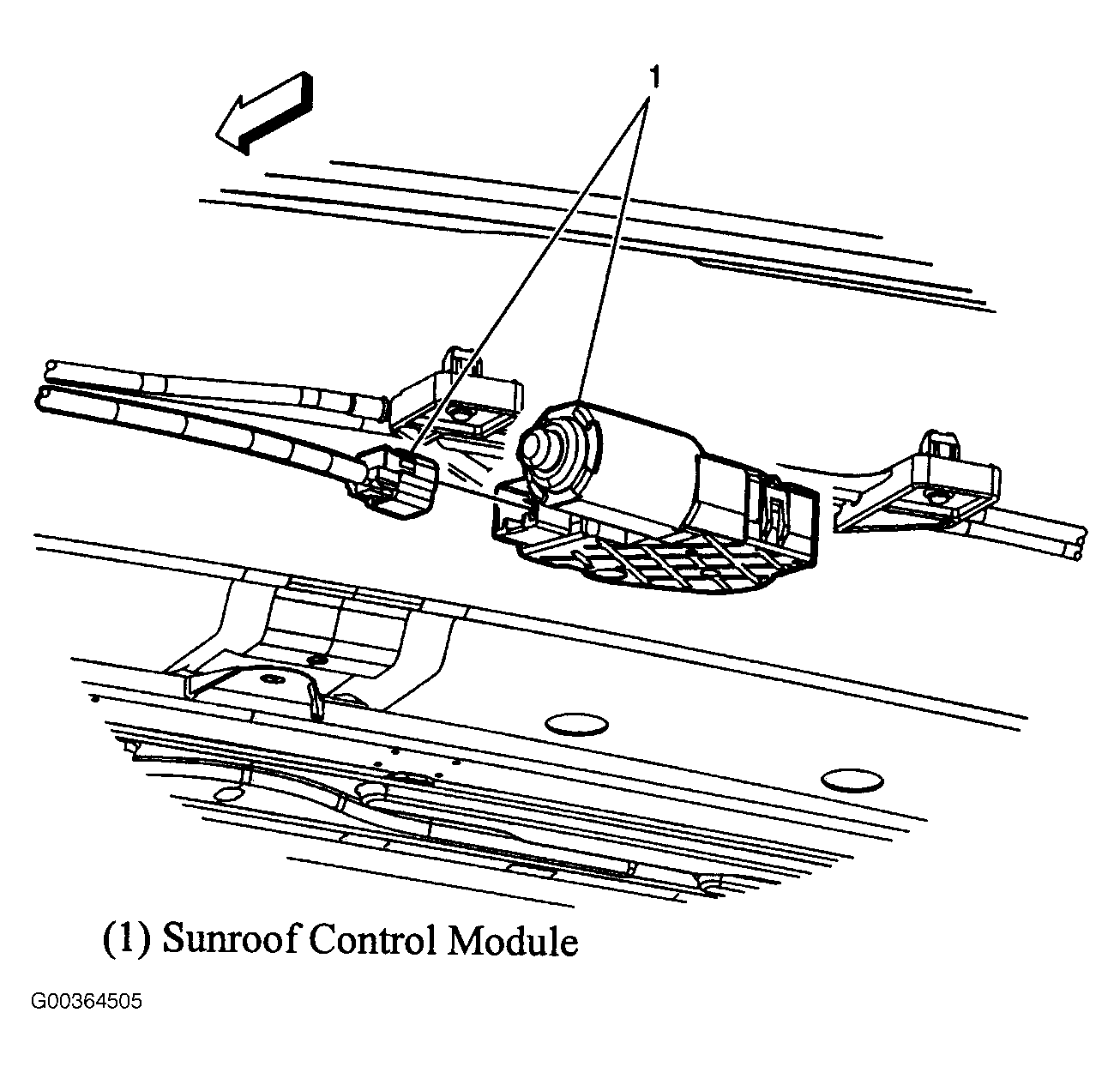

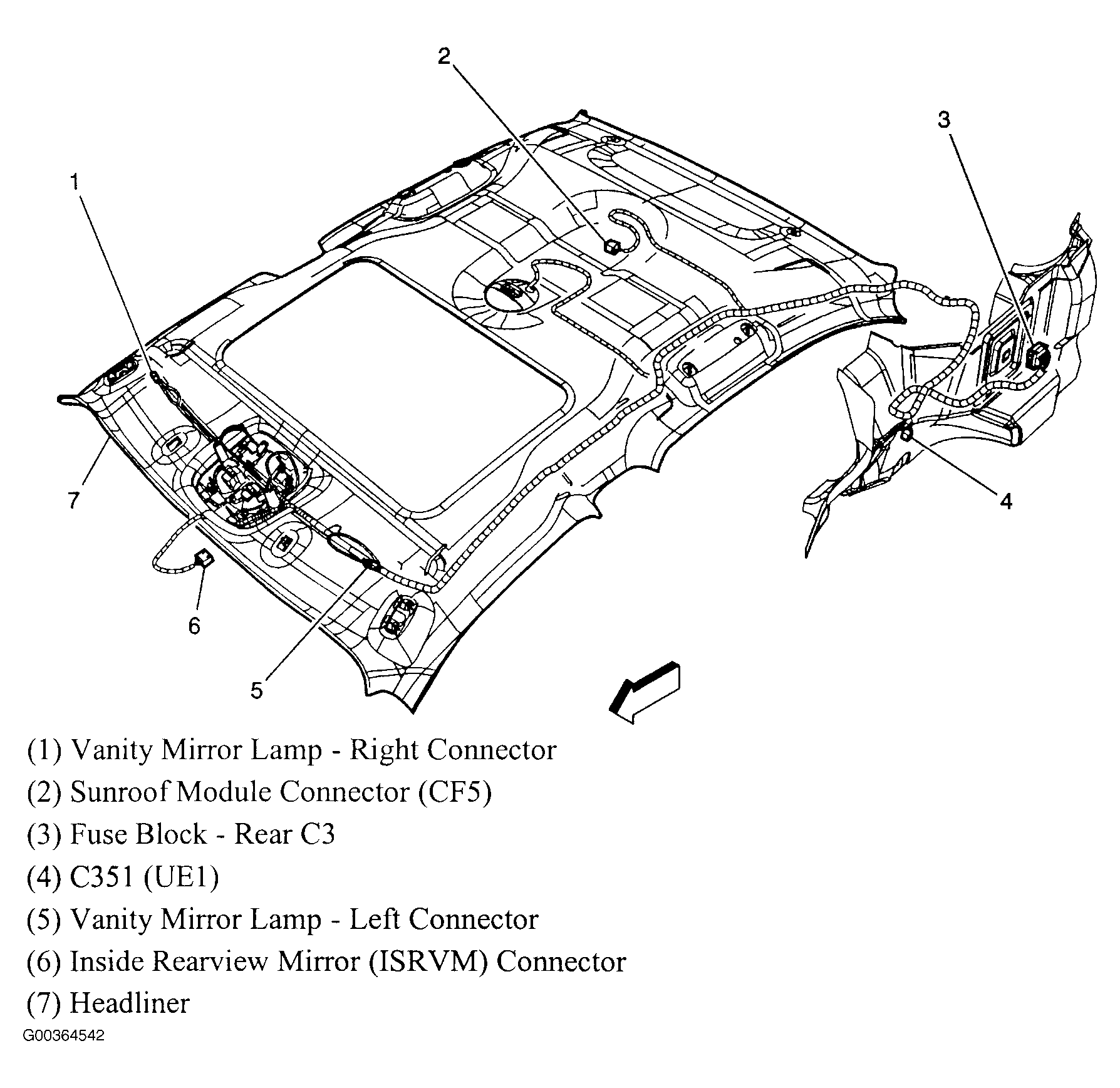

| Sunroof Control Module | Front left side of sunroof assembly, above left vanity mirror. See Figure. |

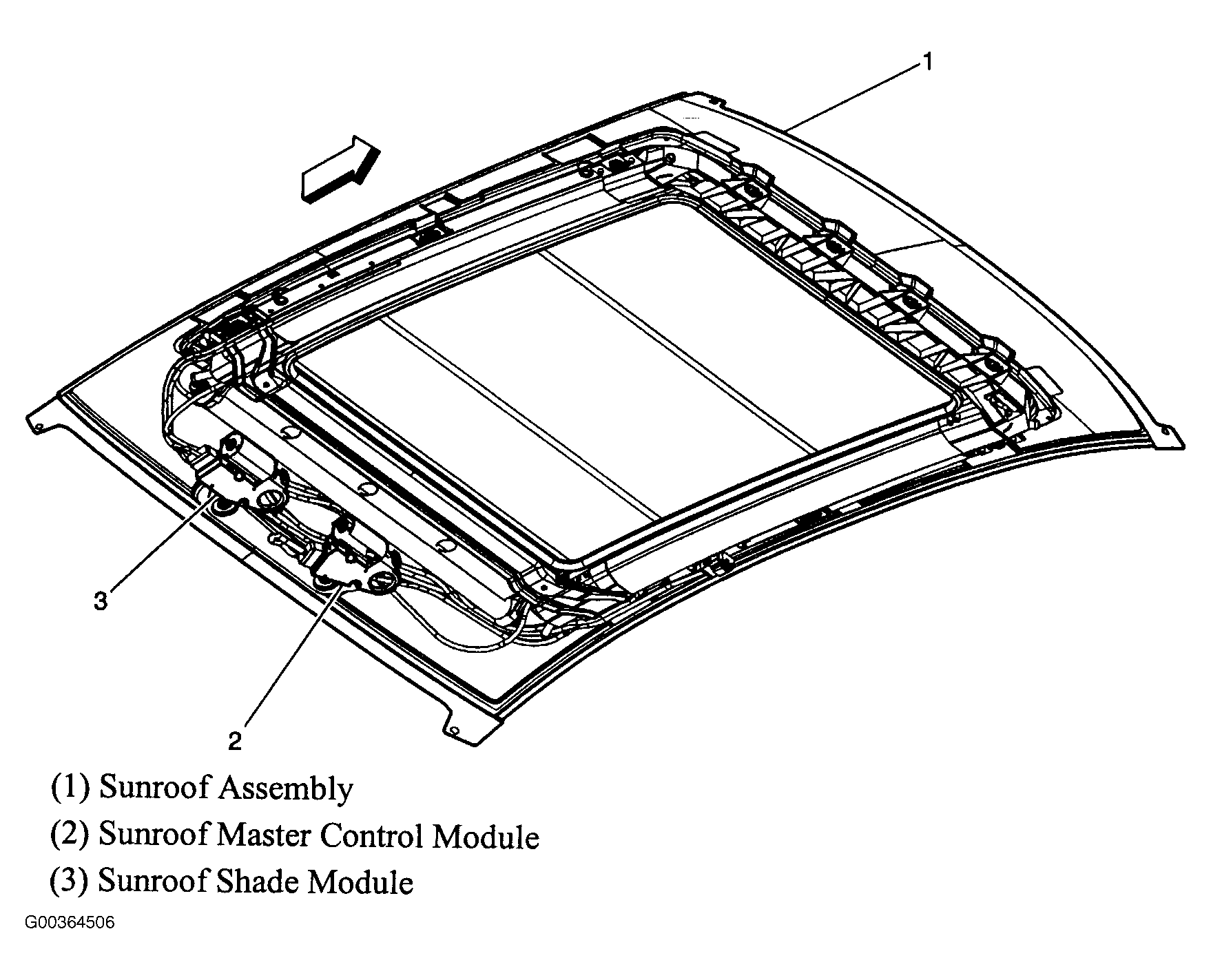

| Sunroof Master Control Module | In sunroof assembly. See Figure. |
| Sunroof Module Connector | Front left side of sunroof assembly, above left vanity mirror. See Figure. |
| Sunroof Shade Module | Rear center of sunroof assembly, above headliner. See Figure. |

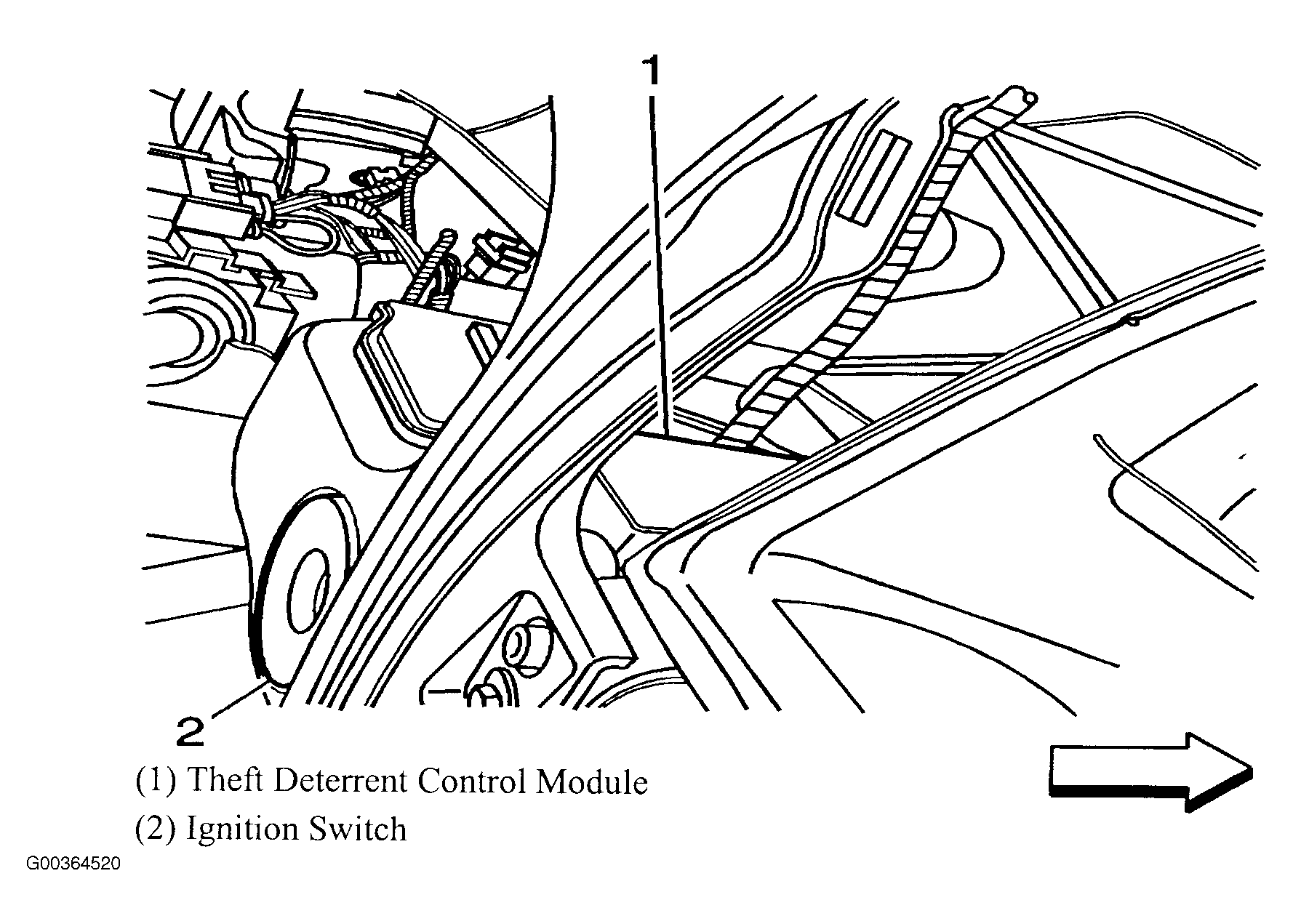

| Theft Deterrent Control Module | Left side of dash, attached to ignition key cylinder housing. See Figure. |

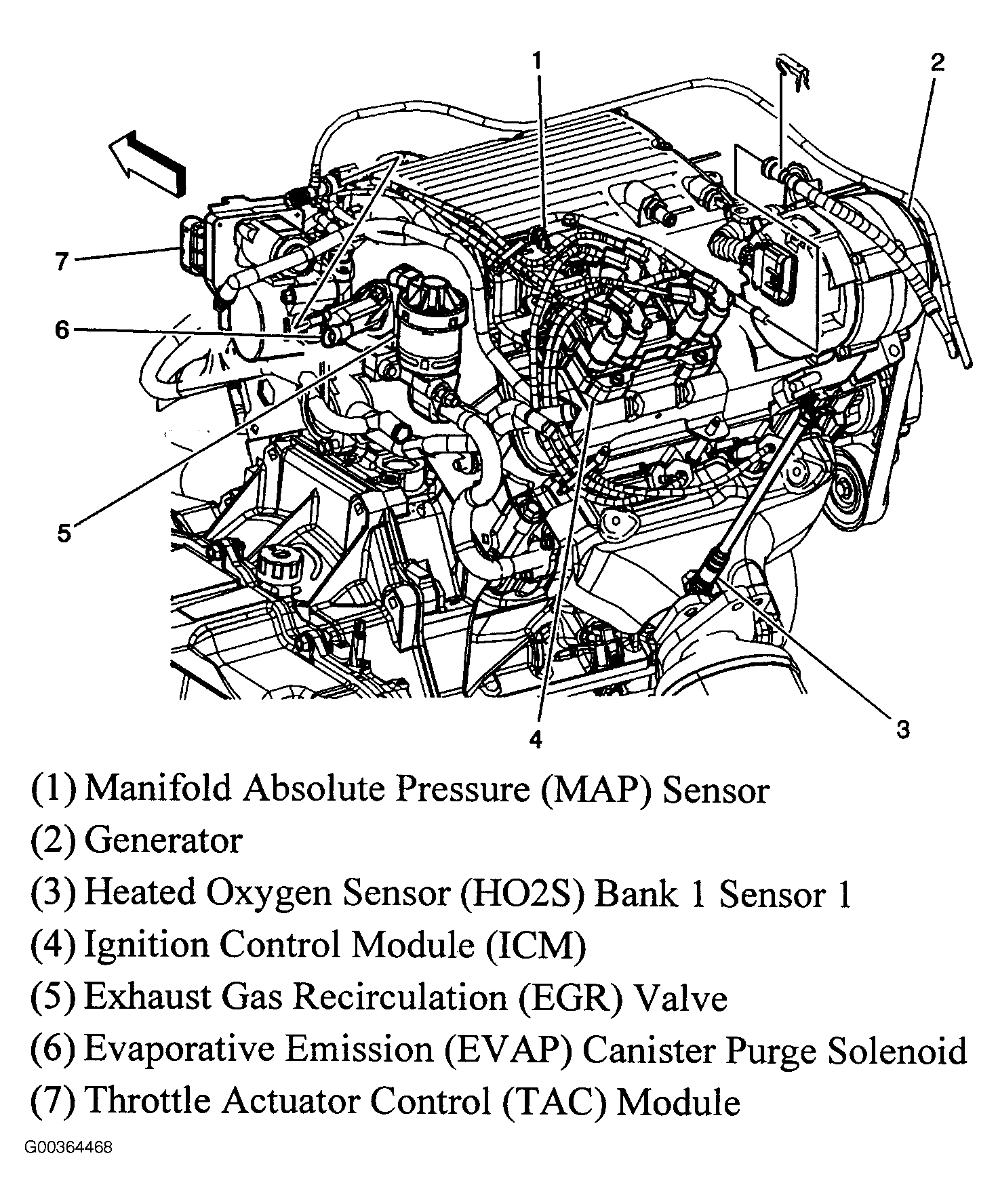

| Throttle Actuator Control (TAC) Module | Left side of engine compartment, on throttle assembly. See Figure. |

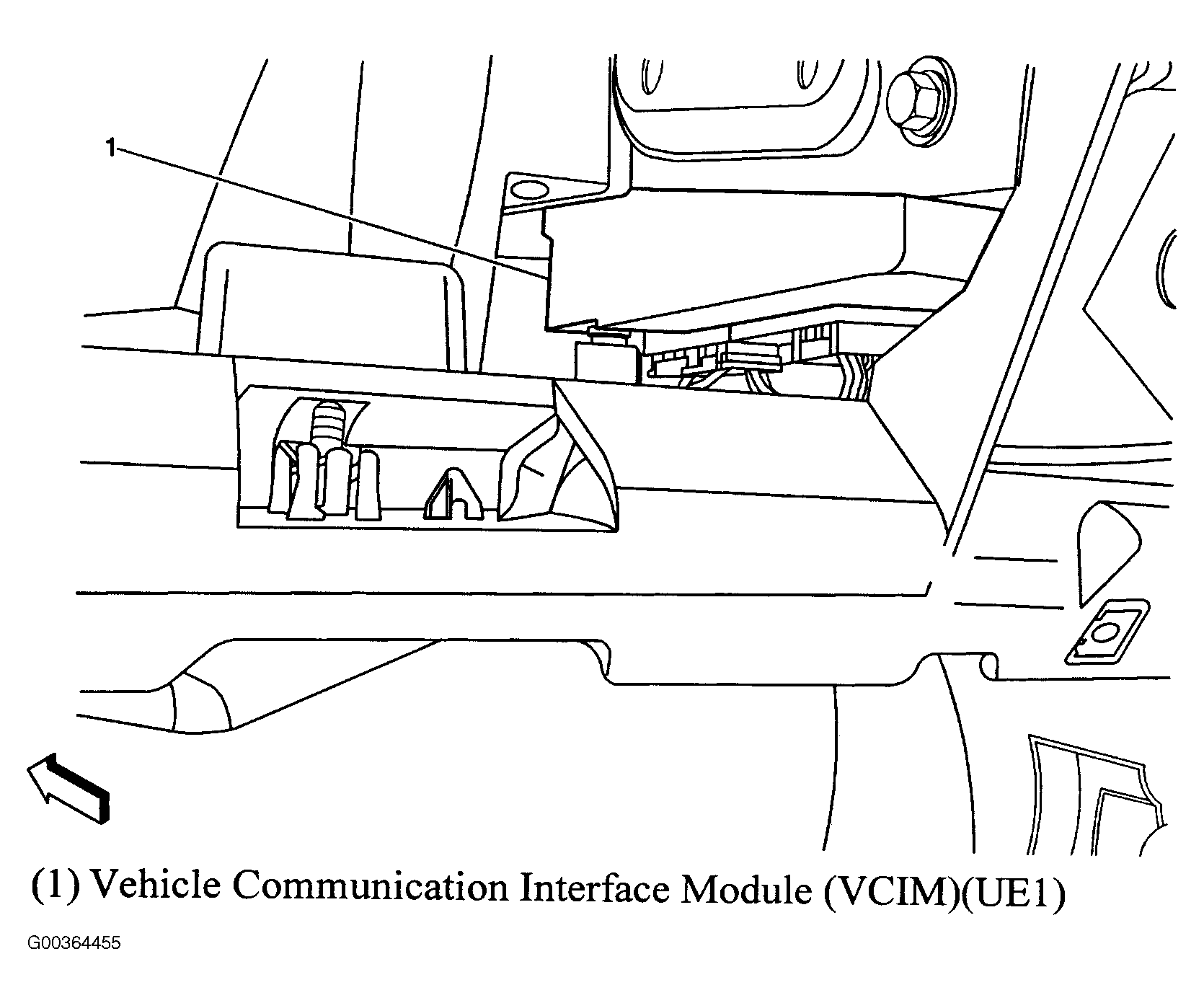

| Vehicle Communications Interface Module (VCIM) | Center of dash, behind HVAC control assembly. See Figure. |
