Lighting Systems Component Views

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

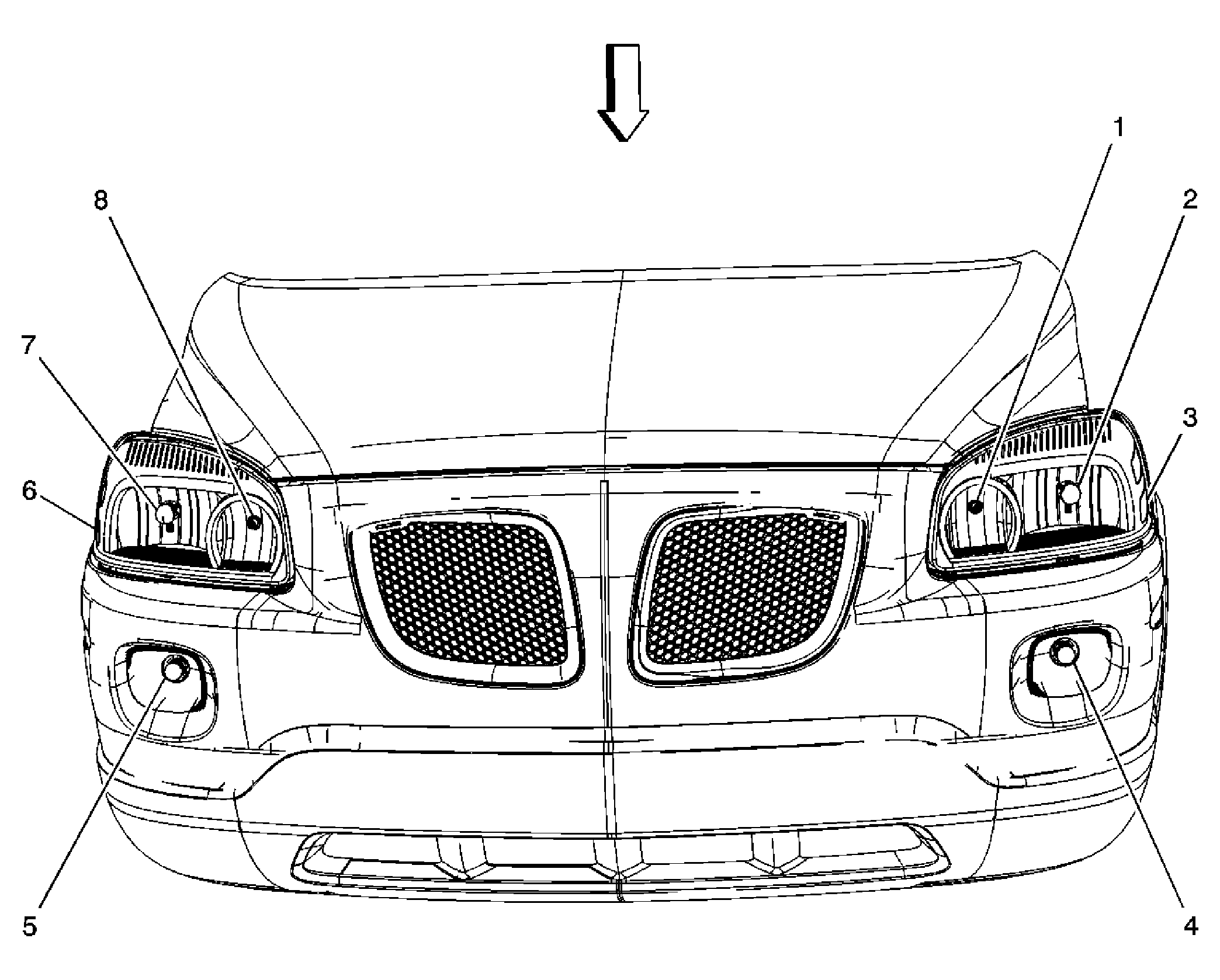

Fig 1: Identifying Front Fascia Exterior Lighting Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - High Beam - Left
2	Headlamp - Low Beam - Left
3	Marker Lamp - LF
4	Park/Turn Signal Lamp - LF
5	Park/Turn Signal Lamp - RF
6	Marker Lamp - RF
7	Headlamp - Low Beam - Right
8	Headlamp - High Beam - Right

Fig 2: Identifying I/P Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch Assembly - Right (UK3)
2	Instrument Panel Cluster (IPC)
3	Multifunction Switch - I/P
4	Theft Light Emitted Diode (LED) (UA6)
5	Ambient Light Sensor
6	Hazard Switch
7	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
8	Inflatable Restraint I/P Module
9	Radio
10	HVAC Control Module
11	Cigar Lighter
12	Cruise Control Lever (K34)
13	Inflatable Restraint Steering Wheel Module
14	Steering Wheel Control Switch Assembly - Left (Uk3)
15	Headlamp Switch
16	Turn Signal/Multifunction Switch

Fig 3: Identifying Left Side of I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	G201
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor
5	Data Link Connector (DLC)
6	Body Harness
7	Park Brake Switch
8	BCM - C2
9	BCM - C1
10	BCM - C3 (Steering Column Harness)

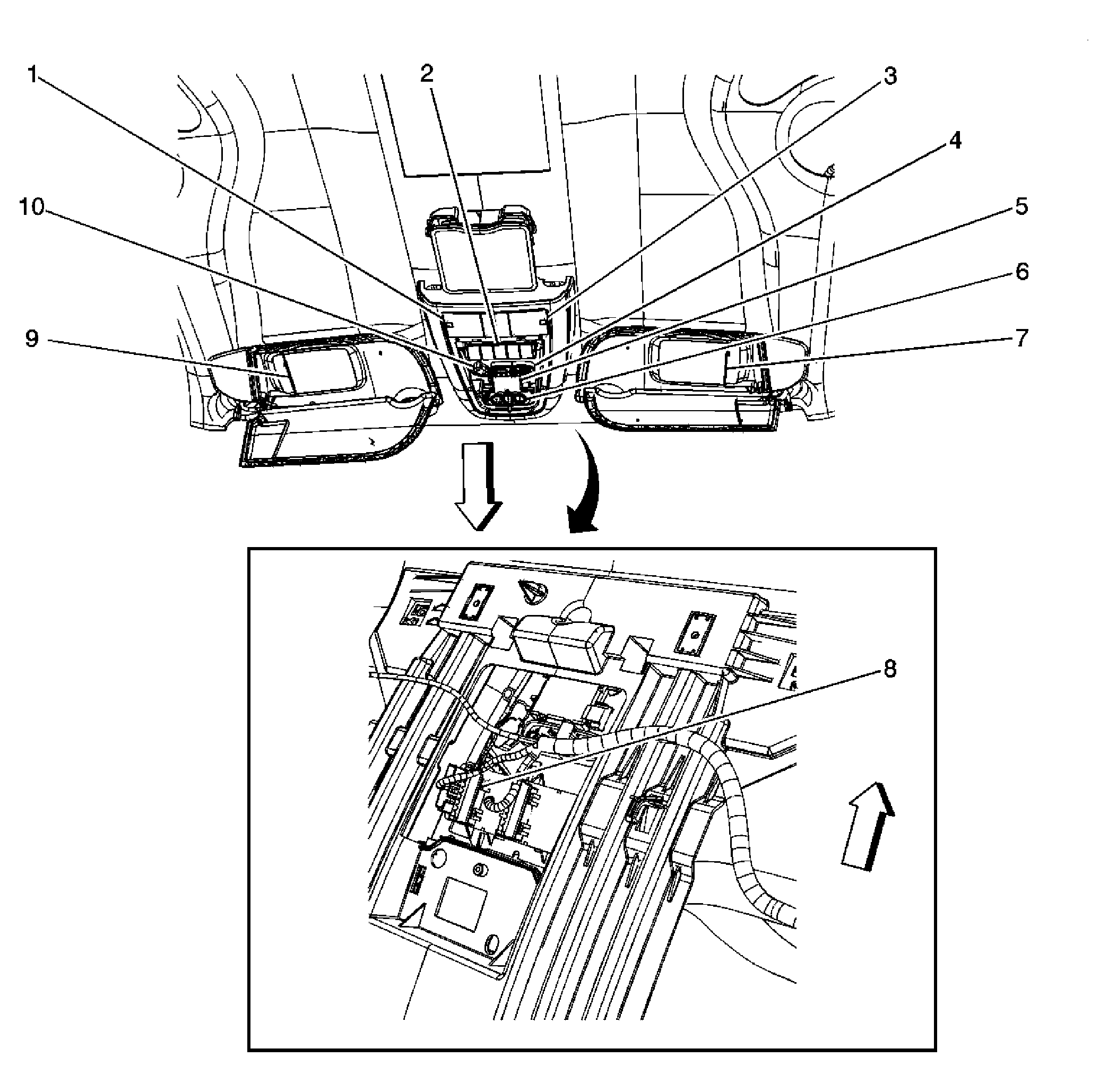

Fig 4: Identifying Front Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Front
2	Multifunction Switch - Overhead Console
3	Courtesy/Reading Lamp - Front
4	OnStar Button Assembly (UE1)
5	Garage Door Opener (UG1)
6	Garage Door Opener Buttons (UG1)
7	Vanity Mirror Lamp - Right (DH6)
8	Multifunction Switch Overhead Console
9	Vanity Mirror Lamp - Left (DH6)
10	Cellular Microphone (UE1)

Fig 5: Identifying Rear Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Rail Reading Lamp - Left
2	Cargo Lamp
3	Rear Parking Assist (RPA) Display (UD7)
4	Roof Rail Reading Lamp - Right

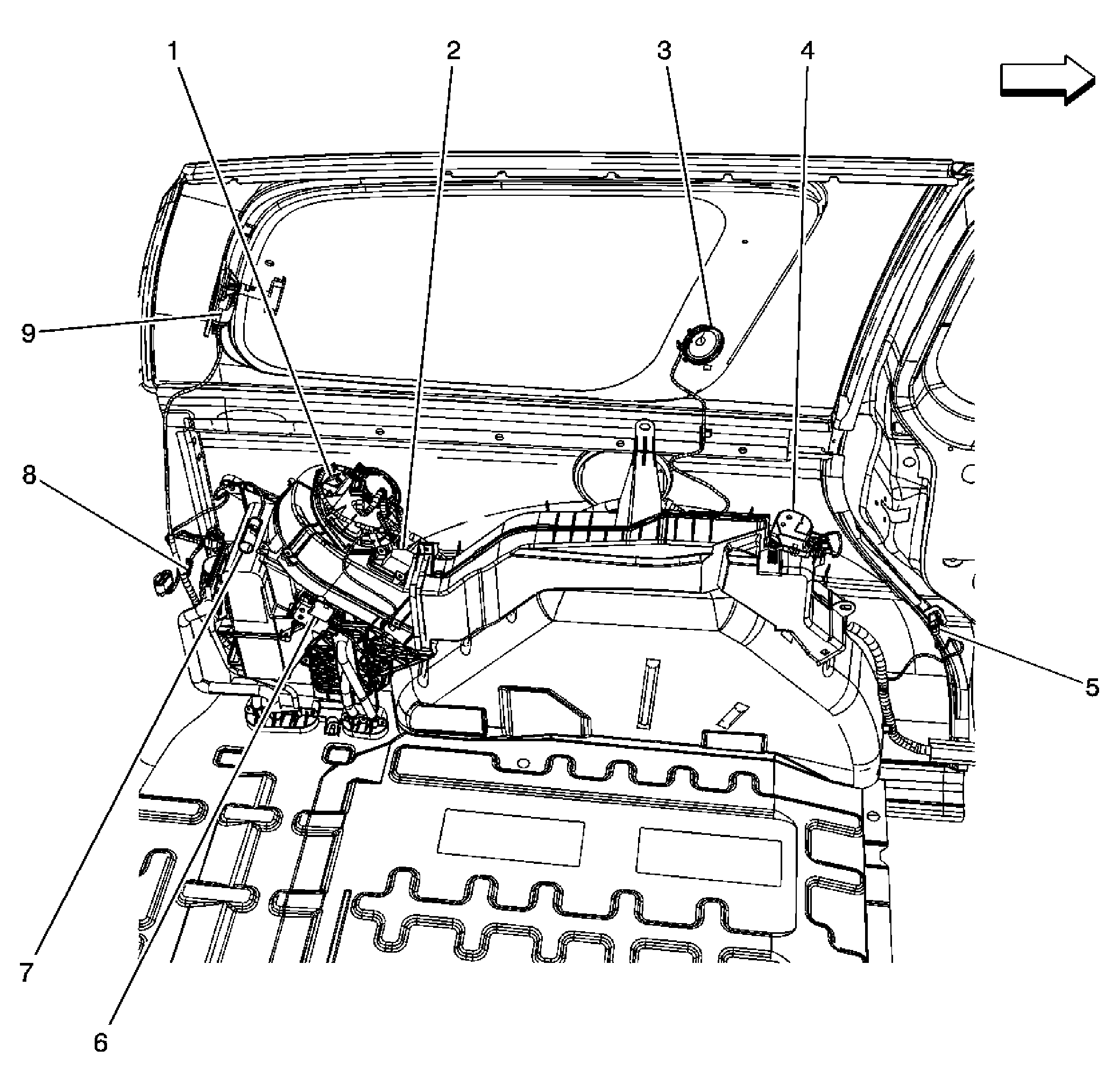

Fig 6: Identifying Left Rear Cargo - Body Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor - Auxiliary (C69)
2	Blower Motor Control Module - Auxiliary (C69)
3	Speaker - Rear Tweeter - Left
4	Mode Actuator - Auxiliary (C69)
5	Sliding Door Jamb Switch - Left (E59)
6	Air Temperature Actuator - Auxiliary (C69)
7	Auxiliary Power Outlet - Rear
8	G401
9	Rear Quarter Window Actuator - Left (A20)

Fig 7: Identifying Right Rear Cargo Components - Body Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Rear Tweeter - Right
2	Accessory AC/DC Power Control Module (KC7)
3	C420 Rear Parking Assist Display Jumper Harness to Body Harness (UD7)
4	Rear Quarter Window Actuator - Right (A20)
5	C402 and C400 Liftgate Harness to Body Harness
6	Rear Parking Assist (RPA) Display (UD7)
7	G400
8	Auxiliary Power Outlet - 115VAC (KC7)
9	Sliding Door Jamb Switch - Right
10	Rear Object Sensor Control Module (UD7)
11	Rear Parking Assist (RPA) Diagnostic Connector (UD7)

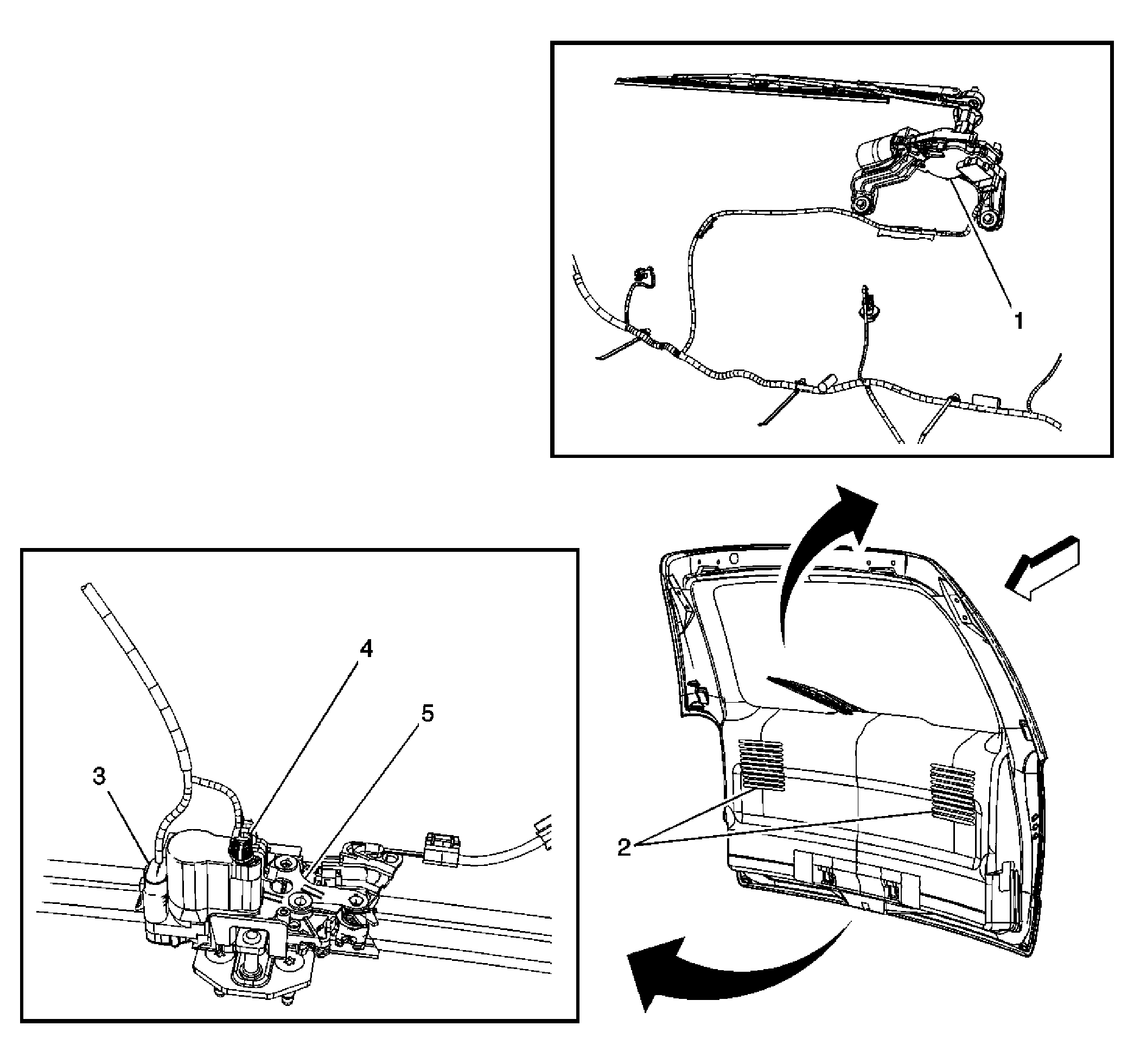

Fig 8: Identifying Liftgate Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper Motor
2	Speakers - LR/RR
3	Door Jamb Switch - Liftgate
4	Door Lock Actuator - Liftgate
5	Liftgate Latch Assembly

Fig 9: View Of Rear Fascia Exterior Lighting

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Tail Lamp - Right
3	Tail/Stop and Turn Signal Lamp - Right
4	Backup Lamp - Right
5	License Lamps
6	Object Sensor - RR Corner (UD7)
7	Object Sensor - RR Middle (UD7)
8	Object Sensor - LR Middle (UD7)
9	Object Sensor - LR Corner (UD7)
10	Backup Lamp - Left
11	Tail/Stop and Turn Signal Lamp - Left
12	Tail Lamp - Left
13	CHMSL Resistor (R900)
