Multifunction Switch - I/P

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

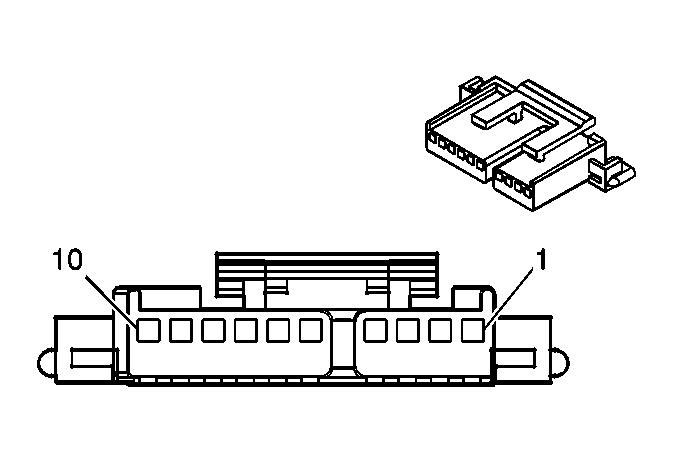

Fig 1: Multifunction Switch Connector End View - I/P
GM62435Courtesy of GENERAL MOTORS CORP.
Lighting Systems Connector End Views

Connector Part Information
  • OEM: 12047531
  • Service: 12085486
  • Description: 10-Way F Micro-Pack 100 Series (BK)
Terminal Part Information
  • Terminal: 12146447/Tray 3
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12031876-1/J-35616-6
Multifunction Switch - I/P

Pin Wire Color Circuit No. Function
1 BK/WH 1551 Ground
2 OG 1816 DIC Set/Reset Switch Signal
3 GY 8 Instrument Panel Lamp Supply Voltage
4 BN/WH 1571 Traction Control Switch Signal (NW9)
5 OG 1328 DIC Menu Signal
6 PK 893 DIC Info Down Signal
7 YE 1327 DIC Info Up Signal
8 TN 2144 Hazard Switch Signal
9-10 - - Not Used
