Headlamp Switch Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

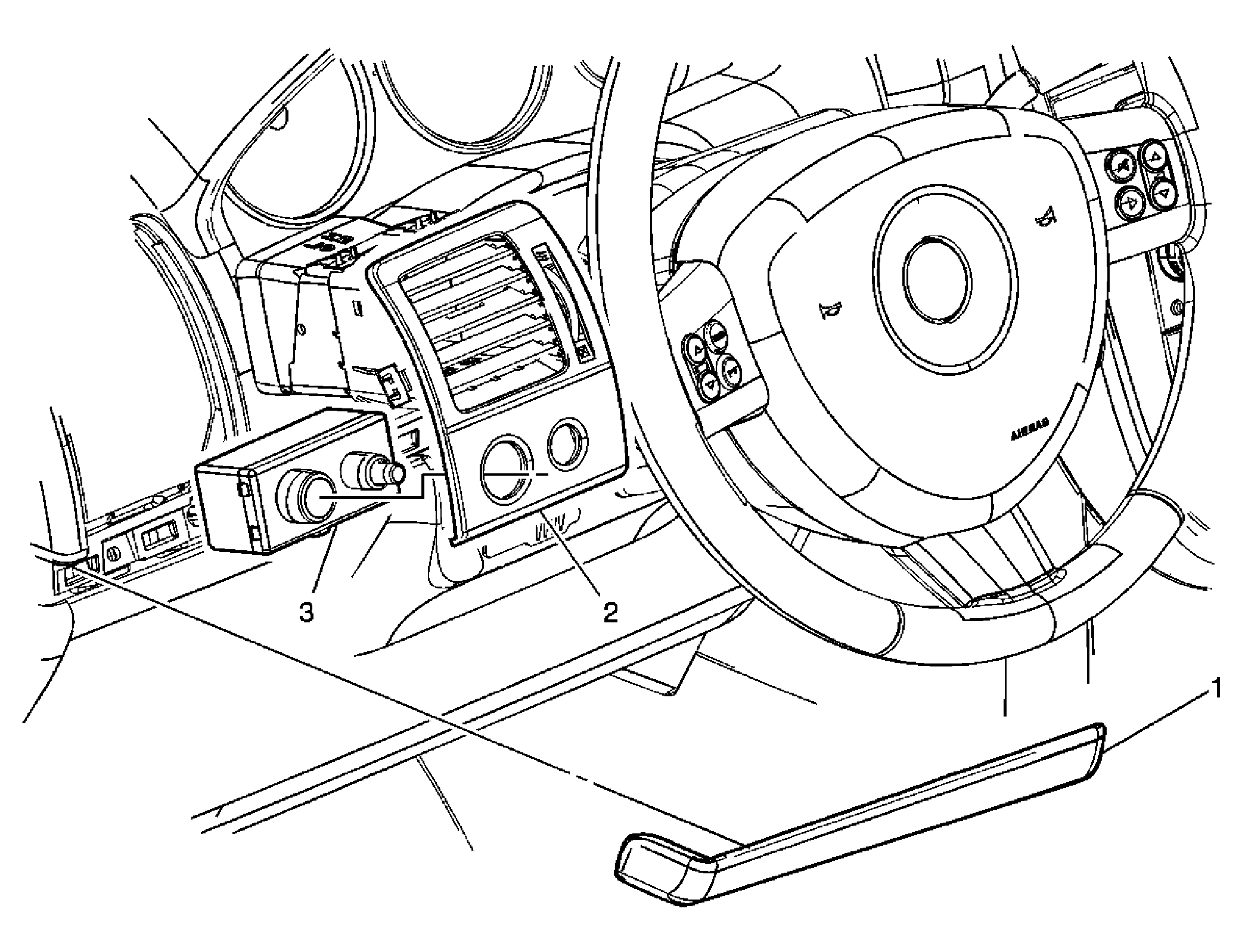

Fig 1: Identifying Headlamp Switch Assembly
GM1501466Courtesy of GENERAL MOTORS CORP.
Headlamp Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Headlamp and Instrument Panel (I/P) Lamp Dimmer Switch Replacement
1 Molding Assembly, I/P Steering Column Opening
2 Outlet Assembly, I/P A/C Left
Tip:
  1. Pull rearward of the I/P to remove.
  2. Disconnect electrical connector from the headlamp switch.
3 Switch Assembly, Headlamp and I/P Lamp Dimmer
