License Lamp Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

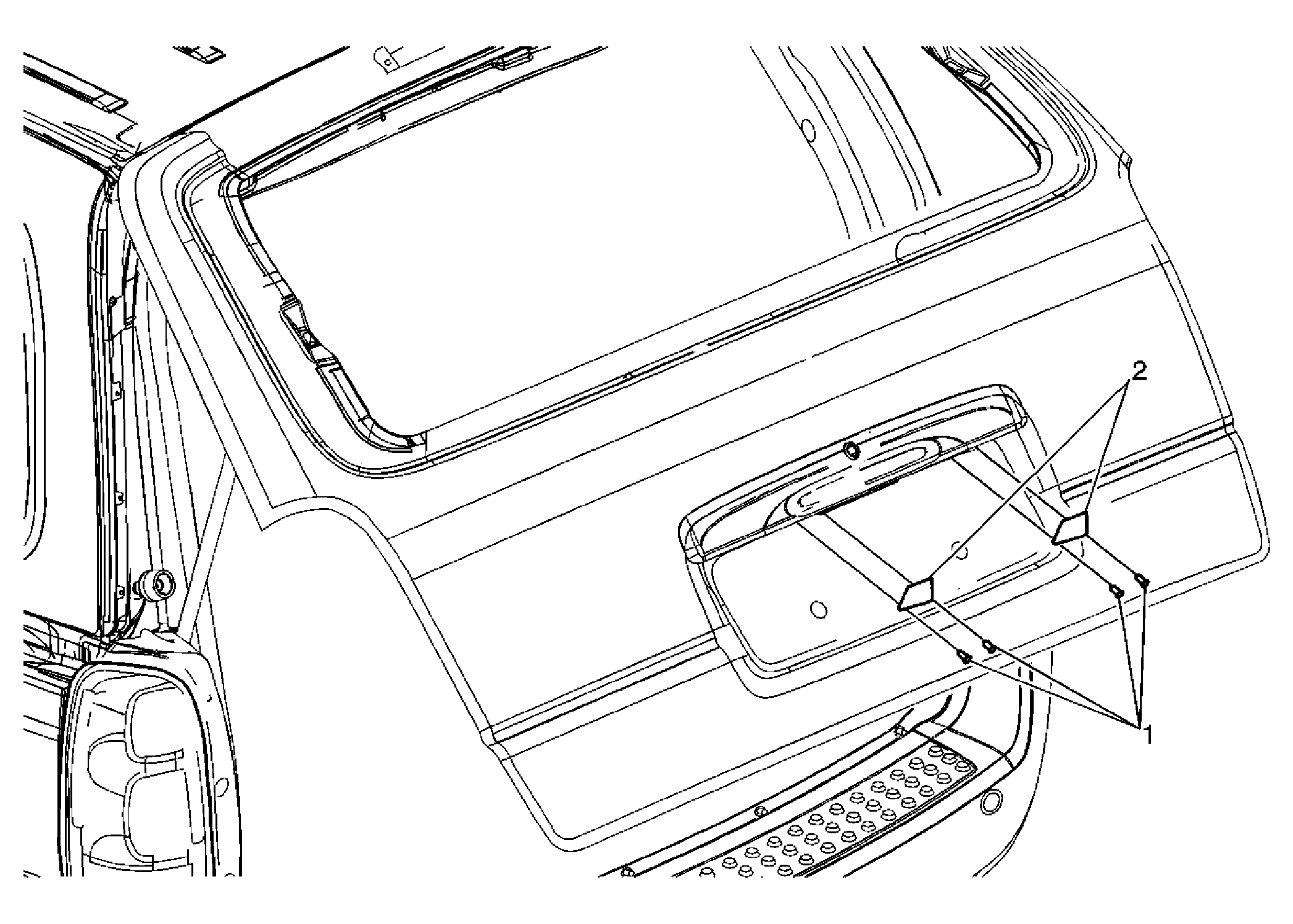

Fig 1: Replacing License Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Rear License Plate Lamp Replacement
1	Screw, Rear License Plate Lamp (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Lens, Rear License Plate Lamp (Qty: 2) Tip: Remove and replace the bulbs if necessary after the lens has been removed.
