Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

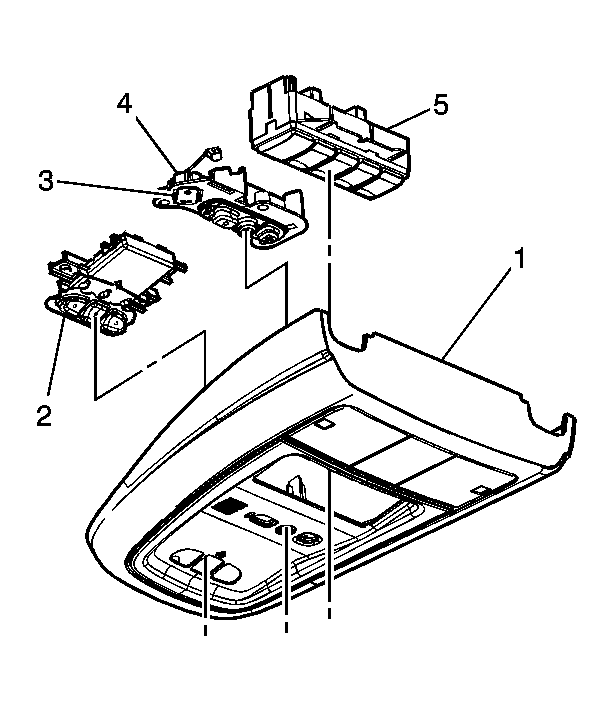

    Fig 1: Identifying Overhead Console Components
    GM1530702Courtesy of GENERAL MOTORS CORP.
  1. Snap the multifunction switch (5) into the opening in the overhead console.

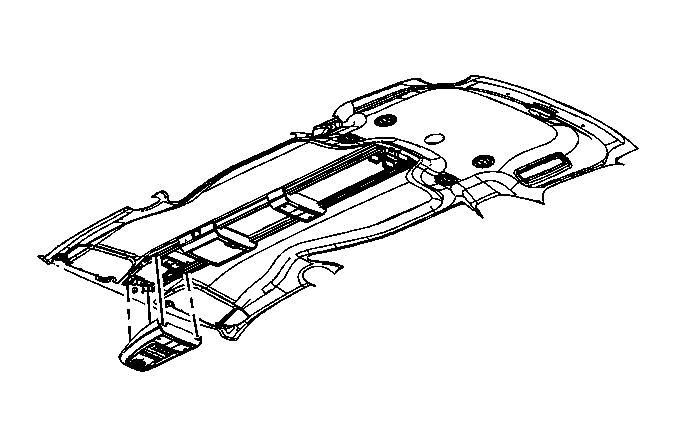

    2. Fig 2: View Of Overhead Console Mounting
    GM1530697Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.
  3. Align the overhead console within the vehicle.
  4. Install the overhead console. Refer to Console Replacement - Overhead in Interior Trim.
