Object Detection Component Views
WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

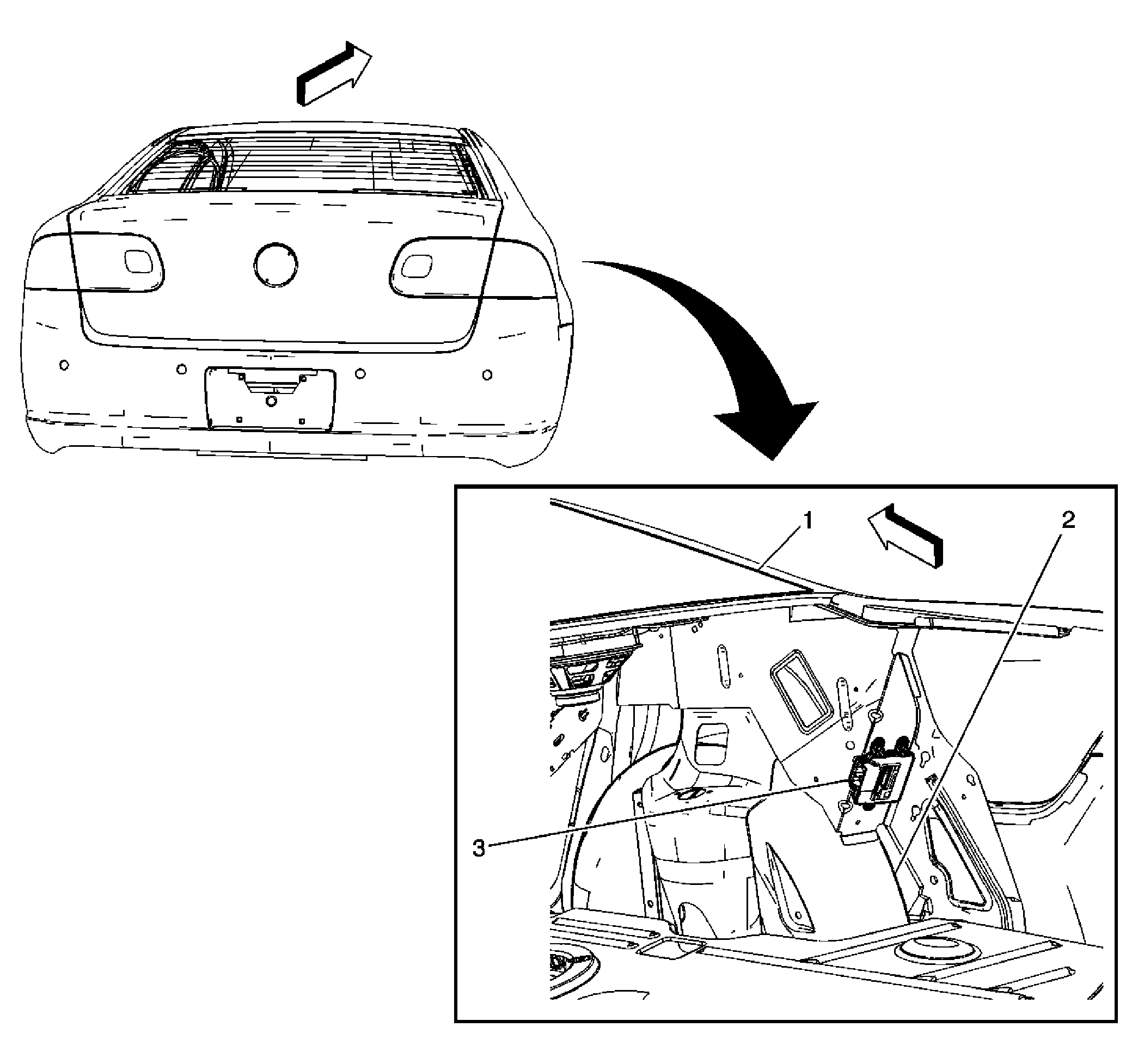

| Callout | Component Name |
|---|---|
| 1 | Rear Window |
| 2 | Wheel Well - RR |
| 3 | Object Alarm Module (UFR) |

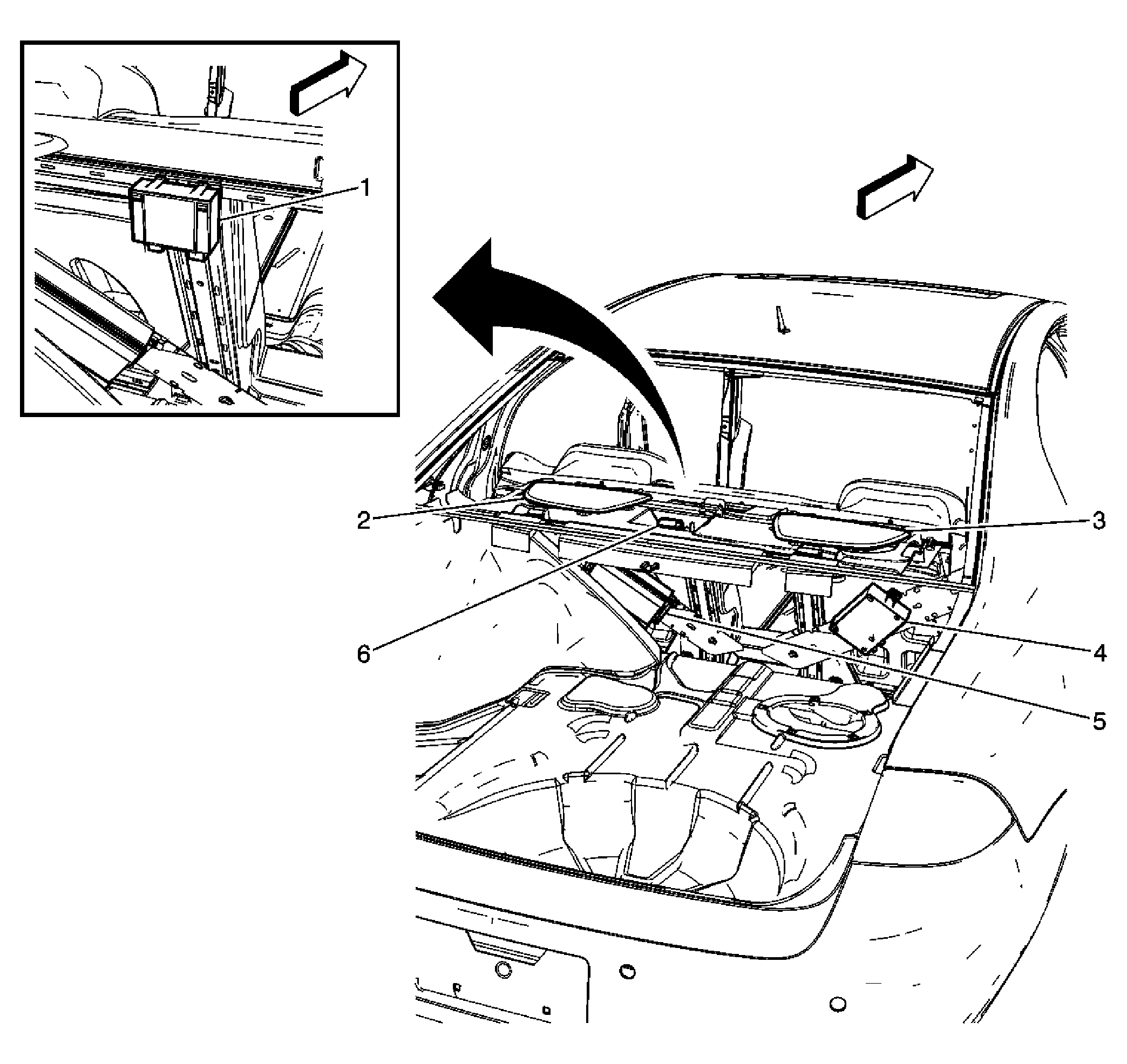

| Callout | Component Name |
|---|---|
| 1 | Remote Control Door Lock Receiver (RCDLR) |
| 2 | Rear Park Assist Indicator (UD7) |
| 3 | Speaker - RR |
| 4 | Vehicle Communication Interface Module (VCIM) (UE1) |
| 5 | Amplifier (UQA) |
| 6 | Rear Compartment Courtesy Lamp |
| 7 | Speaker - LR |

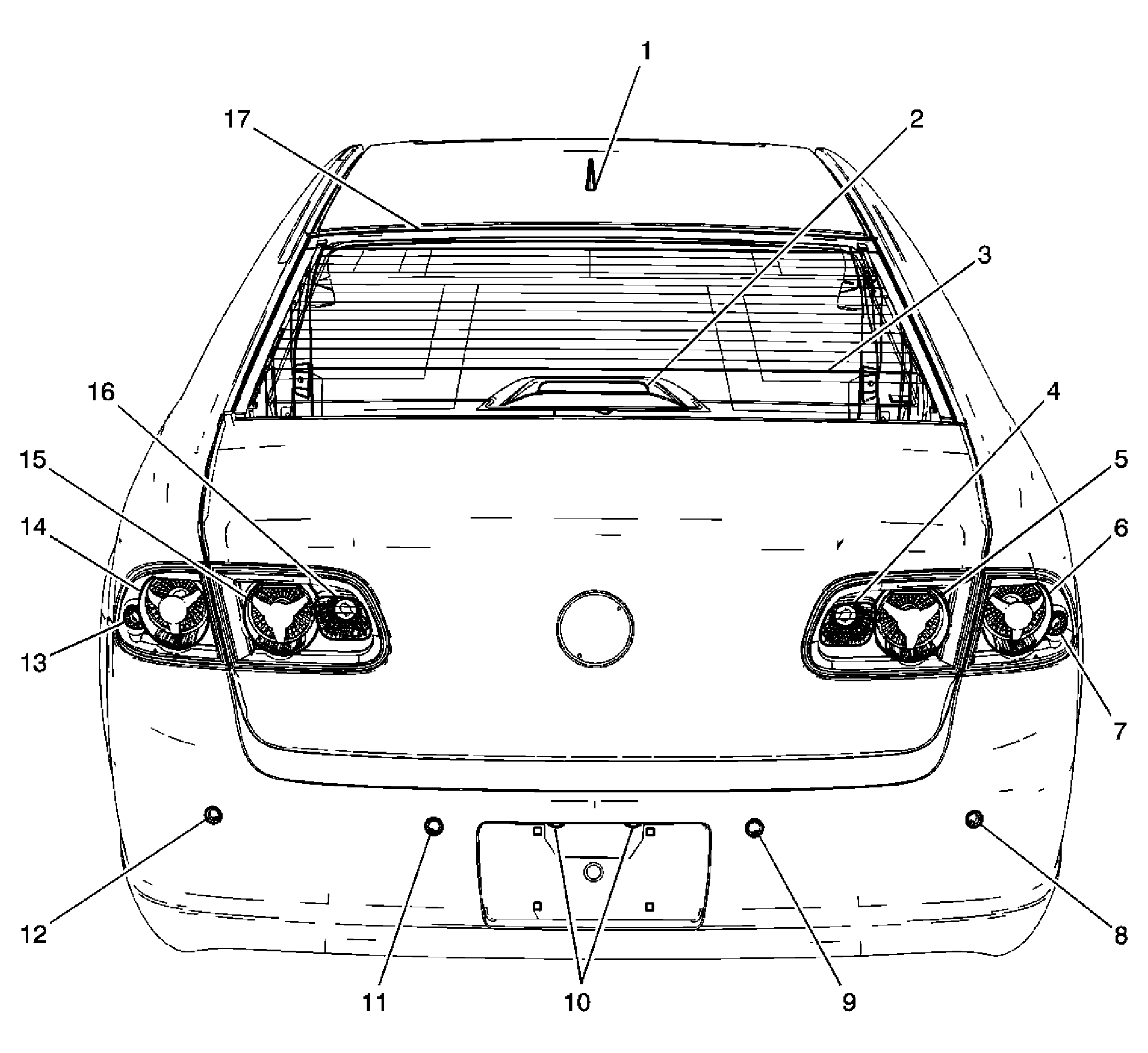

| Callout | Component Name |
|---|---|
| 1 | Cellular Navigation (UE1) and Digital Radio Antenna (U2K) |
| 2 | Center High Mounted Stop Lamp (CHMSL) |
| 3 | Rear Window Defogger |
| 4 | Backup Lamp - RR |
| 5 | Tail Lamp - Right Auxiliary |
| 6 | Stop/Turn Signal Lamp - RR |
| 7 | Marker Lamp - RR |
| 8 | Object Alarm Sensor - RR Corner (UFR) |
| 9 | Object Alarm Sensor - RR Middle (UFR) |
| 10 | License Lamps |
| 11 | Object Alarm Sensor - LR Middle (UFR) |
| 12 | Object Alarm Sensor - LR Corner (UFR) |
| 13 | Marker Lamp - LR |
| 14 | Stop/Turn Signal Lamp - LR |
| 15 | Tail Lamp - Left Auxiliary |
| 16 | Backup Lamp - LR |
| 17 | Radio Rear Glass Antenna |
