Object Alarm Module C2

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

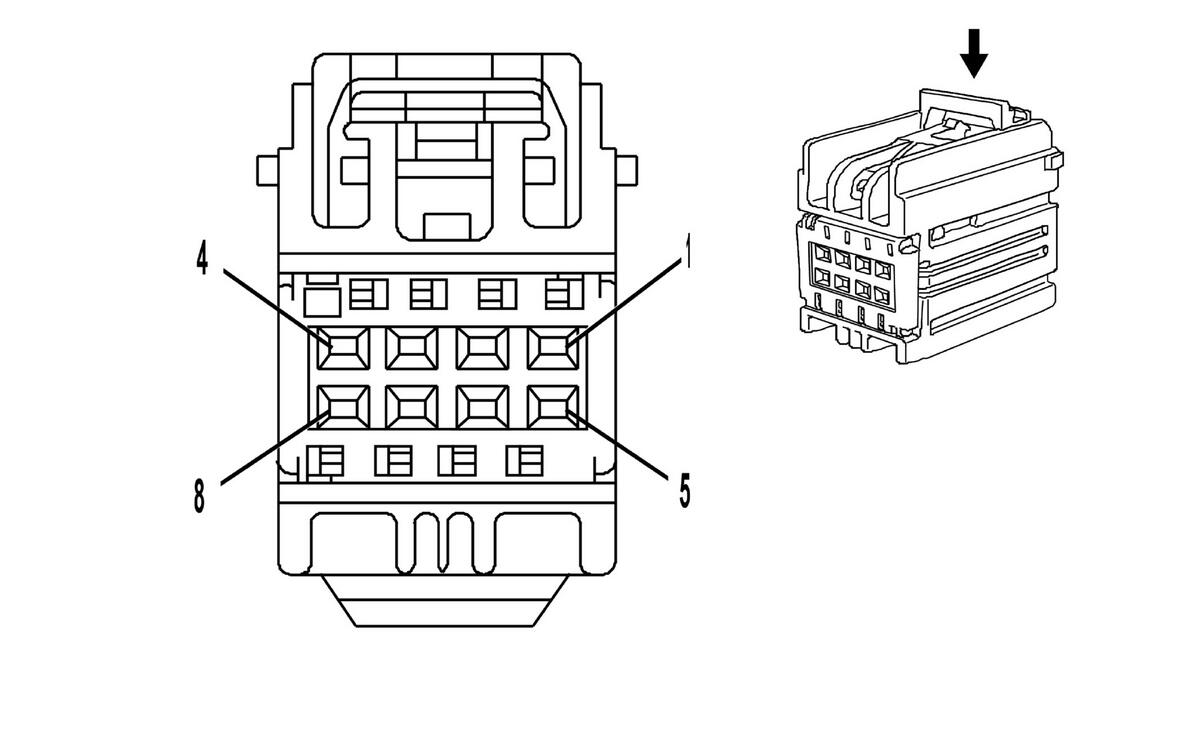

Fig 1: Object Alarm Module C2 Connector End View
GM1664573Courtesy of GENERAL MOTORS CORP.
Object Detection Connector End Views

Connector Part Information
  • OEM: 7283-9029-40
  • Service: See Catalog
  • Description: 8-Way F (GY)
Terminal Part Information
  • Pins: 1, 2, 3, 4, 5, 8
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
Object Alarm Module C2

Pin Wire Color Circuit No. Function
1 PU 2378 RR Corner Object Sensor Signal
2 D-GN 2377 RR Middle Object Sensor Signal
3 OG 2376 LR Middle Object Sensor Signal
4 D-BU 2374 Object Sensor Supply Voltage
5 YE 2375 LR Corner Object Sensor Signal
6-7 - - Not Used
8 GY 2379 Object Sensor Low Reference
