Information Center Telltale Assembly Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

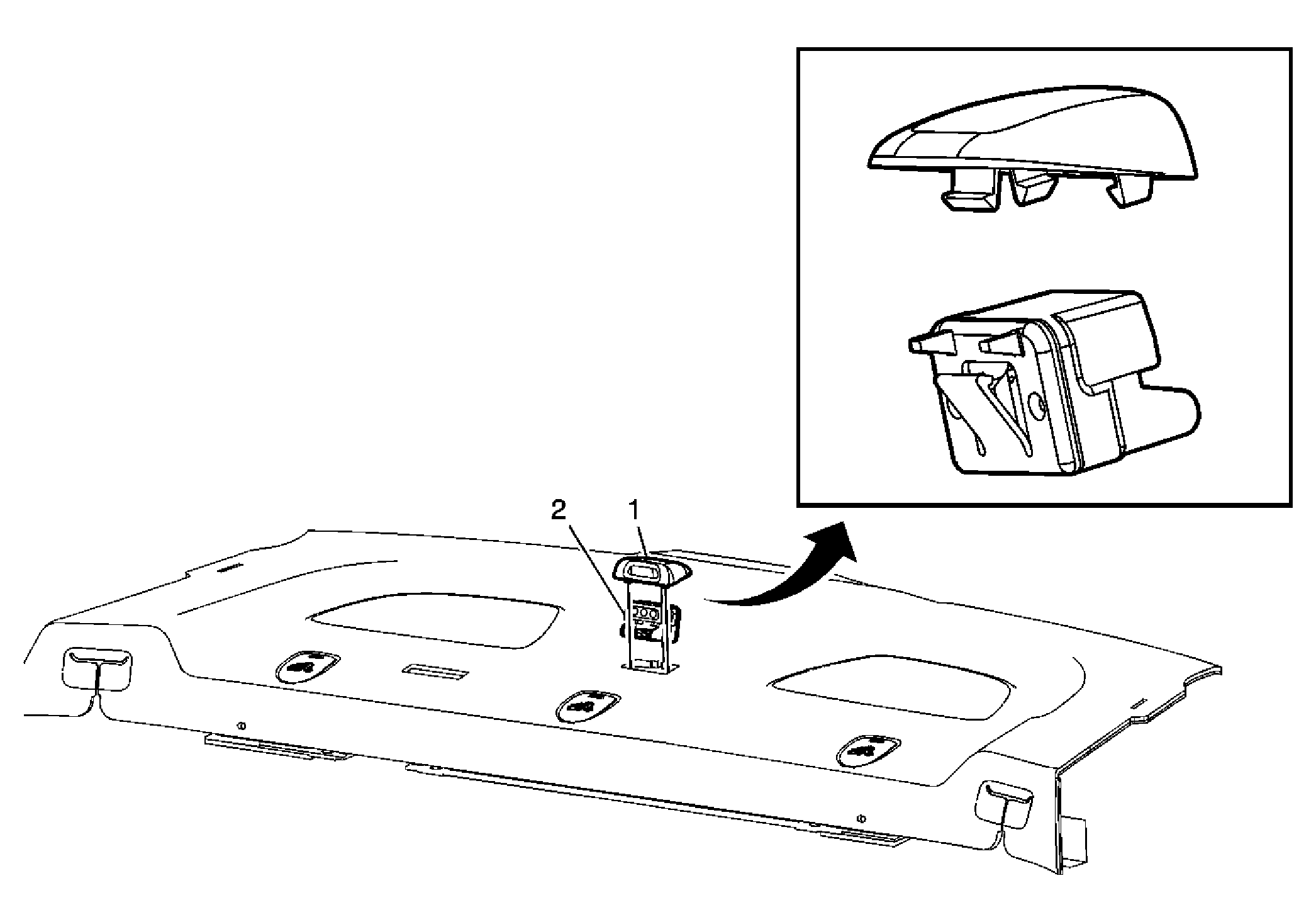

Fig 1: Identifying Information Center Telltale Assembly
GM1772800Courtesy of GENERAL MOTORS CORP.
Information Center Telltale Assembly Replacement

Callout Component Name
Preliminary Procedures:
Remove the right rear compartment side trim panel. Refer to Rear Compartment Trim Panel Replacement .
1 Information Center Telltale Assembly Bezel
Tip:  Using a flat bladed tool from inside the trunk separate the bezel side tabs from the module and pull up and forward to release the bezel.
2 Information Center Telltale Module Assembly
  1. Push up from the bottom through the top of the rear shelf trim.
  2. Disconnect the electrical connector.
