Object Alarm Module Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

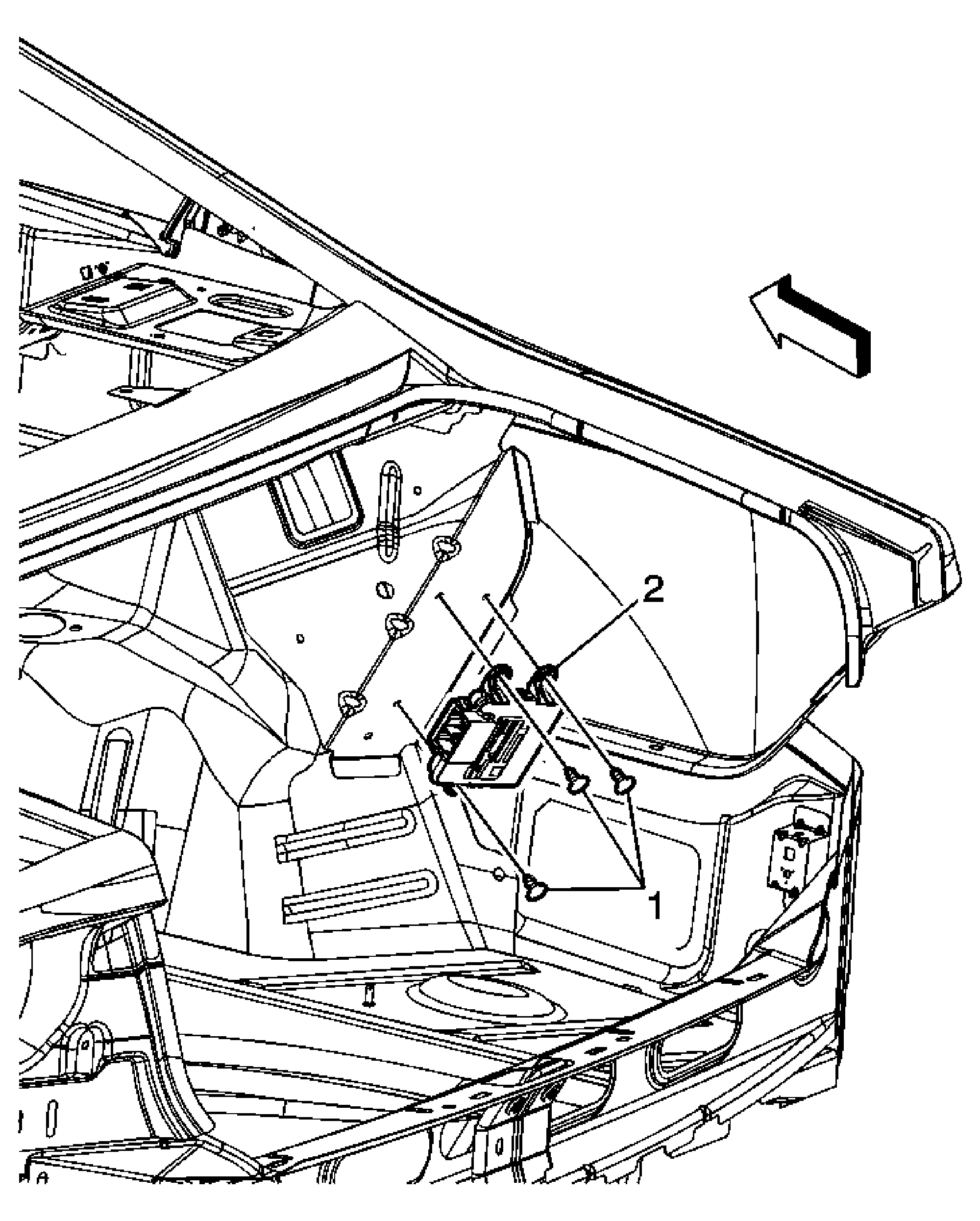

Fig 1: Identifying Object Alarm Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the right rear compartment side trim panel. Refer to Rear Compartment Trim Panel Replacement . Refer to Control Module References for replacement and setup information.
1	Object Alarm Module Push-in Retainer (Qty: 3)
2	Object Alarm Module Tip: Disconnect electrical connectors.
