Seat Belt Component Views

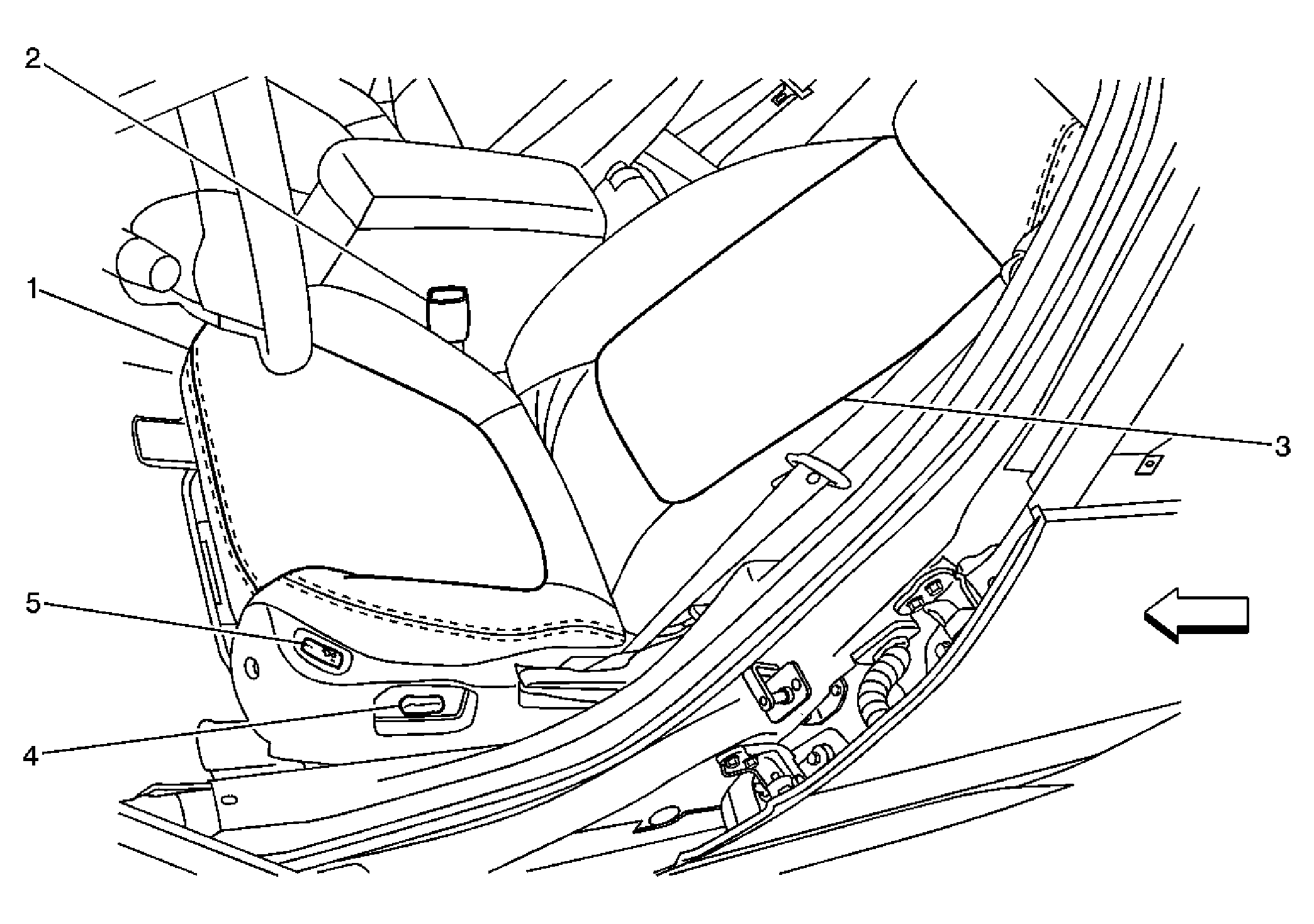

Fig 1: Driver Seat Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Heated Seat Element - Driver Cushion (KA1)
2
Seat Belt Switch
3
Heated Seat Element - Driver Back (KA1)
4
Seat Adjuster Switch - Driver (AG1/ASN)
5
Heated Seat Switch - Driver (KA1)
